Dramm - Aluminum Bench Riser Assembly with JetRain Nozzle
Brand: Dramm

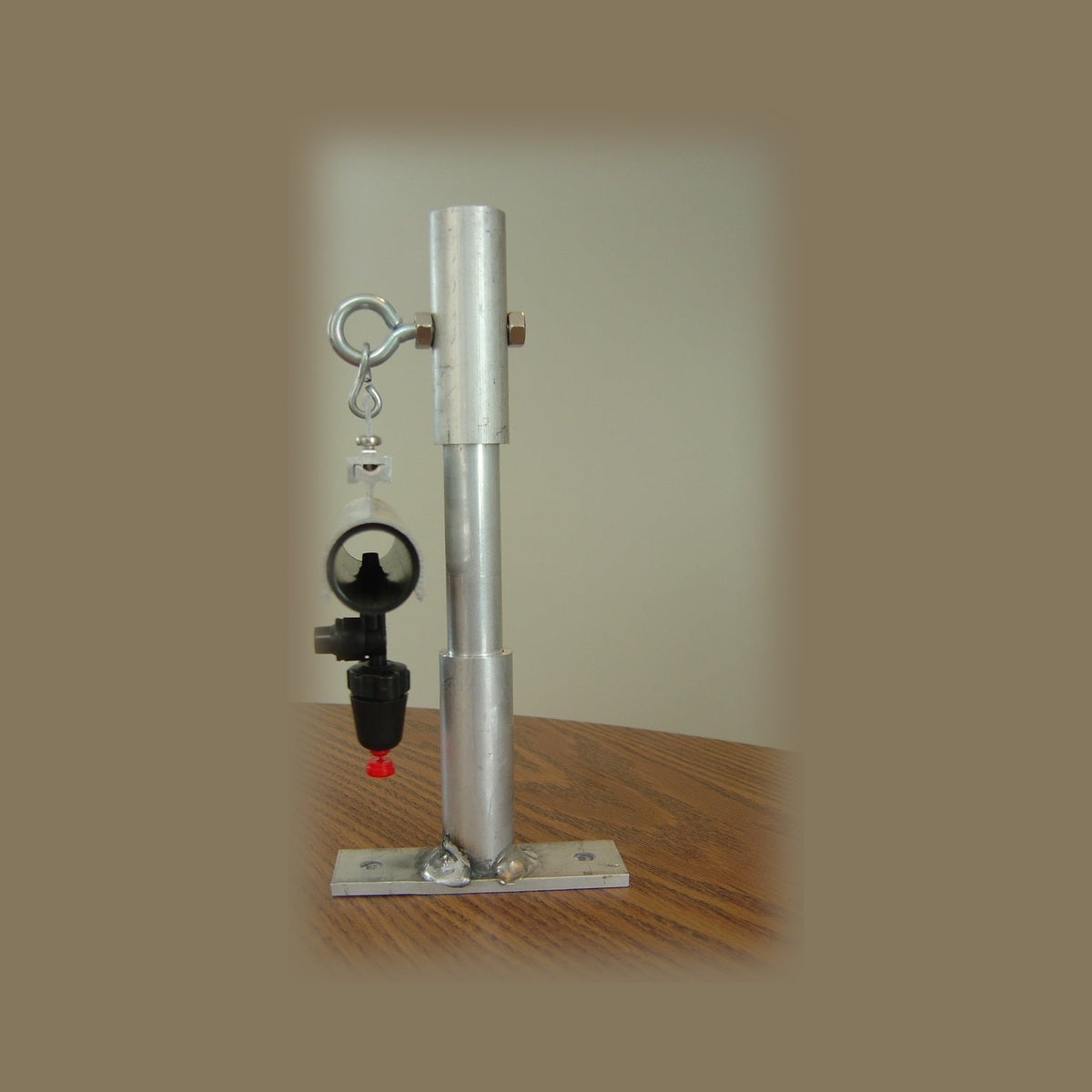

Aluminum Bench Riser Assembly with JetRain Nozzle
A made-up riser: an aluminum stem that lifts a JetRain nozzle above the pipe or bench so the pattern clears the crop, supplied with the nozzle already fitted. Dramm's bench riser approach exists for rolling benches, where the nozzles have to travel with the bench so the pattern lands in the same place wherever the bench is rolled. Buying it assembled saves building the stack from stem, check valve and cone on site, which matters when a house needs several hundred of them.
Three choices. Riser height is the stem, 15 inch or 20 inch, picked from how tall the crop finishes and how far the pattern has to spread from that height. Nozzle color is the flow rate, from Dramm's published 360 degree JetRain chart measured at 40 psi: White 0.48 gpm (1.8 L/min) and Blue 0.48 gpm (1.8 L/min) are the propagation mist pair with 7 ft maximum coverage, and Red 0.79 gpm (3.0 L/min) covers up to 11 ft for mist and irrigation. Shutoff valve is whether the riser can be closed on its own: No Valve is the plain assembly, and With MicroValve adds a small valve at the riser so one position can be shut down without isolating the rest of the line, which earns its keep where benches are emptied and refilled a bench at a time. Not every combination of the three is built - check the variant list before assuming a given height, color and valve choice exist together.
Specifications
| Riser height | 15 inch or 20 inch stem, by option |
| Riser material | Aluminum |
| Nozzle fitted | JetRain 360 degree nozzle, factory assembled to the riser |
| Nozzle flow at 40 psi | White 0.48 gpm (1.8 L/min); Blue 0.48 gpm (1.8 L/min); Red 0.79 gpm (3.0 L/min) |
| Maximum coverage | White and Blue 7 ft; Red 11 ft |
| Shutoff valve | No Valve, or With MicroValve to close a single riser |
| Colors offered | White, Blue and Red; the 1.37 gpm Yellow JetRain is not offered on this assembly |
Configurations
| Riser Height | Nozzle Flow Rate - Color | Shutoff Valve | Part number |
|---|---|---|---|
| 15 inch | White - 0.48 gpm | No Valve | ALBR15-JR-WH |
| 20 inch | White - 0.48 gpm | No Valve | ALBR20-JR-WH |
| 15 inch | Blue - 0.48 gpm | No Valve | ALBR15-JR-BL |
| 20 inch | Blue - 0.48 gpm | No Valve | ALBR20-JR-BL |
| 15 inch | Red - 0.79 gpm | No Valve | ALBR15-JR-RD |
| 20 inch | Red - 0.79 gpm | No Valve | ALBR20-JR-RD |
| 15 inch | White - 0.48 gpm | With MicroValve | ALBR15-JR-WH-MV |
| 20 inch | White - 0.48 gpm | With MicroValve | ALBR20-JR-WH-MV |
| 15 inch | Blue - 0.48 gpm | With MicroValve | ALBR15-JRBL-MV |
| 20 inch | Blue - 0.48 gpm | With MicroValve | ALBR20-JRBL-MV |
| 20 inch | Red - 0.79 gpm | With MicroValve | ALBR20-JR-RD-MV |
Key Features
- Nozzle arrives fitted, so there is nothing to assemble in the house
- Aluminum stem rather than plastic
- Keeps nozzles travelling with a rolling bench so the pattern lands in the same place every cycle
- Two stem heights to suit crop height and required spread
- MicroValve option closes a single riser without isolating the line
- Color-coded JetRain nozzle keeps the flow rate readable once installed
Ideal Applications
- Rolling bench propagation and finishing
- Fixed bench container crops
- Bedding plant production
- Ground bed and outdoor pad irrigation
- Replacing individual riser positions on an existing system
Dramm's PolyRail Bench Riser components - the aluminum riser base and cap, published in 24, 36 and 48 inch heights - are the other half of the same system, supporting a full PolyRail line over a bench rather than a single nozzle; the JetRain nozzles fitted here are also sold on their own.
