Dimlux - Xtreme Series NIR (Far-Red) + UV-A Add-On Bar

Brand: Dimlux

Dimlux Xtreme Series NIR (Far-Red) + UV-A Add-On Bar

The Dimlux Xtreme NIR + UV-A add-on is a supplemental high-power LED bar with two independently adjustable channels: far-red (NIR, 670-760 nm) and UV-A (370-405 nm). It is designed for seamless integration with the Dimlux Xtreme Series LED fixtures and is listed by Dimlux as an optional add-on for the Xtreme MKII, with a built-in controller and light sensor, a patented wide beam ultra high transmittance lens and passive thermal management.

Independent channel control lets operators mix the right amount of far-red and UV-A at any point in the crop cycle, for example raising UV-A gradually as the crop develops or adding far-red at the start of the night period. The bar runs on 120-277V AC with daisy-chained power and Interlink connections, so multiple units can run from a single outlet, and it can be controlled by the Dimlux Maxi Controller or third-party controllers. The manufacturer notes it also fits other fixtures with 5 cm (1.97 in) beam spacing and support arms 72 cm (28.34 in) apart for the 70W or 108 cm (42.51 in) apart for the 140W, or it can be hung standalone.

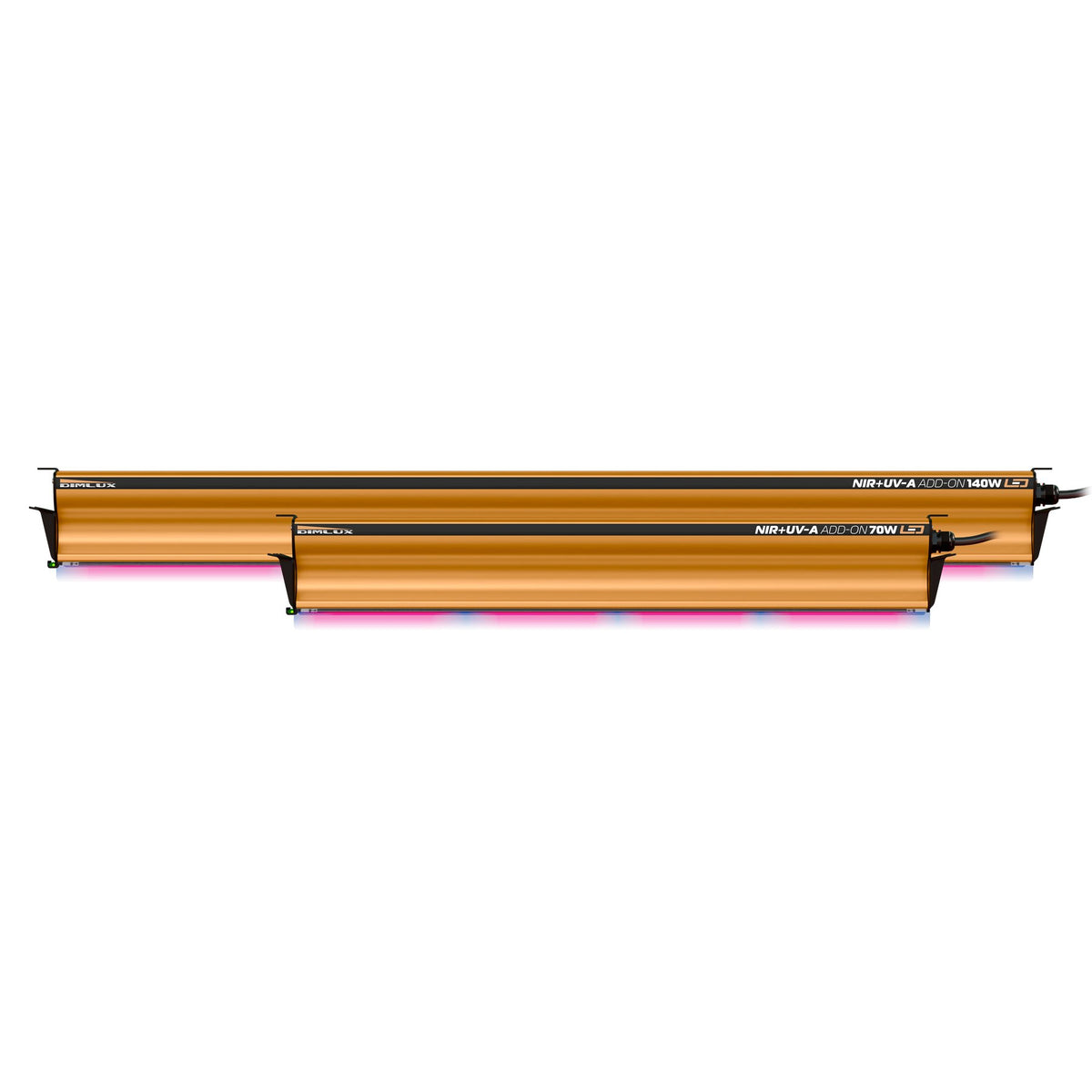

Available Options

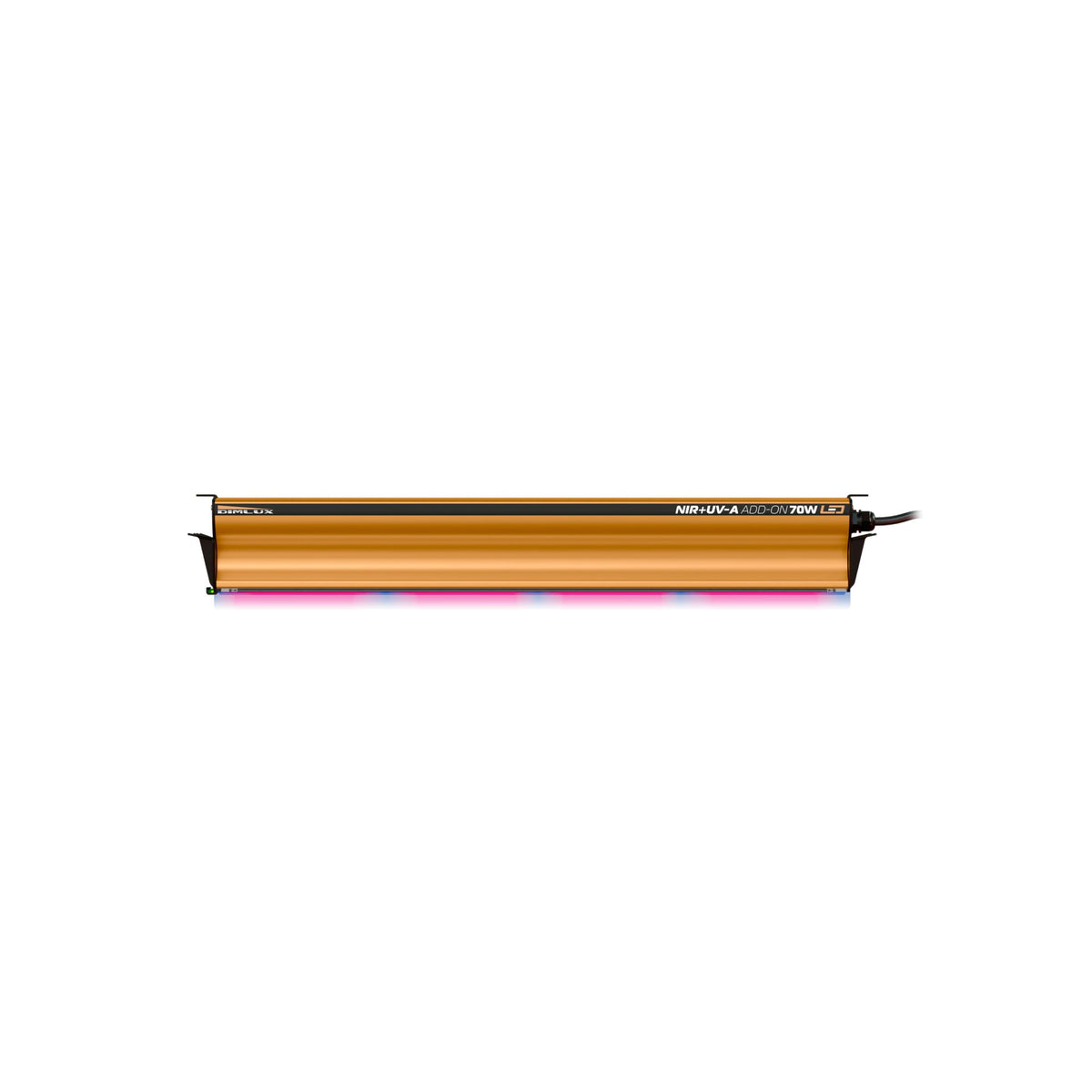

• 70w - 50W far-red + 20W UV-A LED; 123 umol/s far-red and 31 umol/s UV-A photon flux; 72.5W input at 230V

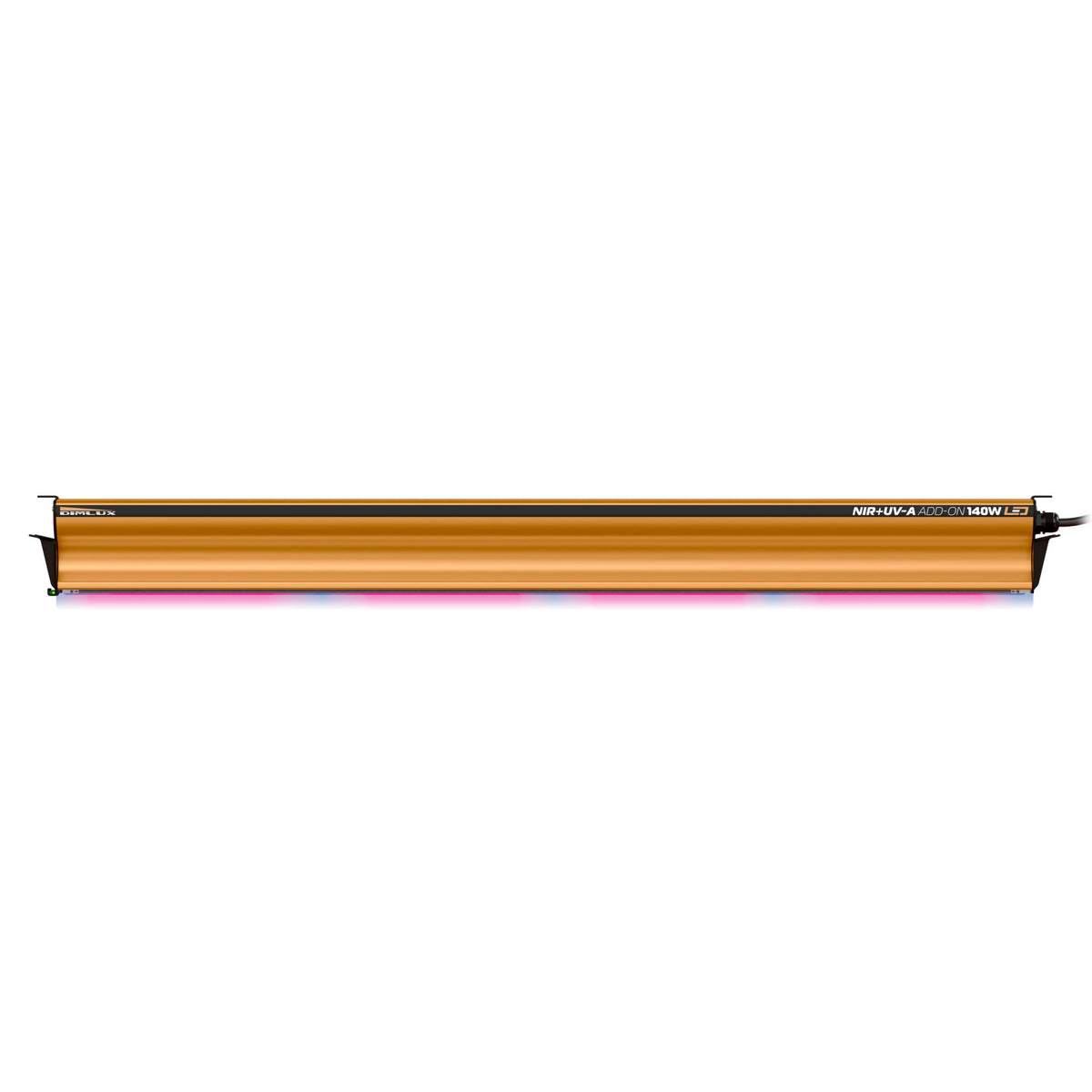

• 140w - 100W far-red + 40W UV-A LED; 247 umol/s far-red and 62 umol/s UV-A photon flux; 156.1W input at 230V

Key Features

• Dual-band LED with separately adjustable far-red (NIR) and UV-A channels

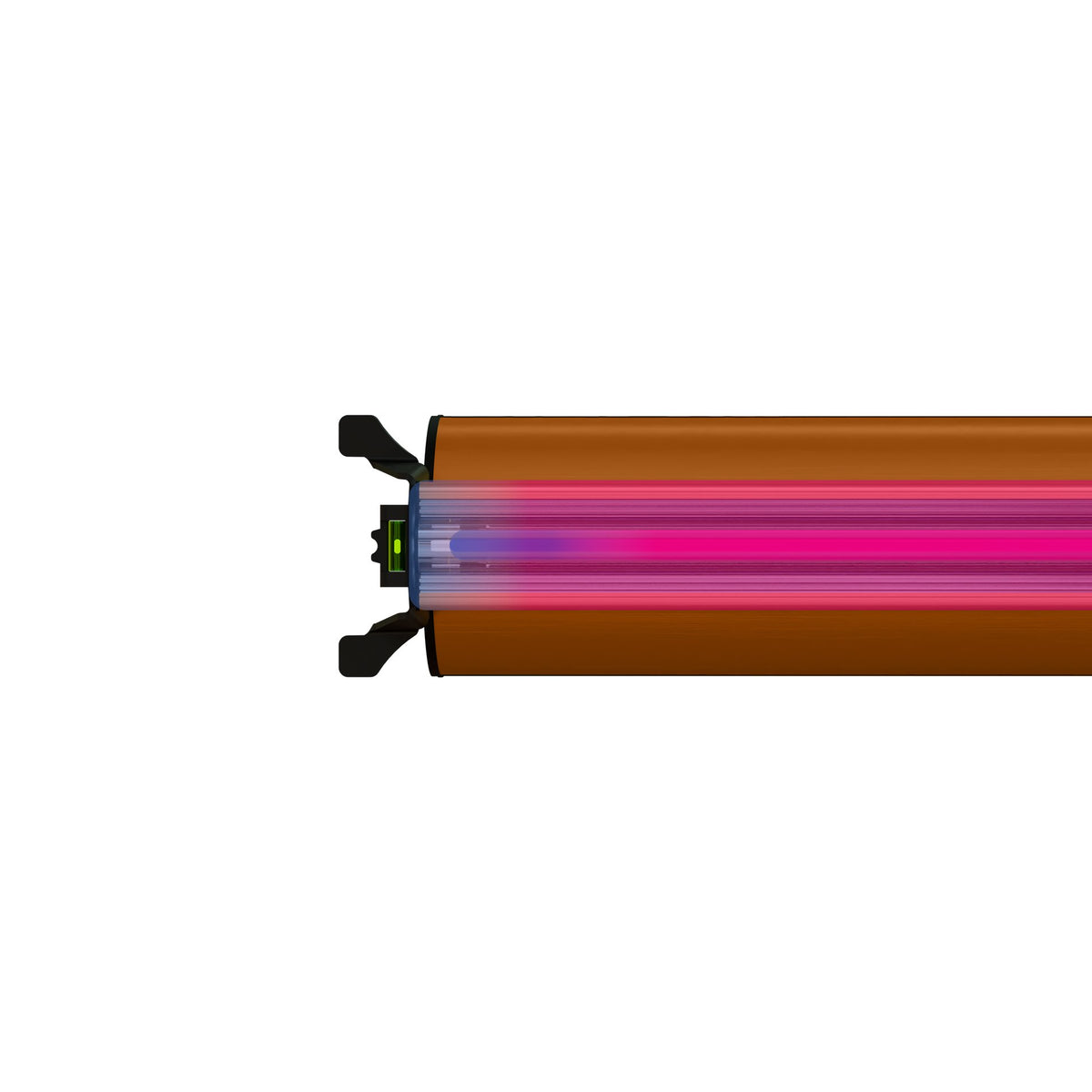

• Patented wide beam ultra high transmittance lens
• Built-in controller with light sensor; works with the Dimlux Maxi Controller or third-party controllers
• Daisy-chained power and Interlink connections; firmware upgradeable by Wi-Fi or Interlink
• Built-in spirit level for horizontal adjustment
• AC input 120-277V, 50/60 Hz; 70W draws 0.65 A at 120V / 0.27 A at 277V, 140W draws 1.3 A at 120V / 0.56 A at 277V
• Total harmonic distortion below 10 percent; passive thermal management
• Operating temperature 0-40 deg C, non-condensing
• 70W coverage: 100 x 100 cm (40 x 40 in) at min. 50 cm (20 in) or 120 x 120 cm (4 x 4 ft) at min. 60 cm (2 ft)
• 140W coverage: 120 x 120 cm (4 x 4 ft) at min. 60 cm (2 ft) or 150 x 150 cm (5 x 5 ft) at min. 75 cm (2.5 ft)
• Dimensions per manufacturer drawings: 70W 778 x 80 x 108 mm (30.6 x 3.1 x 4.3 in); 140W 1106 x 80 x 108 mm (43.5 x 3.1 x 4.3 in)
• IP50; certifications CE, UL 8800 and UL 1598 Wet Location
• Photobiological safety IEC 62471 Risk Group 2 - caution, UV emitted
• Lifetime L90 over 50,000 hours; 3-year standard warranty

Ideal Applications

• Adding far-red and UV-A to Dimlux Xtreme Series LED installations
• Upgrading compatible multi-bar LED fixtures from other brands
• Standalone supplemental far-red and UV-A lighting in commercial indoor cultivation rooms
• End-of-day far-red and staged UV-A programs in controlled-environment agriculture
