Dimlux - Xtreme Series MKII ION LED Fixture

Brand: Dimlux

Dimlux Xtreme Series MKII ION LED Fixture

The Dimlux Xtreme Series MKII ION is a multi-bar LED top light designed and engineered in the Netherlands for professional cultivation facilities. It pairs the adjustable PhytoVegSpec spectrum with a patented integrated negative ionizer and cold plasma generator, and reaches up to 3.6 umol/J total photon efficacy (350-800 nm) on the 1050W standard model. Every fixture is IP65 rated, passively cooled and backed by a 5-year standard warranty.

Spectrum and output can be programmed by growth stage and time of day from the built-in color display, a lead fixture, the Dimlux Smart Remote Controller or Maxi Controller, or 0-10V third-party controllers, and the fixture supports the Hortivation HLP protocol and a JSON-based API for building management systems such as Priva, Hoogendoorn and Ridder. The +NIR models add extra far-red for a more complete spectrum and slightly more stretch, while the standard models suit operators who want the most compact plants. Dimlux NIR + UV-A and UV-B add-ons can be added later to extend the spectrum.

Available Options

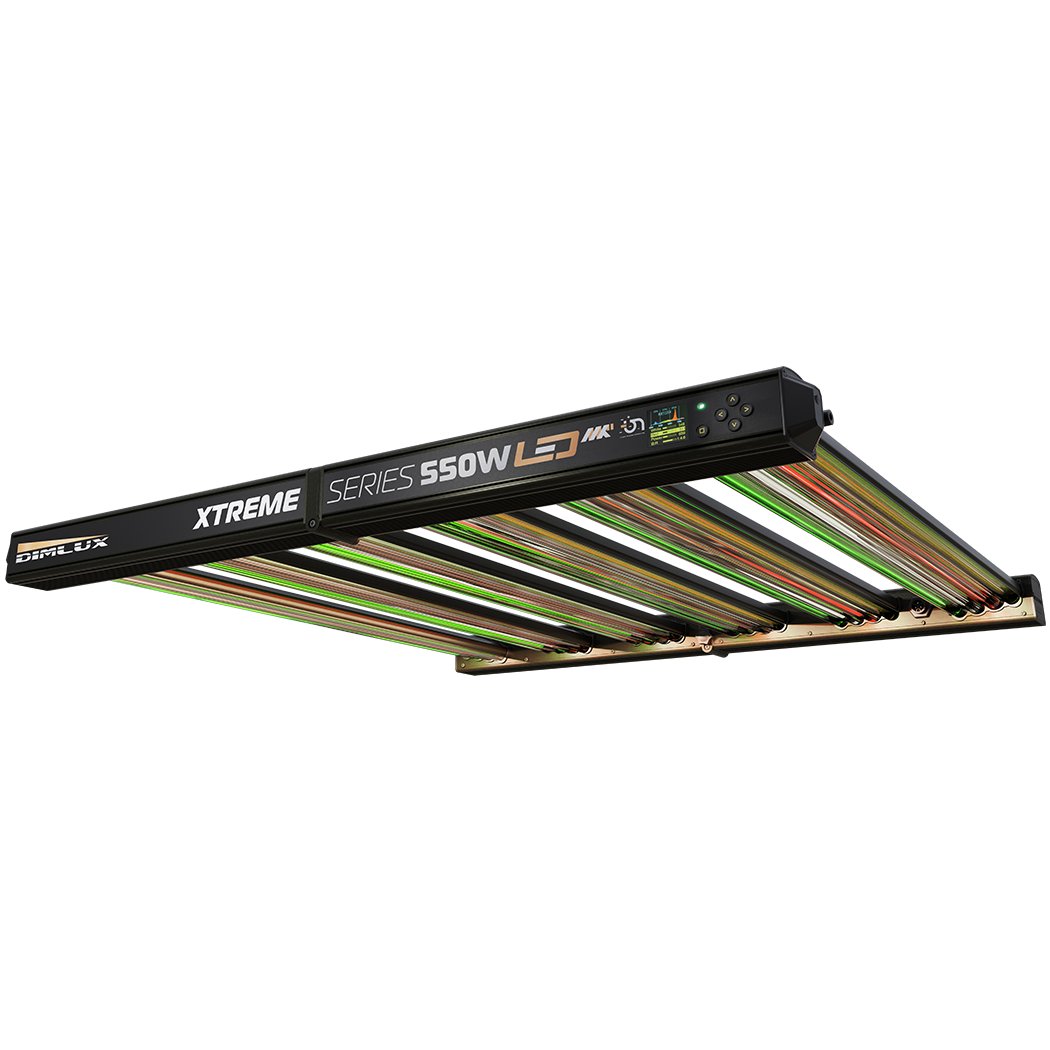

• 550w / Standard / 240V - 1965 umol/s PPF, 3.45 umol/J total efficacy, 578W input
• 550w / Standard / 277V - 1965 umol/s PPF, 3.45 umol/J total efficacy, 578W input
• 550w / + Far-Red (NIR) / 240V - 3.4 umol/J total efficacy, 578W input
• 550w / + Far-Red (NIR) / 277V - 3.4 umol/J total efficacy, 578W input
• 800w / Standard / 240V - 2884 umol/s PPF, 3.5 umol/J total efficacy, 836W input
• 800w / Standard / 277V - 2884 umol/s PPF, 3.5 umol/J total efficacy, 836W input
• 800w / + Far-Red (NIR) / 240V - 2663 umol/s PPF, 3.45 umol/J total efficacy, 832W input
• 800w / + Far-Red (NIR) / 277V - 2663 umol/s PPF, 3.45 umol/J total efficacy, 832W input

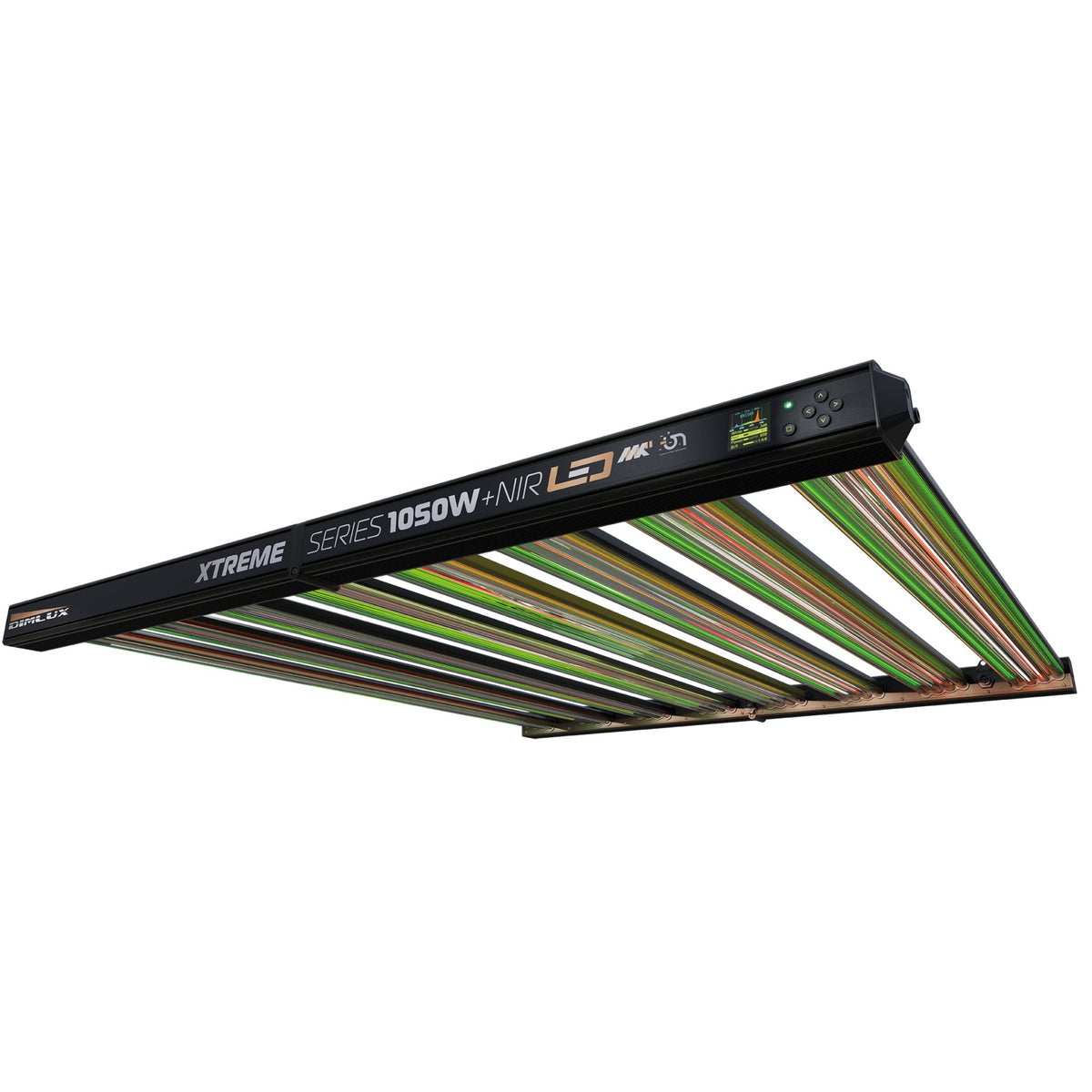

• 1050w / Standard / 240V - 3877 umol/s PPF, 3.6 umol/J total efficacy, 1092W input
• 1050w / Standard / 277V - 3877 umol/s PPF, 3.6 umol/J total efficacy, 1092W input
• 1050w / + Far-Red (NIR) / 240V - 3604 umol/s PPF, 3.5 umol/J total efficacy, 1092W input
• 1050w / + Far-Red (NIR) / 277V - 3604 umol/s PPF, 3.5 umol/J total efficacy, 1092W input

Key Features

• Adjustable PhytoVegSpec spectrum with Grow, Bloom, Manual and Advanced programming modes
• PPF figures are 400-700 nm; total photon efficacy (350-800 nm) of 3.4 to 3.6 umol/J depending on model, measured at 230-240V AC

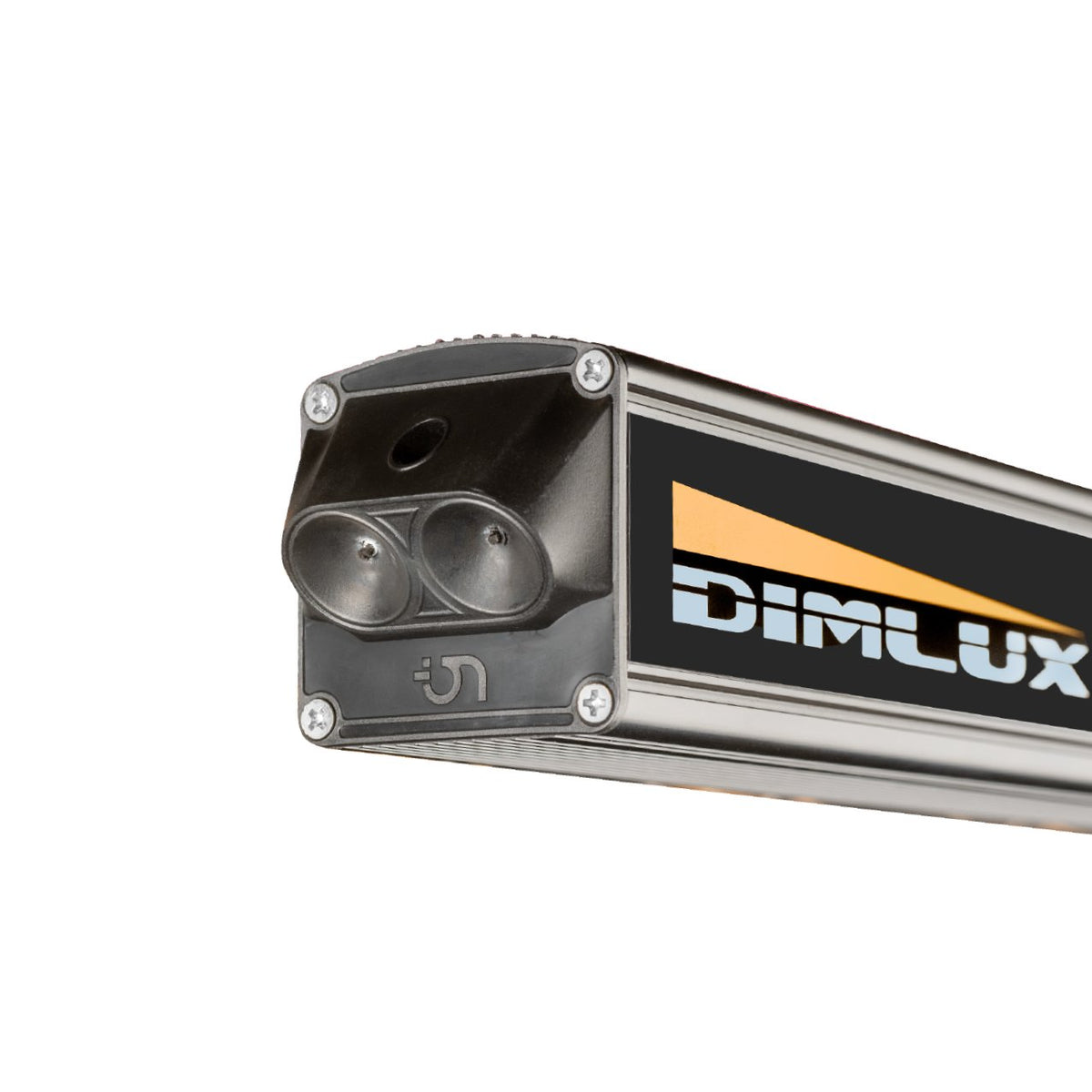

• Patented negative ionizer and cold plasma generator; ozone non-detectable (below 0.05 ppm); ion ratio adjustable and ionizer can be switched off
• Patented Deep Penetration Ultra High Transmittance Lens with 90 x 120 deg beam angle
• Patented multi-color (65k) auxiliary light pipe that can serve as a green work light in the night phase, switched on automatically by the built-in Doppler radar proximity sensor

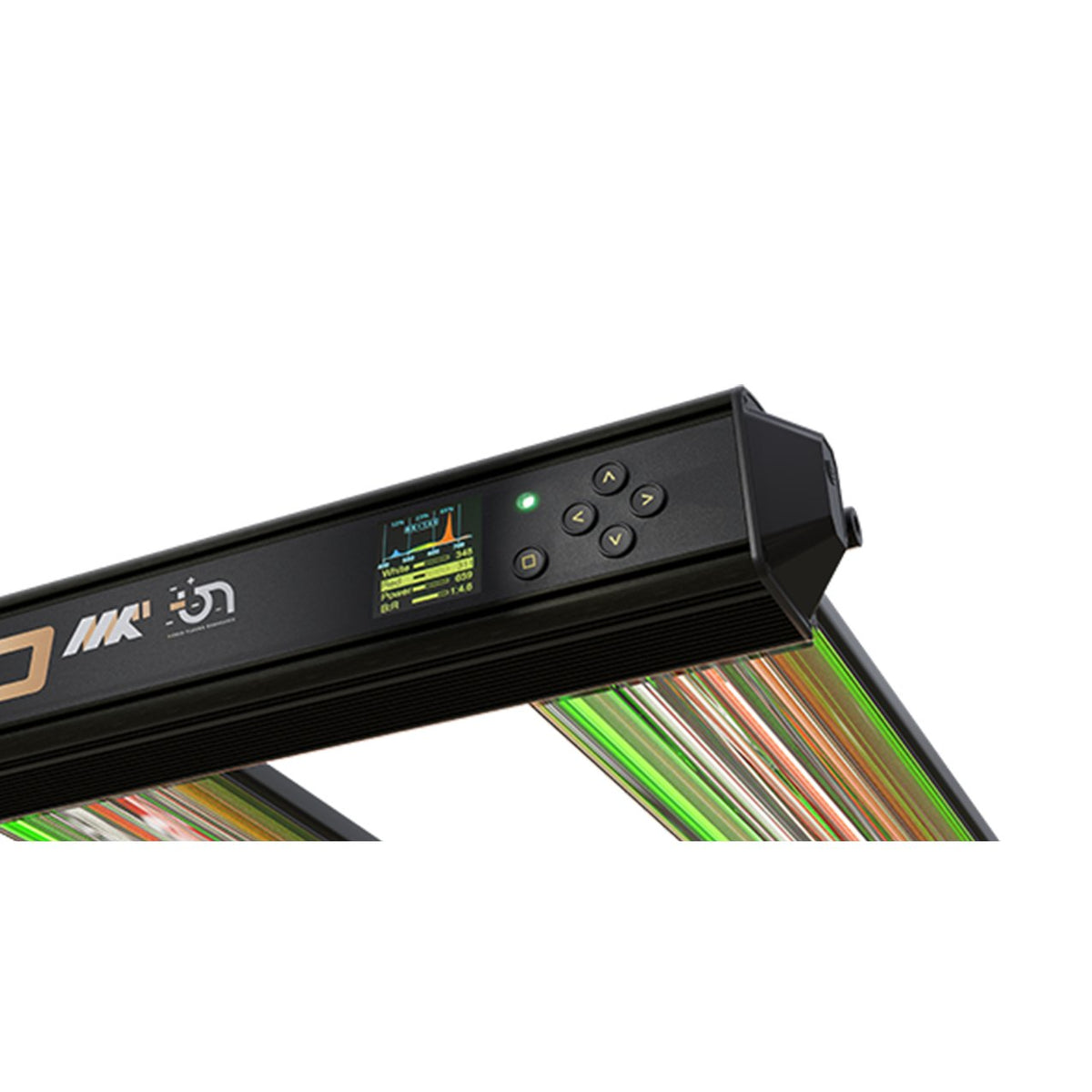

• 1.54 in 65k color IPS display for spectrum and settings
• 3 smartports: Interlink, plant temperature sensor and light sensor
• AC input 208-400V, 50/60 Hz; total harmonic distortion below 20 percent
• Passive thermal management; max. ambient temperature 35 deg C / 95 deg F
• IP65; certifications CE, UL 8800, UL 1598 Wet Location and DLC
• Lifetime L90 over 50,000 hours; 5-year standard warranty
• 550W: 32.8 x 33.2 x 2.2 in, 27.3 lb, min. 19.7 in (50 cm) above canopy
• 800W: 46.9 x 44.25 x 2.2 in, 35.5 lb, min. 23.6 in (60 cm) above canopy
• 1050W: 46.9 x 44.25 x 2.2 in, 45.8 lb, min. 28 in (70 cm) above canopy

Ideal Applications

• Commercial indoor cultivation facilities and controlled-environment agriculture operations
• Vegetative and flowering rooms that need stage-specific spectrum control
• Facilities looking to reduce airborne pathogen pressure at canopy level
• Lighting upgrades integrated with existing building management or climate control systems
• Expandable installations planned for NIR + UV-A or UV-B add-ons
