Dimlux - Xplore Series Add-On Bars - 25W (Pair)

Brand: Dimlux

Dimlux Xplore Series Add-On Bars - 25W (Pair)

Dimlux Xplore Series 25W add-on bars are supplemental LED bars that extend the spectrum of a multi-bar LED fixture with UV-A, far-red (NIR) or combined UV-A + NIR light. Each package contains two 25W bars. The bars are made specifically to fit the Dimlux Xplore 730W and 800W fixtures, and the manufacturer notes they can be hung from the frame of other multi-bar LED fixtures as well.

Each version has its own spectrum, and the UV-A and NIR bars can be run together in one setup on separate timers, while the combined UV-A + NIR version keeps installation simple. The bars mount from below with brackets placed over the LED frame, link together with male and female connectors, and up to 40 bars can be connected and powered from a single outlet or a Dimlux Aux-Box. Recommended mounting height and bar spacing are both 50-75 cm (20-30 in).

Available Options

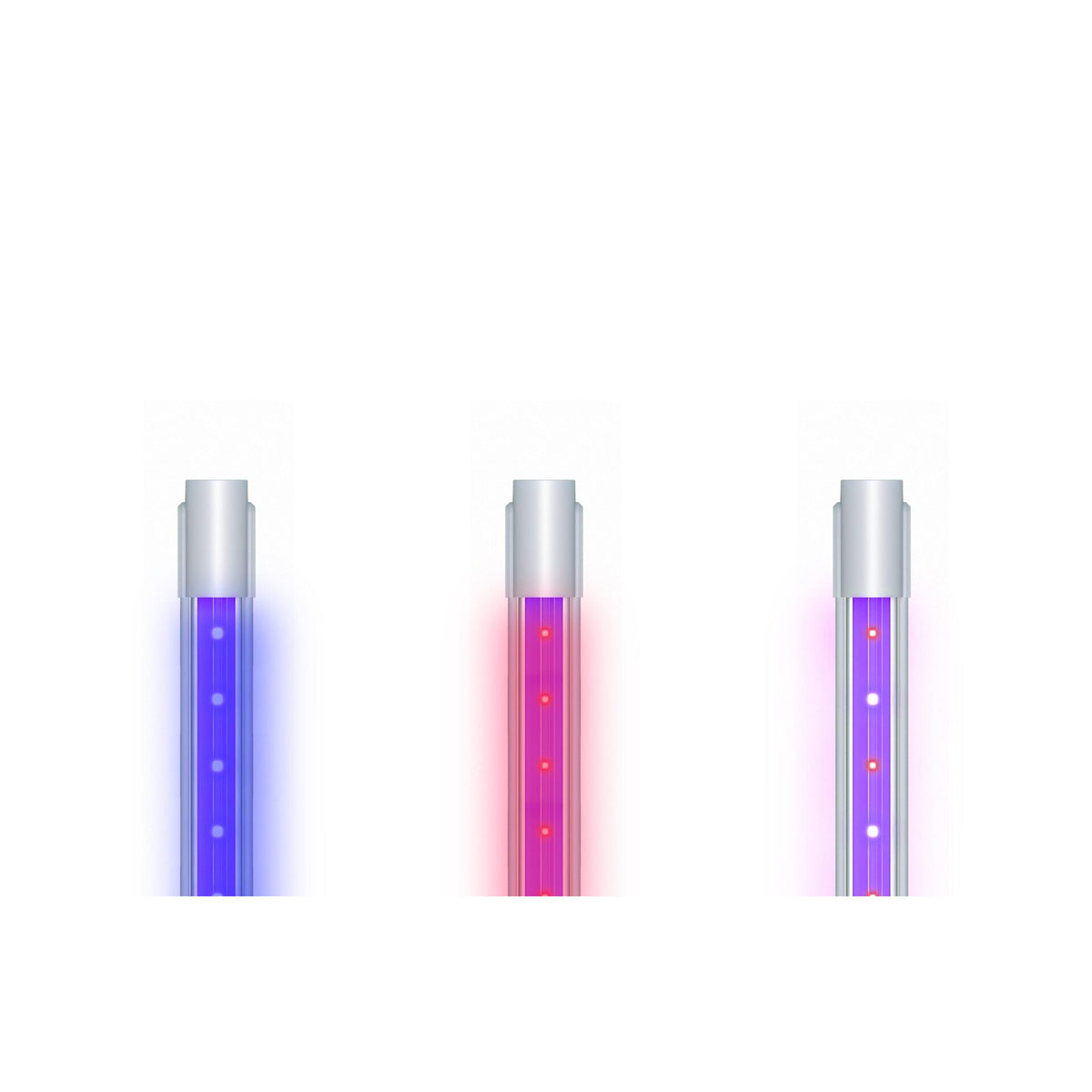

• UV-A - 43 umol/s total photon output per pair (350-800 nm), 0.86 umol/J
• NIR (Far-Red) - 82.5 umol/s total photon output per pair (350-800 nm), 1.65 umol/J
• UV-A + NIR (Far-Red) - 96.7 umol/s total photon output per pair (350-800 nm), 1.93 umol/J

Key Features

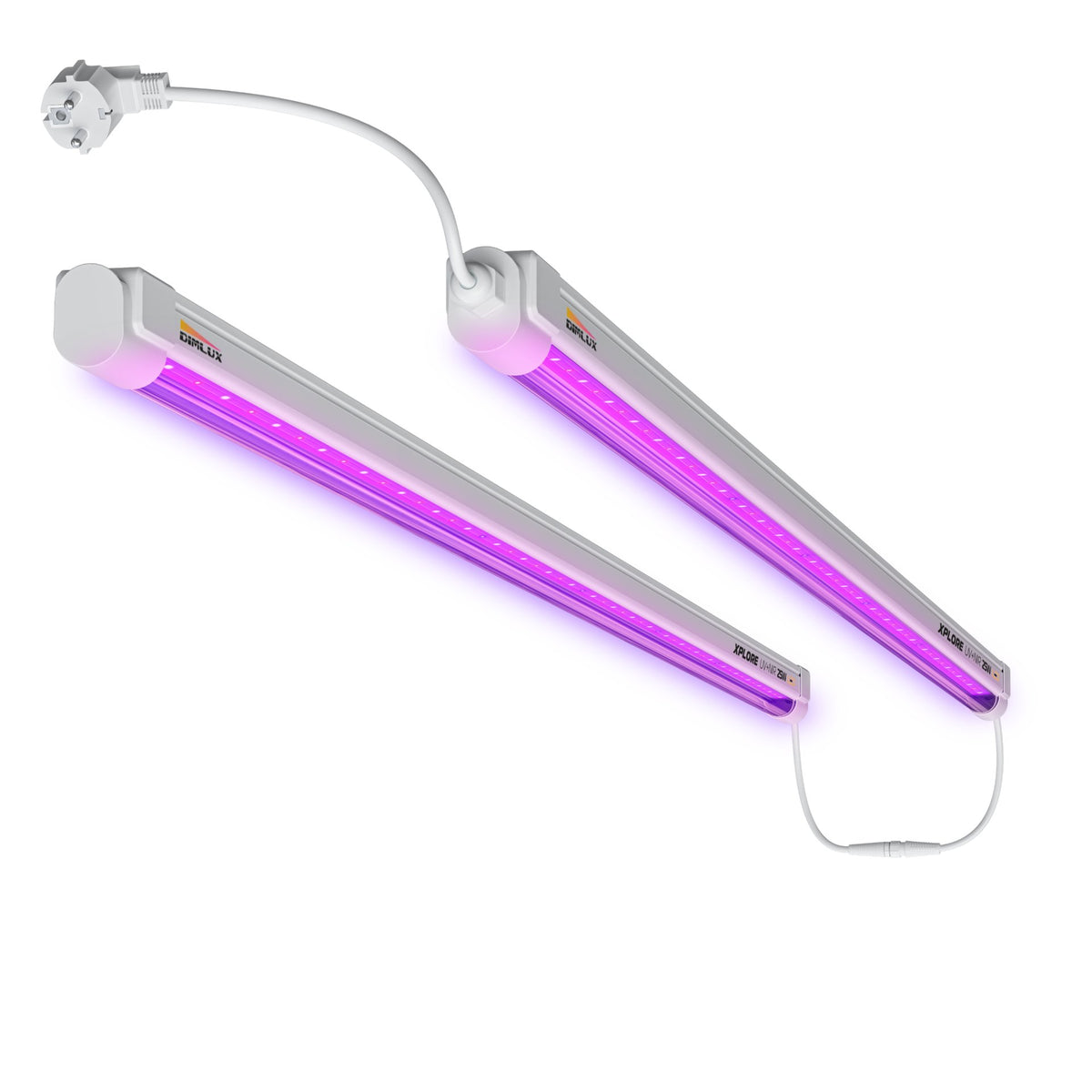

• Two 25W LED bars per package

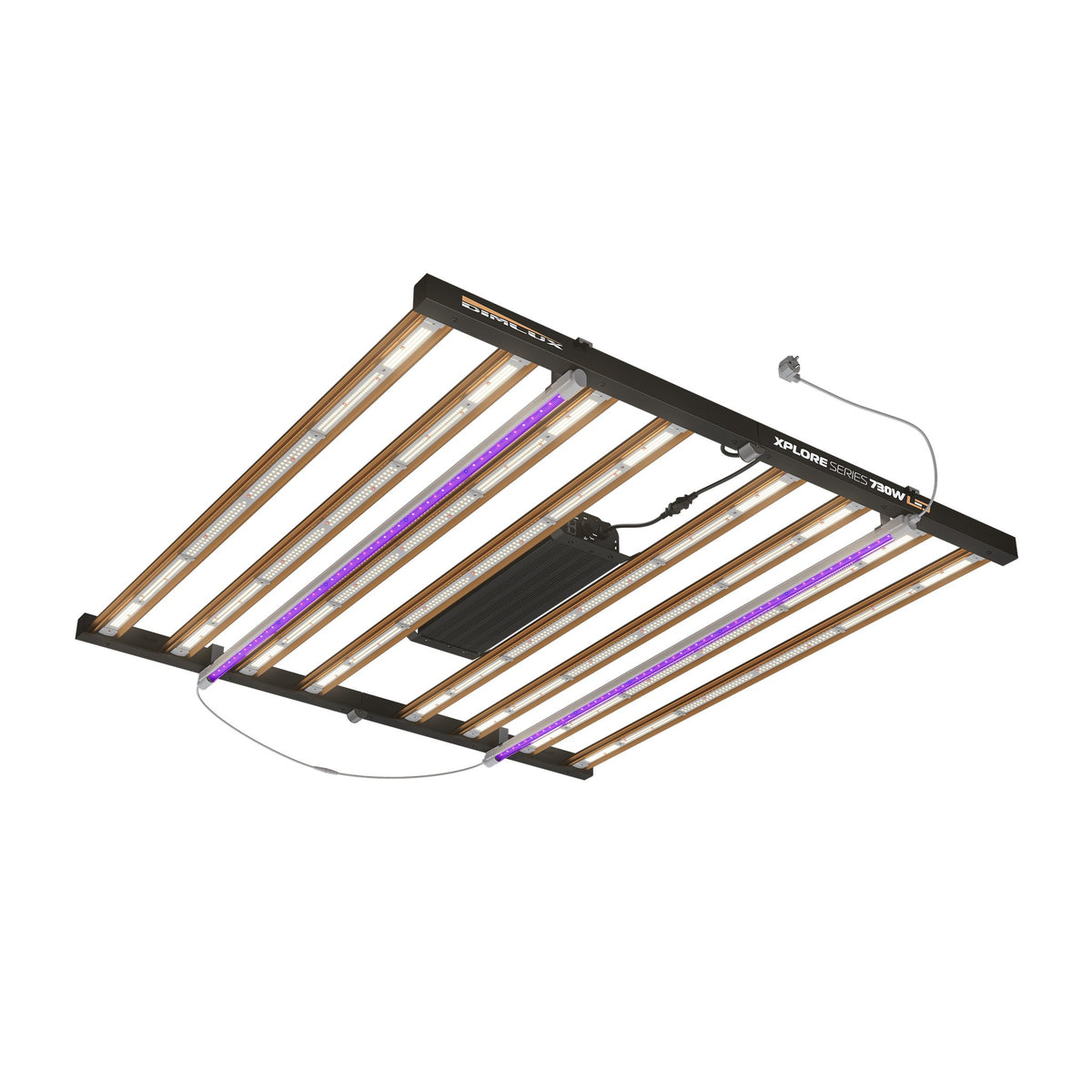

• Made to fit Dimlux Xplore 730W and 800W fixtures; can hang from the frame of other multi-bar LED fixtures
• UV-A and NIR versions can run on separate timers in the same setup

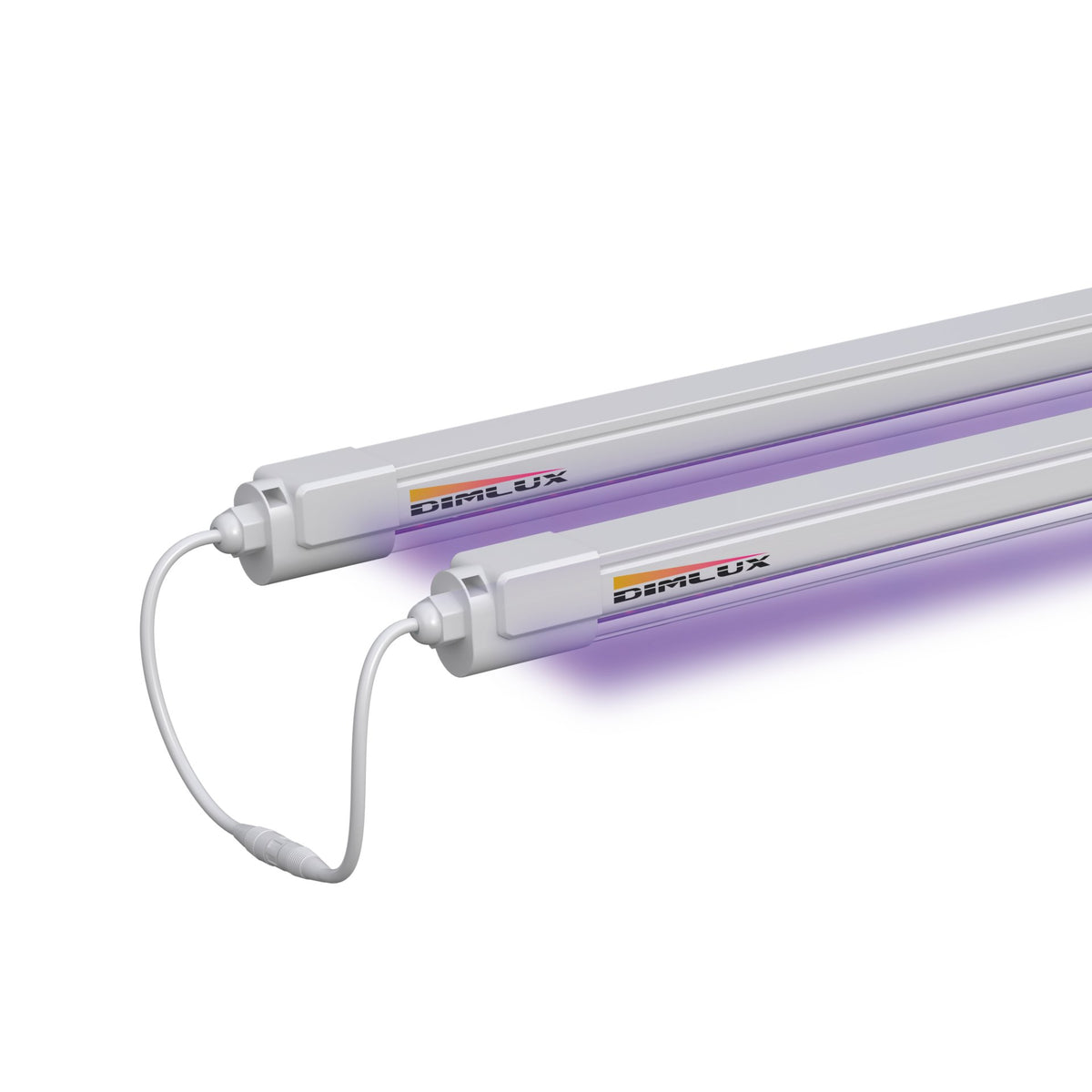

• Connect up to 40 bars, linked with male and female connectors
• 120 deg light scattering angle
• Recommended mounting height 50-75 cm (20-30 in); recommended spacing 50-75 cm (20-30 in) between bars
• Bar dimensions 1120 x 26 x 35 mm (44.1 x 1 x 1.4 in)
• IP66 water-resistant housing and connectors
• Max. ambient temperature 40 deg C / 105 deg F
• Lifetime L90 over 50,000 hours; CE certified

Ideal Applications

• Adding UV-A and/or far-red to Dimlux Xplore 730W and 800W installations
• Retrofitting multi-bar LED fixtures with supplemental spectrum
• Commercial indoor cultivation rooms that schedule UV-A and far-red separately
• Controlled-environment agriculture operations upgrading spectrum without replacing fixtures
