Dimlux - Expert Series CMH Fixture

Brand: Dimlux

Dimlux Expert Series CMH Fixture

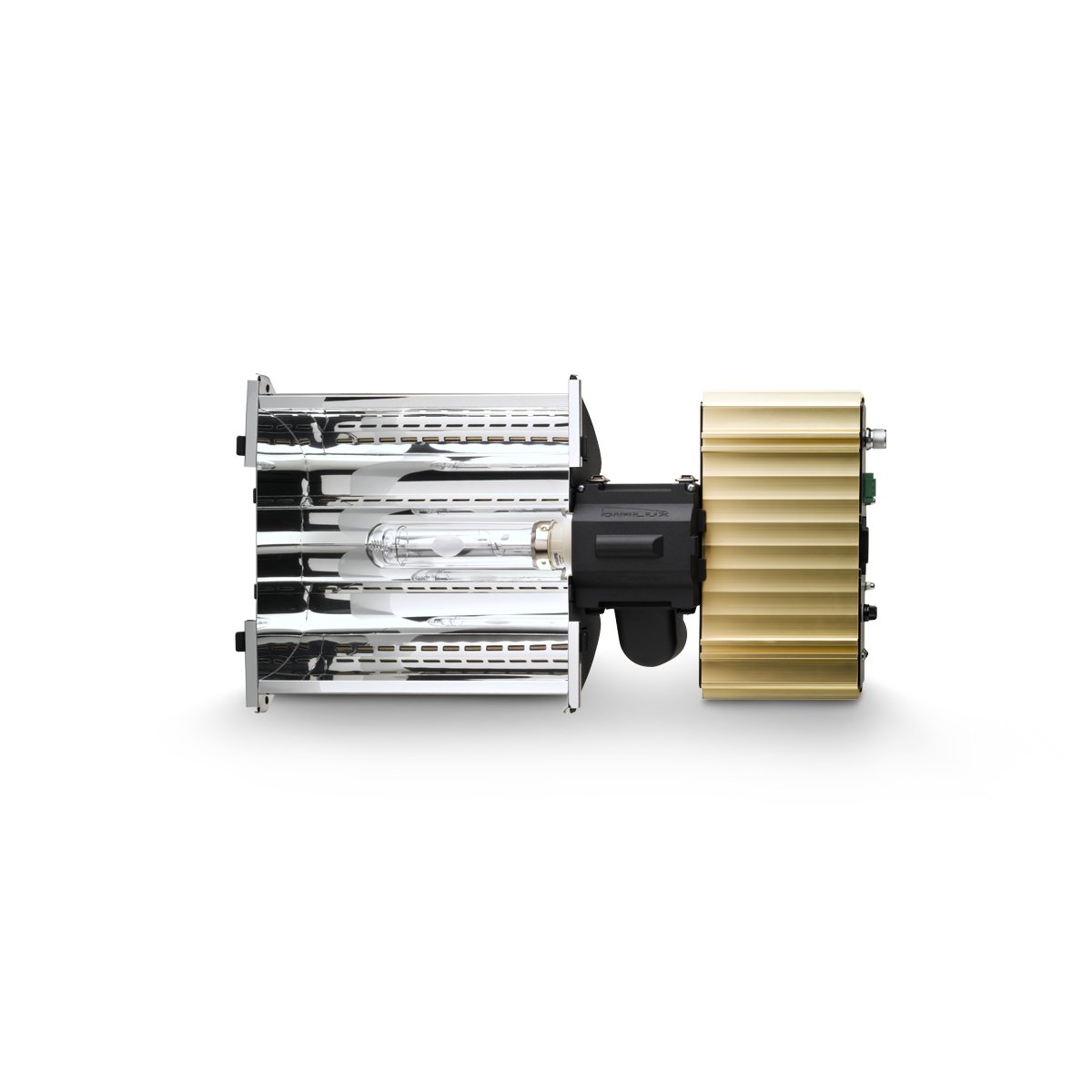

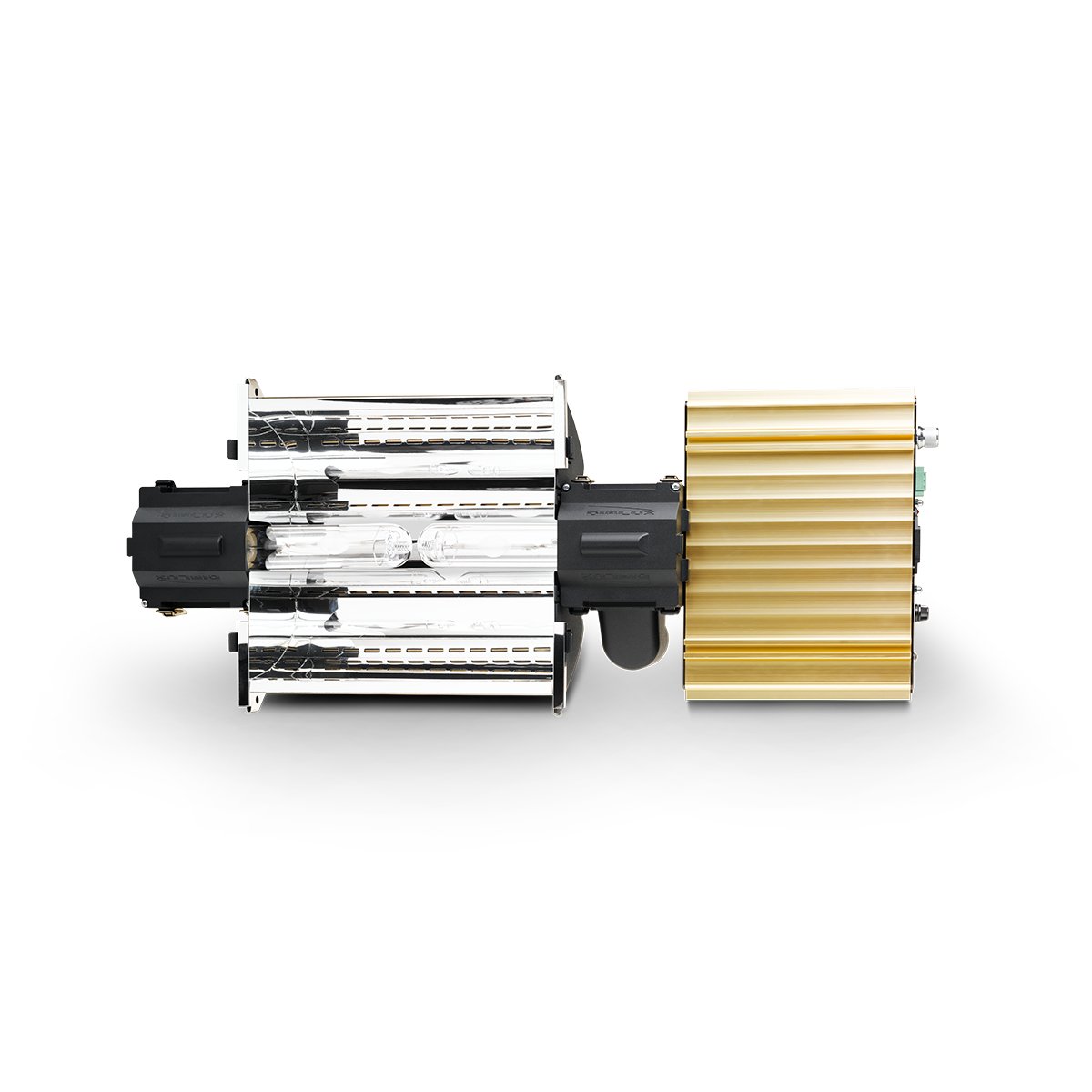

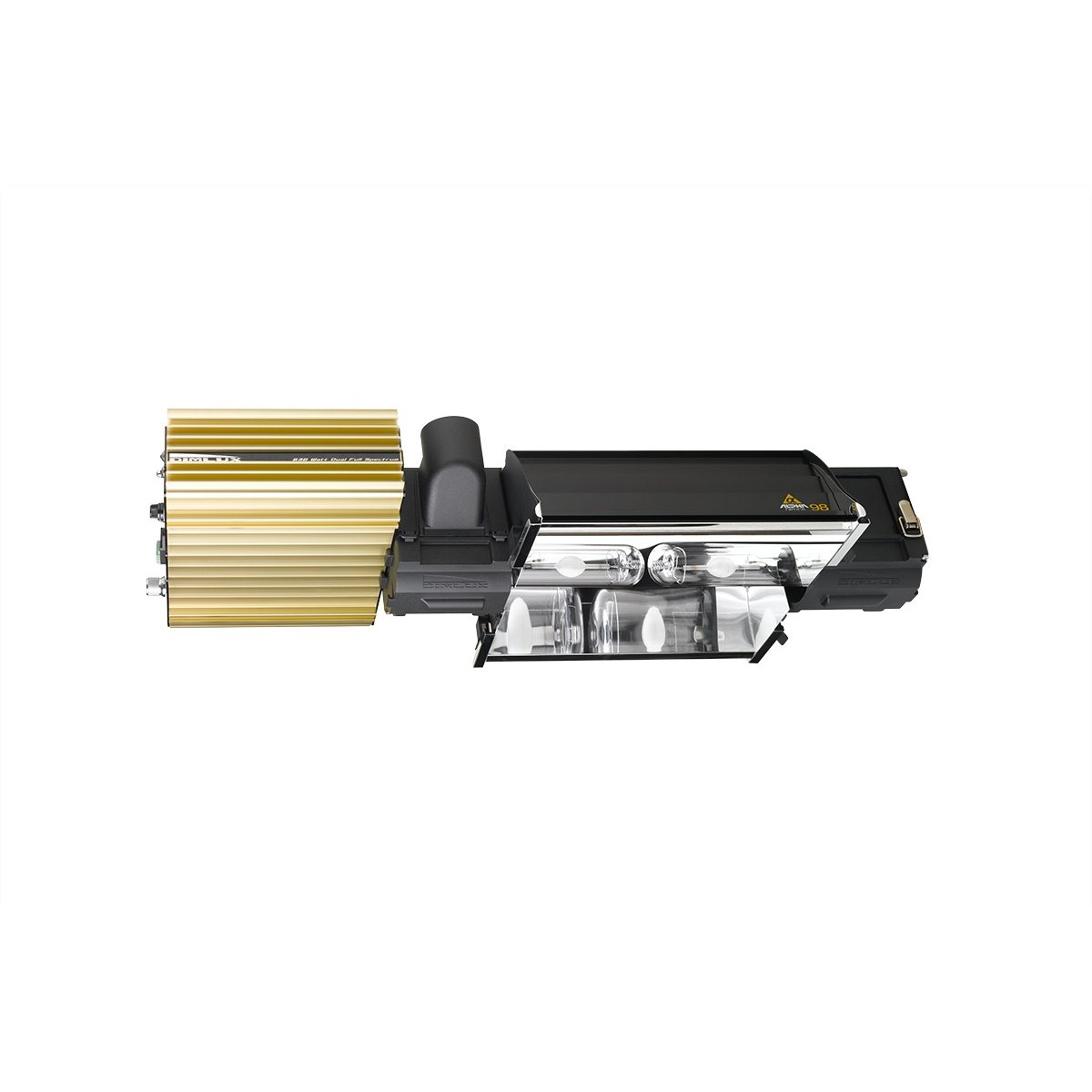

The Dimlux Expert Series CMH fixture is a complete ceramic metal halide system that combines a Dimlux Xtreme ballast, Dimlux full spectrum Agro CMH lamps and the Ultra Optics 98 reflector in one unit. The 315W model runs a single 315W full spectrum lamp and the 630W Dual Full Spectrum model runs two, with an overdrive boost that raises output to 380W and 760W respectively.

The Ultra Optics 98 reflector is designed on the Single Bounce Clear Sight (SBCS) principle with Miro Silver mirrors for 98 percent reflector efficiency, and its adjustable side reflectors improve overlap and reduce wall losses. The open reflector design passively cools the lamp, and a 50 mm (2 in) connection allows warm air to be actively extracted to lower room temperature. Output can be set manually with the dim button or controlled steplessly by the Dimlux Maxi Controller, which can run up to 160 Dimlux fixtures.

Available Options

• 630w, 240V - 2x 315W lamps, 330-760W output, 1,411 umol/s system PPF at 760W
• 630w, 277V - 2x 315W lamps, 330-760W output, 1,411 umol/s system PPF at 760W
• 315w, 240V - 1x 315W lamp, 165-380W output, 706 umol/s system PPF at 380W
• 315w, 277V - 1x 315W lamp, 165-380W output, 706 umol/s system PPF at 380W

Key Features

• Complete fixture: Dimlux Xtreme ballast, full spectrum Dimlux Agro CMH lamp(s) and Ultra Optics 98 reflector

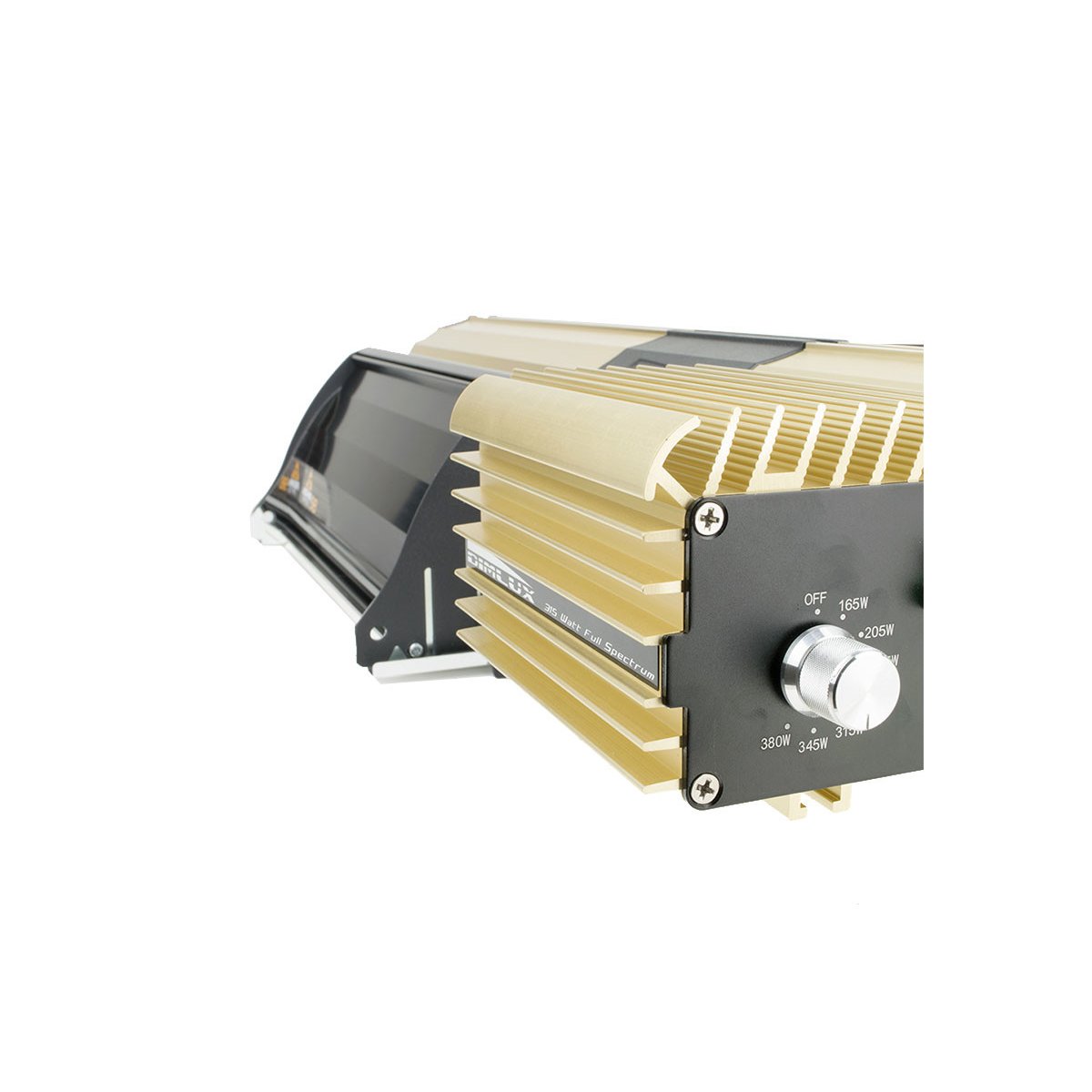

• 315W dim levels: Soft-Off, 165, 205, 245, 280, 315, 345 and 380W
• 630W dim levels: Soft-Off, 330, 410, 490, 560, 630, 690 and 760W
• Soft-Start for very low inrush current, plus Soft-Dim and Soft-Off functions
• Ultra High Frequency (UHF) lamp operation with diagnostic LEDs
• Stepless dimming and on/off control from the Dimlux Maxi Controller (up to 160 fixtures)
• Ultra Optics 98 SBCS reflector with Miro Silver mirrors, 98 percent efficiency, adjustable side reflectors; replaceable, with optional add-on reflectors
• 50 mm (2 in) connection for active air extraction
• Power factor above 0.95
• Interlink cable included: 2 m (315W) or 2.5 m (630W)
• Dimensions: 315W 530 x 275 x 130 mm (20.8 x 10.8 x 5.1 in); 630W 675 x 275 x 130 mm (26.5 x 10.8 x 5.1 in)

Ideal Applications

• Commercial indoor cultivation rooms using full spectrum CMH lighting
• Stand-alone or supplemental lighting in vegetative and flowering rooms
• Facilities using the Dimlux Maxi Controller for temperature-based dimming and VPD control
• Rooms that need active heat extraction at the fixture
