DIG - Multi-Outlet PC Drip Manifold

Brand: DIG

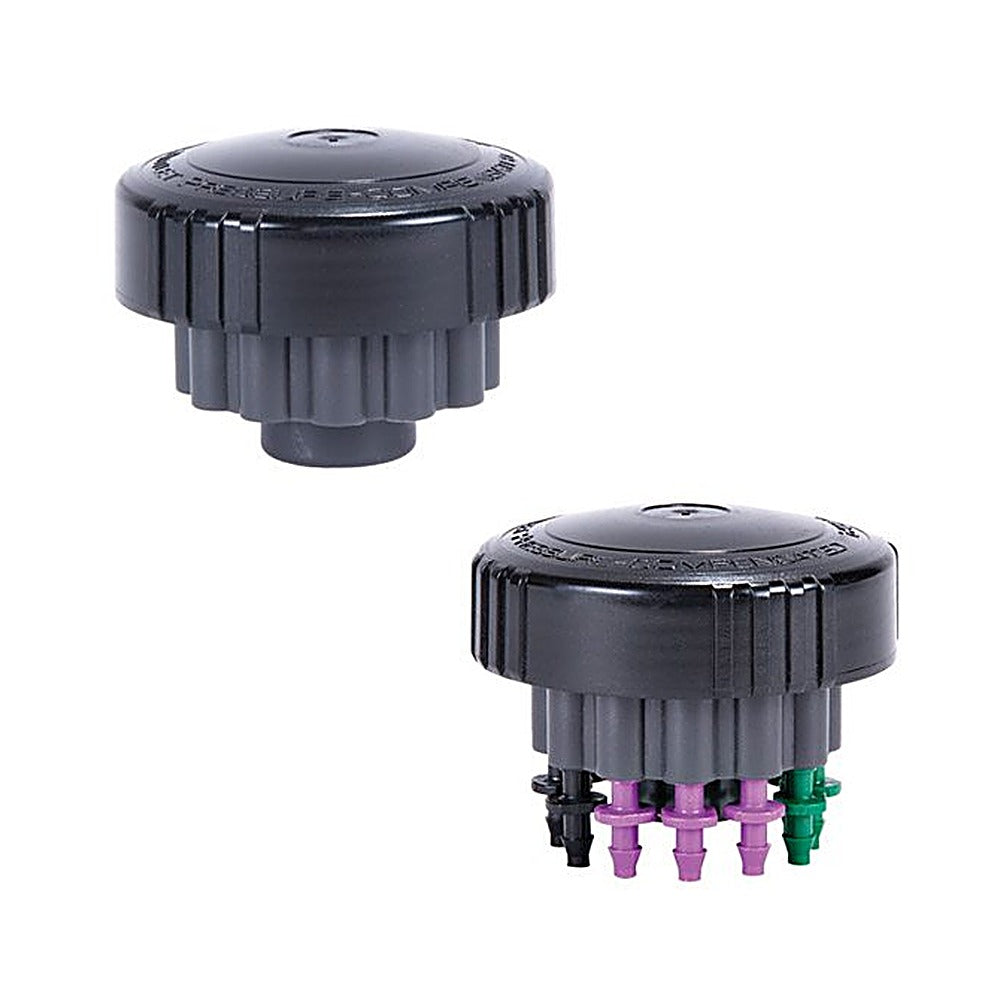

DIG Multi-Outlet PC Drip Manifold

DIG multi-outlet drip manifolds convert a sprinkler riser into a multi-point, low-flow drip layout, delivering water directly to the plant root zone with less evaporation and wind drift than overhead sprinklers. The pressure compensating outlets maintain even flow to each plant, and the manifolds are designed for both first-time installations and retrofits of existing sprinkler systems.

Mounted on a 1/2 in. FPT riser, each manifold feeds several plants from a single point using 1/8 in. or 1/4 in. distribution tubing. Available in 4-, 6-, and 12-outlet configurations with a range of per-outlet flow rates, including adjustable models.

Available Options

• 4-Outlet 1/2" FPT - 2 GPH/outlet
• 4-Outlet 1/2" FPT - 6 GPH/outlet
• 4-Outlet 1/2" FPT - 10 GPH/outlet
• 4-Outlet 1/2" FPT - 20 GPH/outlet
• 6-Outlet PC 1/2" FPT - 4.5 GPH/outlet
• 6-Outlet PC 1/2" FPT - 5.5 GPH/outlet
• 6-Outlet Adjustable 1/2" FNPT - 0-20 GPH

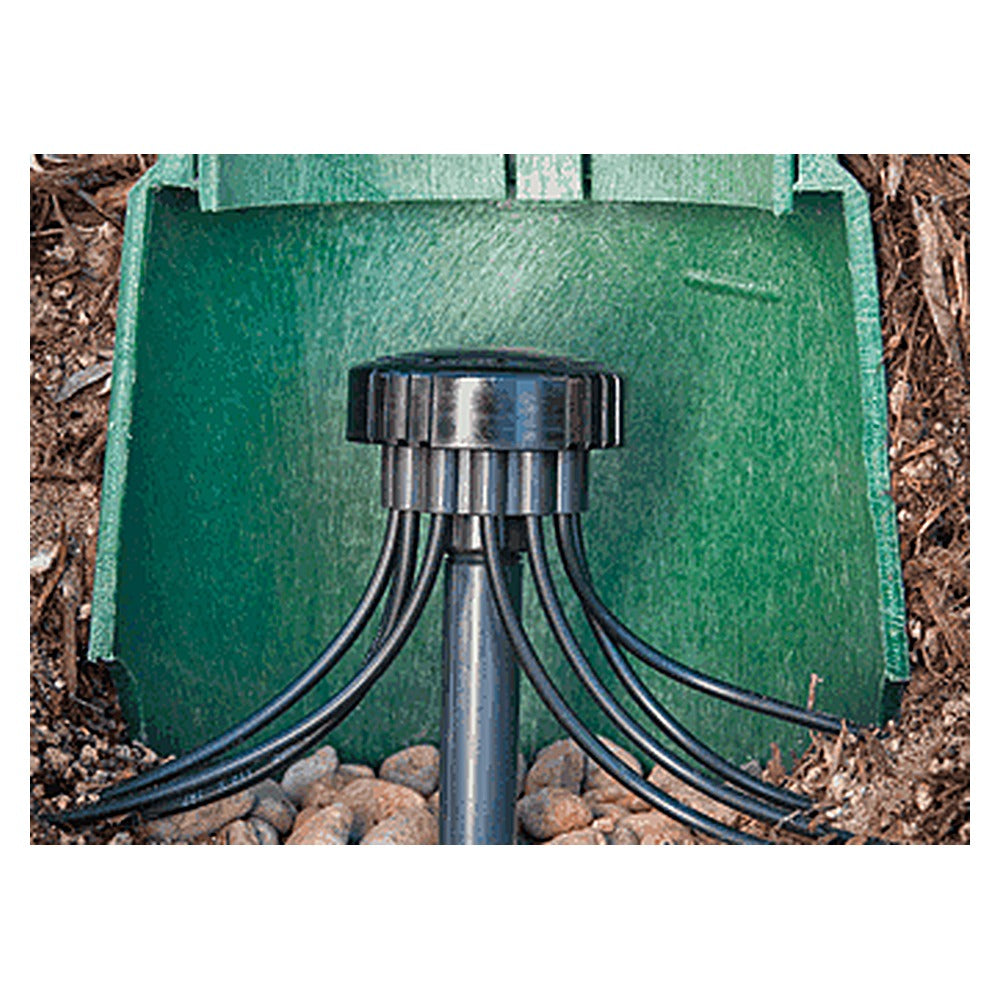

• 12-Outlet Top - Body w/ Disc Only
• 12-Outlet Top - .6 GPH/outlet
• 12-Outlet Top - 1 GPH/outlet
• 12-Outlet Top - 2.2 GPH/outlet
• 12-Outlet Top - 3.3 GPH/outlet

Key Features

• 4-, 6-, and 12-outlet configurations
• Pressure compensating outlets for even flow
• Per-outlet flow rates from .6 GPH up to 20 GPH
• Adjustable 0-20 GPH option
• 1/2 in. FPT and FNPT riser connections
• Retrofits existing sprinkler risers to drip
• Improves irrigation efficiency and reduces runoff

Why Choose DIG Multi-Outlet PC Drip Manifold

Multi-outlet manifolds make it easy to retrofit a sprinkler riser into an efficient multi-point drip layout, saving water while delivering uniform flow to every plant.

Ideal Applications

• Retrofitting sprinkler risers to drip
• Beds and clustered plantings
• Container and potted plant groups
• Commercial and controlled-environment agriculture
