DIG - Micro-Line 1/4" Non-PC Dripline

Brand: DIG

DIG Micro-Line 1/4 in. Non-PC Dripline

DIG Micro-Line 1/4 in. Dripline is a versatile, flexible, UV-protected small-diameter dripline suited for a wide range of commercial and controlled-environment irrigation applications. Each .52 GPH drip emitter is built with a large inlet filter across its cross section to keep moving particles out of the labyrinth water path for trouble-free operation. Two outlets per emitter reduce the chance of clogging. It is available with emitters spaced at 6 in., 9 in., or 12 in.

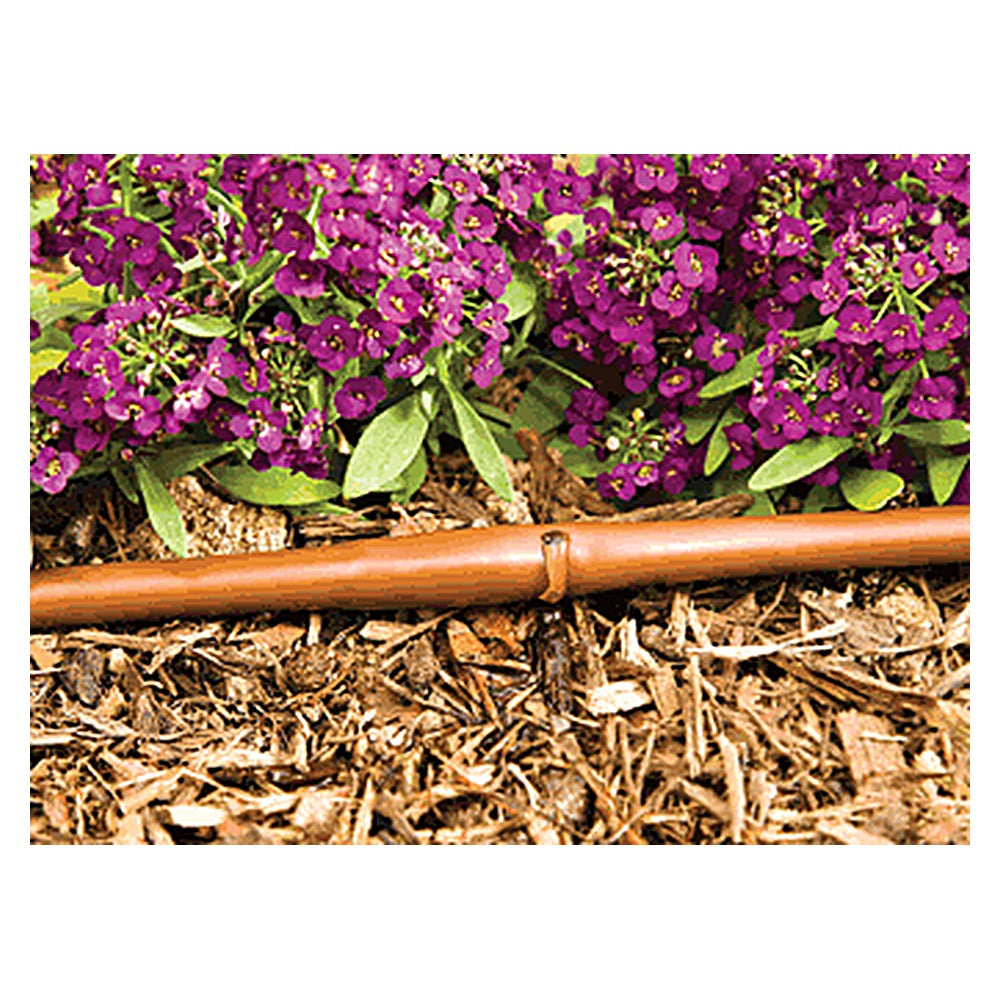

The dripline can be installed above ground and covered with mulch or bark for water conservation or aesthetics. Use it in loops around individual plants or trees, planter boxes, vegetable beds, window boxes, narrow planting paths, or anywhere total saturation along the line is desired while preventing water staining of walls and fences. It extends from drip tubing or micro tubing using a 1/4 in. barb, or connects into DIG 4- or 6-outlet drip manifolds.

Available Options

• 50' - 6" spacing - .52 GPH - Black
• 50' - 6" spacing - .52 GPH - Brown
• 50' - 12" spacing - .52 GPH - Brown
• 100' - 6" spacing - .52 GPH - Black
• 100' - 6" spacing - .52 GPH - Brown
• 100' - 9" spacing - .52 GPH - Black
• 100' - 9" spacing - .52 GPH - Brown
• 100' - 12" spacing - .52 GPH - Black
• 100' - 12" spacing - .52 GPH - Brown
• 250' - 6" spacing - .52 GPH - Black
• 250' - 6" spacing - .52 GPH - Brown
• 250' - 12" spacing - .52 GPH - Black
• 250' - 12" spacing - .52 GPH - Brown
• 500' - 6" spacing - .52 GPH - Black
• Additional configurations available (15 more)

Key Features

• Nominal flow rate .52 GPH (2 L/H) at 15 PSI per emitter
• Operating pressure 10-25 PSI (.7-1.7 BAR)
• Size 1/4 in. (.170 in. ID x .250 in. OD)
• Spacing options 6 in., 9 in., or 12 in.
• Two outlets per drip emitter reduce clogging
• Large labyrinth water passage with turbulent flow
• Inlet filter prevents particles entering the emitter path
• Linear low-density polyethylene, resistant to chemicals and fertilizers
• Filter requirement minimum 150 mesh
• Minimum bending radius 1 foot
• Available in black or brown

Why Choose DIG Micro-Line 1/4 in. Non-PC Dripline

DIG Micro-Line delivers high-uniformity, low-flow watering in a flexible small-diameter line that installs easily in tight or irregular areas. The dual-outlet emitters and large inlet filter support long, reliable service life with minimal maintenance.

Ideal Applications

• Container and potted plantings
• Narrow or oddly shaped planting beds
• Loops around trees and shrubs
• Vegetable and raised-bed gardens
• Indoor cultivation and controlled-environment agriculture
