DIG - Excel 18mm PC Dripline

Brand: DIG

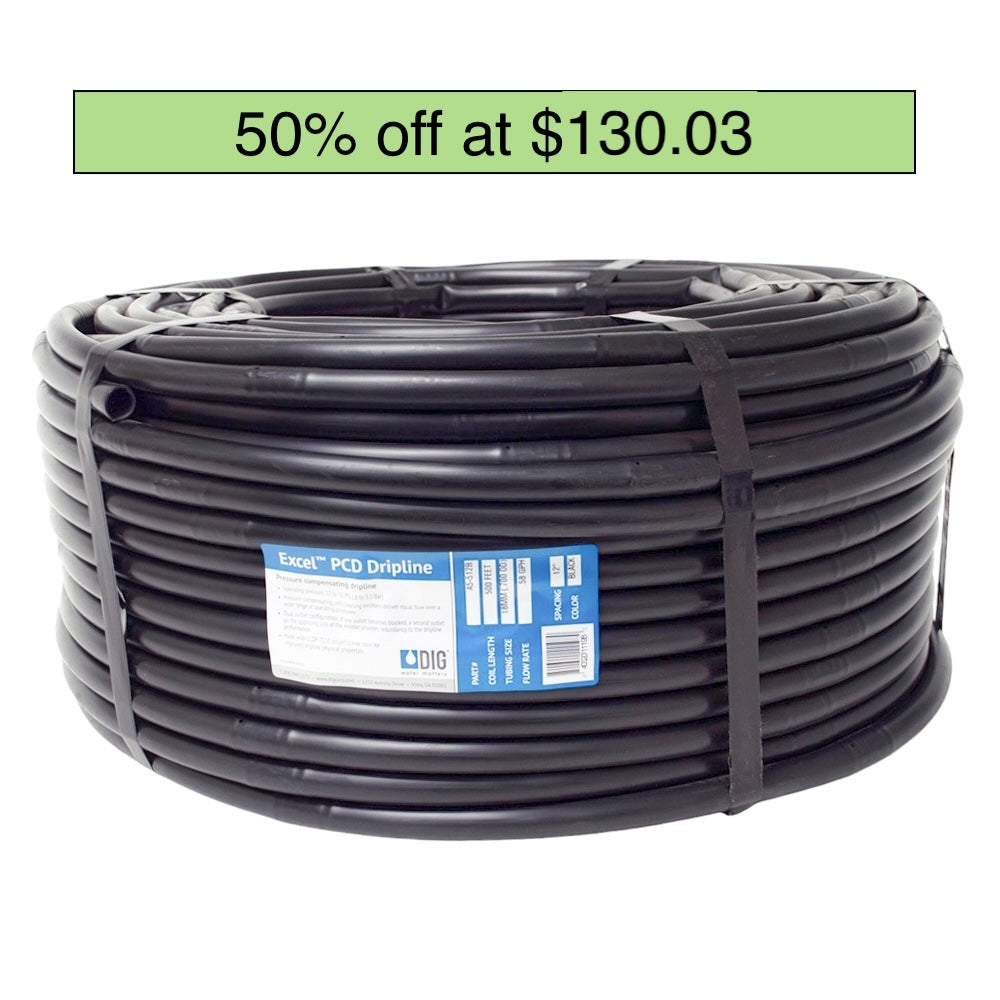

DIG Excel 18mm PC Dripline

DIG Excel 1/2 in. PCD is a reliable, durable, and precise pressure compensating dual-outlet dripline used for narrow or dense plantings. If one drip emitter outlet becomes blocked, a second outlet on the opposing side provides redundancy. The dual-outlet design also means it does not matter which direction the line is laid; it operates either way.

The floating-diaphragm emitters regulate and maintain a consistent flow rate at variable inlet pressures from 12 to 50 PSI across a wide range of demanding conditions, making the line well suited to commercial and controlled-environment landscaping.

Available Options

• 100' - 12" spacing - .58 GPH
• 100' - 12" spacing - .95 GPH
• 100' - 18" spacing - .58 GPH
• 100' - 18" spacing - .95 GPH
• 500' - 9" spacing - .58 GPH
• 500' - 9" spacing - .95 GPH
• 500' - 12" spacing - .58 GPH
• 500' - 12" spacing - .95 GPH
• 500' - 18" spacing - .58 GPH
• 500' - 18" spacing - .95 GPH

Key Features

• Pressure compensating dual-outlet emitters
• Flow rates .58 GPH and .95 GPH
• Emitter spacing 9 in., 12 in., and 18 in.
• Operating pressure 12-50 PSI (0.8-3.5 BAR)
• Size .600 in. ID x .700 in. OD (14.5 mm ID x 17.8 mm OD)
• Floating diaphragm maintains constant flow at variable pressure
• Low-density polyethylene, resistant to chemicals and fertilizers
• Filter requirement minimum 150 mesh
• Minimum bending radius 1 foot

Why Choose DIG Excel 18mm PC Dripline

The larger 1/2 in. Excel dual-outlet dripline carries higher flows over longer runs while maintaining uniformity, with built-in emitter redundancy for trouble-free, long-life operation.

Ideal Applications

• Narrow or dense plantings
• Longer dripline runs
• Slopes and challenging terrain
• Commercial landscaping
• Controlled-environment agriculture
