DIG - Excel 16mm PC Dripline
Brand: DIG
DIG Excel 16mm PC Dripline
DIG Excel PCD is a reliable, durable, and precise pressure compensating dual-outlet dripline. The cylindrical drip emitters use floating diaphragms to regulate and maintain a consistent flow rate across variable inlet pressures. Two outlets per emitter provide redundancy, so if one outlet becomes blocked the opposing outlet keeps the emitter performing.
The dual-outlet design means the line operates regardless of which direction it is laid, simplifying installation in narrow or dense plantings. It is suited for commercial and controlled-environment landscaping, including oddly or narrowly shaped areas, high-traffic areas, green walls, green roofs, slopes, and other challenging terrain.
Available Options
- 100' - 12" spacing - .58 GPH
- 100' - 12" spacing - .95 GPH
- 100' - 18" spacing - .58 GPH
- 100' - 18" spacing - .95 GPH
- 500' - 12" spacing - .58 GPH
- 500' - 12" spacing - .95 GPH
- 500' - 18" spacing - .58 GPH
- 500' - 18" spacing - .95 GPH
- 1000' - 12" spacing - .58 GPH
- 1000' - 12" spacing - .95 GPH
- 1000' - 18" spacing - .58 GPH
- 1000' - 18" spacing - .95 GPH
Key Features
- Pressure compensating dual-outlet emitters
- Flow rates .58 GPH and .95 GPH
- Emitter spacing 12 in. and 18 in.
- Operating pressure 12-50 PSI (0.8-3.5 BAR)
- Floating diaphragm maintains constant flow at variable pressure
- Low-density polyethylene, resistant to chemicals and fertilizers
- Filter requirement minimum 150 mesh
- Minimum bending radius 1 foot
- Flexible tubing for easy installation
Why Choose DIG Excel 16mm PC Dripline
The Excel 16mm dual-outlet design delivers consistent flow uniformity across pressure variations and line lengths, with built-in redundancy that supports trouble-free operation and long service life.
Ideal Applications
- Narrow or dense plantings

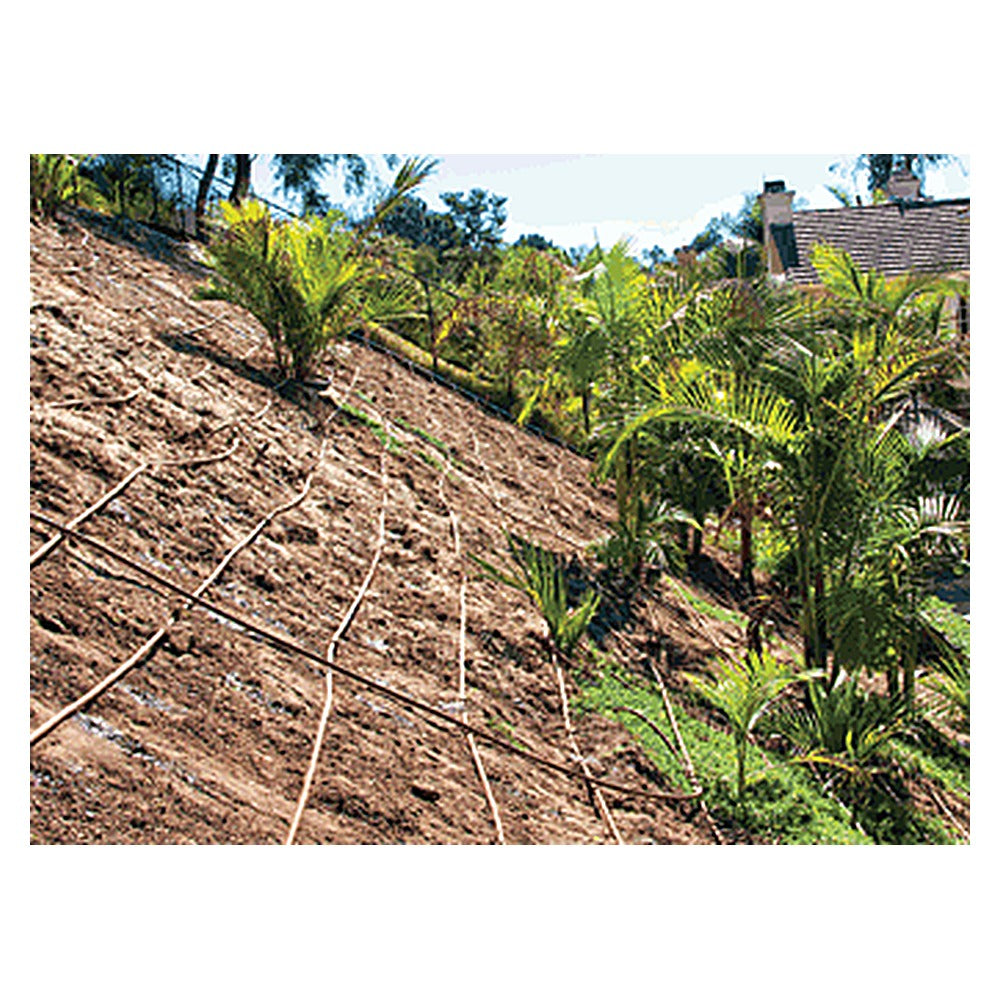

- Slopes and uneven terrain
- High-traffic and parking areas
- Green walls and green roofs
- Commercial and controlled-environment agriculture
