DIG - 3/4" & 1" MPT Plastic Screen & Disc Filter

Brand: DIG

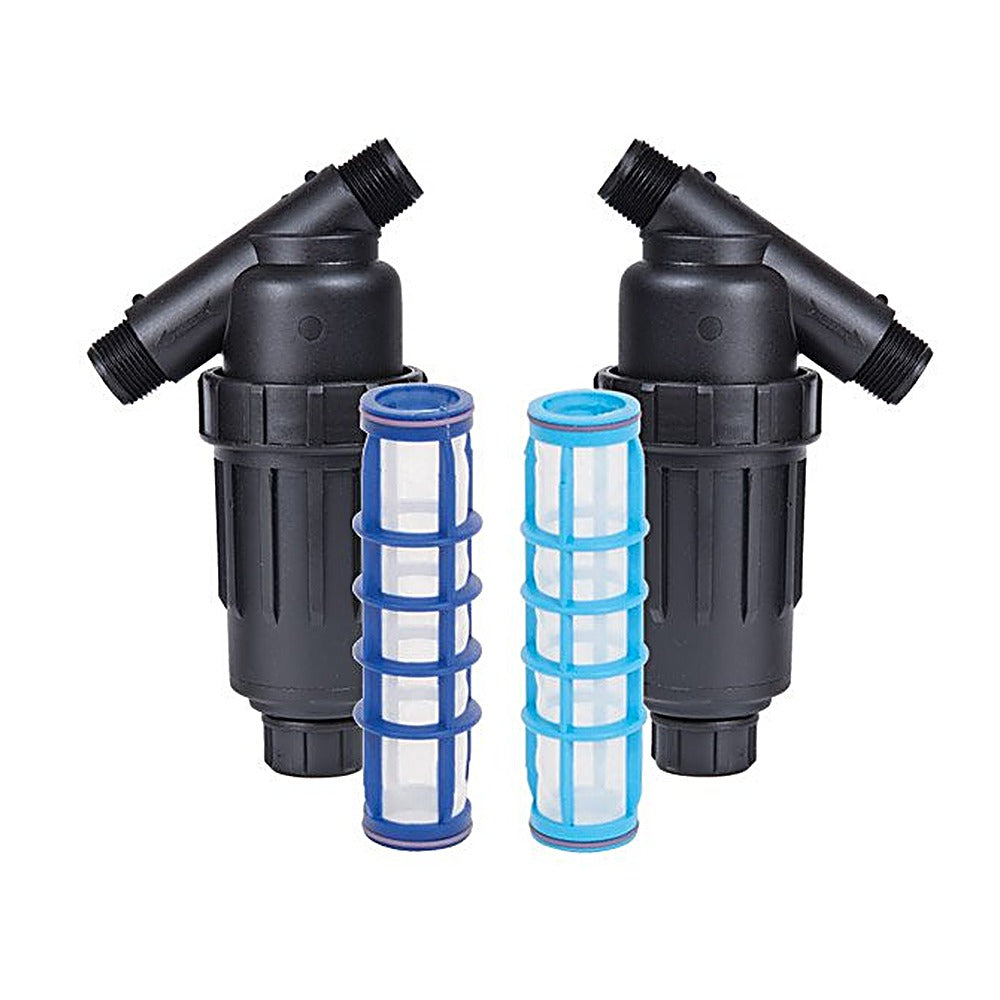

DIG 3/4 in. and 1 in. MPT Plastic Screen and Disc Filter

DIG 3/4 in. and 1 in. screen or disc filters mounted on an inline or anti-siphon valve are commonly used in commercial and controlled-environment installations to protect low-flow drip systems from sediment and debris that could block drip emitters. The high-quality, large-filtration-area elements are corrosion-resistant with excellent mechanical strength for low-maintenance, trouble-free operation.

Recommended to be installed after the control valve, these filters protect drip emitters and dripline from particles in the supply water. Interchangeable color-coded screen and disc elements let the operator select the filtration degree needed for the water source.

Available Options

• 155 mesh element
• 200 mesh element
• 40 mesh element
• 80 mesh element
• 120 mesh element
• 150 mesh element

Key Features

• Flow rates up to 13 GPM (3/4 in.) and up to 18 GPM (1 in.)
• Screen filtration area 14.9 sq in. (96 sq cm)
• Operating pressure up to 120 PSI
• Temperature range up to 130 deg F (54 deg C)
• Polyester and stainless-steel elements from 80 to 180 microns
• Inlet and outlet sizes include 3/4 in. FHT x MHT and 3/4 in. or 1 in. MNPT
• Available with flush cap or flush valve
• Interchangeable color-coded elements
• UV-resistant, durable construction

Why Choose DIG 3/4 in. and 1 in. MPT Plastic Screen and Disc Filter

DIG screen and disc filters combine a large filtration area and low friction loss for long intervals between cleaning, with interchangeable color-coded elements that adapt to any water quality.

Ideal Applications

• Protecting drip emitters and dripline
• Grey water and reclaimed water sources
• Commercial and controlled-environment systems
• Installation after the control valve
