Dab Pumps - Verty Nova Narrow Pit Sump Pump with Vertical Float 115V

Brand: Dab Pumps

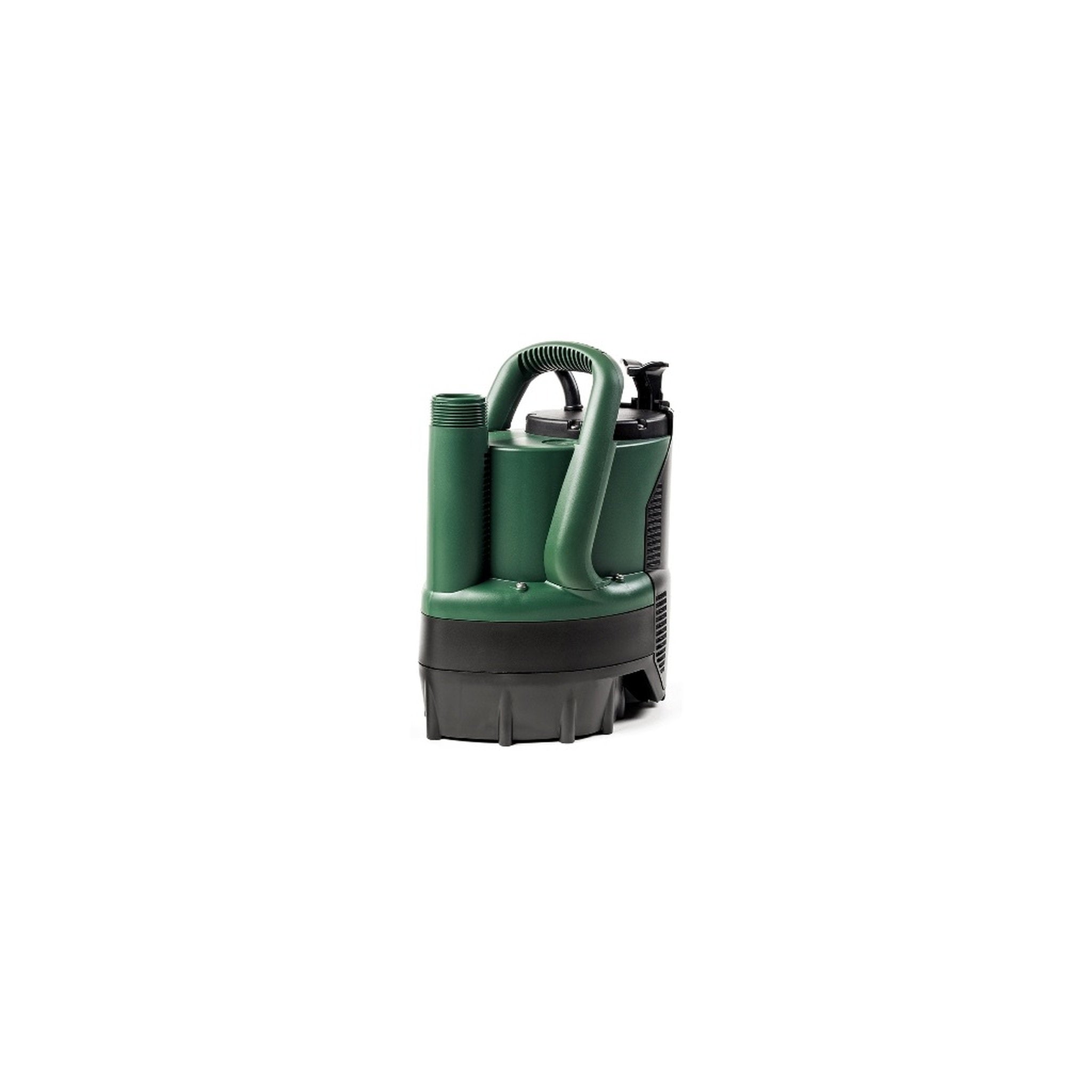

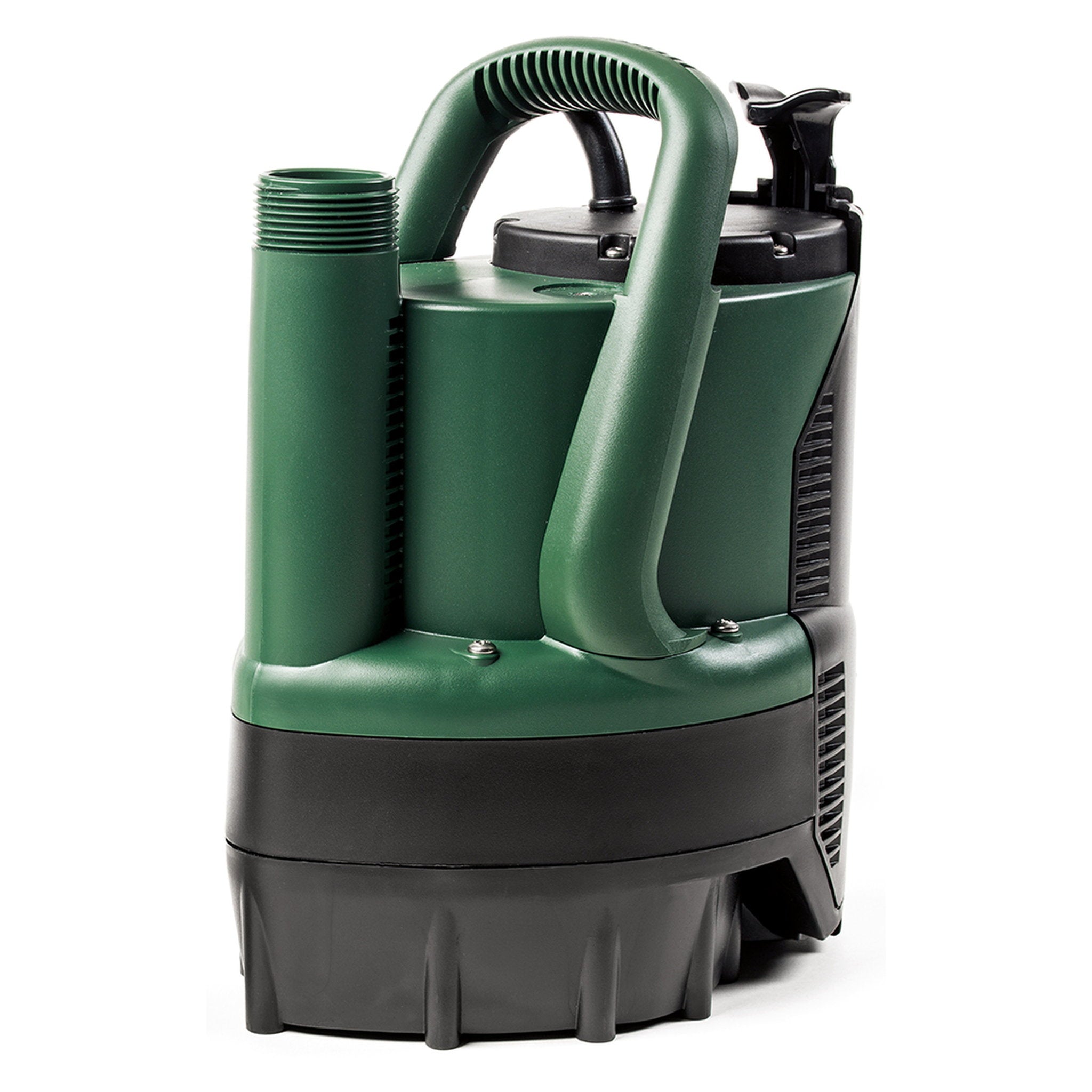

DAB Verty Nova Vertical Float Submersible Sump Pump

The DAB Verty Nova is a 115 V single phase submersible pump with the float switch built into the body rather than hung off the side on a tether. That is the whole point of the design: with no arm to swing, the pump works in pits as small as 7.9 in by 7.9 in, where a tethered float pump would jam against the wall or short cycle. The switch is a vertical float behind a sliding cover, so it can be reached and cleaned without pulling the pump apart, and a lever on the body selects manual or automatic operation. In manual mode the pump primes and starts at a water level of only 0.4 to 0.6 in and will suck down to 0.1 in, which is as close to a dry floor as a submersible gets. The motor is thermally protected and cooled well enough that DAB rates it to keep running while only partially submerged. Each pump ships with a power cable and plug, a non return valve and a 4-step fitting.

Verty Nova is built for grey water without fibres and clear water carrying particles up to 0.2 in, which makes it the right pump for a tight residential sump, a laundry or utility basin, a stairwell or lightwell drain, a lift pit, a boat well, or emptying a tank, pool or excavation. Two models cover the range: the 206 M at 1/4 HP for ordinary basin duty, and the 406 M at 1/2 HP when the discharge run is long or the lift is high.

Available Models

• Verty Nova 206 M: 1/4 HP, integrated vertical float with manual/auto lever, 2.7 A at 115 V, 9.3 lb
• Verty Nova 406 M: 1/2 HP, integrated vertical float with manual/auto lever, 7 A at 115 V, 11.2 lb

Specifications

• Power supply: 115 V, 60 Hz, single phase
• Motor output: 0.18 kW, 1/4 HP on the 206 M; 0.37 kW, 1/2 HP on the 406 M
• Rated current: 2.7 A on the 206 M, 7 A on the 406 M
• Capacitor: 12.5 uF at 250 V on the 206 M, 20 uF at 250 V on the 406 M
• Operating range for the family: 4.4 to 51.8 GPM with head up to 29.7 ft, per DAB's May 2025 USA catalog
• Discharge connection: 1-1/4 in NPT
• Minimum pit size: 7.9 in by 7.9 in
• Maximum particle size: 0.2 in
• Pump priming and starting level: 0.4 to 0.6 in in manual operation
• Low suction capability: 0.1 in in manual mode
• Maximum immersion depth: 23 ft
• Pumped liquid: grey water without fibres
• Liquid temperature: 32 F to 95 F for domestic use
• Overall height: 15.7 in; footprint 6.2 in by 8.9 in
• Power cord: 16 ft with plug
• Supplied with: non return valve and 4-step fitting
• Materials: anti-corrosive and rust-proof
• Certification: in compliance with CSA Standards C22.2 No. 108-14 and UL Standard No. 778, per DAB

Key Features

• Integrated vertical float instead of a tethered float, so the pump works in pits down to 7.9 in by 7.9 in
• Lever on the body selects manual or automatic operation
• Sliding cover gives access to the float switch for cleaning without disassembly
• Starts at a 0.4 to 0.6 in level and pulls down to 0.1 in in manual mode
• Motor cooling lets the pump run even when only partially submerged
• Motor with thermal overload protection
• Ships complete with plug, non return valve and 4-step fitting

Ideal Applications

• Narrow residential sump basins and crocks
• Laundry, utility and mechanical room basins
• Stairwell, lightwell and areaway drains
• Elevator and equipment pits
• Boat wells and dock boxes
• Emptying tanks, pools and excavations
• Floor drying down to 0.1 in in manual mode
