Dab Pumps - Support Bumpers for EsyBox - SP00000145

Brand: Dab Pumps

Support Bumpers - EsyBox - SP00000145

DAB part SP00000145, listed by DAB as "(SP) SUPPORT BUMPERS E.SYBOX". The E.sybox stands on four support feet that screw into brass threaded seats in the casing. DAB's installation instructions read: "Remove the 4 support feet from the bottom tray of the packaging and screw them fully into their brass seats", and DAB makes the feet responsible for the pump sitting square: "If the surface is not flat, unscrew the foot that is not touching and adjust its height until it contacts the surface so as to ensure the stability of the system."

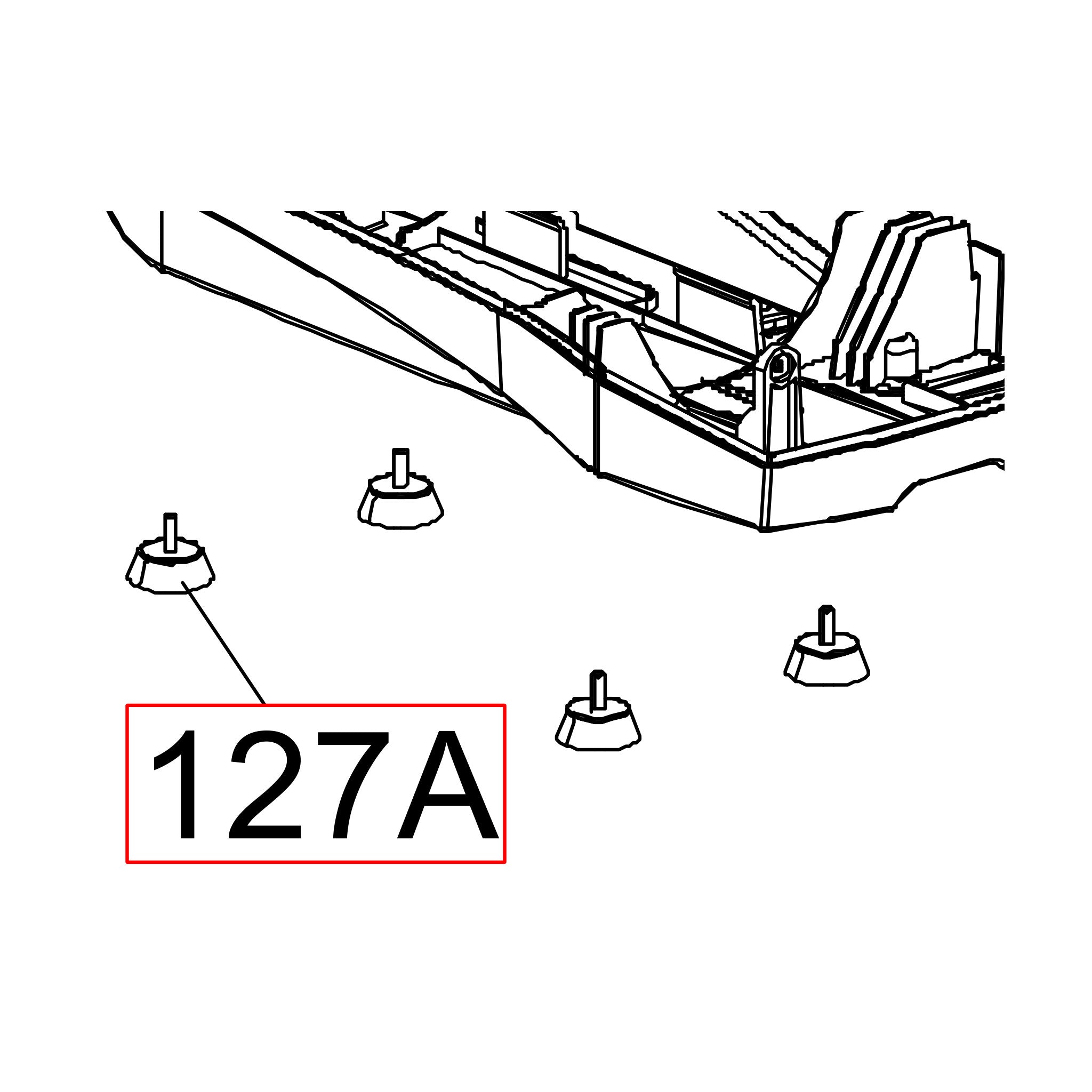

Position 127A on the DAB E.sybox spare parts list. Which face the feet go into depends on how the pump is installed: DAB puts four brass threads on Face C forming "the seat for the 4 support feet in the case of vertical installation", and four more on Face E for the horizontal configuration. The same feet serve both orientations.

Fits

• DAB E.sybox. DAB numbers this part position 127A on the E.sybox exploded view and spare parts list.
• Listed at position 127A under the same part number on both the revision N.1 list (product code 60161183) and the revision N.3 list (product code 60212671).
• Source list is drawn for the AU market build, "E.SYBOX V220-240 50/60Hz AUS PLUG".

Before You Order

• Revision-stable part. We compared the E.SYBOX revision N.1 spare parts list (product code 60161183) line by line against the revision N.3 list (product code 60212671). Position 127A carries the same part number, SP00000145, on both lists, so this part is not revision-gated between N.1 and N.3. Only four positions change part number between those two revisions, and this is not one of them.
• DAB prints this caution at the head of both spare parts lists: "Attention: check the correspondence with the revision of your product." To read your own pump: the technical data plate sits inside the technical compartment (DAB instruction manual 60168399, Fig. 3, item 2, reached by removing the inspection door on Face A), or power the pump up and open the VE page in the menu, which DAB section 7.1.11 "VE: Version display" describes as the "Hardware and software version with which the appliance is equipped."
• DAB ties these to safe installation, not cosmetics: "The system must in fact be placed in a safe and stable position, ensuring that its axis is vertical: it must not be in an inclined position." A missing or collapsed foot is a stability problem, and a pump running on an uneven stance transmits more noise into whatever it is standing on.
• DAB publishes no material, hardness, dimensions or pack quantity for this item at part level, so we state none. If you need to know how many pieces are supplied under this part number, confirm with DAB or your service agent before ordering.
• Fitment note for North American buyers: every DAB E.sybox spare parts list we can source is drawn against the AU market build, printed on the list as "E.SYBOX V220-240 50/60Hz AUS PLUG". We have no DAB spare parts list for a North American NPT build, so confirm this part number against your own technical data plate, or with DAB, before you order. We are not going to pretend an AU list is a US list.
