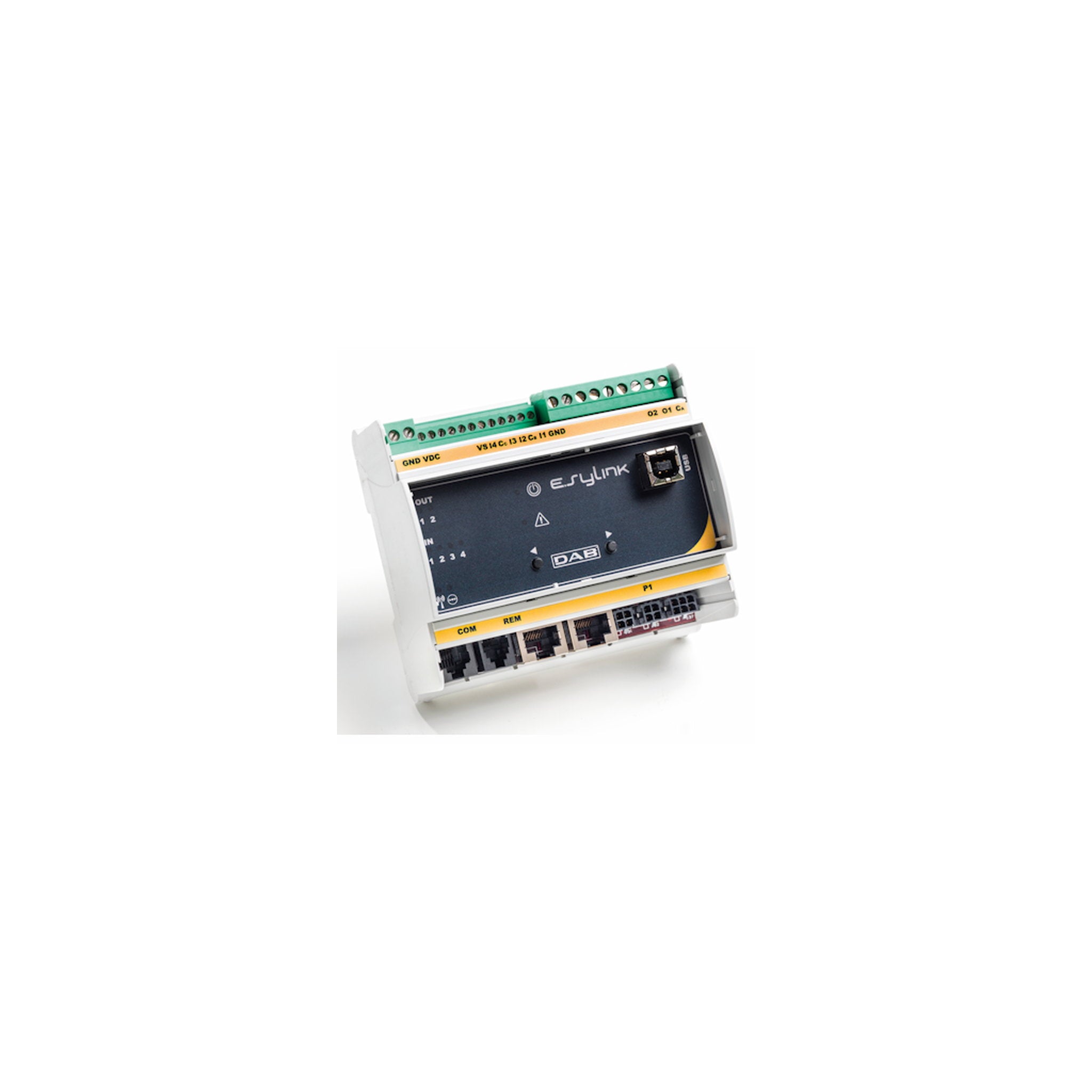

DAB ESYLINK Kit

ESYLINK is the DAB wireless interface accessory that gives an E.SYBOX the wired I/O a plain booster does not have. It talks to the pump over an 802.15.4 wireless link and provides four optoisolated digital inputs, two normally open volt-free relay outputs and a connection for an auxiliary pressure sensor that the pump can use as its set point reference.

Use the inputs for an external float switch, an auxiliary set point, a remote system disable and fault reset, or low pressure detection. Use the outputs to signal an active alarm and motor running status to a panel, an annunciator or a building system. ESYLINK can also push a software update to an E.SYBOX, E.SYBOX MINI or E.SWIM.

Compatibility

• DAB E.SYBOX
• Software updating of E.SYBOX, E.SYBOX MINI and E.SWIM
• Connects to the pump over DAB 802.15.4 wireless, no signal wiring to the pump

Specifications

• Wireless interface: IEEE 802.15.4
• Digital inputs: 4 optoisolated
• Input functions: external float switch, auxiliary set point, system disable and fault reset, low pressure detection
• Relay outputs: 2 normally open, volt-free
• Output functions: active alarm, motor running status
• Pressure sensor: 1 remote auxiliary pressure sensor input
• Supply voltage: 24 V plus or minus 20 percent
• Current draw: 55 mA minimum at 24 V, 150 mA maximum at 24 V
• Module dimensions: 105 x 94 x 60 mm, 6 DIN modules
• Module weight: 200 g (0.44 lb)
• Protection class: IP 20
• Working temperature: 0 to 50 C (32 F to 122 F)
• Kit contents: ESYLINK module, 8 DIN electrical box, power transformer with 115-230 V 50/60 Hz input and 24 V output, 3 cable glands

Key Features

• Adds hard-wired inputs and outputs to a wireless EsyBox system
• Supplied as a complete kit with enclosure, transformer and glands
• Optoisolated inputs accept DC or 50-60 Hz AC signals
• Auxiliary pressure sensor input for remote set point reference
• Doubles as the software update path for E.SYBOX, E.SYBOX MINI and E.SWIM
