Dab Pumps - EsyDock Max Docking Station

Brand: Dab Pumps

DAB EsyDock Max Docking Station

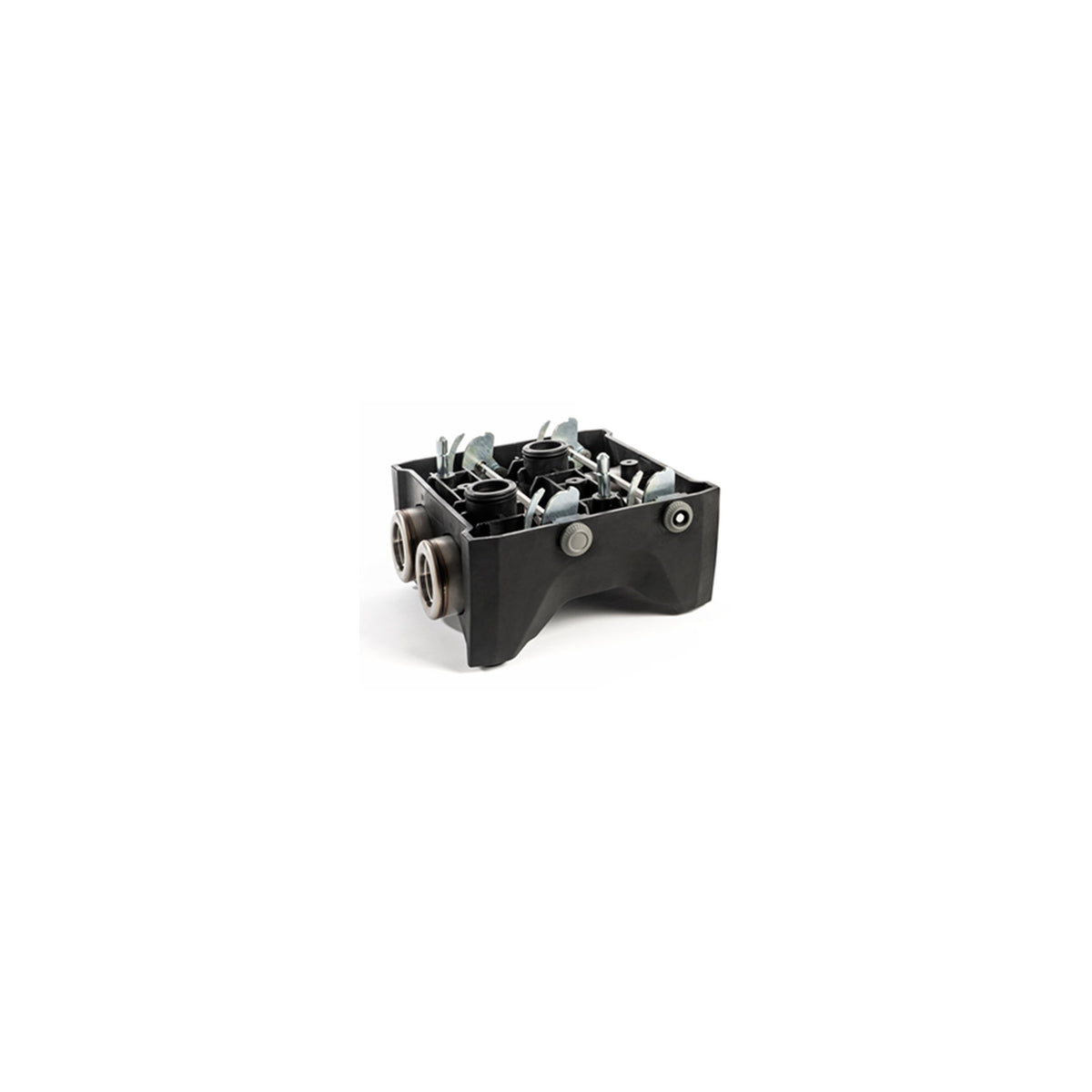

EsyDock Max is the mounting base that ties an EsyBox Max pump unit into the piping system. It carries every fitting needed for the system connection and sits on anti-vibration feet, so the assembled set stays as quiet as the pump on its own. Four hydraulic configuration modes let the suction and discharge leave opposite sides of the dock or the same side, so the dock adapts to the pipe run instead of the other way around.

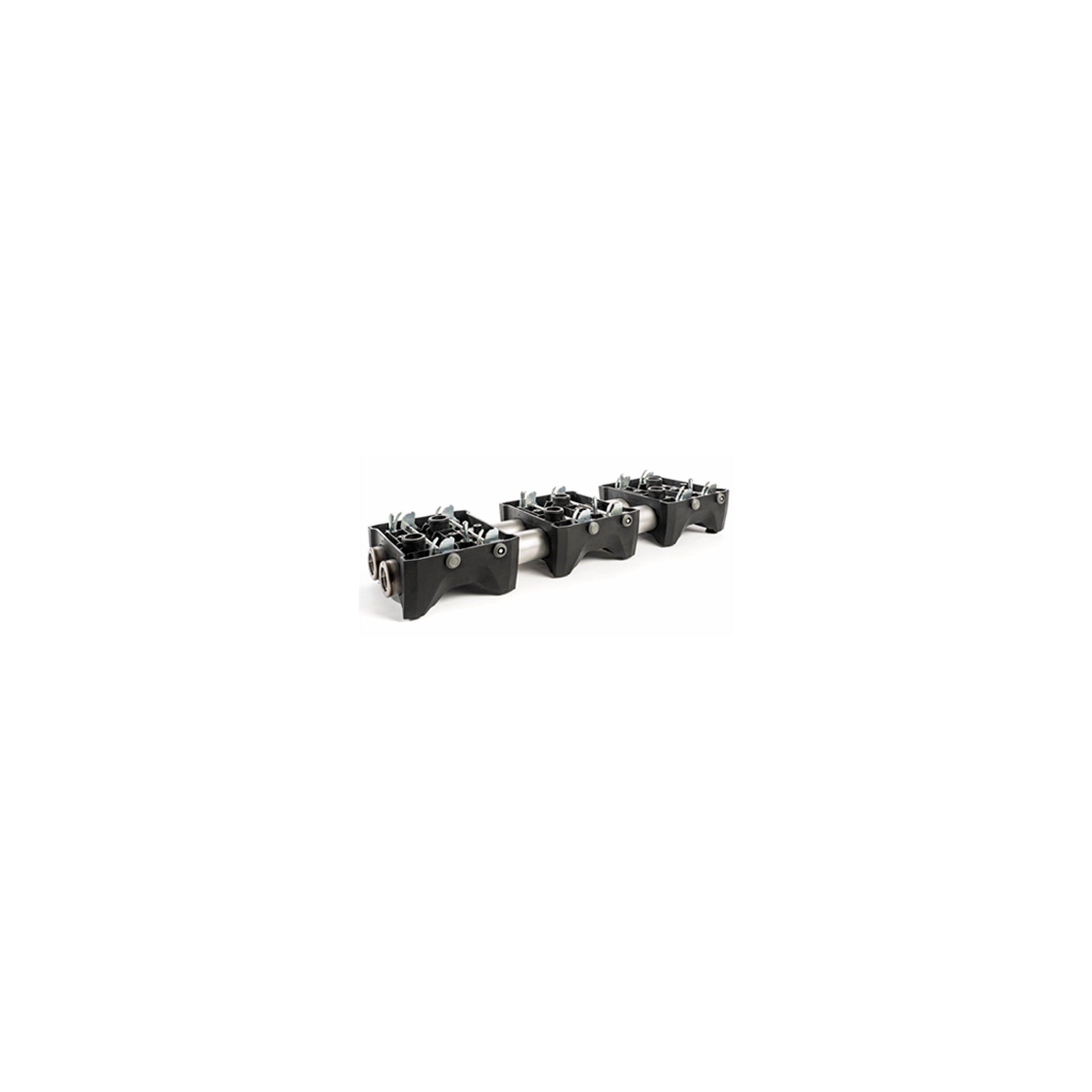

Pipe the dock in first and add pumps later, swap a pump without cutting pipe, or lift a unit off for winter storage. The two-pump and three-pump bases build a multi-pump booster on site out of separate, easier-to-carry boxes, which matters when the pump room is up a narrow stair. Once the dock is in, the pumps click into place and the set is commissioned from the DAB app.

Compatibility

• EsyBox Max pump units, single-phase and three-phase, in the 45/120, 60/120 and 85/120 sizes
• 1 EsyDock Max carries one pump, 2 EsyDock Max carries two, 3 EsyDock Max carries three
• Not a base for EsyBox, EsyBox Mini 3 or EsyBox Diver, which use the ESYDOCK and ESYTWIN family

Available Options

• 1 EsyDock Max NPT (60199045): single-pump base, suction and discharge 2 in NPT
• 2 EsyDock Max NPT (60199055): two-pump base, suction and discharge 2 in NPT
• 3 EsyDock Max NPT (60199056): three-pump base, suction and discharge 2 in NPT

Specifications

• Suction and discharge, all EsyDock Max configurations: 2 in NPT
• Maximum pump connection pressure: 174 psi
• Dimensions, 1 EsyDock Max: A 14-3/4 in, B 15-3/16 in, H 3-7/16 in, H1 4-7/8 in, H2 9 in
• Dimensions, 2 EsyDock Max: A 31-15/16 in, B 15-3/16 in, H 3-7/16 in, H1 4-7/8 in, H2 9 in
• Dimensions, 3 EsyDock Max: A 49-3/16 in, B 15-3/16 in, H 3-7/16 in, H1 4-7/8 in, H2 9 in

Key Features

• Four hydraulic configurations for flexible suction and discharge routing
• Anti-vibration feet keep the completed set quiet
• Pumps disconnect quickly for service, reducing system downtime
• On-site assembly of two-pump and three-pump boosters from separate components
