DAB EsyBox Docking Station

The ESYDOCK family is the quick-connect base for the EsyBox line. Each dock arrives complete with the fittings needed to tie into the system and rides on anti-vibration feet, so the finished set is as quiet as the pump itself. Four plumbing configurations mean the suction and the discharge can leave the dock on opposite sides or on the same side, which makes the pipe run simpler and the install faster.

Fit the dock into the pipework now and hang the pump on it later, pull a pump for service or winter storage without touching a pipe joint, or use the twin docks to stand two pumps side by side for higher flow or a standby unit. ESYTWIN is the evolution of ESYDOCK for two-pump groups and, per DAB, takes about half the space of an equivalent traditional two-pump set. EsyTwin Mini does the same job for two EsyBox Mini 3 units.

Compatibility

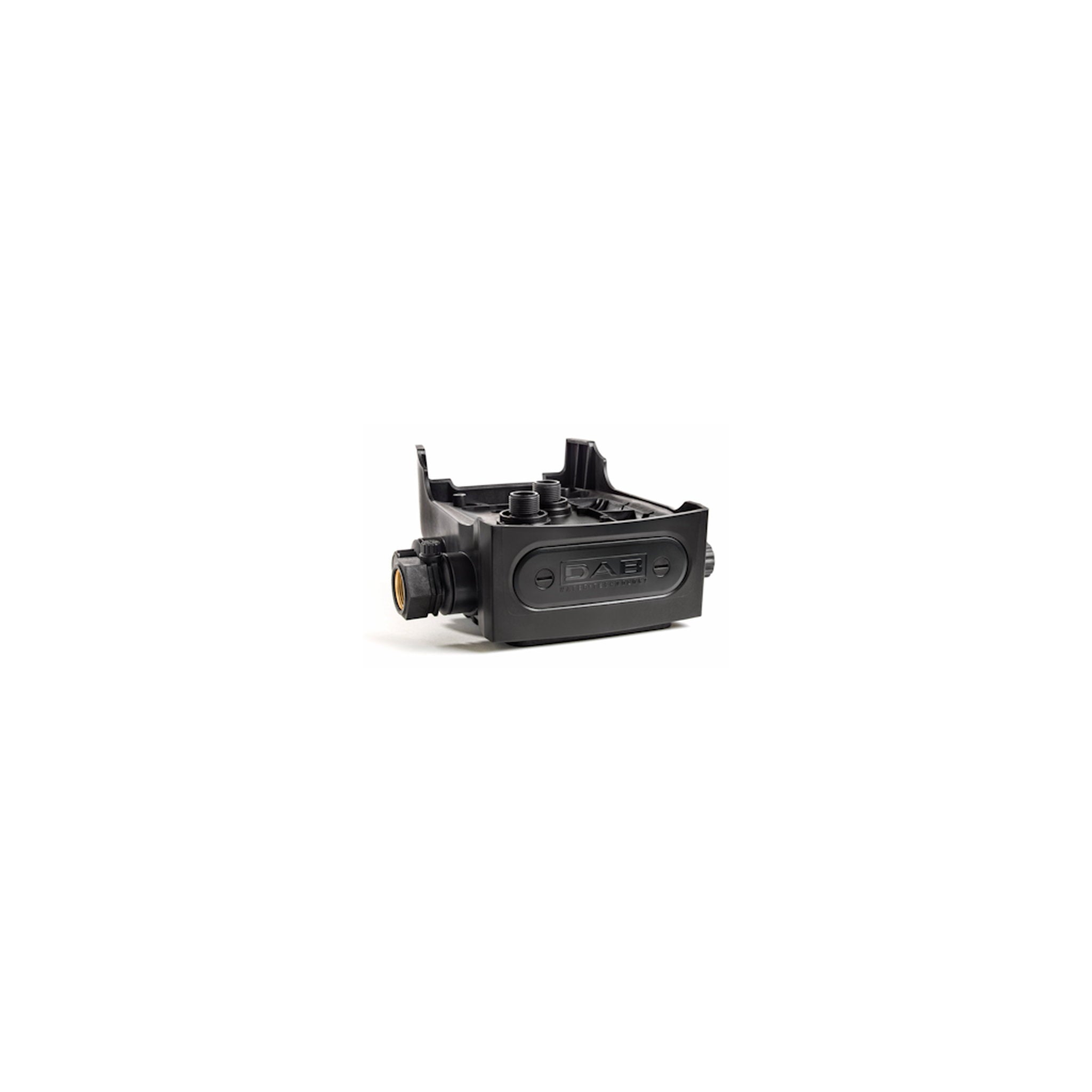

• ESYDOCK NPT (60150514): one EsyBox

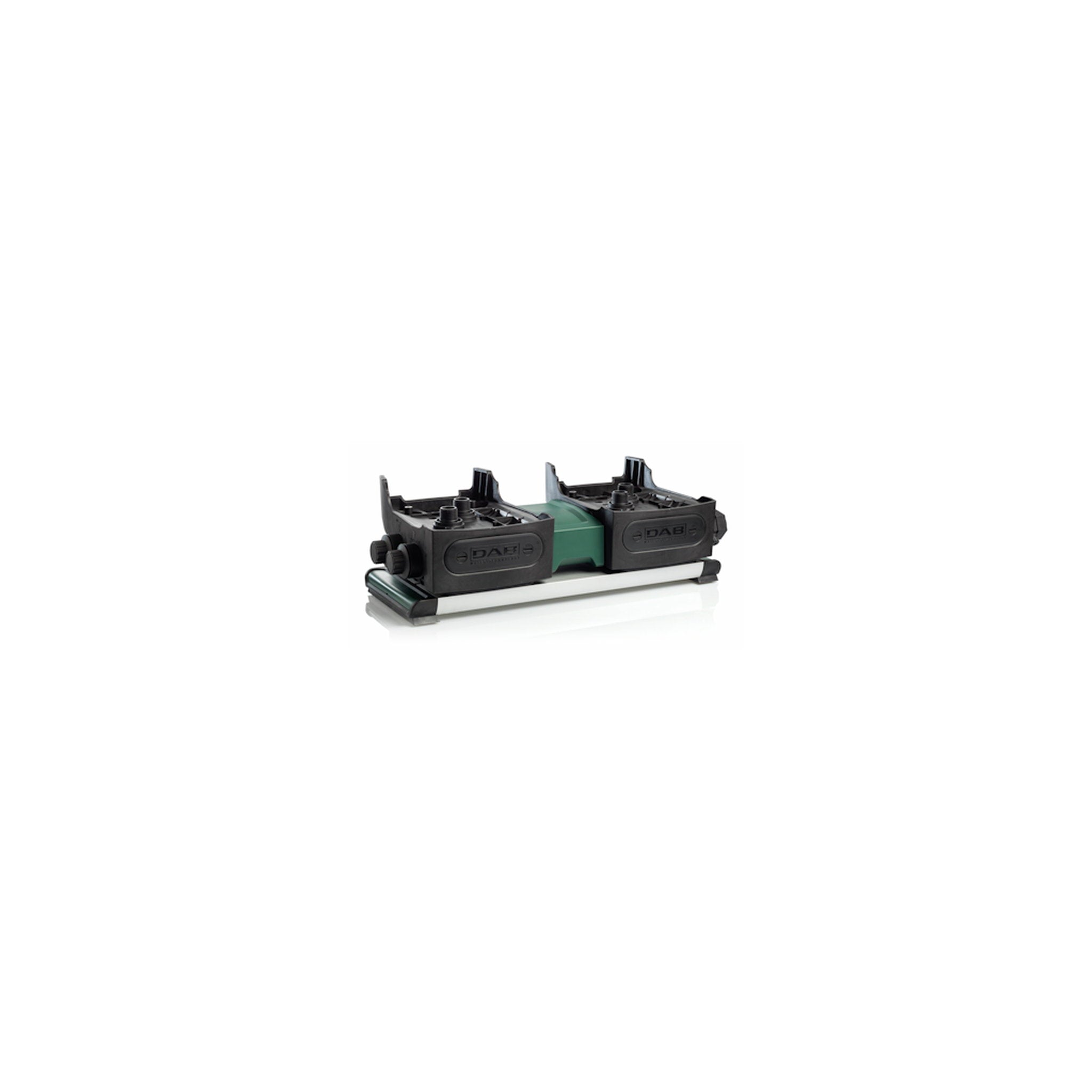

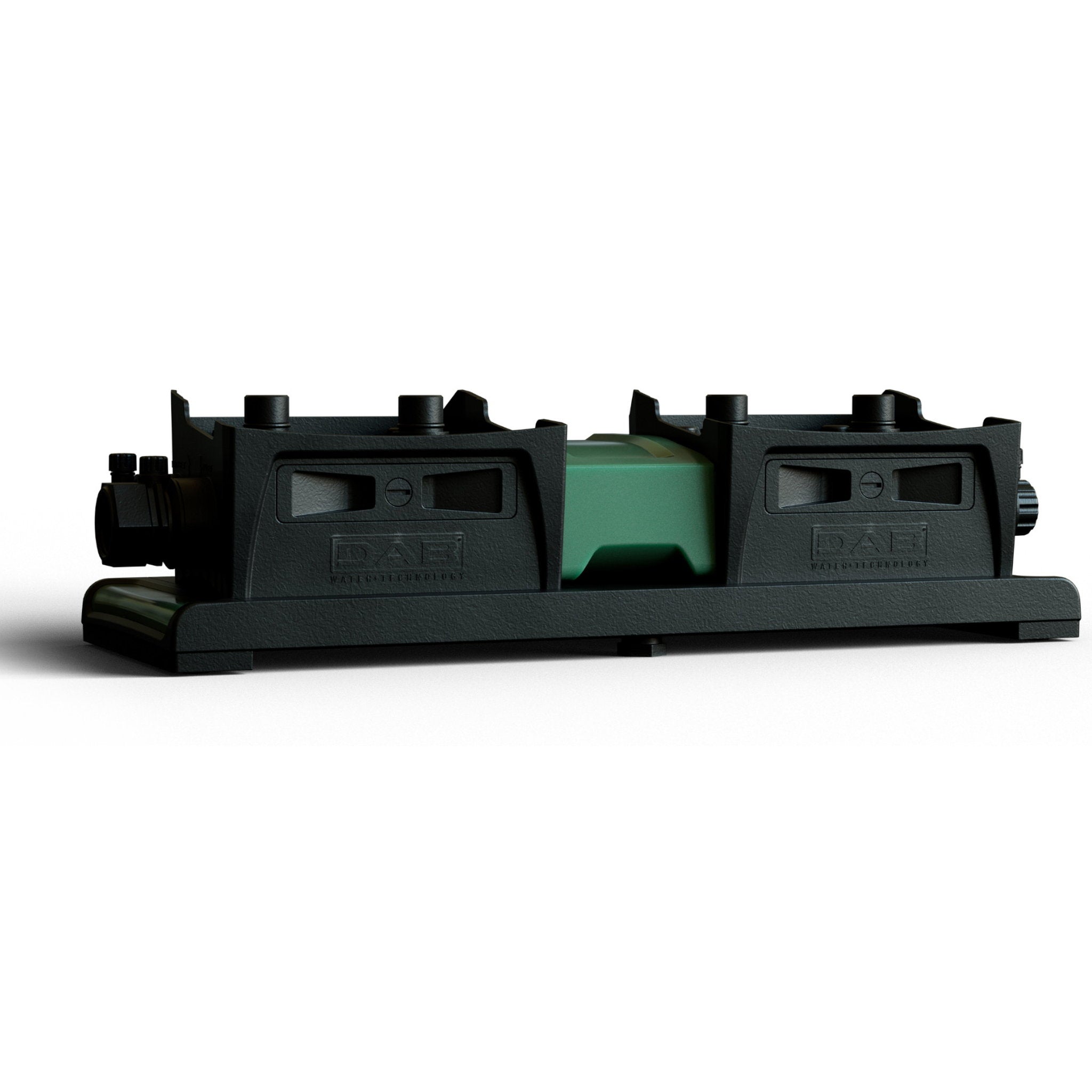

• ESYTWIN DOCK NPT (60162081): two EsyBox units side by side
• EsyTwin Mini NPT (60218780): two EsyBox Mini 3 units side by side
• EsyBox units communicate wirelessly with each other for setup and duty rotation, so a twin dock builds a working duty and standby pair
• Not for EsyBox Max, which uses the EsyDock Max range

Available Options

• ESYDOCK NPT (60150514): single-pump base for EsyBox, 1-1/4 in NPT suction and discharge, NSF/ANSI 61
• ESYTWIN DOCK NPT (60162081): two-pump base for EsyBox, 1-1/4 in NPT suction and discharge, NSF/ANSI 61
• EsyTwin Mini NPT (60218780): two-pump base for EsyBox Mini 3

Specifications

• ESYDOCK suction and discharge: 1-1/4 in NPT
• ESYDOCK dimensions: A 14-11/16 in, B 12-9/16 in, C 11-9/16 in, H 2-5/16 in, H1 3-9/16 in
• ESYDOCK weight: 8.8 lbs
• ESYTWIN DOCK suction and discharge: 1-1/4 in NPT
• ESYTWIN DOCK dimensions: 9.1 x 29.5 x 13.8 in
• EsyTwin Mini dimensions: A 29.57 in (751 mm), B 10.55 in (268 mm), C 28.71 in (729 mm), H 3.98 in (101 mm), H1 8.97 in (228 mm)
• EsyTwin Mini weight: 17.09 lbs (7.75 kg)
• Certification: ESYDOCK and ESYTWIN listed by DAB as NSF/ANSI 61 drinking water

Key Features

• Four plumbing configurations for fast, flexible installation
• Complete with the fittings required to connect to the system
• Anti-vibration feet preserve the low noise of the EsyBox
• Pipe the system first and add the pump later, or remove the pump for maintenance in minutes
• Twin docks build two-pump sets in roughly half the footprint of a traditional equivalent
