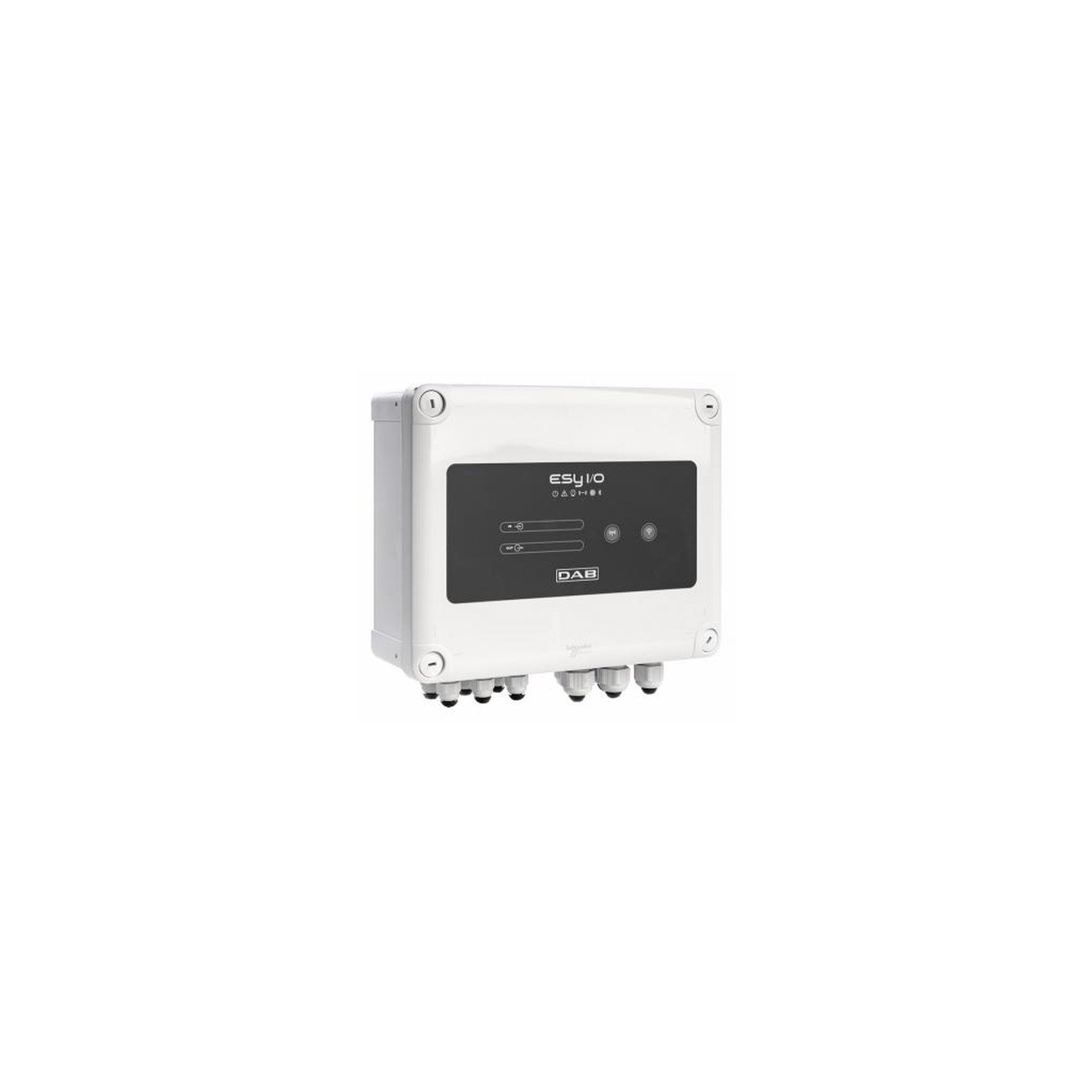

DAB ESY I/O Expansion Module

ESY I/O is the electronic expansion module that lets an EsyBox line pump talk to the rest of the plant. It adds four optoisolated digital inputs for devices such as float switches and pressure switches, four normally open relay outputs for remote alarms and auxiliary equipment, an input for a remote pressure sensor that compensates for pipe losses, and an RS485 Modbus RTU gateway for a building management system.

The module is wall mounted in an IP 55 enclosure with cable glands, runs on ordinary 100-240 VAC single-phase power, and links to the pump over DAB proprietary 802.15.4 wireless. Configuration and firmware updates are done through the DAB app rather than dip switches, and the pump itself decides how the interfaces are used.

Compatibility

• ESY I/O US (60206085): DAB EsyBox Max
• ESY I/O EsyBox NA V2 (60219995): DAB EsyBox
• Connects to BMS equipment with an RS485 Modbus RTU interface
• Accepts clean contact inputs such as floats and pressure switches, and drives outputs such as sirens and remote alarms

Available Options

• ESY I/O US (60206085): the EsyBox Max version of the module
• ESY I/O EsyBox NA V2 (60219995): the second-generation module for the EsyBox, configured through the DAB H2D app

Specifications

• Supply voltage: 100-240 VAC
• Supply frequency: 50/60 Hz
• Maximum rated current: 125 mA
• Optoisolated digital inputs: 4
• Relay outputs: 4 normally open, maximum 5 A at 230 VAC
• Serial interface: 1 RS485 Modbus RTU
• Remote pressure sensor: 1 input
• Protection rating: IP 55
• Ambient working temperature: 0 to 50 C (32 F to 122 F)
• Radio: DAB proprietary wireless IEEE 802.15.4, Wi-Fi 802.11 b/g/n 2.4 GHz, Bluetooth V4.2 BR/EDR and Bluetooth LE
• Minimum supply conductor: 0.8 sq mm copper, AWG 18
• Mounting: wall mounted, front panel removes for wiring

Key Features

• Brings float switches, pressure switches and remote alarms into an all-electronic booster
• Modbus RTU gateway puts the pump on a building management system
• Remote pressure sensor input compensates for pressure losses in long runs
• IP 55 wall-mount enclosure with glanded cable entries
• Status LEDs for power, fault, pressure sensor, Modbus, each input and each output
• Configured and updated from the DAB app
