DAB DTron 3 Submersible On-Demand Pump

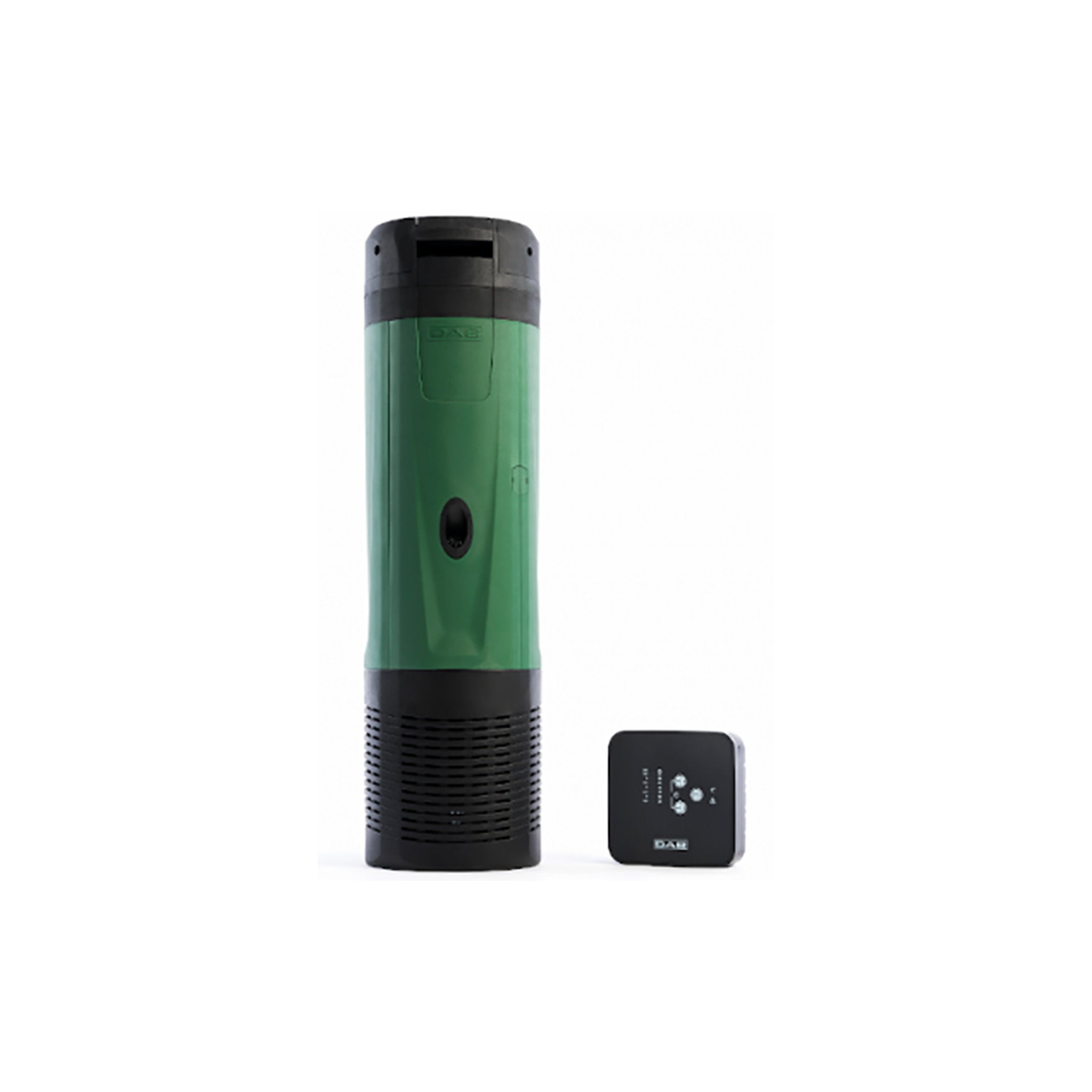

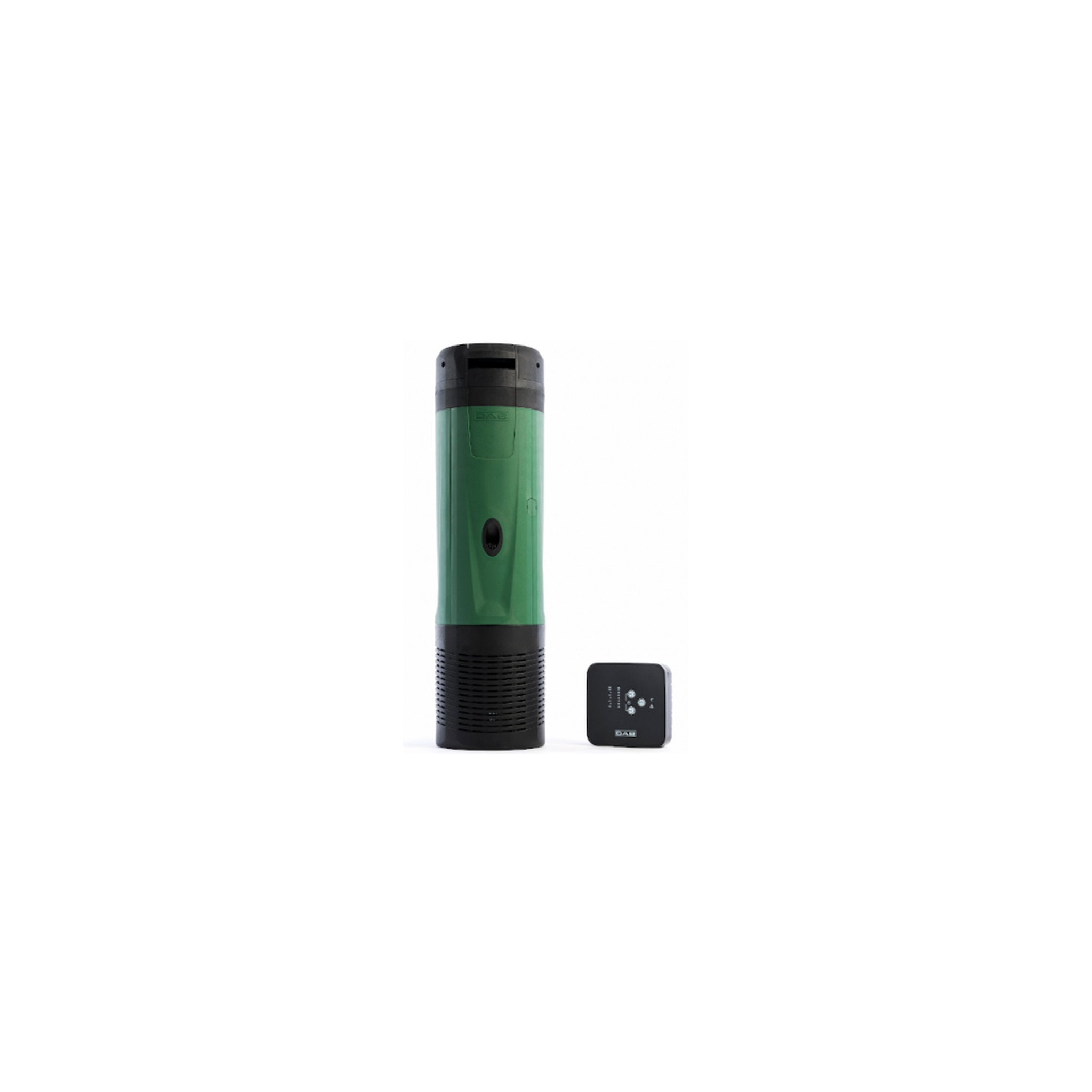

DAB DTron 3 Submersible On-Demand Pressure Pump with Com Box

The DAB DTron 3 is the measured and connected member of the 7 in DTron platform. Where the DTron 2 switches on a mechanical setpoint, the DTron 3 reads the system with a pressure sensor and a flow meter wired into its board, then reports what it sees over the power cable to a Com Box controller that DAB packs with the pump and pairs at the factory. Starting and stopping remain straight on/off at line frequency, about 10 seconds of run-on after the last tap closes; CSA certificate 80018347 tabulates the DTron 3 control type as ON/OFF at every duty point, and the inverter driven machine in DAB's submersible range is the EsyBox Diver. Nothing here is variable speed.

What the Com Box Adds

The Com Box needs no signal wiring. It communicates with the pump by Power Line Communication down the supply cord, and from its face an installer can:

Set cut-in pressure across the range DAB publishes for the DTron 3 electronics as 1.5 to 3.5 bar, about 21.8 to 50.8 psi, in place of the DTron 2's fixed 34.8 psi
Read live status and alarms, dry run and anticycling among them
Force a manual run for commissioning or a test
Switch on ANTICYCLING leak detection, which ships disabled and clears its own alarm after 12 hours

Two accessories extend it further. The DConnect Box 2 gateway (item 60198037) puts system pressure, alarms and remaining tank water on a phone or tablet through DAB's cloud service, and DAB's NFC water level measurement sensor (item 60184570) works with the DTron 3 and that gateway only, never with the DTron 2. Both DTron models take the simpler NFC Float (item 60184577), which seats in a pocket on the pump and signals the board with no wiring and no opening of the housing. A DTron 3 can also be paired with a second identical DTron 3 in twin mode so the standby unit starts by itself if the duty pump fails.

Mechanically the DTron 3 is the same rugged build as the rest of the platform: technopolymer casing, diffusers, filter and three impellers, AISI 304 floating and stationary wear rings, an AISI 304 motor sleeve, an AISI 303 shaft on the hydraulic end and a double mechanical seal in an oil chamber. Check valve, overpressure valve, bleed valve and a 0.04 liter expansion vessel are integrated, so the system needs no external tank. IP 68 covers the entire pump and the 49 ft (15 m) supply cord parts at the pump on a quick coupling. Protection against dry running, against burping on aerated water and against a check valve jammed open by grit is all resident on the board.

Choosing the Suction Base

Each DTron 3 duty point comes in either of two suction bases. Hydraulics, motor, electronics, Com Box, cable length, certification and price do not change between them; the water intake does.

Standard suction base. Open filter base whose splitter holds the intake off the very bottom down to a 3.1 in level, trimmable or removable to draw down to 1.38 in remaining. The spacer in the box fixes intake height at 1.4 in, 1.6 in, 2.4 in or 3.1 in off the tank floor. Item codes 60197699 (35/90), 60195642 (45/90) and 60197703 (35/120).
Filter X suction base. A closed base, not watertight, fitted with a 1 in NPT female connection instead of the open strainer. DAB's Kit X threads into that port: a 3.2 ft (1 m) hose on a float that lets the pump take water from a level you choose instead of from settled sand, silt and leaf litter. Pick it for a dug well, a bore with a sediment layer or a cistern nobody cleans. DAB lists Kit X as an option, so confirm what ships in the carton. Item codes 60202765 (35/90), 60202766 (45/90) and 60202767 (35/120).

The two bases do not share a drinking water designation. DAB appends the suffix - NSF to the item description of the three standard base codes and does not append it to the three filter X codes. Against those three standard codes DAB's May 2025 US catalog states approval to NSF 61, NSF 372, UL and CSA standards. The filter X codes carry no NSF designation in DAB's US item list and DAB supplies a drinking water version of the X on request. Specify the standard suction base for potable service.

Only the height changes with the base. Maximum pump diameter stays 7.28 in (185 mm), which DAB's May 2025 US catalog prints as 7.3 in, so either base passes through the same minimum 7.09 in by 7.28 in opening. A standard DTron 3 measures 25.63 in (651 mm) and weighs 25.6 lb; a filter X DTron 3 measures 26.61 in (676 mm) and weighs 25.8 lb.

The pump serves cisterns and rainwater tanks, drilled and dug wells and storage tanks feeding a house, sitting submerged, part submerged, upright or on its side. DAB's DOC68 accessory (item 60192276) takes it out of the water entirely and runs it as an IP 68 flooded suction surface booster. Leave at least 3.28 ft between the suction and the bottom of a well, and suspend the pump slightly clear of the floor so vibration does not carry into the structure.

Available Models

The model name is a nominal duty point: head in meters, then flow in liters per minute. DAB's measured curves land near but not on those names, and the naming rounds in both directions. DAB's own documents disagree about maximum head, and both readings appear below. The primary figures come from DAB's 2020 US technical sheet curve tables and Table 1 of the DTron 3 instruction manual. The Max Head column in DAB's May 2025 US catalog reads 118 ft, 134 ft and 146 ft for these same three item codes, a set that contradicts DAB's curves and puts the 35/120 above the 45/90. Size to the curve figures, and confirm with DAB before committing to a lift near the limit.

DTron 3 35/90: DAB's curve gives 121 ft (37 m) shutoff and 26.4 gpm (100 L/min); the May 2025 catalog row gives 118 ft and 26 gpm. Rated 0.7 HP (0.52 kW) at 60 Hz, 750 W input, 7.4 A at 115V. Entry duty point and the lowest current draw, right for one bathroom or a shallow tank.
DTron 3 45/90: DAB's curve gives 147 ft (45 m) shutoff and 27.7 gpm (105 L/min); the May 2025 catalog row gives 134 ft and 26 gpm. Rated 0.9 HP (0.67 kW) at 60 Hz, 1050 W input, 9.7 A at 115V. The head model, for deep tanks, long runs and upper floors.
DTron 3 35/120: DAB's curve gives 125 ft (38 m) shutoff and 33 gpm (125 L/min); the May 2025 catalog row gives 146 ft and 34 gpm. Rated 0.9 HP (0.67 kW) at 60 Hz, 950 W input, 8.8 A at 115V. The flow model, for several fixtures or irrigation zones together.

Specifications

Type: Electronic on/off multistage submersible pump with Com Box; no inverter and no variable speed drive
Control Devices: Pressure sensor and flow meter on the electronic board
Controller: Com Box supplied with the pump, factory paired, Power Line Communication over the supply cord
Cut-In Pressure: Adjustable at the Com Box over DAB's published 1.5 to 3.5 bar, about 21.8 to 50.8 psi
Stop Delay: About 10 seconds after flow ceases
Supply: 115V, 60 Hz, single phase, cord and plug connected
Rated Output P2 at 60 Hz: 0.7 HP (0.52 kW) on the 35/90; 0.9 HP (0.67 kW) on the 45/90 and 35/120
Input Power P1: 750 W, 1050 W or 950 W by model
Full Load Current: 7.4 A, 9.7 A or 8.8 A at 115V by model
Shutoff Head on DAB's Curve: 121 ft, 147 ft or 125 ft by model; DAB's May 2025 catalog column reads 118 ft, 134 ft and 146 ft
Maximum Flow: 26.4 gpm, 27.7 gpm or 33 gpm by model
Motor Capacitor: 35 uF at 275 V, DAB spare part SP00006811
Discharge: 1-1/4 in NPT threaded outlet
Suction, Standard Base: Open filter, intake height set to 1.4 in, 1.6 in, 2.4 in or 3.1 in with the included spacer
Suction, Filter X Base: Closed filter X with 1 in NPT female connection for DAB's Kit X floating suction hose
Free Passage: 0.08 in (2 mm) per DAB's technical sheet; the May 2025 catalog prints 0.1 in
Minimum Suction Level: 4.33 in (110 mm)
Minimum Remaining Water Level: 1.38 in (35 mm)
Maximum Immersion Depth: 49 ft (15 m)
Liquid and Ambient Temperature: 32 F to 122 F (0 C to 50 C)
Maximum Starts Per Hour: 60
Duty: Continuous service rated
Enclosure: IP 68 over the complete pump
Insulation Class: F, with integrated capacitor and thermal overload protection
Power Cable: 49 ft (15 m) with plug and quick coupling connector on both suction bases
Expansion Vessel: 0.04 liter, integrated, maintenance free, never recharged
Wetted Construction: Technopolymer casing, diffusers, filter and impellers; AISI 304 wear rings and motor sleeve; AISI 303 shaft on the hydraulic end; double mechanical seal in an oil chamber
Maximum Pump Diameter: 7.28 in (185 mm) on both suction bases, printed as 7.3 in by DAB's May 2025 US catalog
Overall Height: 25.63 in (651 mm) standard base; 26.61 in (676 mm) filter X base
Weight: 25.6 lb (11.6 kg) standard base; 25.8 lb (11.7 kg) filter X base
Compatible Accessories: DConnect Box 2 gateway 60198037, NFC Level Sensor 60184570, NFC Float 60184577, DOC68 surface base 60192276, Kit X floating suction for the filter X base
Agency Certification: CSA certificate 80018347, CSA mark with C and US indicators, certified to CSA C22.2 No. 108-14 Liquid Pumps and UL 778 6th Ed. Motor Operated Water Pumps. CSA is the certifying body; UL 778 is the standard it certified against, so this is not a UL Listing
Drinking Water: DAB designates the three standard base codes as its NSF versions, approved to NSF/ANSI 61 and NSF/ANSI 372; the three filter X codes carry no NSF designation in DAB's US item list

Key Features

Pressure sensor plus flow meter. The board works from measured values rather than a mechanical trip, which is what makes an adjustable set point and real alarm reporting possible.
Com Box in the box. Factory paired, no signal wiring, communicating down the power line: set the cut-in, watch status, clear alarms, force manual running.
Adjustable cut-in. DAB publishes 1.5 to 3.5 bar for the DTron 3 electronics, roughly 21.8 to 50.8 psi, so one pump covers a cottage tap and a three storey house.
ANTICYCLING leak detection. Catches the slow leak that would otherwise start the pump all night. Disabled from the factory, enabled at the Com Box, self clearing after 12 hours.
Phone and tablet monitoring. Add DConnect Box 2 (item 60198037) for pressure, alarms and remaining tank water through DAB's cloud app.
NFC level measurement, DTron 3 only. DAB's NFC level sensor (item 60184570) pairs with this pump and DConnect Box 2; it is not supported on the DTron 2.
Twin mode. Pair two DTron 3 pumps and the standby takes over automatically when the duty pump faults.
NFC Float pocket. The NFC float (item 60184577) seats on the pump and reports to the board with no cable and no breach of the seal.
Dry run, burping and jammed valve protection. Resident on the board: a 20 second dry run trip with timed retries, suppression of false primes on aerated water, and an alarm instead of continuous running when the check valve is held open.
No external pressure tank. A 0.04 liter integrated vessel takes up small leaks and water hammer and needs no charging.
IP 68 across the whole pump. Not just the motor, so it can live underwater.
Two suction bases at one price. Standard open filter, or filter X with a 1 in NPT port for Kit X floating suction above a silted bottom.
Quick coupling cord and modular body. The 49 ft cable unplugs at the pump, and hydraulic end, motor, electronics and filter come apart separately for service.
DOC68 dry mounting. Item 60192276 converts the install to an IP 68 flooded suction surface booster outside the tank.

Ideal Applications

Rainwater harvesting systems where the owner wants pressure and alarms on a phone
Cistern and storage tank pressurization with a set point tuned to the building
Drilled wells, dug wells and bores feeding a single family home
Properties with a leak history, where ANTICYCLING pays for itself
Duty and standby pairs in twin mode for a house that cannot lose water
Remote, rented or seasonal property monitored from somewhere else
Irrigation and greenhouse supply drawn from a tank without a pressure vessel
