Dab Pumps - Pressure Sensor Assembly for EsyBox - SP00000150

Brand: Dab Pumps

Pressure Sensor Assembly - EsyBox - SP00000150

DAB part SP00000150, listed by DAB as "(SP) PRESSURE SENSOR ASS. E.SYBOX". The E.sybox runs on an integrated inverter which, in DAB's words, "makes use of flow, pressure and temperature sensors, also integrated in the system. By means of these sensors the system switches on and off automatically according to the utility's needs and it is able to detect conditions of malfunction, to prevent and indicate them." The internal pressure sensor is what lets the inverter hold a constant delivery pressure.

Position 464 on the DAB E.sybox spare parts list, on the hydraulic and electronics side of the system.

Fits

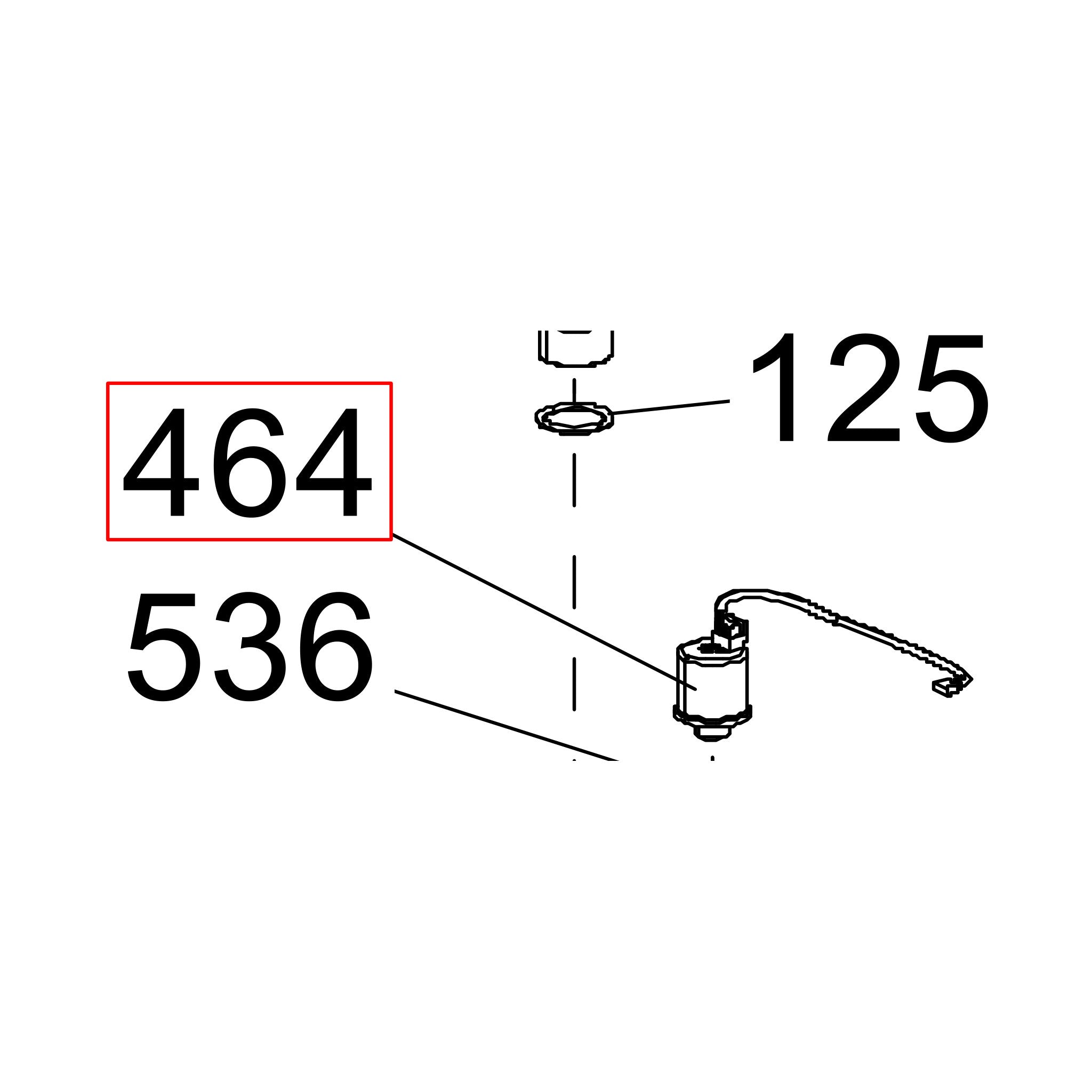

• DAB E.sybox. DAB numbers this part position 464 on the E.sybox exploded view and spare parts list.
• Listed at position 464 under the same part number on both the revision N.1 list (product code 60161183) and the revision N.3 list (product code 60212671).
• Source list is drawn for the AU market build, "E.SYBOX V220-240 50/60Hz AUS PLUG".

Before You Order

• Revision-stable part. We compared the E.SYBOX revision N.1 spare parts list (product code 60161183) line by line against the revision N.3 list (product code 60212671). Position 464 carries the same part number, SP00000150, on both lists, so this part is not revision-gated between N.1 and N.3. Only four positions change part number between those two revisions, and this is not one of them.
• DAB prints this caution at the head of both spare parts lists: "Attention: check the correspondence with the revision of your product." To read your own pump: the technical data plate sits inside the technical compartment (DAB instruction manual 60168399, Fig. 3, item 2, reached by removing the inspection door on Face A), or power the pump up and open the VE page in the menu, which DAB section 7.1.11 "VE: Version display" describes as the "Hardware and software version with which the appliance is equipped."
• The documented failure symptom is a specific alarm code. DAB section 4.1.4 covers "BP1" blockage due to fault of the internal pressure sensor: "If the device detects a fault in the pressure sensor the pump remains blocked and the error signal BP1 is given. This status begins as soon as the problem is detected and ends automatically when correct conditions have been restored." DAB's error table also lists "BP" for blockage due to fault of the pressure sensor.
• Read the fault history before you buy. DAB section 7.1.12 "FF: Fault log display" gives a chronological display of the faults that have occurred during system operation, so you can confirm BP1 or BP actually happened rather than guessing.
• Fitment note for North American buyers: every DAB E.sybox spare parts list we can source is drawn against the AU market build, printed on the list as "E.SYBOX V220-240 50/60Hz AUS PLUG". We have no DAB spare parts list for a North American NPT build, so confirm this part number against your own technical data plate, or with DAB, before you order. We are not going to pretend an AU list is a US list.
