Dab Pumps - Panel Board for EsyBox - SP00000135

Brand: Dab Pumps

Panel Board - EsyBox - SP00000135

DAB part SP00000135, listed by DAB as "(SP) PANEL BOARD E.SYBOX". This is the E.sybox user interface board. DAB describes the panel as "composed of a display and a keyboard and its function is to set the system, query its status and communicate any alarms", and elsewhere as "a keypad with LCD display and with POWER, COMM, ALARM warning leds". Everything an owner does on the pump, from setting the pressure setpoint to reading the fault log, happens here.

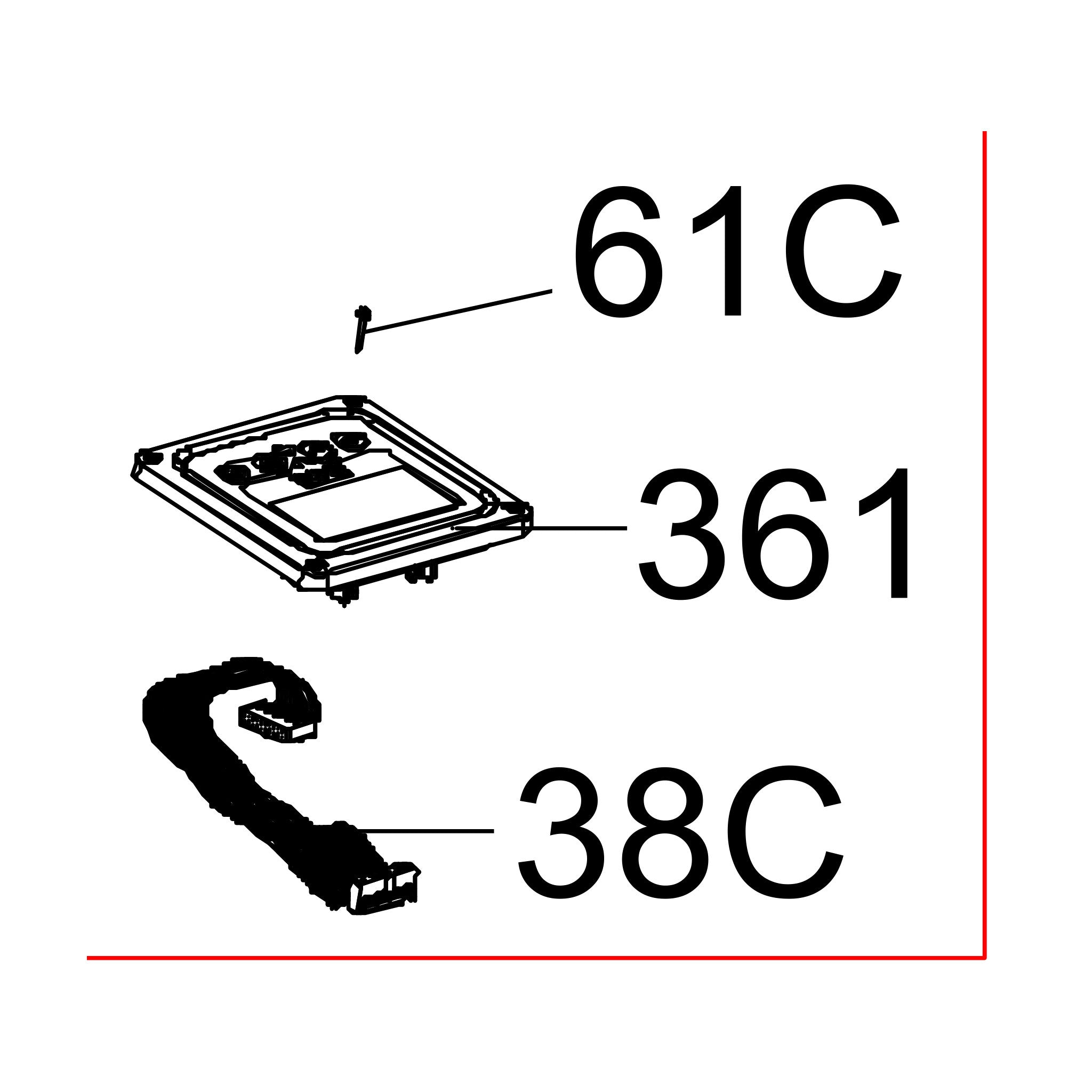

Position 361 on the DAB E.sybox spare parts list, on the front of the system. DAB's panel rotation procedure shows how it is held: four screws at the corners of the panel, disengaged with the hex wrench in the accessory tool, with the panel then moved away "taking care not to pull on the signal transmission cable" that connects it to the body. DAB warns not to remove those screws fully and not to drop them into the system.

Fits

• DAB E.sybox. DAB numbers this part position 361 on the E.sybox exploded view and spare parts list.
• Revision N.1 only. The source list is E.SYBOX revision N.1, product code 60161183.
• Source list is drawn for the AU market build, "E.SYBOX V220-240 50/60Hz AUS PLUG".

Before You Order

• Revision-specific part. Check your revision before you order. DAB lists SP00000135 at position 361 on the E.SYBOX revision N.1 spare parts list, product code 60161183. On the revision N.3 list, product code 60212671, that same position 361 carries a different part number: SP00008378, described by DAB as "(SP) DISPLAY V2 E.SYBOX". This listing is the revision N.1 part. If your pump is a revision N.3 build, this is not your part number.
• DAB prints this caution at the head of both spare parts lists: "Attention: check the correspondence with the revision of your product."
• To read your own pump: the technical data plate sits inside the technical compartment (DAB instruction manual 60168399, Fig. 3, item 2, reached by removing the inspection door on Face A), or power the pump up and open the VE page in the menu, which DAB section 7.1.11 "VE: Version display" describes as the "Hardware and software version with which the appliance is equipped."
• DAB renamed this position between revisions, which tells you something. On revision N.1 position 361 is "PANEL BOARD E.SYBOX"; on revision N.3 the same position is "DISPLAY V2 E.SYBOX" under part number SP00008378. A V2 designation on the revision N.3 part is DAB signalling a changed interface generation, so do not assume the two are interchangeable.
• DAB publishes no electrical rating, display specification or dimensions for this board at part level, so we state none.
• Fitment note for North American buyers: every DAB E.sybox spare parts list we can source is drawn against the AU market build, printed on the list as "E.SYBOX V220-240 50/60Hz AUS PLUG". We have no DAB spare parts list for a North American NPT build, so confirm this part number against your own technical data plate, or with DAB, before you order. We are not going to pretend an AU list is a US list.

Often Replaced With

• Kit maintenance tools, SP00000144 (position 524) - DAB's panel work uses the hex wrench supplied in the accessory tool to disengage the four corner screws.
