Dab Pumps - O-Ring Kit for EsyBox Max - SP00006718

Brand: Dab Pumps

O-Ring Kit - EsyBox Max - SP00006718

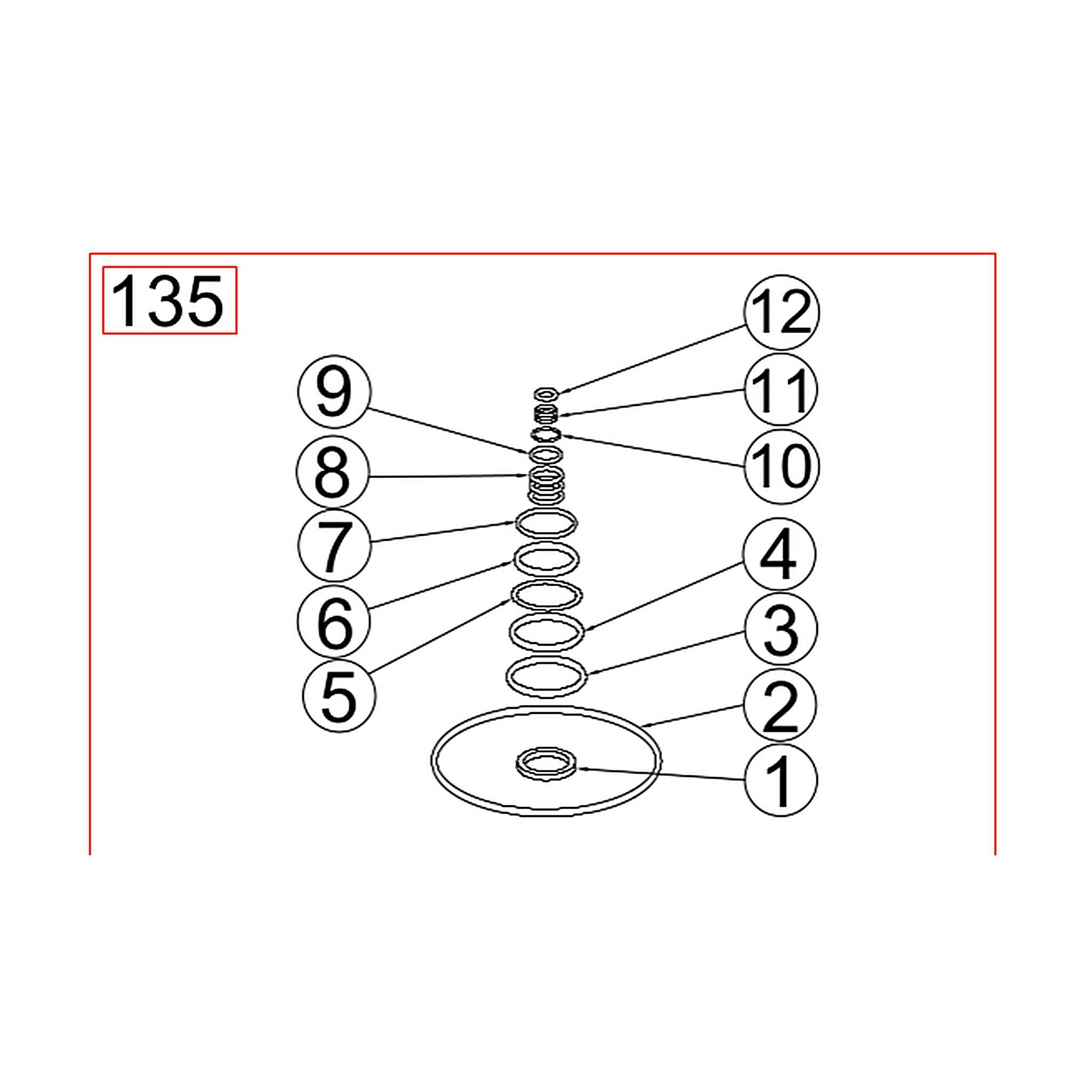

The O-ring kit is the set of elastomer seals DAB calls out for the EsyBox Max hydraulic assembly. DAB's spare parts sheet lists it as (SP) ESYBOXMAX - O-RING KIT at position 135, and the exploded drawing references position 135 at several separate points across the assembly rather than at a single location.

DAB's maintenance instructions treat these seals as consumables of the service job rather than as scheduled-replacement items. Manual section 13.3 states that should one or more O-rings be lost or damaged during maintenance on the non-return valve, they must be replaced, otherwise the system might not work correctly. Section 13.4 tells you to screw the eyebolt back into place making sure that the O-ring has not been removed or damaged during the operation. Section 13.5, step 9, tells you to check the O-ring on the expansion tank and replace it if damaged, unless it is already supplied mounted on the DAB spare part, in which case it can be scrapped together with the vessel being replaced. On the spare parts drawing, position 135 items also appear at the pressure sensor and the self-priming shutter.

Fits

• DAB EsyBox Max. DAB's spare parts sheet ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359 lists this item at position 135 as (SP) ESYBOXMAX - O-RING KIT, item no. SP00006718.
• The DAB EsyBox Max instruction manual for North America covers the EsyBox Max 60/120 M, 60/120 T and 85/120 T (manual section 1.5). That manual does not list the 45/120 M208-240 at all, and the spare parts sheet cited here is for the 45/120 M208-240. The two documents cover different model sets.
• The manual sections that call for O-ring replacement (13.3 non-return valve, 13.4 motor shaft, 13.5 expansion vessel) are written for the EsyBox Max product without distinguishing between the models the manual covers.

Before You Order

• Attention: check the correspondence with the revision of your product. That caution is printed across the header of DAB's spare parts sheet. Check the position number and item number against the sheet issued for your own unit and its revision before you order.
• The only EsyBox Max spare parts list available for this listing is the AU build sheet, ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359. DAB has not published a parts sheet in the documents used here for the 60/120 T or 85/120 T, so the item number for three-phase machines is not confirmed by these sources.
• DAB does not publish a contents list, sizes or materials for this kit at part level, and none are stated here. If you need to match one specific seal, work from the spare parts sheet issued for your unit.
• DAB's manual states the system requires no routine maintenance operations (section 13), so there is no published service interval that calls for this kit. It is ordered against a specific job or a damaged seal.

Often Replaced With

• NRV Group, SP00006704, position 121. Manual section 13.3 requires damaged or lost O-rings to be replaced whenever the non-return valve is serviced.
• Water Tank 2 L, SP00006706, position 123. Manual section 13.5, step 9, covers the O-ring check during expansion vessel replacement.
• Eyebolt 3/4 in, SP00006698, position 115. Manual section 13.4 warns about the eyebolt O-ring when the motor shaft is freed.
