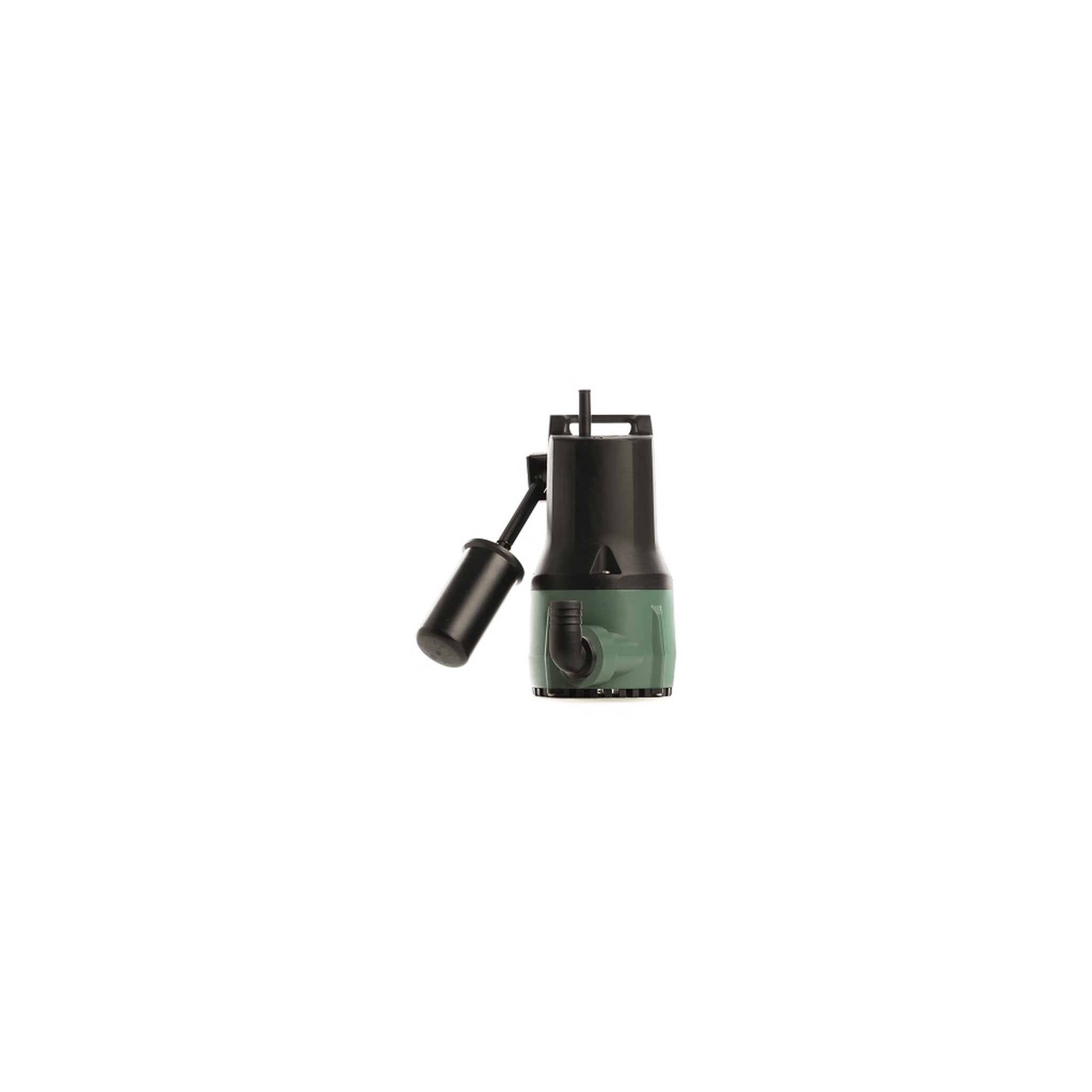

Dab Pumps - NOVA 40th Anniversary Submersible Utility Pump 115V

Brand: Dab Pumps

DAB NOVA 40th Anniversary Submersible Utility Pump

The DAB NOVA is a 115 V single phase submersible pump for clear water and rainwater, completely redesigned in 2019 for the fortieth year of NOVA sales. The pump body, impeller and suction grid are technopolymer, the motor case is AISI 304 stainless steel and the rotor shaft is AISI 431 stainless steel, so the wetted parts resist corrosive attack. Sealing is a triple ring arrangement in an oil bath, the motor is a continuous duty asynchronous submersible type on oversized ball bearings, and thermal protection is built into every single phase version. DAB rates the pump for dry operation of up to 1 minute. Model suffixes tell you how it switches: MA is automatic with a tethered float that starts and stops the pump on level, and MNA is non-automatic, supplied without a float so the pump runs whenever it is energized or is switched by an external control. Every model in this listing uses a 1-1/4 in NPT discharge and a 16 ft SJTOW cord. The 05SJTOW in DAB's item description is the 5 metre, 16 ft cord, and 40TH is the anniversary series, not a cord length.

NOVA is built for residential and light commercial dewatering: flooded basements, garages and crawl spaces, window wells, elevator and utility pits, boat wells, and emptying tanks, cisterns, rain barrels and above ground pools. Because DAB sets the intake level low, a NOVA 180 or 200 will draw a basin down to 0.31 in, a NOVA 300 to 0.51 in and a NOVA 600 to 1.18 in, which matters when you are trying to finish a floor rather than just knock the water down. MA models drop straight into a pit and run unattended; MNA models suit a panel, a duplex controller or a hand switch.

Available Models

• NOVA 180 MNA: 1/4 HP, no float, max flow 40 GPM, max head 16.1 ft
• NOVA 200 MNA: 1/3 HP, no float, max flow 47 GPM, max head 18.7 ft
• NOVA 600 MNA: 1/2 HP, no float, max flow 67 GPM, max head 33.1 ft
• NOVA 180 MA: 1/4 HP, automatic with float, max flow 40 GPM, max head 16.1 ft
• NOVA 300 MA: 1/3 HP, automatic with float, max flow 50 GPM, max head 18.7 ft
• NOVA 600 MA: 1/2 HP, automatic with float, max flow 67 GPM, max head 33.1 ft

Specifications

• Power supply: 115 V, 60 Hz, single phase
• Motor output: 1/4 HP on NOVA 180, 1/3 HP on NOVA 200 and NOVA 300, 1/2 HP on NOVA 600
• Rated current: 2.9 A on NOVA 180, 3.8 A on NOVA 200, 3.9 A on NOVA 300, 6.5 A on NOVA 600
• Family operating range: 0.3 to 67 GPM, head to 33 ft
• Discharge connection: 1-1/4 in NPT
• Free passage: 0.2 in on NOVA 180 and NOVA 200, 0.4 in on NOVA 300 and NOVA 600
• Minimum intake level: 0.31 in on NOVA 180 and 200, 0.51 in on NOVA 300, 1.18 in on NOVA 600
• Maximum immersion depth: 23 ft
• Pumped liquid: clear water or rainwater
• Liquid temperature: 32 F to 95 F for domestic use, 32 F to 122 F for other uses
• Enclosure: IP 68
• Motor insulation class: F
• Power cord: 16 ft SJTOW with plug
• Materials: technopolymer pump body, impeller, suction grid and float; NBR O rings; AISI 304 stainless steel motor case; AISI 431 stainless steel rotor shaft
• Installation: fixed or portable, vertical
• Certification: UL Std. No. 778 6th Ed. and CSA C22.2 No. 108-14
• Shipping weight: 10.2 lb on NOVA 180, 200 and 300; 15.4 lb on NOVA 600

Key Features

• Redesigned in 2019 for the fortieth year of NOVA production, with a more durable body and an easier carrying handle
• Triple ring seal in an oil bath and a continuous duty asynchronous motor on oversized ball bearings
• Thermal protection built into every single phase version
• AISI 304 stainless steel motor case and AISI 431 stainless steel shaft for corrosion resistance
• Low intake level draws a basin down to 0.31 in on the NOVA 180 and 200
• Rated for dry operation of up to 1 minute
• MA versions arrive ready to run automatically on a tethered float; MNA versions are supplied without a float for external control
• 1-1/4 in NPT discharge and a 16 ft SJTOW cord on every model

Ideal Applications

• Flooded basements, garages and crawl spaces
• Window wells, elevator pits and utility pits
• Emptying tanks, cisterns and rain barrels
• Above ground pool and pool cover drainage
• Rainwater collection and reuse
• Boat wells and dock boxes
• Portable emergency dewatering
