Dab Pumps - MASCONTROL Automatic Pump Controller, Dry Run Protection

Brand: Dab Pumps

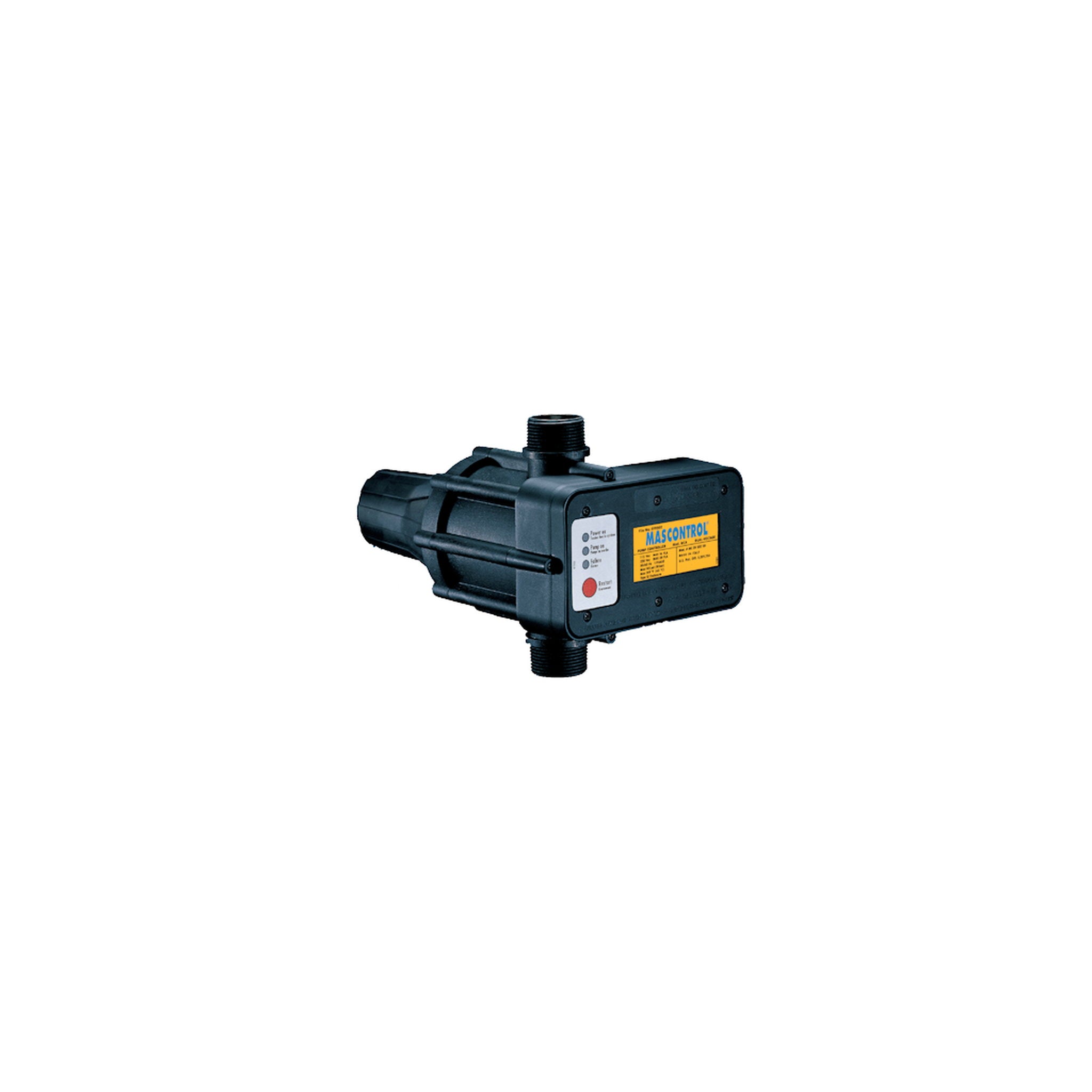

DAB MASCONTROL Automatic Pump Controller

MASCONTROL is an automatic pump controller that combines a hydraulic body and an electronic control box into a single device that starts and stops a pump as taps open and close. It monitors both pressure and flow rather than pressure alone, so it holds pressure steady at the point of use and shuts the pump off immediately if the inlet runs dry or the suction is blocked. A check valve is built into the body, so one unit takes the place of the conventional pressure tank, pressure switch and check valve assembly. No adjustment and no maintenance are required.

The controller mounts vertically on the discharge column with the flow arrows pointing up, either directly on a surface pump outlet or between the pump and the first tap. It suits residential and commercial well systems, water conditioning, irrigation and booster duty, and works with surface pumps or submersible pumps. Three indicator lights on the front of the box report Power On, Pump On and Failure, and a Restart button restores normal operation once a fault has been corrected. On loss of power the unit resets and restarts automatically when power returns.

Available Models

• 1 in NPT - 31.9 PSI: 1 in NPT male connections, 31.9 PSI factory cut-in, which DAB's May 2025 catalog lists as 32 PSI. Pump must generate at least 43.5 PSI and the water column between the unit and the highest tap must not exceed 70 ft. DAB designation MCDV232101.
• 1 in NPT - 43.5 PSI: 1 in NPT male connections, 43.5 PSI factory cut-in, which DAB's May 2025 catalog lists as 44 PSI. Pump must generate at least 55.1 PSI and the water column between the unit and the highest tap must not exceed 90 ft. DAB designation MCDV242101.
• 1-1/4 in NPT - 31.9 PSI: 1-1/4 in NPT male connections for higher flow, 31.9 PSI factory cut-in, which DAB's May 2025 catalog lists as 32 PSI. Pump must generate at least 43.5 PSI and the water column between the unit and the highest tap must not exceed 70 ft. DAB designation MCDV232114.
• 1-1/4 in NPT - 43.5 PSI: 1-1/4 in NPT male connections for higher flow, 43.5 PSI factory cut-in, which DAB's May 2025 catalog lists as 44 PSI. Pump must generate at least 55.1 PSI and the water column between the unit and the highest tap must not exceed 90 ft. DAB designation MCDV242114.

Specifications

• Type: Automatic pump controller monitoring pressure and flow
• Supply Voltage: 115V or 230V single phase, dual voltage
• Voltage Tolerance: plus or minus 10 percent
• Frequency: 50/60 Hz
• Full Load Amp Rating: 16 FLA at 115V, 20 FLA at 230V
• Maximum Operating Pressure: 145 PSI
• Operating Temperature: 32 F to 149 F
• Flow Capacity: up to 15 GPM on 1 in models, up to 25 GPM on 1-1/4 in models
• Higher Flows: use a bypass installation above 25 GPM
• Threaded Connections: 1 in NPT or 1-1/4 in NPT male, depending on model
• Electrical Conduit Connection: 1/2 in threaded
• Insulation Class: II
• Mounting: Vertical, fixed
• Housing: Glass fiber reinforced polyamide PA 6 FV 30 percent
• Diaphragm: EPDM
• Spring: Steel C 72 UNI 3545
• Flow Valve: Stainless steel AISI 304
• Check Valve: Glass fiber reinforced polyamide PA 6 FV 30 percent
• Control Box Material: Self extinguishing thermoplastic resin 94-5VA
• Printed Circuit: Vetronite
• Surge Protection: Varistor, zero-crossing switching technology
• Liquid: Clean water, free of solids and abrasives, non-viscous, non-aggressive, chemically neutral
• Certification: CSA / UL per the DAB USA price list

Key Features

• Eliminates the pressure tank and pressure switch
• Maintains constant pressure and constant flow at the tap
• Built-in run-dry protection stops the pump on loss of water
• Built-in check valve
• Absorbs water hammer
• Dual voltage 115V or 230V, no separate model to stock
• Works with surface pumps or submersible pumps
• Automatic reset and restart after a power outage
• Manual Restart button with clear Power, Pump and Failure indicator lights
• No adjustment and no maintenance required
• Serviceable by replacing the electronic box or hydraulic body, no rebuild needed

Ideal Applications

• Residential and commercial well water systems
• Pressure boosting where tank space is limited
• Irrigation and sprinkler supply
• Water conditioning and treatment feed
• Retrofits replacing a failed pressure tank and switch
• Cabins, cottages and outbuildings on private water
