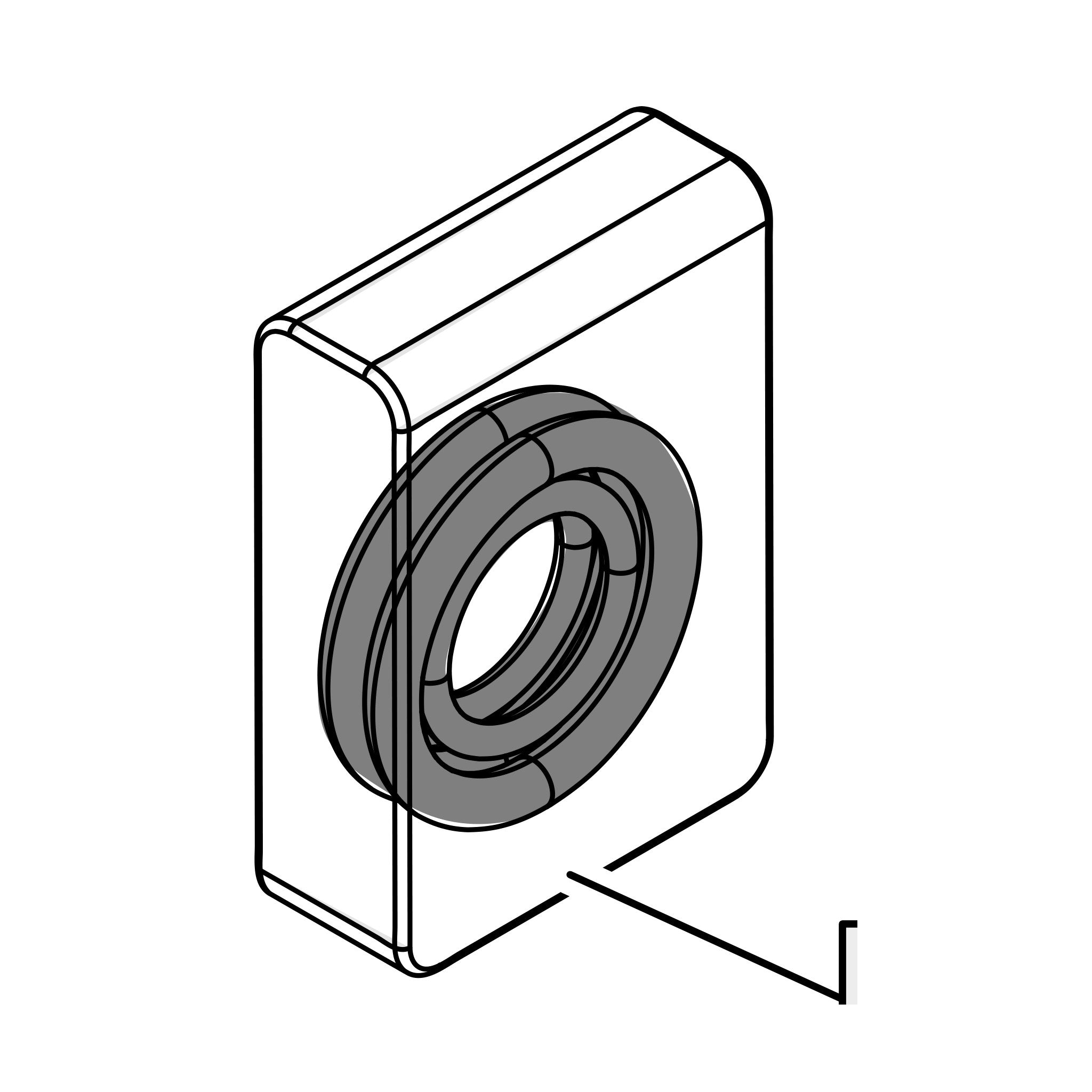

Dab Pumps - Kit O-Ring Twin for EsyTwin Dock - SP00001240

Brand: Dab Pumps

Kit O-Ring Twin - EsyTwin Dock - SP00001240

The Kit O-Ring Twin is a sealing kit for the DAB EsyTwin docking station, the base that lets two EsyBox units be mounted side by side and share one set of suction and discharge connections. DAB's EsyTwin Dock instructions, document cod. 60162325, list KIT O-RING TWIN as item 16 in the dock's 18-item parts table, and DAB's own description of this spare part uses the same wording.

On the exploded drawing on page 2 of those instructions, item 16 is drawn as a boxed kit sitting beside item 13, the FCT COVER, which is the plate forming the pump-side face of each dock station, and beside item 15, the KIT O-RING FCT. That places it with the dock's sealing group rather than with the threaded pipe connections at the suction and discharge ends.

Fits

• DAB EsyTwin docking station, the base that mounts two EsyBox units side by side
• DAB EsyTwin booster sets, which are supplied as one EsyTwin dock plus two EsyBox units
• Matched to item 16, KIT O-RING TWIN, in the parts table of DAB's EsyTwin Dock instructions

Before You Order

• DAB does not publish an SP-coded spare parts list for the EsyTwin. The EsyTwin Dock instructions carry an 18-item parts table with generic index numbers only, so the link between SP00001240 and item 16 is our reading of DAB's own part description against that table, not a mapping DAB published.
• Confirm the part against the exploded drawing on page 2 and the parts table on page 3 of the EsyTwin Dock instructions, or with DAB or your DAB dealer, before ordering.
• DAB sells the EsyTwin two ways: a bare dock, listed under the page heading ESYTWIN DOCK, and a complete EsyTwin booster set that pairs one EsyTwin dock with two EsyBox units. This is a part of the dock itself, which is the same item in both.
• This is for the EsyTwin dock that carries two EsyBox units. It is not the EsyTwin Mini dock, which is a separate product for the EsyBox Mini 3.
• Of the five EsyTwin spare parts we list, this is the closest match to the drawing: DAB's part description and the table entry for item 16 read the same. It is still an inference, because DAB never printed the SP code next to the index number.
• DAB does not publish what this kit contains, so we do not list contents.

Often Replaced With

• Kit O-Ring FCT-Twin, SP00001234, which we read as item 15 and which DAB draws immediately alongside item 16 on the same page
