Dab Pumps - Kit O-Ring FCT-Twin for EsyTwin Dock - SP00001234

Brand: Dab Pumps

Kit O-Ring FCT-Twin - EsyTwin Dock - SP00001234

The Kit O-Ring FCT-Twin is a sealing kit for the FCT connection group of the DAB EsyTwin docking station. FCT is the label DAB applies through the dock parts table to the components that make the connection between the dock body and the EsyBox units standing on it. DAB's EsyTwin Dock instructions list KIT O-RING FCT as item 15 in the 18-item table, quantity 1.

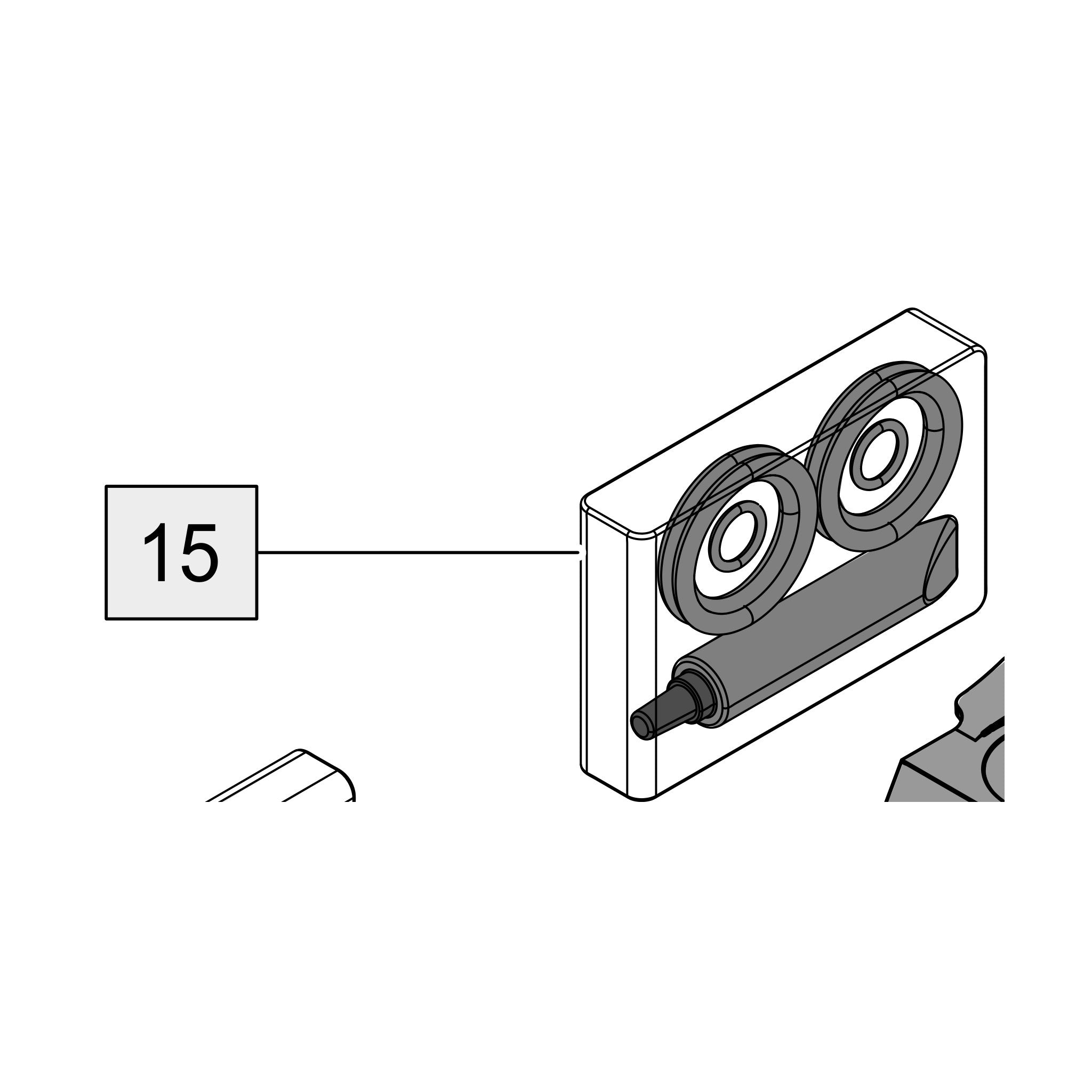

On the exploded drawing item 15 is drawn as a boxed kit positioned directly beside item 14, the FCT INTERNAL FITTING, and above item 13, the FCT COVER. It therefore belongs with the pump-side face of the dock, the part the EsyBox seats down onto, rather than with the threaded suction and discharge fittings at the ends of the dock body.

Fits

• DAB EsyTwin docking station, the base that mounts two EsyBox units side by side
• DAB EsyTwin booster sets, which are supplied as one EsyTwin dock plus two EsyBox units
• Matched to item 15, KIT O-RING FCT, in the parts table of DAB's EsyTwin Dock instructions

Before You Order

• DAB does not publish an SP-coded spare parts list for the EsyTwin. The EsyTwin Dock instructions carry an 18-item parts table with generic index numbers only, so the link between SP00001234 and item 15 is our reading of DAB's own part description against that table, not a mapping DAB published.
• Confirm the part against the exploded drawing on page 2 and the parts table on page 3 of the EsyTwin Dock instructions, or with DAB or your DAB dealer, before ordering.
• DAB sells the EsyTwin two ways: a bare dock, listed under the page heading ESYTWIN DOCK, and a complete EsyTwin booster set that pairs one EsyTwin dock with two EsyBox units. This is a part of the dock itself, which is the same item in both.
• This is for the EsyTwin dock that carries two EsyBox units. It is not the EsyTwin Mini dock, which is a separate product for the EsyBox Mini 3.
• The table holds two o-ring kits, item 15 KIT O-RING FCT and item 16 KIT O-RING TWIN. DAB's separate spare part SP00001240 is described as KIT O-RING TWIN and matches item 16 word for word, which leaves item 15 as the reading for this part. The names are not identical, so treat the match as our inference.
• DAB does not publish what this kit contains, so we do not list contents.
• DAB's dock instructions do not say what FCT stands for. DAB uses it throughout the parts table as the label for the dock's connection group, covering the FCT manifold, cover, retainer device and the internal and external fittings.

Often Replaced With

• Internal Fitting FCT 1 in NPT, SP00001236, which we read as item 14 and which DAB draws immediately beside item 15 on page 2
• Kit O-Ring Twin, SP00001240, which we read as item 16 and which DAB draws alongside item 15
