Dab Pumps - JET SS Stainless Steel Jet Pump with Pressure Switch

Brand: Dab Pumps

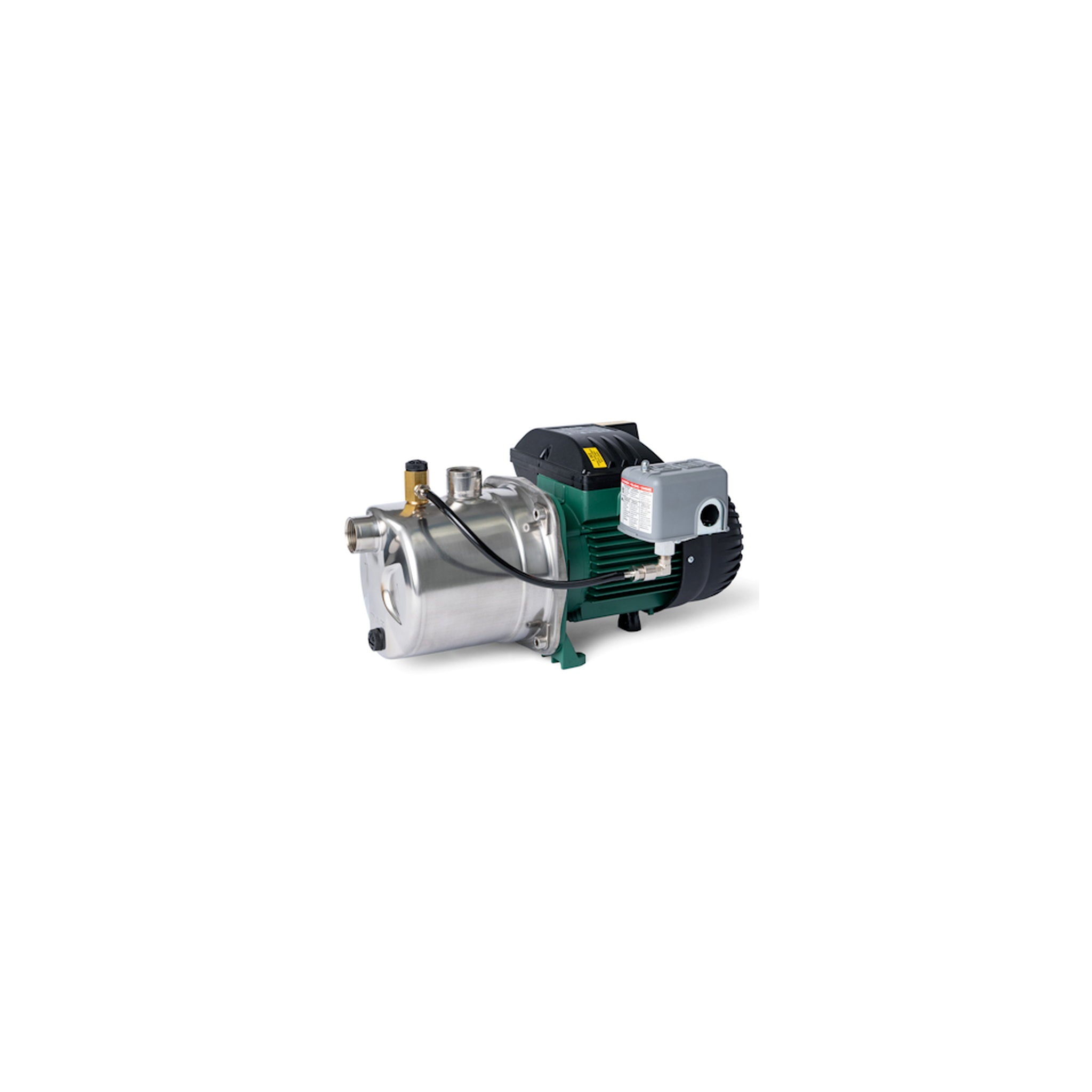

DAB JET SS -PS Stainless Steel Jet Pump with Pressure Switch

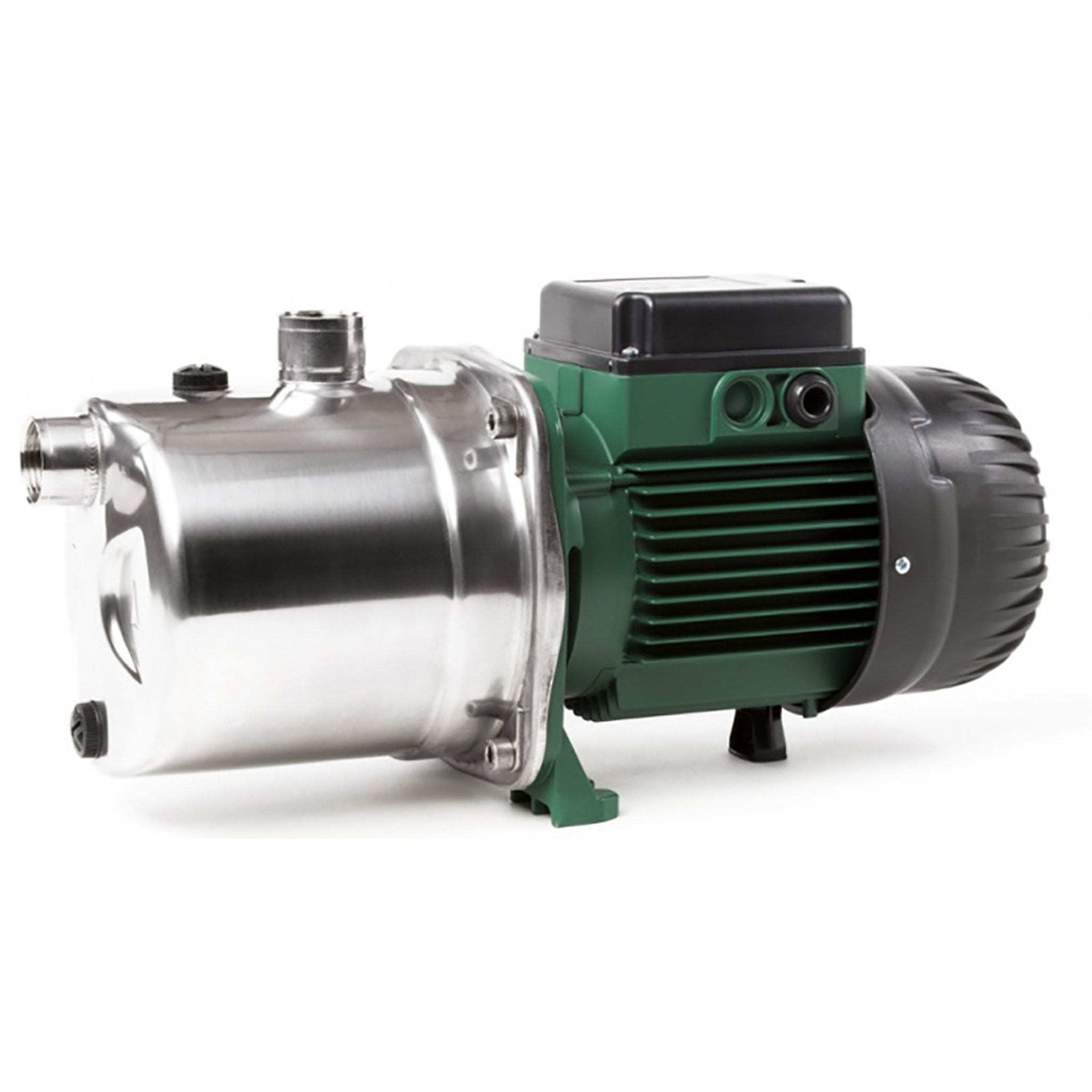

The DAB JET SS -PS is the stainless steel version of DAB's self-priming jet pump, supplied with the pressure switch fitted. DAB specifies an AISI 304 stainless steel pump body, seal holder cover and shim washers, a die-cast aluminium motor frame, a technopolymer impeller, diffuser and Venturi tube, an AISI 416 stainless steel shaft with rotor, NBR O-ring gaskets and a carbon and ceramic mechanical seal. The motor is asynchronous, closed and externally air cooled, on oversized greased-for-life ball bearings, with built-in thermo-amperometric protection and a permanently connected capacitor on the single-phase version. Class F insulation, 3400 RPM, 115/230 V dual voltage at 60 Hz, 1 in NPT suction and 1 in NPT discharge. DAB's technical sheet lists CSA C22.2 No. 108-14 and UL 778 5th Edition approvals.

The reason to choose JET SS over the cast iron JET is the wetted stainless steel: it is the right call for slightly aggressive water, for coastal and humid installations, and anywhere a rusting cast iron volute would be a nuisance. Hydraulically it is the same idea as the cast iron pump. The internal ejector self-primes from up to 29 ft below the pump and keeps working with air bubbles in the suction line, so it suits shallow wells, cisterns, ponds and tanks. DAB rates the JET SS 50-75-100 family for capacity up to 23 gpm and head up to 213 ft. With the pressure switch fitted and a pressure tank added, it becomes a complete domestic water system. Liquid must be clean, free of solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.

Available Models

• JET SS 50-PS: 0.5 HP, 0.6 kW, service factor 1.6, 8.21 / 4.22 A. DAB publishes this model's head and flow only as a curve, inside the family range of 213 ft head and 23 GPM
• JET SS 75-1-PS: 0.75 HP, 0.75 kW, service factor 1.4, 10.3 / 5.25 A. DAB publishes this model's head and flow only as a curve, inside the family range of 213 ft head and 23 GPM
• JET SS 100-1-PS: 1 HP, 1 kW, service factor 1.35, 13.9 / 7.2 A. DAB publishes this model's head and flow only as a curve, inside the family range of 213 ft head and 23 GPM

Specifications

• Pump Type: Self-priming centrifugal jet pump with internal ejector, pressure switch fitted
• Power Supply: 1 x 115/230 V, 60 Hz, dual voltage
• Operating Range: capacity up to 23 gpm, head up to 213 ft, 92 psi
• Motor Speed: 3400 RPM
• Maximum Operating Pressure: 116 psi
• Maximum Suction Depth: 29 ft
• Liquid Temperature: 32 F to 95 F for domestic use, 32 F to 104 F for other uses
• Maximum Ambient Temperature: 104 F
• Suction and Discharge: 1 in NPT and 1 in NPT
• Pump Body, Seal Holder Cover and Shim Washers: AISI 304 stainless steel
• Motor Frame: Die-cast aluminium
• Impeller, Diffuser and Venturi Tube: Technopolymer
• Shaft with Rotor: AISI 416 stainless steel
• O-Ring Gasket: NBR rubber
• Mechanical Seal: Carbon and ceramic
• Insulation Class: F
• Installation: Fixed, horizontal position
• Certification: CSA C22.2 No. 108-14 Liquid Pumps and UL 778 5th Edition Motor Operated Water Pumps

Key Features

• AISI 304 stainless steel pump body, seal holder cover and shim washers
• Pressure switch fitted from the factory, which is what the -PS suffix means in DAB's USA price list
• Internal ejector self-primes from up to 29 ft and keeps pumping through air bubbles
• Noticeably lighter than the cast iron JET: 17.6 lb on the 0.5 HP against 26.2 lb for the equivalent JET
• Oversized greased-for-life ball bearings with built-in thermo-amperometric protection
• 115/230 V dual voltage on all three models
• CSA certified to CSA C22.2 No. 108-14 and UL 778 5th Edition
• 1 in NPT ports across the range

Ideal Applications

• Shallow well domestic water systems where water chemistry is unkind to cast iron
• Coastal, humid and corrosive-atmosphere installations
• Cistern and rainwater storage tank pressure supply
• Small to medium irrigation and garden watering
• Pond and surface water transfer
• Light industrial service water and washdown supply
• Replacement for a corroded cast iron jet pump on an existing 1 in NPT system
