Dab Pumps - JET Cast Iron Jet Pump with Pressure Switch

Brand: Dab Pumps

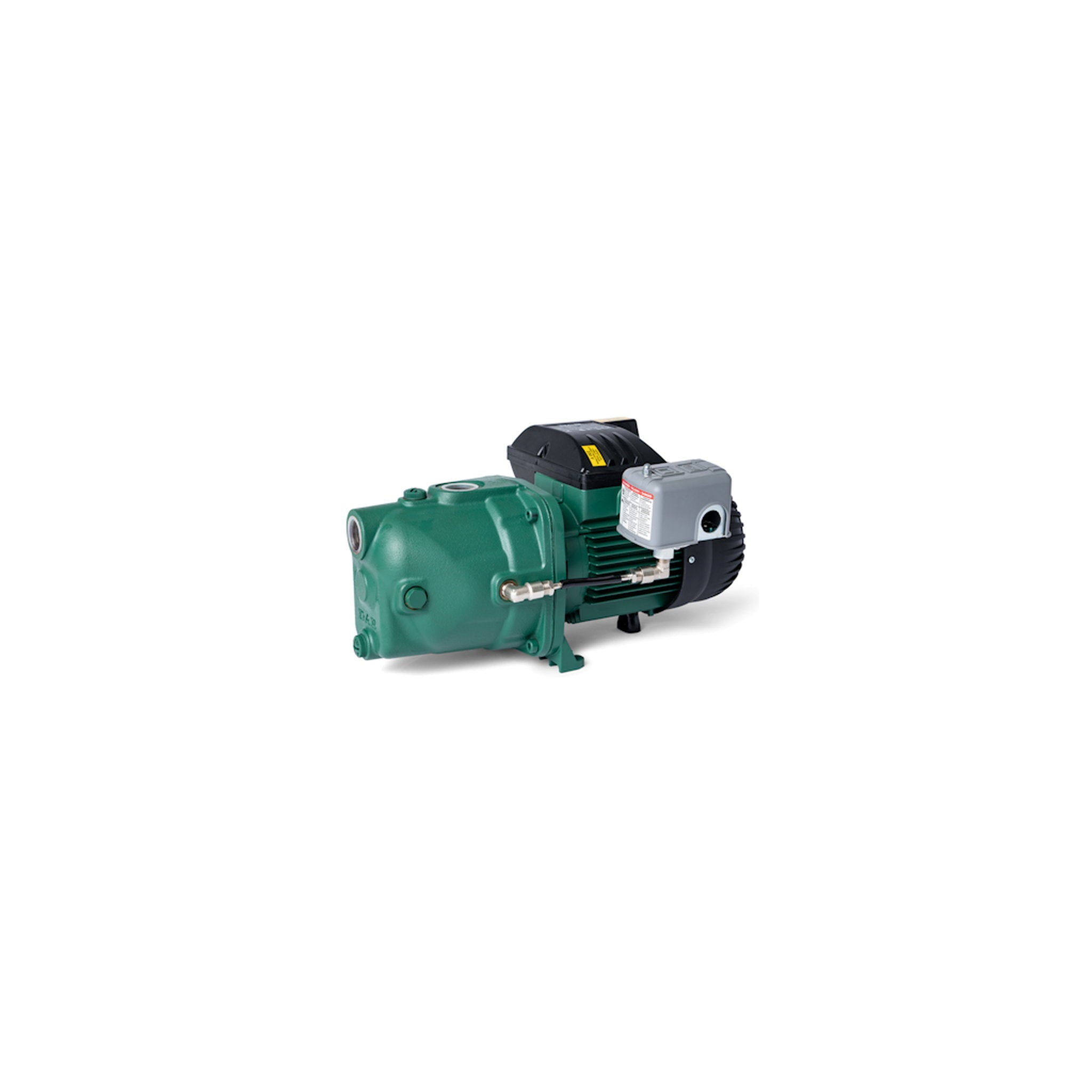

DAB JET -PS Cast Iron Jet Pump with Pressure Switch

The DAB JET -PS is a self-priming centrifugal jet pump with a cast iron pump body and a factory-fitted pressure switch. The -PS suffix is how DAB splits this range in its USA price list: the -PS codes ship with the pressure switch installed, the plain codes ship without it. DAB specifies technopolymer for the impeller, diffuser, Venturi tube and sand filter, stainless steel shim washers and a carbon and ceramic mechanical seal. On the 50, 75-1 and 100-1 the motor frame is die-cast aluminium and the shaft is AISI 416 stainless steel; on the 150, 200 and 300 the motor frame is GJL 200 cast iron and the shaft is AISI 303 stainless steel. The 150 and 200 use a twin impeller. Motors are asynchronous and externally cooled, on greased-for-life ball bearings, with built-in thermo-amperometric protection and a permanently connected capacitor, IP 44 motor protection, IP 55 terminal block protection and class F insulation. All models run at 3400 RPM.

With the pressure switch fitted, the JET -PS starts and stops on demand, which is what turns it from a bare pump into a working domestic water system when paired with a pressure tank. DAB rates a maximum suction depth of 29 ft, so it suits shallow wells, cisterns, ponds and tanks. The six models here span 0.5 HP to 3 HP and cover 119 ft to 203 ft of head and flows to 46.2 GPM, which lets the range serve everything from a single-family pressure system to a small farm or a demanding irrigation main. The 0.5, 0.75 and 1 HP models are 115/230 V dual voltage; the 1.5, 2 and 3 HP models are 230 V only. Note the -1 models: the 75-1 and 100-1 use a different hydraulic end than the plain 75 and 100 at the same rated HP, and DAB's published curves show the -1 versions trading head for flow. DAB's tables give the JET 75 at 177 ft and 15.8 GPM against the JET 75-1 at 119 ft and 21.1 GPM, and the JET 100 at 200 ft and 15.8 GPM against the JET 100-1 at 158 ft and 21.1 GPM. DAB does not define the suffix in words anywhere; that is what its curves show.

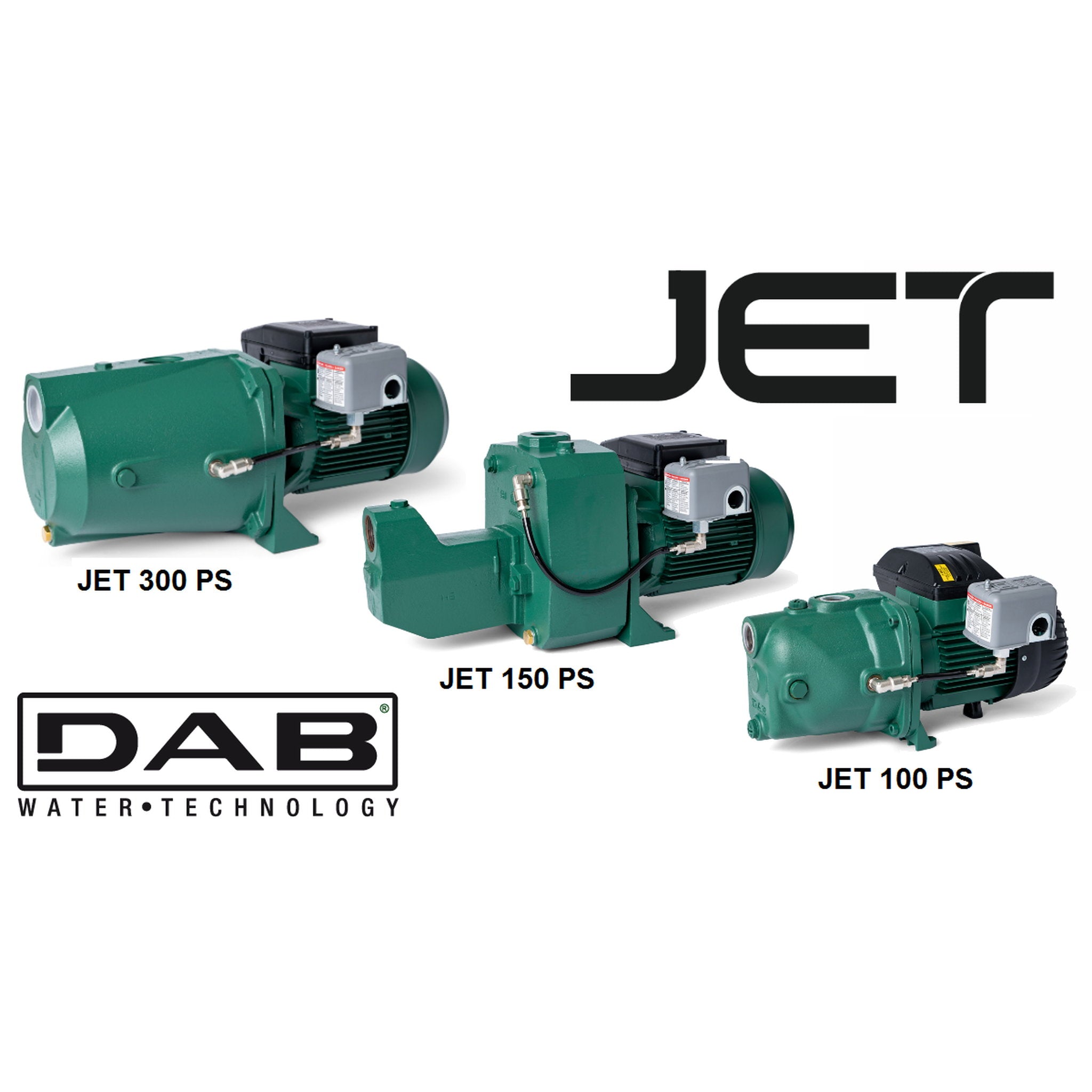

Available Models

• Jet 50-PS: 0.5 HP, max head 154 ft, max flow 15.8 GPM
• Jet 75-1-PS: 0.75 HP, max head 119 ft, max flow 21.1 GPM
• Jet 100-1-PS: 1 HP, max head 158 ft, max flow 21.1 GPM
• Jet 150-PS: 1.5 HP, max head 200 ft, max flow 18.5 GPM
• Jet 200-PS: 2 HP, max head 203 ft, max flow 31.7 GPM
• Jet 300-PS: 3 HP. DAB publishes no 60 Hz head or flow numbers for this model, only a curve; it sits inside the family operating range of 1.8 to 46.2 GPM with head up to 203 ft

Specifications

• Pump Type: Self-priming centrifugal jet pump with internal ejector, pressure switch fitted
• Power Supply: 1 x 115/230 V 60 Hz dual voltage on Jet 50-PS, 75-1-PS and 100-1-PS; 1 x 230 V 60 Hz on Jet 150-PS, 200-PS and 300-PS
• Operating Range: 1.8 to 46.2 GPM with head up to 203 ft, per DAB USA May 2025 catalog
• Motor Speed: 3400 RPM
• Maximum Operating Pressure: 116 psi
• Maximum Suction Depth: 29 ft
• Liquid Temperature: 32 F to 95 F for domestic use, 32 F to 104 F for other uses
• Maximum Ambient Temperature: 104 F
• Service Factor: 1.6 on 50-PS, 1.4 on 75-1-PS, 1.35 on 100-1-PS, 1.3 on 150-PS, 1.2 on 200-PS, 1.15 on 300-PS
• Suction and Discharge: 1 in NPT and 1 in NPT on 50-PS, 75-1-PS and 100-1-PS; 1-1/4 in NPT and 1 in NPT on 150-PS and 200-PS; 1-1/2 in NPT and 1-1/4 in NPT on 300-PS
• Pump Body: GJL 200 cast iron
• Motor Frame: Die-cast aluminium on 50-PS, 75-1-PS and 100-1-PS; GJL 200 cast iron on 150-PS, 200-PS and 300-PS
• Impeller, Diffuser, Venturi Tube and Sand Filter: Technopolymer, PPO-GF 20 on 150-PS, 200-PS and 300-PS
• Shaft with Rotor: AISI 416 stainless steel on 50-PS, 75-1-PS and 100-1-PS; AISI 303 stainless steel on 150-PS, 200-PS and 300-PS
• Mechanical Seal: Carbon and ceramic
• O-Ring Gasket: NBR rubber
• Motor Protection: IP 44
• Terminal Block Protection: IP 55
• Insulation Class: F
• Installation: Fixed, horizontal position
• Certification: CSA C22.2 No. 108-14 Liquid Pumps and UL 778 5th Edition Motor Operated Water Pumps

Key Features

• Pressure switch fitted from the factory, which is exactly what the -PS suffix means in DAB's USA price list
• Cast iron pump body for pressure capability and long service life
• Internal ejector self-primes from up to 29 ft and keeps pumping through air bubbles
• Twin impeller on the Jet 150-PS and Jet 200-PS
• Technopolymer sand filter helps the pump live with water carrying low levels of sandy impurities
• Greased-for-life oversized ball bearings with built-in thermo-amperometric motor protection
• 115/230 V dual voltage on the 0.5, 0.75 and 1 HP models
• CSA certified to CSA C22.2 No. 108-14 and UL 778 5th Edition
• Six models from 0.5 HP to 3 HP covering head-biased and flow-biased duties

Ideal Applications

• Shallow well domestic water systems with a pressure tank
• Cistern and storage tank pressure supply
• Farm and homestead water supply
• Irrigation mains and sprinkler supply, especially the higher flow Jet 200-PS and Jet 300-PS
• Pond, creek and surface water transfer
• Light industrial service water
• Booster duty where a cast iron wet end is preferred over technopolymer
