Internal Fitting FCT 1 in NPT - EsyTwin Dock - SP00001236

The Internal Fitting FCT is the pump-side connection fitting of the DAB EsyTwin docking station. DAB's EsyTwin Dock instructions list FCT INTERNAL FITTING as item 14 in the 18-item parts table, quantity 4 across the dock, which works out at two per pump station. The dock instructions show EsyBox units being docked and undocked from this face, so these fittings are the half of the connection that stays with the dock.

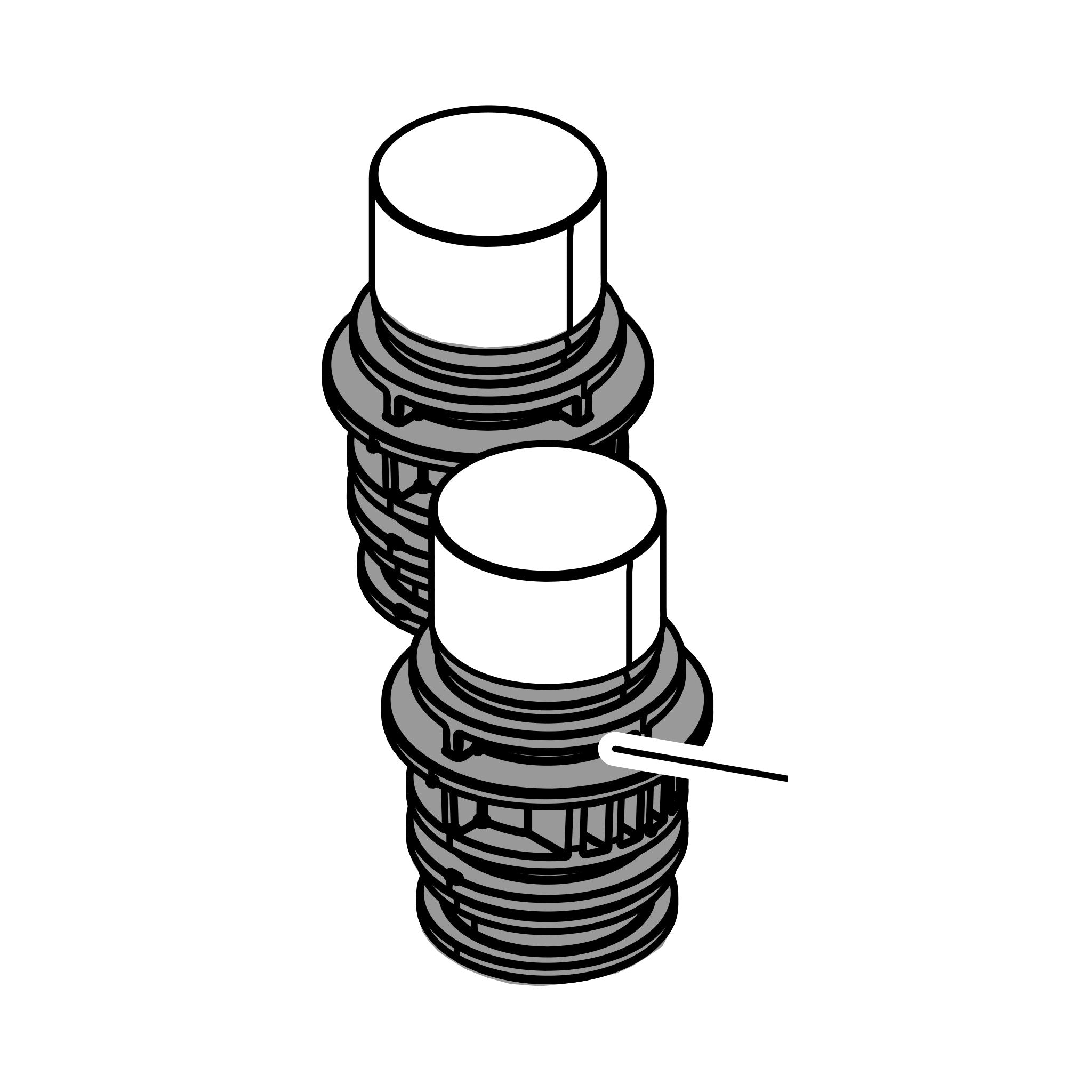

On the exploded drawing item 14 is a compact valve-style fitting that seats into item 13, the FCT COVER, the plate the EsyBox stands on. It sits on the internal side of the dock, feeding the FCT manifold, item 18, rather than on the external threaded connections that take the site pipework.

Fits

• DAB EsyTwin docking station, the base that mounts two EsyBox units side by side
• DAB EsyTwin booster sets, which are supplied as one EsyTwin dock plus two EsyBox units
• Matched to item 14, FCT INTERNAL FITTING, in the parts table of DAB's EsyTwin Dock instructions

Before You Order

• DAB does not publish an SP-coded spare parts list for the EsyTwin. The EsyTwin Dock instructions carry an 18-item parts table with generic index numbers only, so the link between SP00001236 and item 14 is our reading of DAB's own part description against that table, not a mapping DAB published.
• Confirm the part against the exploded drawing on page 2 and the parts table on page 3 of the EsyTwin Dock instructions, or with DAB or your DAB dealer, before ordering.
• DAB sells the EsyTwin two ways: a bare dock, listed under the page heading ESYTWIN DOCK, and a complete EsyTwin booster set that pairs one EsyTwin dock with two EsyBox units. This is a part of the dock itself, which is the same item in both.
• This is for the EsyTwin dock that carries two EsyBox units. It is not the EsyTwin Mini dock, which is a separate product for the EsyBox Mini 3.
• The parts table names item 14 without a thread size or thread standard. The 1 in NPT designation comes from DAB's own spare-part description, not from the table, and DAB lists the EsyTwin in NPT and non-NPT forms. Confirm the thread standard on your dock before ordering.
• DAB's table gives the dock a quantity of 4 for this item, so a full dock uses more than one.
• DAB's dock instructions do not say what FCT stands for. DAB uses it throughout the parts table as the label for the dock's connection group, covering the FCT manifold, cover, retainer device and the internal and external fittings.

Often Replaced With

• Kit O-Ring FCT-Twin, SP00001234, which we read as item 15 and which DAB draws immediately beside item 14 on page 2
