Dab Pumps - Feka BVP Submersible Sewage Ejector Pump 1.5 in Solids

Brand: Dab Pumps

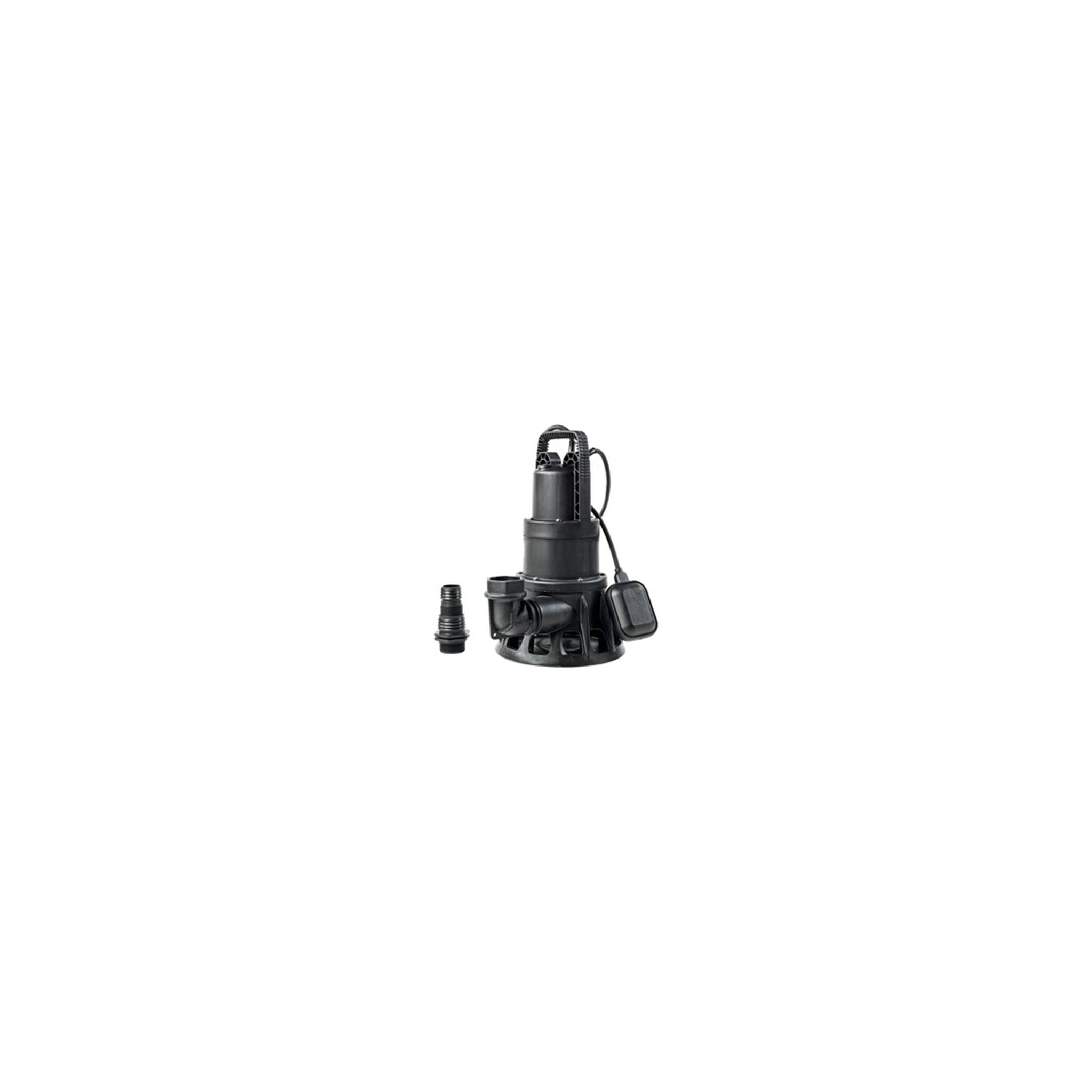

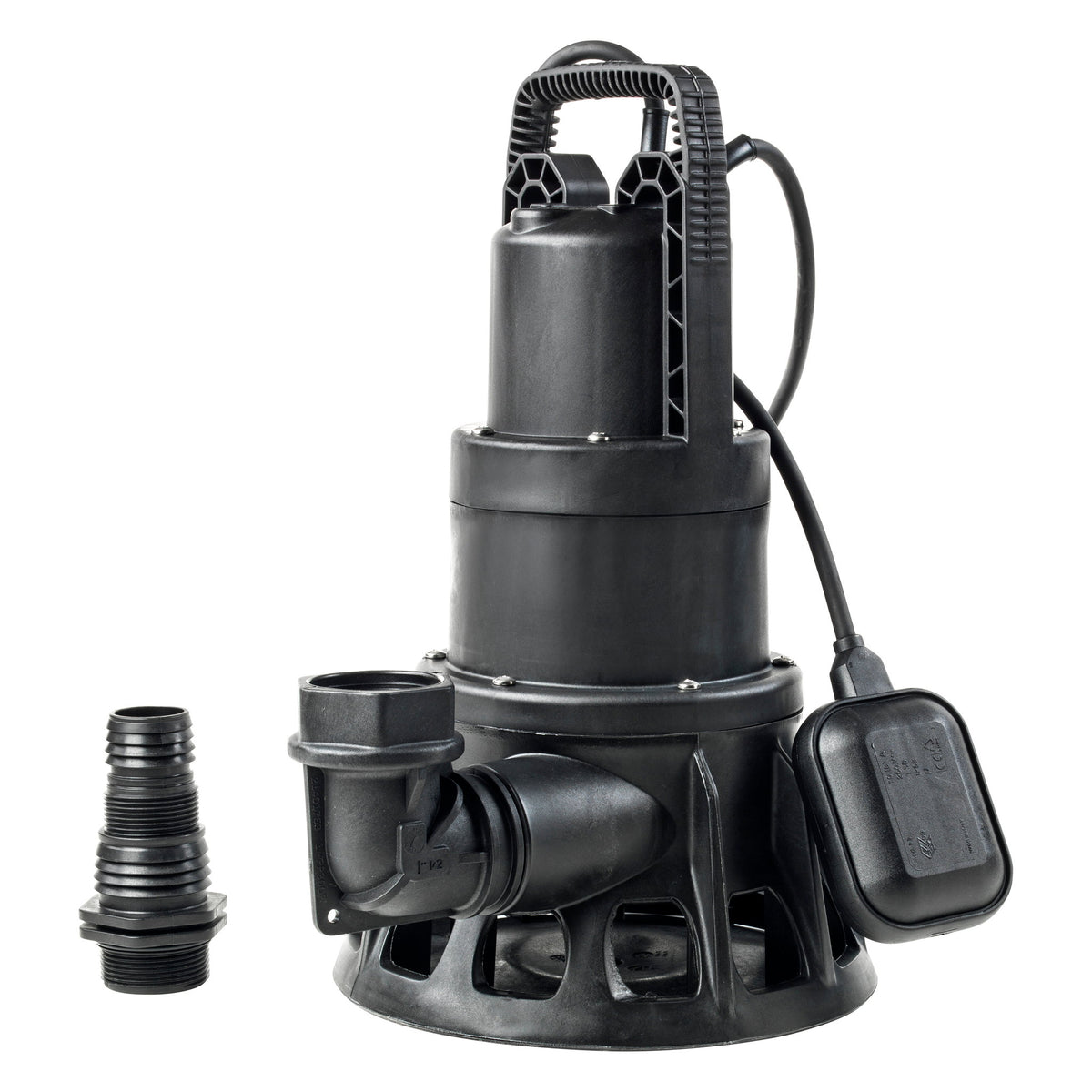

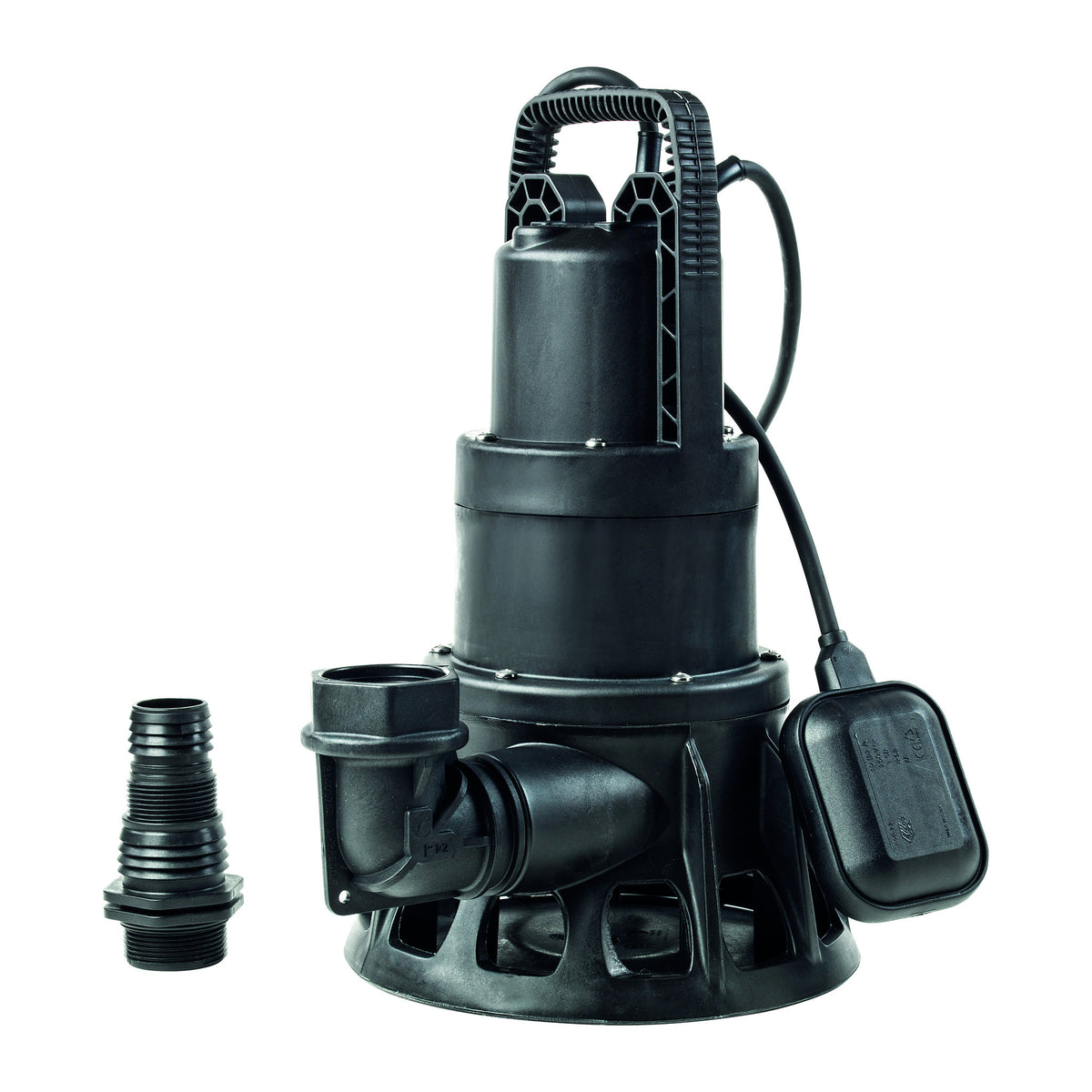

DAB Feka BVP Submersible Sewage Pump

The DAB Feka BVP is the heavy duty end of DAB's submersible line: a 115 V single phase sewage pump rated to pass solid particles up to 1.5 in, with a family hydraulic envelope running from 4.4 to 105.7 GPM and head to 39 ft on the 750 M-A, 34 ft on the 700 M-A. That combination of solids capacity and flow is what separates it from the smaller FEKA and NOVA pumps, and it is why DAB files it under heavy duty rather than general drainage. Construction is anti-corrosion and anti-oxidation throughout, with a wear-resistant motor shaft and impeller and an anti-debris stainless steel strainer. The motor carries thermal protection against overheating and is cooled well enough that DAB rates the pump to run while only partially submerged. Both models in this listing are the M-A build: single phase, automatic, with a float switch that starts and stops the pump on level. Each ships with a power cable and plug and a 3-level union, and DAB notes the union is supplied without a check valve, so plan on installing one in the discharge riser.

Use it for drainage and emptying duty where the water carries real solids: sewage lift from a below-grade bathroom or laundry, septic and holding tank transfer, wash bay and equipment yard sumps, agricultural effluent, construction dewatering through mud and gravel, and flood response where the water has picked up everything on the floor. The 700 M-A and the 750 M-A share the same motor rating and the same body; they differ in hydraulic curve: DAB's Feka BVP selection table gives the 700 M-A a shutoff head of 34 ft (10.5 m) and the 750 M-A 39 ft (12 m), so pick on the duty point you need rather than on nameplate horsepower.

Available Models

• Feka BVP 700 M-A: 0.95 HP, automatic with float switch, 10.4 A at 115 V, max head 34 ft (10.5 m), 17.6 lb
• Feka BVP 750 M-A: 0.95 HP, automatic with float switch, 10.5 A at 115 V, max head 39 ft (12 m), 17.6 lb

Specifications

• Power supply: 115 V, 60 Hz, single phase
• Power input P1: 1.10 kW
• Nominal output P2: 0.71 kW, 0.95 HP
• Rated current: 10.4 A on the 700 M-A, 10.5 A on the 750 M-A
• Capacitor: 30 uF at 250 V
• Operating range for the family: 4.4 to 105.7 GPM with head up to 39 ft, per DAB's Feka BVP US spec sheet; the 39 ft shutoff belongs to the 750 M-A and the 700 M-A tops out at 34 ft
• Discharge connection: 1-1/2 in NPT
• Maximum solid particle size: 1.5 in
• Maximum immersion depth: 23 ft
• Pumped liquid: sewage water
• Liquid temperature: 32 F to 95 F
• Overall height 15.7 in, body 9.4 in by 5.9 in
• Power cord: 16 ft with plug
• Supplied with: 3-level union, without check valve
• Materials: anti-corrosion and anti-oxidation, with an anti-debris stainless steel strainer
• Certification: in compliance with CSA Standards C22.2 No. 108-14 and UL Standard No. 778, per DAB

Key Features

• Passes solid particles up to 1.5 in, the largest in DAB's 115 V submersible line
• Family flow envelope to 105.7 GPM, with shutoff head of 34 ft on the 700 M-A and 39 ft on the 750 M-A
• Anti-debris stainless steel strainer keeps rag and grit off the impeller inlet
• Wear-resistant motor shaft and impeller
• Motor with thermal protection against overheating
• Motor cooling lets the pump run even when only partially submerged
• Float switch fitted for automatic start and stop on level
• Ships with plug and 3-level union; add a check valve in the riser

Ideal Applications

• Sewage lift from below-grade bathrooms and laundries
• Septic and holding tank transfer
• Wash bay, equipment yard and truck wash sumps
• Agricultural and stable effluent
• Construction dewatering through mud and gravel
• Flood response in heavily soiled water
• Emptying pits and basins that a 1 in solids pump would block in
