Dab Pumps - FEKA 40th Anniversary Solids Handling Submersible Pump

Brand: Dab Pumps

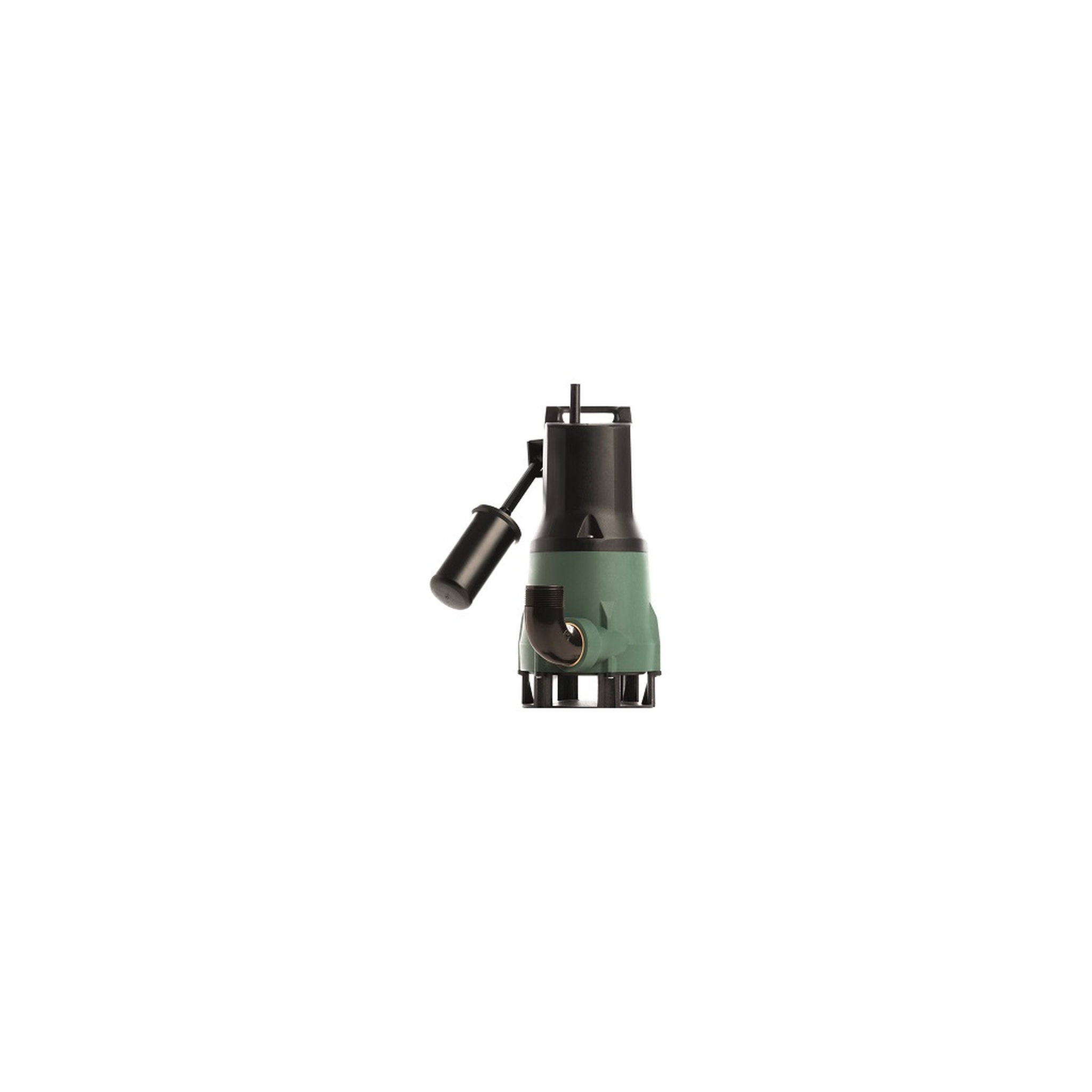

DAB FEKA 40th Anniversary Solids Handling Submersible Pump

The DAB FEKA is a 115 V single phase submersible pump for wastewater and rainwater, redesigned for the fortieth year of FEKA production. Where the NOVA is a clear water pump, the FEKA is built to pass solids: DAB rates the free passage at 1 in, so light grey and black wastewater, laundry discharge, washdown and rainwater carrying debris move through the impeller instead of blocking it. The pump body and suction grid are technopolymer, sealing is a triple ring arrangement in an oil bath, the motor case is AISI 304 stainless steel and the rotor shaft is AISI 431 stainless steel. The motor is a continuous duty asynchronous submersible type on oversized ball bearings with thermal protection built into every single phase version, and DAB rates the pump for dry running of up to 1 minute. MA models are the automatic versions with an integrated float switch; MNA models are the manual versions supplied without a float. All four models use a 1-1/4 in NPT discharge and a 16 ft SJTOW cord.

FEKA suits fixed or mobile installation wherever the water is not clean: basement laundry and utility basins, workshop and garage floor drains, gravity-fed grey water lift, wash bays, rainwater sumps that collect leaf litter and grit, farm and stable washdown, and flood response where the water has picked up debris on its way in. DAB sets the minimum intake level at 1.5 in, which is the trade-off you accept for a 1 in solids passage. Pick the 300 for ordinary basin duty and the 600 when the lift is high or the run is long.

Available Models

• FEKA 300 MNA: 1/3 HP, no float, max flow 40 GPM, max head 16.4 ft
• FEKA 600 MNA: 1/2 HP, no float, max flow 61.5 GPM, max head 27.2 ft
• FEKA 300 MA: 1/3 HP, automatic with integrated float, max flow 40 GPM, max head 16.4 ft
• FEKA 600 MA: 1/2 HP, automatic with integrated float, max flow 61.5 GPM, max head 27.2 ft

Specifications

• Power supply: 115 V, 60 Hz, single phase
• Motor output: 1/3 HP on the FEKA 300, 1/2 HP on the FEKA 600
• Rated current: 4.1 A on the FEKA 300, 6.3 A on the FEKA 600
• Family operating range: 0.3 to 61 GPM, head to 27 ft
• Discharge connection: 1-1/4 in NPT
• Free passage: 1 in
• Minimum intake level: 1.5 in
• Maximum immersion depth: 23 ft
• Pumped liquid: wastewater and rainwater
• Liquid temperature: 32 F to 95 F for domestic use, 32 F to 122 F for other uses
• Enclosure: IP 68
• Motor insulation class: F
• Power cord: 16 ft SJTOW with plug
• Materials: technopolymer pump body, impeller, suction grid and float; NBR O rings; AISI 304 stainless steel motor case; AISI 431 stainless steel rotor shaft
• Installation: fixed or portable, vertical
• Certification: UL Std. No. 778 6th Ed. and CSA C22.2 No. 108-14
• Shipping weight: 10.1 lb on both FEKA 300 models, 15.4 lb on both FEKA 600 models

Key Features

• 1 in free passage moves light wastewater, grey water and debris-laden rainwater
• Redesigned for the fortieth year of FEKA production for better durability and handling
• Triple ring seal in an oil bath and a continuous duty asynchronous motor on oversized ball bearings
• Thermal protection built into every single phase version
• AISI 304 stainless steel motor case and AISI 431 stainless steel shaft resist corrosive attack
• Rated for dry running of up to 1 minute

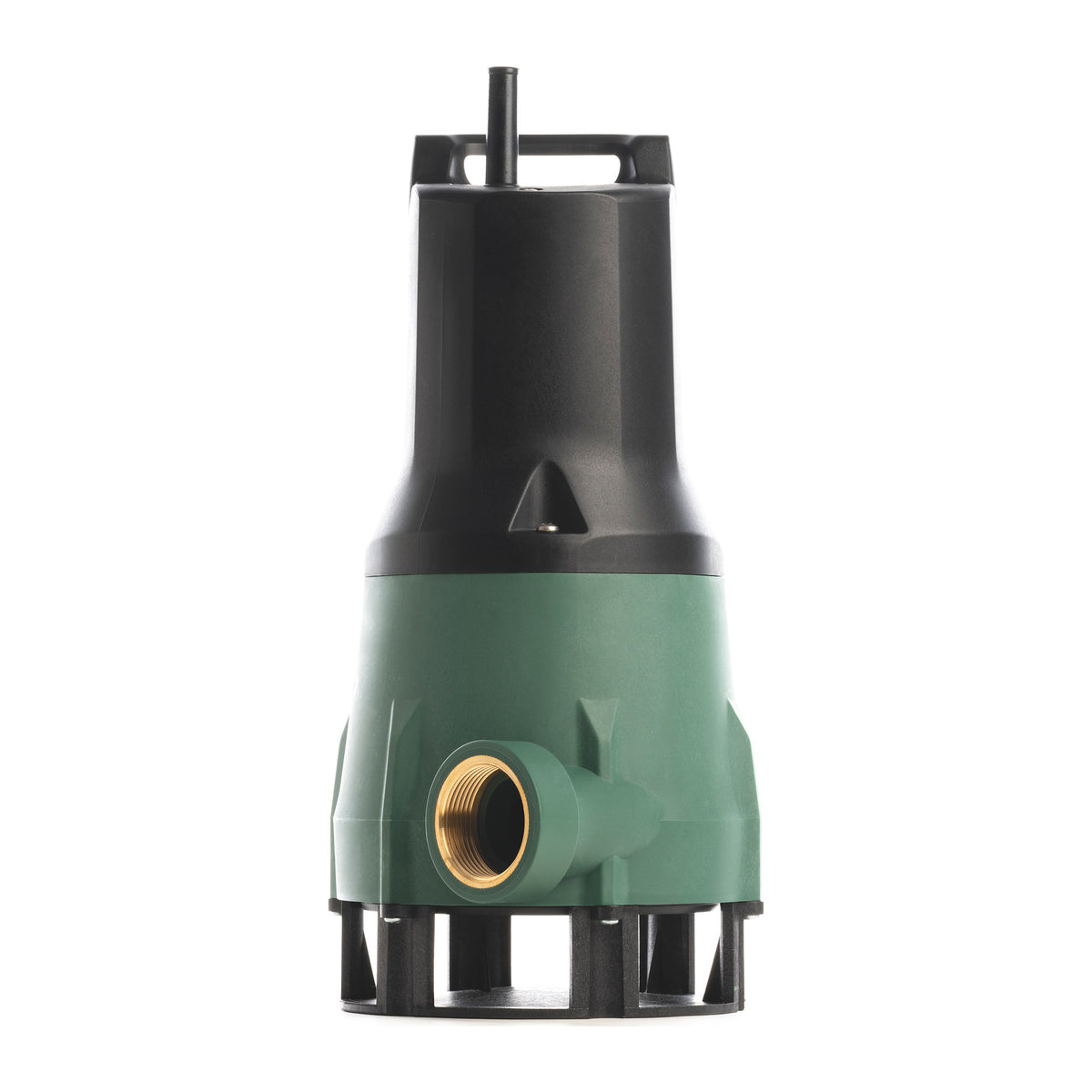

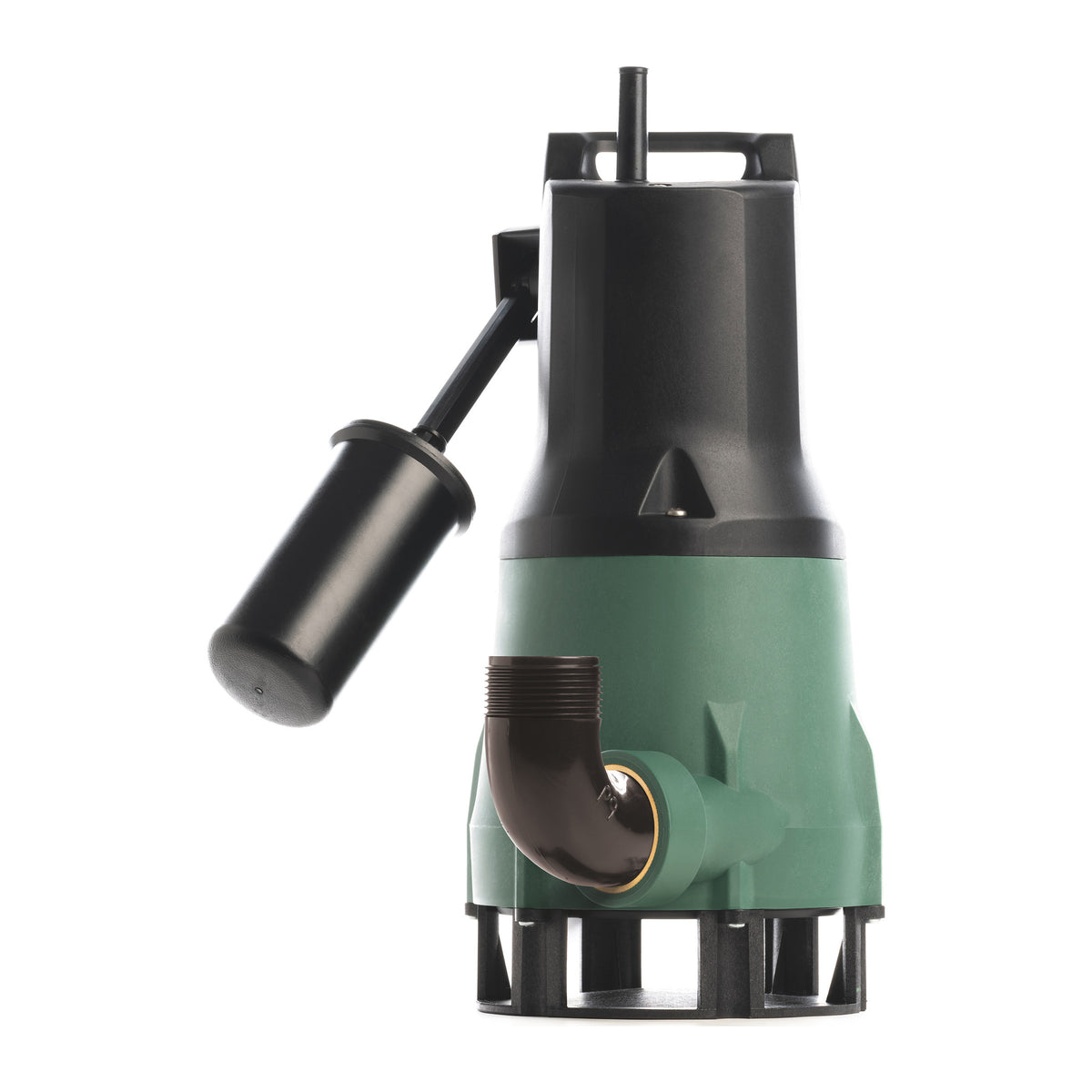

• MA versions carry an integrated float switch; MNA versions are the manual build with no float
• 1-1/4 in NPT discharge and a 16 ft SJTOW cord on every model

Ideal Applications

• Basement laundry and utility basins
• Grey water lift from sinks, showers and washing machines
• Workshop, garage and wash bay floor drains
• Rainwater sumps carrying leaf litter and grit
• Farm, stable and kennel washdown
• Flood response where the water has picked up debris
• Emptying pits and tanks holding dirty water
