Dab Pumps - FA 5 CLEAR Inline Sediment Filter Housing, 1 in NPT

Brand: Dab Pumps

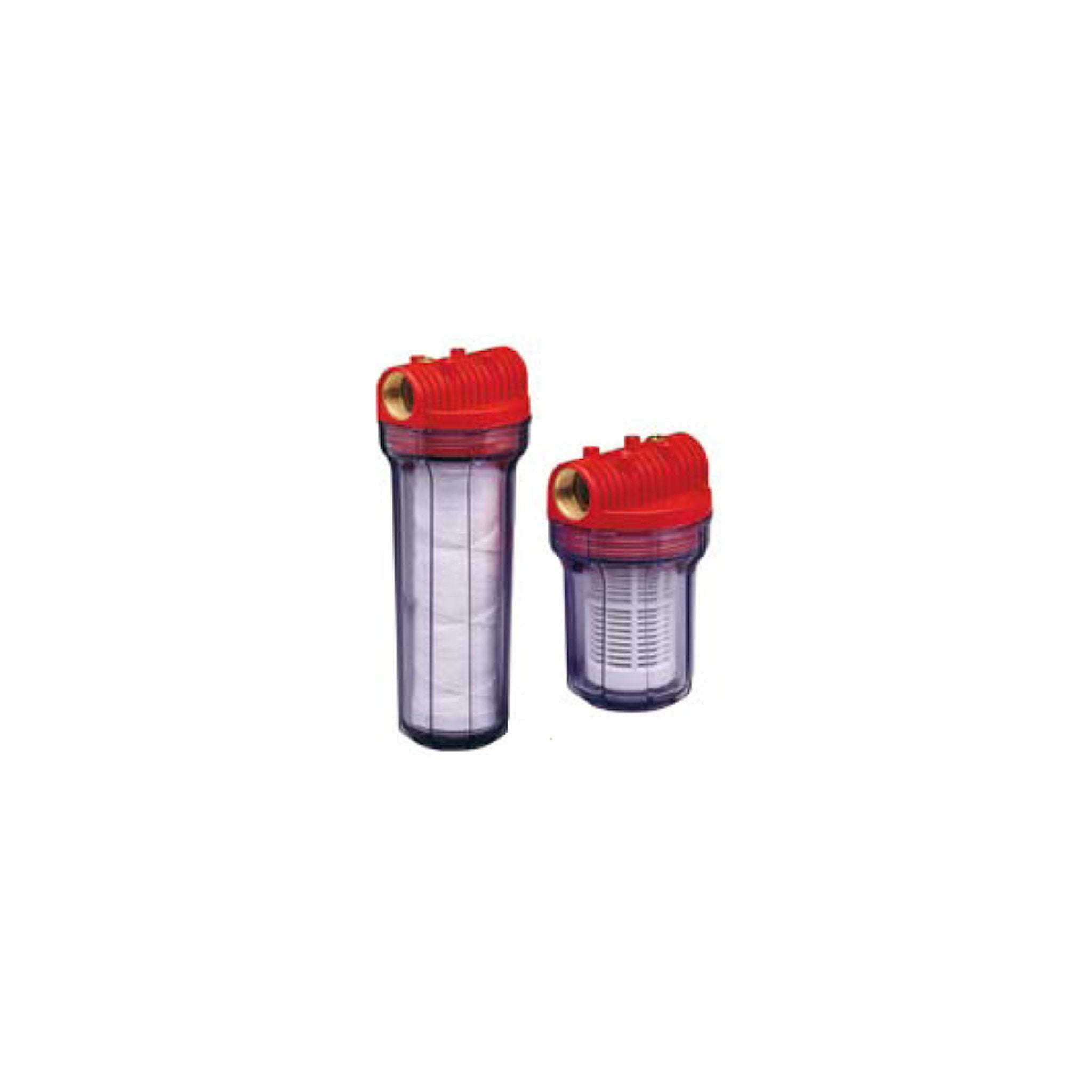

DAB FA 5 CLEAR Inline Filter Housing

The FA 5 CLEAR is a 5 in inline filter housing with a clear polycarbonate bowl, used to hold a replaceable cartridge that strips sediment out of a water line. Because the bowl is transparent, you can see how loaded the cartridge is at a glance and change it on condition instead of on a guess, without breaking the housing open to check. The top body is technopolymer, the inlet and outlet threads are brass inserts, and a brass pressure relief plug is fitted so trapped pressure can be vented before the bowl is opened.

It installs fixed in a vertical position with 1 in NPT inlet and outlet, and is rated to 116 PSI at up to 30 GPM. Typical placement is upstream of a pump, a set of emitters or a treatment stage that sand and grit would damage. It is a standard fit on well and surface pump systems, drip and low flow irrigation, hydroponics and rainwater harvesting. The FA 5 CLEAR takes 5 in cartridges: the CRL 5 washable 60 micron mesh element or the CF5 string wound 20 micron element.

Available Models

• FA 5 CLEAR Housing - 1 in NPT: 5 in clear housing with brass pressure relief plug, takes 5 in cartridges, item LP030001

Specifications

• Type: Inline sediment filter housing with clear bowl
• Cartridge Size: 5 in
• Operating Range: 1 to 30 GPM
• Maximum Operating Pressure: 116 PSI
• Liquid Temperature Range: 32 F to 104 F
• Maximum Ambient Temperature: 104 F
• Inlet Connection: 1 in NPT
• Outlet Connection: 1 in NPT
• Installation: Fixed, vertical position
• Overall Height: 7-1/2 in
• Body Width: 4-3/4 in
• Weight: 1.6 lbs
• Top Body Material: Technopolymer
• Housing Material: Clear polycarbonate
• Pressure Relief Plug: Brass
• Thread Inserts: Brass
• O-Ring Gasket: NBR
• Liquid: Non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Compatible Cartridges: CRL 5 washable 60 micron mesh, CF5 string wound 20 micron
• Item Code: LP030001
• Barcode: 8013415002080

Key Features

• Clear polycarbonate bowl shows cartridge loading without opening the housing
• Brass pressure relief plug vents trapped pressure before servicing
• Brass thread inserts rather than bare plastic threads
• Rated to 116 PSI and 30 GPM
• Standard 1 in NPT inlet and outlet
• Takes washable 60 micron mesh or 20 micron string wound cartridges
• Compact at 7-1/2 in tall and 1.6 lbs
• Protects pumps, emitters and treatment equipment from sand and grit

Ideal Applications

• Residential homes on well or surface water
• Water supply from shallow wells
• Residential and garden irrigation
• Drip and low flow irrigation where emitters plug easily
• Hydroponics
• Rainwater harvesting
• Farming and livestock water
