Dab Pumps - Eyebolt 3/4 in for EsyBox Max - SP00006698

Brand: Dab Pumps

Eyebolt 3/4 in - EsyBox Max - SP00006698

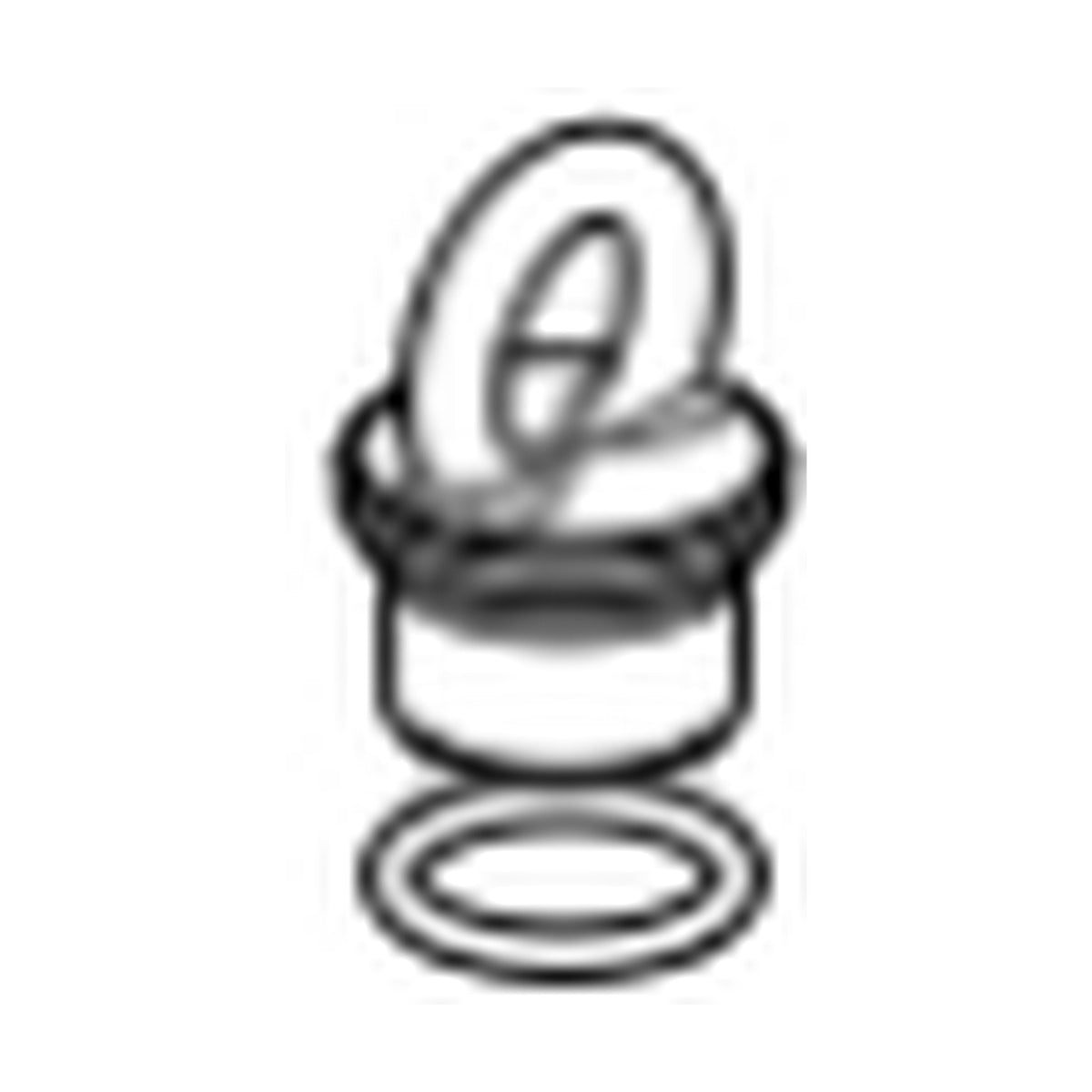

This is the lifting eyebolt DAB lists for the EsyBox Max, shown on the spare parts sheet as (SP) EYEBOLT 3/4 in at position 115 (DAB prints the size with an inch mark). It screws into the top of the machine inside the upper compartment and gives access to the end of the motor shaft when it is removed.

DAB's manual, section 13.4, uses this eyebolt for the motor shaft procedure. After a period of inactivity, perhaps with the system drained, salts dissolved in the water can settle and form calcification between the motor shaft and the fixed part of the pump, increasing the resistance on starting. DAB's procedure is: disconnect the electric power supply; remove the lifting eyebolt inside the upper compartment by unscrewing it, taking care not to let liquid or solid impurities enter the motor; with a straight tip screwdriver rotate the motor shaft through the track visible on its upper face, in either direction, checking that it turns freely; then screw the eyebolt back into place, making sure that the O-ring has not been removed or damaged during the operation.

Fits

• DAB EsyBox Max. DAB's spare parts sheet ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359 lists this item at position 115 as (SP) EYEBOLT 3/4 in, item no. SP00006698.
• The DAB EsyBox Max instruction manual for North America covers the EsyBox Max 60/120 M, 60/120 T and 85/120 T (manual section 1.5). That manual does not list the 45/120 M208-240 at all, and the spare parts sheet cited here is for the 45/120 M208-240. The two documents cover different model sets.
• Manual section 13.4 describes removing and refitting the lifting eyebolt for the EsyBox Max without distinguishing between the models the manual covers.

Before You Order

• Attention: check the correspondence with the revision of your product. That caution is printed across the header of DAB's spare parts sheet. Check the position number and item number against the sheet issued for your own unit and its revision before you order.
• The only EsyBox Max spare parts list available for this listing is the AU build sheet, ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359. DAB has not published a parts sheet in the documents used here for the 60/120 T or 85/120 T, so the item number for three-phase machines is not confirmed by these sources.
• DAB's spare parts sheet describes this item only as an eyebolt with a thread size. No material, load rating or weight is published at part level, and none is stated here.
• DAB's manual pairs the eyebolt with an O-ring (section 13.4, step 4). If the O-ring was lost or damaged when the eyebolt came out, order the O-ring kit as well.

Often Replaced With

• O-Ring Kit, SP00006718, position 135. Manual section 13.4, step 4, tells you to check that the eyebolt O-ring has not been removed or damaged.
