Dab Pumps - EVOSTA2 ECM Wet Rotor Circulator

Brand: Dab Pumps

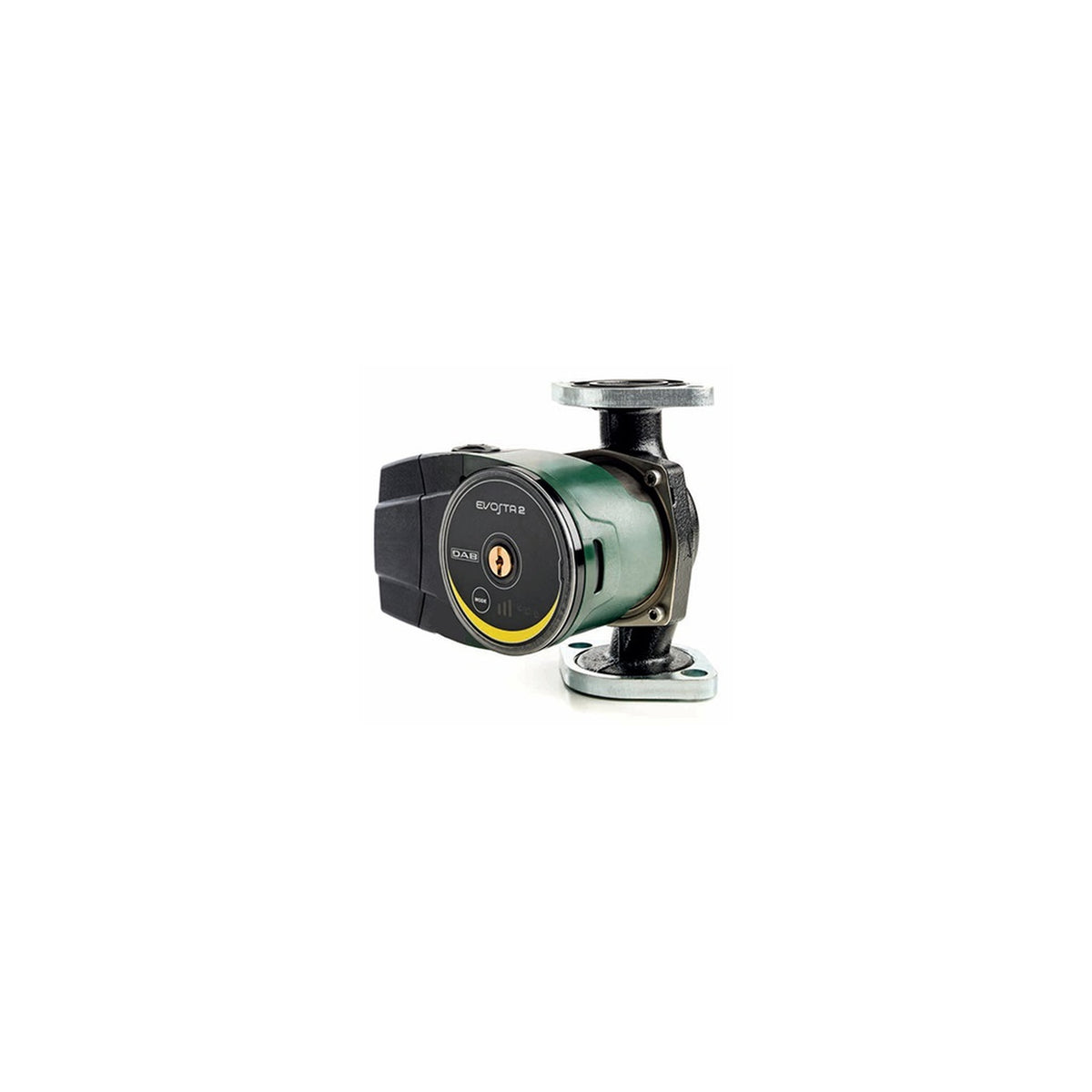

DAB EVOSTA2 ECM Wet Rotor Circulator

The DAB EVOSTA2 is a wet rotor electronic circulator built on a permanent magnet synchronous motor with an electronic driver, which DAB describes as an ECM or Electronic Commutation Motor, also called a brushless DC motor. The pump body is cast iron with cataphoresis treatment, the motor casing is AISI 304 stainless steel, the rotor can flange is AISI 316 stainless steel, the impeller is Ultrason, the motor shaft is ceramic alumina with alumina bearings and a graphite axial bearing, the outer shell and cover are polycarbonate and the seals are EPDM. It is rated IP X5, described by DAB as NEMA 4X, with class F insulation and TF 110. Power input is single-phase 110-127 V at 60 Hz, drawing 4 W to 41 W and 0.064 A to 0.61 A, with an energy efficiency index of EEI 0.23 or better. The flange is an oval 2-bolt pattern on a 6-3/8 in centre distance and DAB rates sound at 43 dB(A) or less.

An EVOSTA2 is a direct modern replacement for an old three-speed circulator: DAB built it to the same dimensions as the VA series and it covers heads up to 18 ft with a single model instead of a shelf of them. Its built-in electronics sense what the system is asking for and adapt the circulator's output to match, which is where the energy saving and the quieter operation come from. Setup is one sequential button giving three regulating modes with three curves each: proportional differential pressure, constant differential pressure and constant curve. A breather plug vents the system and manually releases the motor shaft. The pump is self-protected against overload, lack of phase, excess temperature and over- and under-voltage. DAB rates it for water in heating and air conditioning systems and for industrial water circuits, with up to 30 percent glycol.

Available Models

• EVOSTA2 55: 41 W maximum input, max head 18 ft, max flow 15.1 GPM, without display
• EVOSTA2D 55: 41 W maximum input, max head 18 ft, max flow 15.1 GPM, with display showing the real working point

Specifications

• Pump Type: Wet rotor electronic circulator, ECM permanent magnet synchronous motor
• Power Supply: 1 x 110-127 V, 60 Hz
• Power Input P1: 4 W to 41 W
• Current In: 0.064 A to 0.61 A
• Energy Efficiency Index: EEI 0.23 or better
• Operating Range: 0.8 to 15.1 GPM with head up to 18 ft
• Maximum Working Pressure: 145 psi
• Minimum Working Pressure: 14.5 psi (1 bar)
• Liquid Temperature: 14 F to 230 F
• Maximum Ambient Temperature: 104 F
• Minimum Suction Pressure at 194 F: 32.8 ft.c.w.
• Sound Pressure: 43 dB(A) or less
• Flange: Oval 2-bolt, 6-3/8 in centre distance
• Pump Body: Cast iron with cataphoresis treatment
• Motor Casing: AISI 304 stainless steel
• Rotor Can Flange: AISI 316 stainless steel
• Impeller: Ultrason
• Motor Shaft: Ceramic, alumina
• Protection Class: IP X5, NEMA 4X
• Insulation Class: F
• TF Class: TF 110
• Installation: Horizontal motor axis
• Pumped Liquid: Clean, free of solids and mineral oils, non-viscous, chemically neutral, glycol max 30 percent
• Certification: CSA and UL, per DAB USA 60 Hz price list

Key Features

• ECM permanent magnet motor that draws as little as 4 W and tops out at 41 W
• Nine settings from one sequential button: proportional differential pressure, constant differential pressure and constant curve, three curves each
• EVOSTA2D adds a display that shows the real working point; in DAB's own designation index 2 means without display and 2d means with display, so the D version is not a twin or double-head pump
• Drop-in replacement for old three-speed circulators, dimensionally matched to the VA series
• Covers heads up to 18 ft with a single model
• EEI 0.23 or better
• Self-protected against overload, lack of phase, excess temperature and over- and under-voltage
• Breather plug for venting and manual release of the motor shaft
• IP X5 water-resistant electronics, rated by DAB as NEMA 4X
• Rotates 360 degrees around a vertical axis, with a check valve and 2-bolt flange available

Ideal Applications

• Residential hydronic heating loops and zone circulation
• Air conditioning and chilled water circulation
• Radiant floor heating systems
• Boiler primary and secondary loops
• Direct replacement for an aging three-speed circulator
• Industrial water circuits
• Glycol systems up to 30 percent glycol
