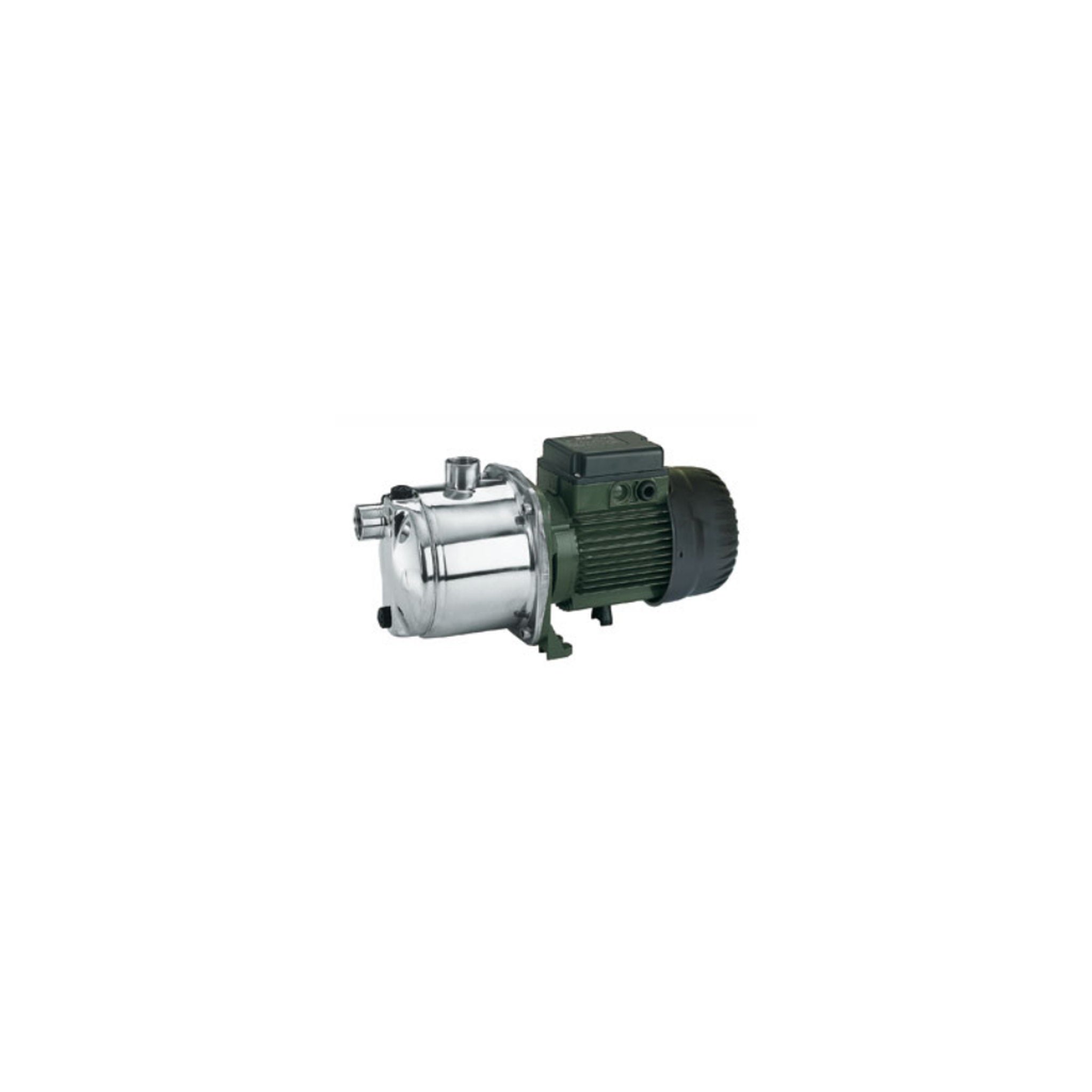

Dab Pumps - EUROINOX Multistage Stainless Steel Booster Pump

Brand: Dab Pumps

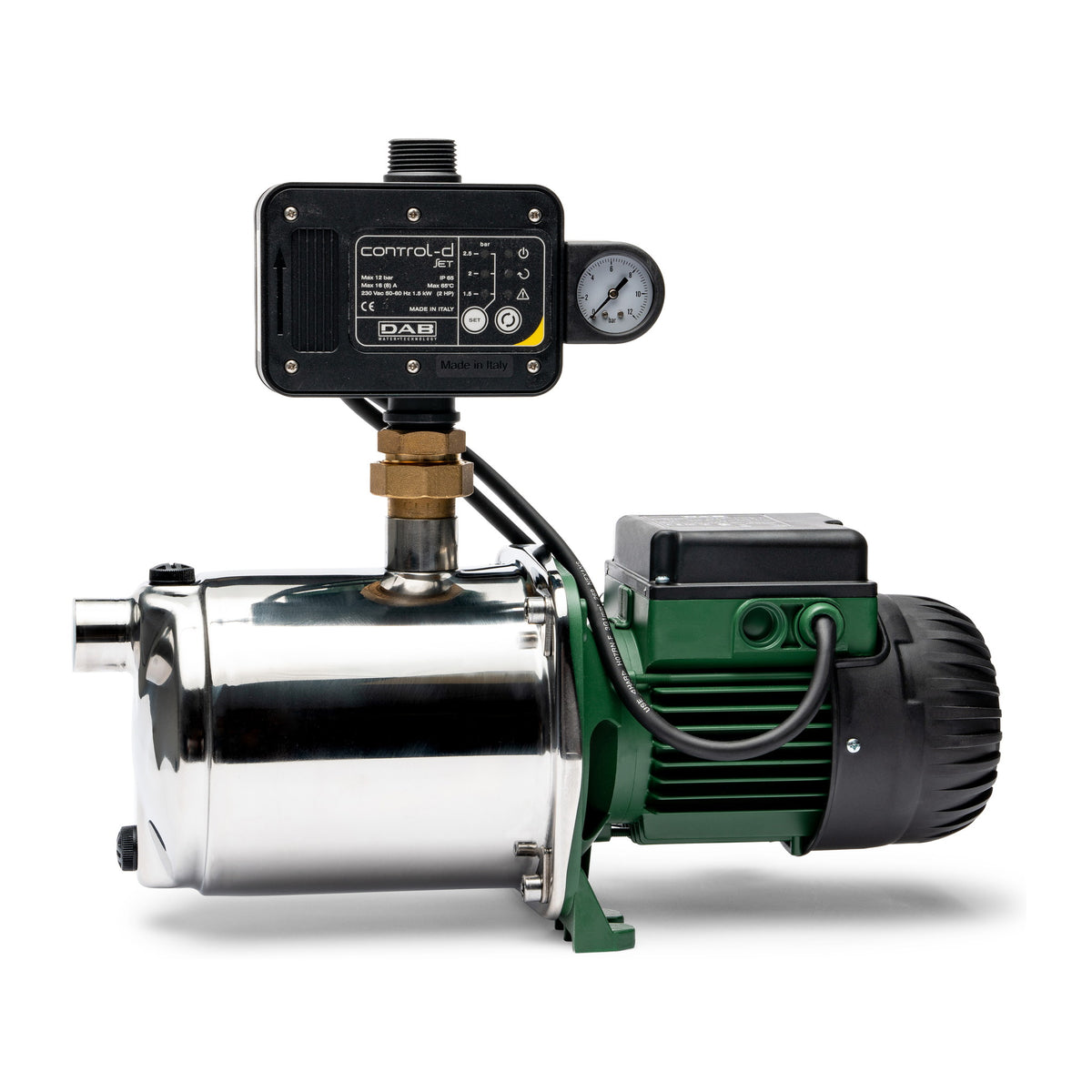

DAB EUROINOX Multistage Stainless Steel Booster Pump

The DAB EUROINOX is a horizontal multistage centrifugal pump built around a stainless steel pump body. DAB specifies a die-cast aluminium motor support, an AISI 304 stainless steel seal holder and rotor shaft, technopolymer impellers, diffuser bodies and diffusers, stainless steel adjustment rings and a carbon and ceramic mechanical seal. The single-phase motor is asynchronous and externally ventilated, with a built-in capacitor and thermal and current overload protection. Motor protection is IP 44, terminal board protection is IP 55 and the insulation is class F. Every model in this range runs on 115/230 V dual voltage at 60 Hz and uses 1 in NPT suction and 1 in NPT discharge connections.

DAB positions the EUROINOX for domestic water supply and pressurization, for irrigation of gardens and vegetable gardens, and for moving clean water in general. The multistage hydraulic end is what makes it useful where a single impeller pump runs out of pressure: with eight models the range covers 112 ft to 236 ft of shutoff head and flows to 31.7 GPM, so it can feed a whole-house pressure system, a sprinkler zone bank or a booster duty ahead of a filter or treatment train. DAB rates it for clean water that is free from solid or abrasive substances, non viscous, non aggressive, non crystallised and chemically neutral. It installs horizontally, fixed or portable.

Available Models

• EUROINOX 30/306 M: 0.6 HP, max head 151 ft, max flow 13.2 GPM
• EUROINOX 40/306 M: 0.75 HP, max head 187 ft, max flow 13.2 GPM
• EUROINOX 30/506 M: 0.75 HP, max head 138 ft, max flow 21.1 GPM
• EUROINOX 40/506 M: 1.1 HP, max head 190 ft, max flow 21.1 GPM
• EUROINOX 50/506 M: 1.36 HP, max head 236 ft, max flow 21.1 GPM
• EUROINOX 25/806 M: 0.75 HP, max head 112 ft, max flow 31.7 GPM
• EUROINOX 30/806 M: 1.1 HP, max head 154 ft, max flow 31.7 GPM
• EUROINOX 40/806 M: 1.36 HP, max head 194 ft, max flow 31.7 GPM

Specifications

• Pump Type: Horizontal multistage centrifugal, self-priming
• Power Supply: 1 x 115/230 V, 60 Hz, dual voltage
• Operating Range: 2.6 to 31.7 GPM with head up to 236 ft
• Maximum Operating Pressure: 116 psi
• Maximum Suction Depth: 26 ft
• Liquid Temperature: 32 F to 95 F for domestic use, 32 F to 104 F for other uses
• Maximum Ambient Temperature: 104 F
• Suction and Discharge: 1 in NPT and 1 in NPT
• Pump Body: Stainless steel
• Motor Support: Die-cast aluminium
• Seal Holder and Rotor Shaft: AISI 304 stainless steel
• Impellers, Diffuser Bodies and Diffusers: Technopolymer
• Adjustment Rings: Stainless steel
• Mechanical Seal: Carbon and ceramic
• Motor Protection: IP 44
• Terminal Board Protection: IP 55
• Insulation Class: F
• Installation: Horizontal, fixed or portable
• Certification: CSA and UL, per DAB USA 60 Hz price list

Key Features

• Stainless steel pump body across the whole range, not just on the top models
• Multistage hydraulics deliver high pressure from a compact horizontal package
• DAB describes the design as exceptionally silent running, which matters on pumps mounted near living space
• Dual voltage 115/230 V wiring lets one pump suit either service
• Built-in capacitor with thermal and current overload protection in the single-phase motor
• Technopolymer stage components with stainless steel adjustment rings resist wear
• Eight models spanning 0.6 HP to 1.36 HP so the duty point can be matched instead of oversized
• 1 in NPT ports on every model simplifies piping and spares

Ideal Applications

• Whole-house domestic water supply and pressure boosting
• Garden, vegetable garden and landscape irrigation
• Sprinkler zone supply where head is the limiting factor
• Boosting ahead of filtration, softeners or treatment equipment
• Rainwater and storage tank transfer with clean water
• Light agricultural and small farm water supply
• Hobby greenhouse and nursery watering
