AXEON - Catalytic Carbon Water Filtration System, 9 x 48

Brand: Axeon

AXEON Catalytic Carbon Water Filtration System

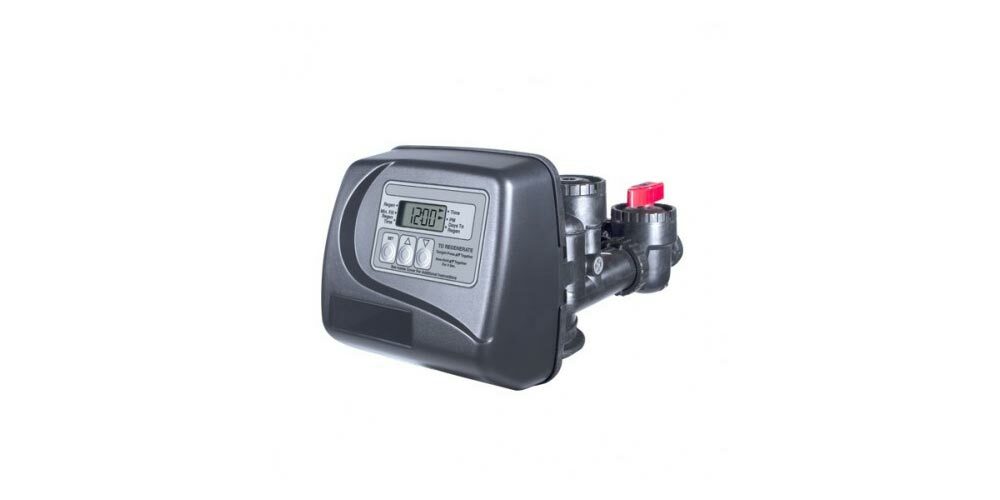

AXEON CC-Series Catalytic Carbon Water Filtration Systems use granulated micro-porous catalytic carbon to reduce chlorine, chloramines, heavy metals, organic compounds, and unwanted odors and tastes. These systems are designed for reliability with minimal maintenance, comply with all industry standards, and can efficiently treat municipal and well water sources. This model is the CC-40-0948-100 (Part 212201), built around a 9 x 48 black fiberglass tank with a metered Clack i510 control valve.

Specifications

• Part Number: 212201 (CC-40-0948-100)
• Valve Model: Clack i510, Meter type
• Auxiliary Relay Included: Yes
• Voltage: 110V
• Plumbing Connection: Bypass / 1" MPT
• Drain Connection: 5/8" Barb
• Media Tank: 9 x 48", Black
• Gravel Underbedding: 10 lbs
• Catalytic GAC Media: 1 cubic foot, NSF 61 certified, media loaded
• Design Service Flow: 1-2 GPM
• Estimated Peak Flow: 13 GPM
• DLFC Backwash: 4.2 GPM
• System Height: 57"
• Dry Weight: 75 lbs

Key Features

• Solid-state microprocessor control with LED backlit display
• Meter monitors and self-adjusts regeneration cycles based on water use trends
• Flexible adjustable cycle sequence programming saves water
• Day-of-the-week controls and immediate regeneration trigger
• Advanced history and diagnostic screens
• Integrate pretreatment lockout contacts
• Heavy-duty fiberglass tank with upper and lower screen riser pipe
• Catalytic granulated activated carbon media
• Service alarms and 48-hour lithium battery power backup
• Optional AC 220V adapter available (P/N 212200)

Why Choose the AXEON CC-Series

Catalytic carbon outperforms standard GAC on chloramines and hydrogen sulfide, and the metering valve only regenerates based on actual water use - reducing waste water versus timer-based systems. The CC-40-0948-100 is the entry size in the line, well-suited to point-of-entry residential and light commercial loads where service flow stays in the 1-2 GPM range with brief peaks.

Ideal Applications

• Chloramine and chlorine reduction on municipal water
• Heavy metal, organic, taste, and odor reduction
• RO pretreatment and point-of-entry polishing
• Light commercial and residential whole-house service
• Can extend the life of downstream equipment, fixtures, and appliances

This system is not intended to treat water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
