TrolMaster - Control Board 24V, 6 individal 24V controlled output for solenoid valve control (OA6-24)

Brand: TrolMaster

TrolMaster 6 Outputs 24V Control Board (OA6-24)

The OA6-24 control board is designed to control multiple 24VAC solenoid valves, providing six individually controlled outputs, each with its own timer settings. Up to 5 OA6-24 boards can connect to a single Aqua-X, for a maximum of 30 individually controlled valve outputs.

Paired with a DSP-1, the OA6-24 provides an automatic master pump link: whenever any 24VAC irrigation zone on the OA6-24 activates, the DSP-1 turns on the pump. Double RJ12 sockets allow daisy-chain connectivity between boards.

Available Options

• Model: OA6-24

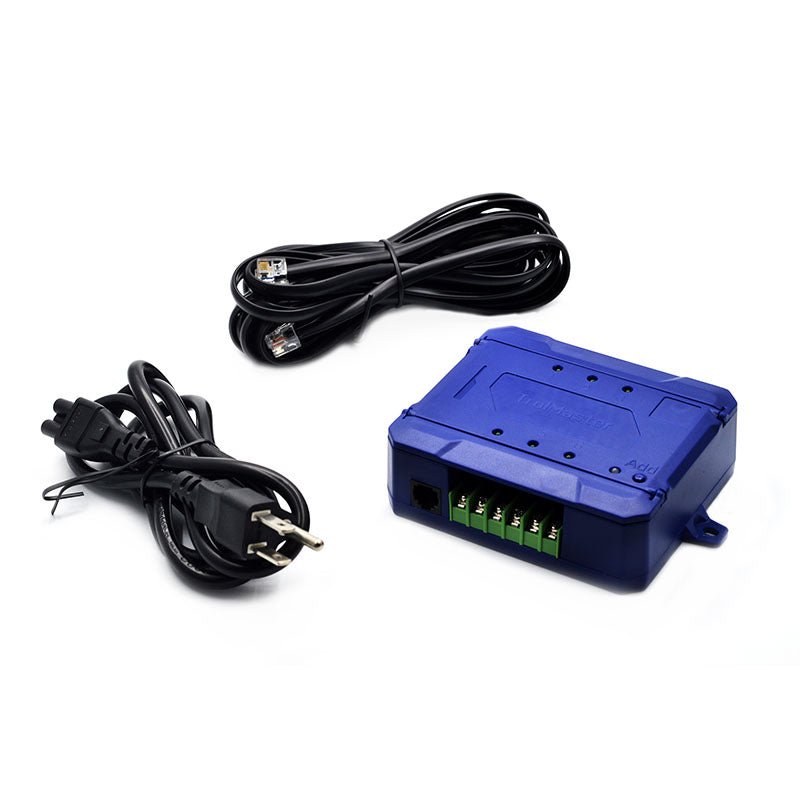

• Includes: 24V Control Board, 16ft RJ12 Cable
• Compatible controllers: NFS-1, NFS-2, NFS-3, GCS-1

Key Features

• 6 individually controlled 24V outputs
• Individual LED indicator for each output
• LED power indicator and addressing button
• Double RJ12 sockets for daisy-chain connectivity
• Input voltage: 110-240 VAC
• Max output: 24VAC / 0.2A per output
• Working temperature: 32 to 104 deg F, humidity 90% or less

Ideal Applications

• Multi-zone irrigation using 24VAC solenoid valves
• Expanding Aqua-X and Green-X systems up to 30 valve zones
• Pump-linked irrigation with the DSP-1
