Apogee Instruments - Fan-Aspirated Radiation Shield (TS-Series)

Brand: Apogee Instruments

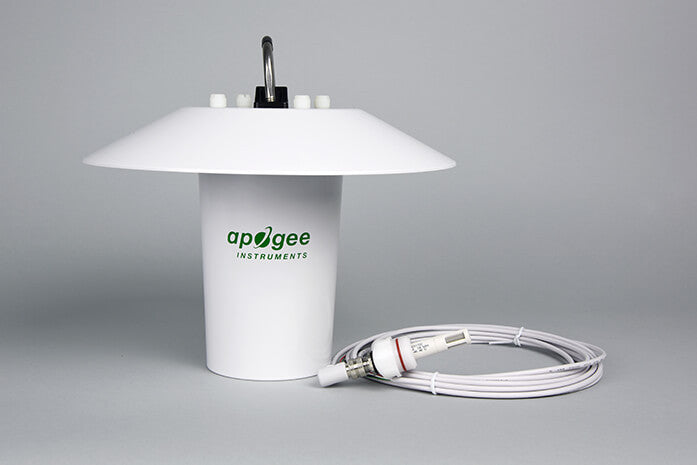

The Apogee TS-Series fan-aspirated solar radiation shield continuously draws air across the temperature (and humidity) sensor it houses, eliminating the solar-heating error that makes passive shields read high - the key to accurate canopy air temperature and VPD.

Choose the fan voltage to match your power system and the configuration to match your measurement needs, from shield-only to a complete temperature and humidity assembly.

Available Options

• 12 V, Shield Only (TS-100-SS) - accepts an ST-110 or EE08-SS sensor, sold separately
• 12 V, with ST-110 Thermistor (TS-110-SS) - includes air-temperature thermistor
• 12 V, with EE08-SS Temp/RH (TS-120-SS) - includes temperature and humidity probe for full VPD
• 24 V, Shield Only (TS-200-SS) - accepts an ST-110 or EE08-SS sensor, sold separately
• 24 V, with ST-110 Thermistor (TS-210-SS) - includes air-temperature thermistor
• 24 V, with EE08-SS Temp/RH (TS-220-SS) - includes temperature and humidity probe for full VPD

Key Features

• Fan-aspirated design eliminates solar-heating error for accurate temperature and humidity
• Available in 12 V and 24 V fan inputs
• Configurations from shield-only to complete temp/RH for VPD
• Rugged housing for long-term greenhouse and field use
• Made in the USA and backed by Apogee's industry-leading support

Ideal Applications

• Accurate canopy air temperature and VPD
• Greenhouse and grow-room climate monitoring
• Research-grade environmental logging
