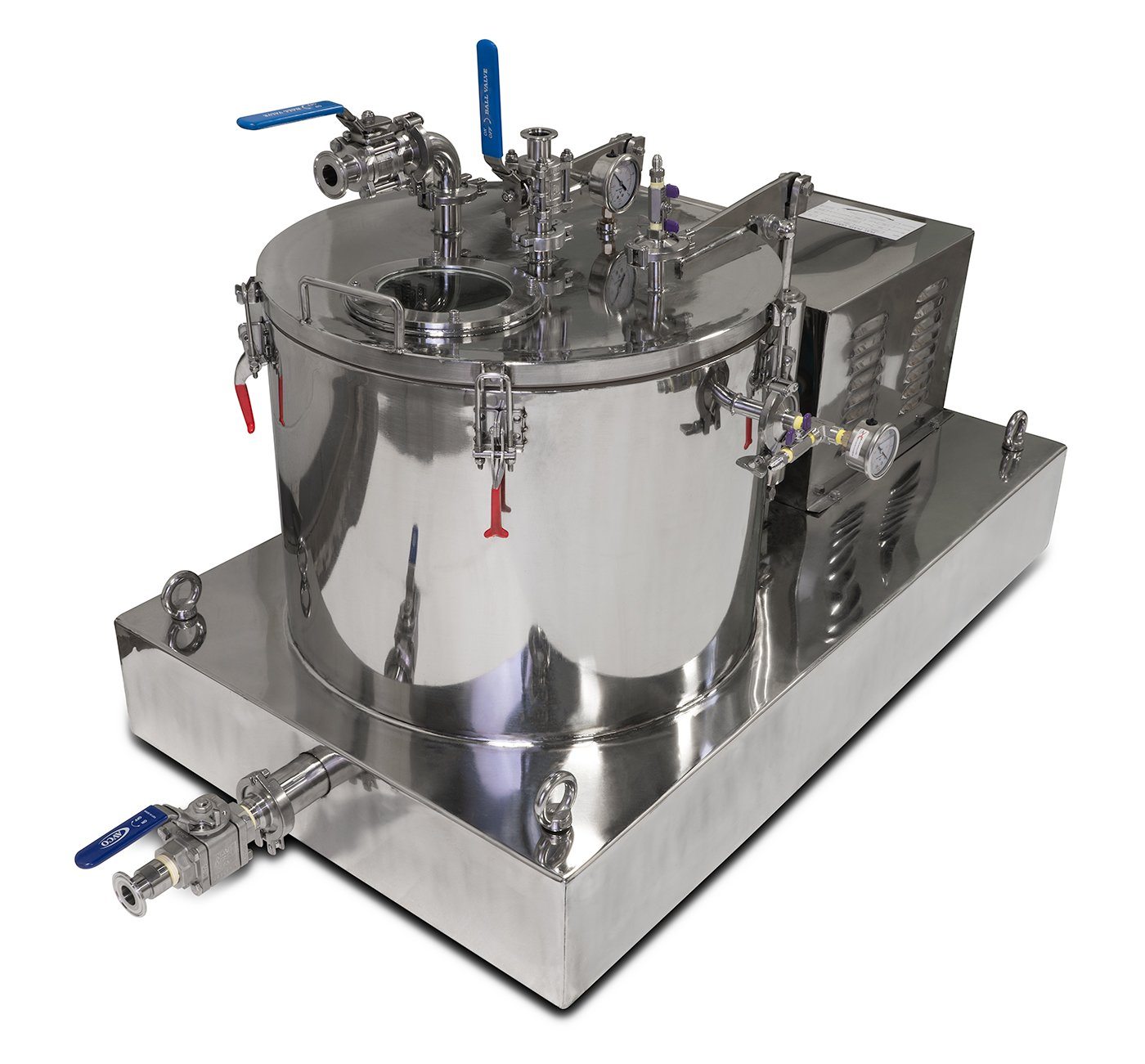

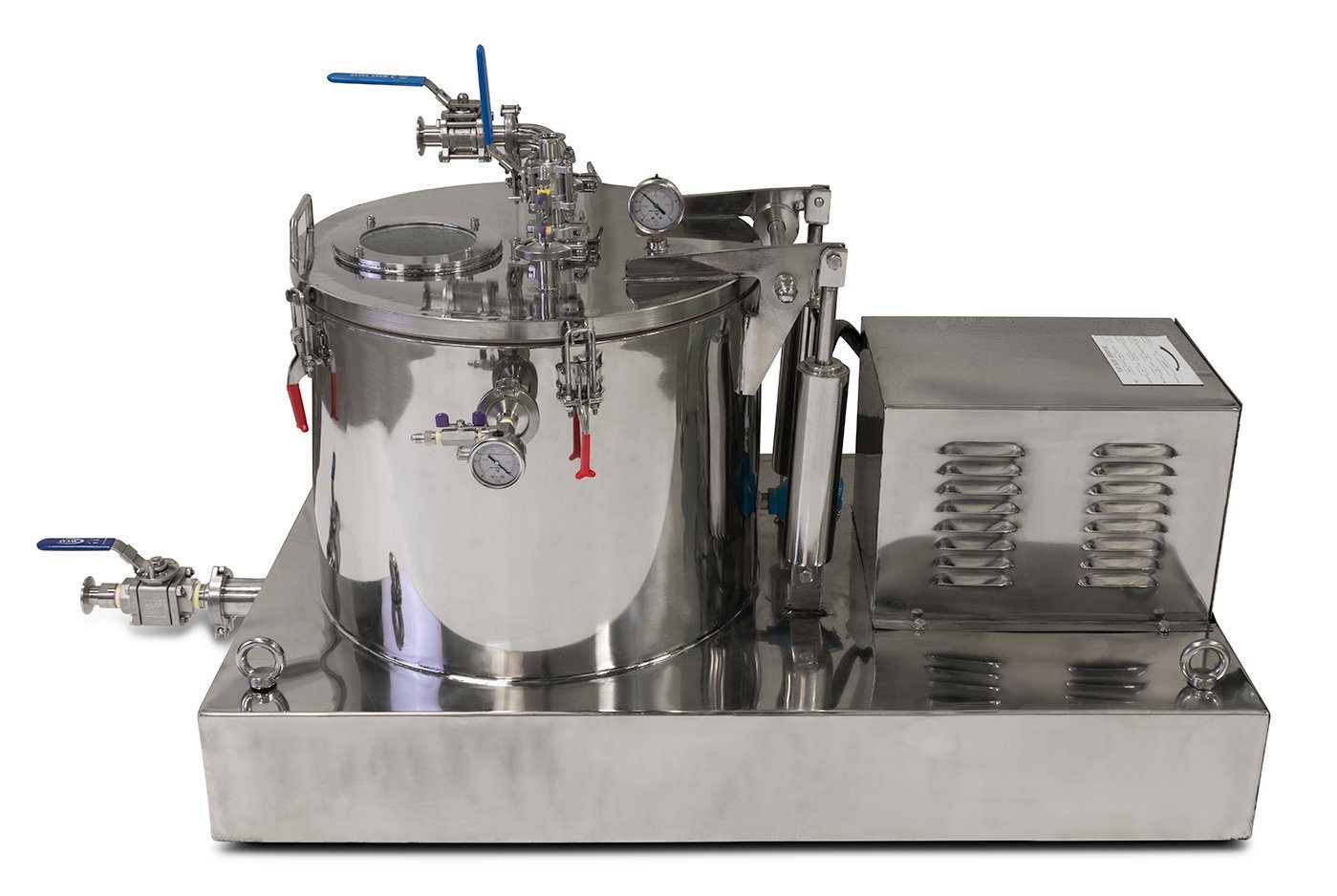

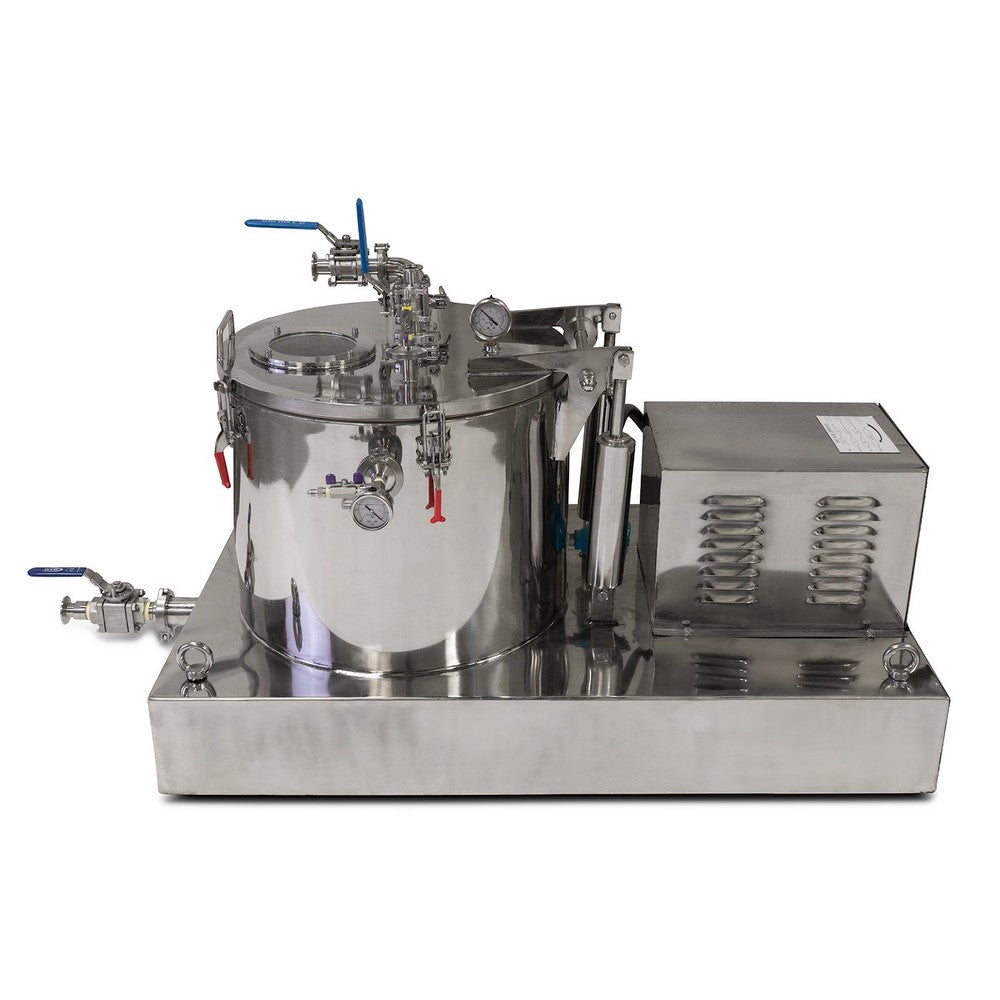

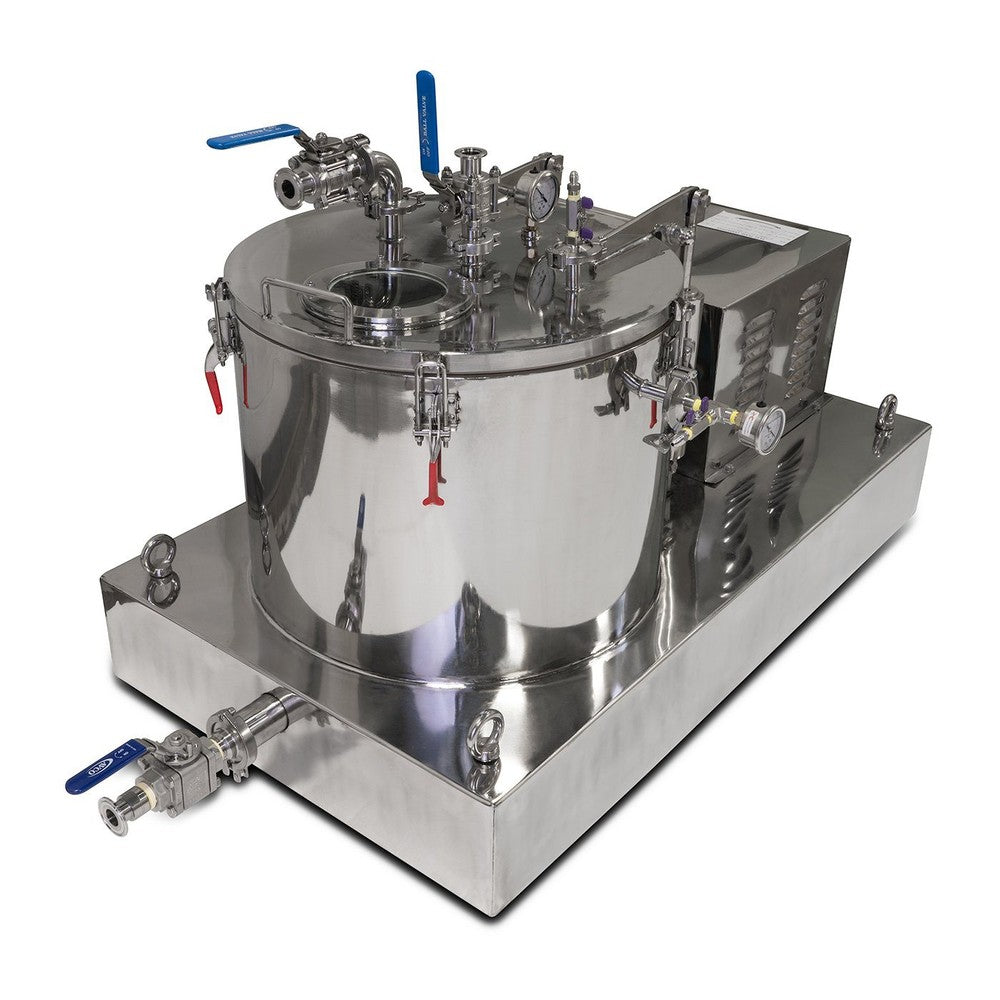

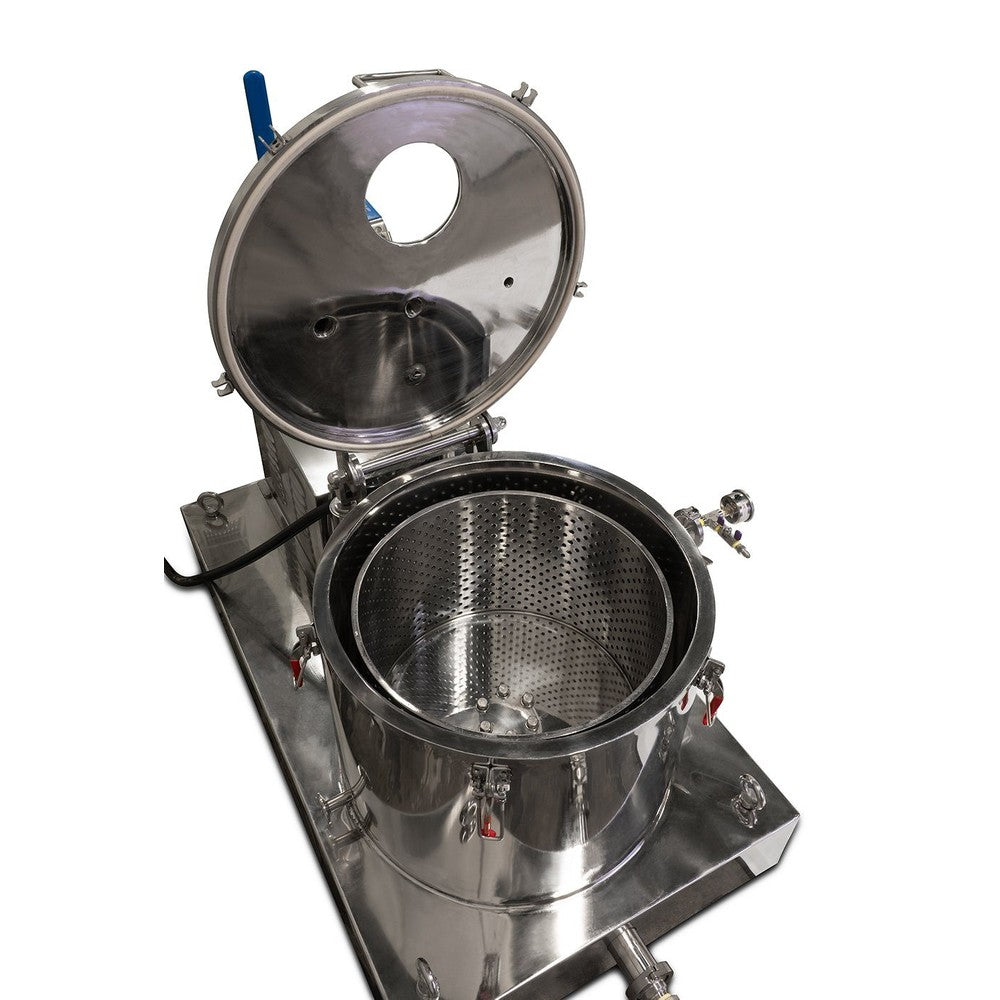

45L Jacketed Stainless Steel Centrifuge with Explosion Proof Motor and Siemens Controller - 15LB Max Capacity

SKU: CF-45L-B

$15,000.00
Quantity:

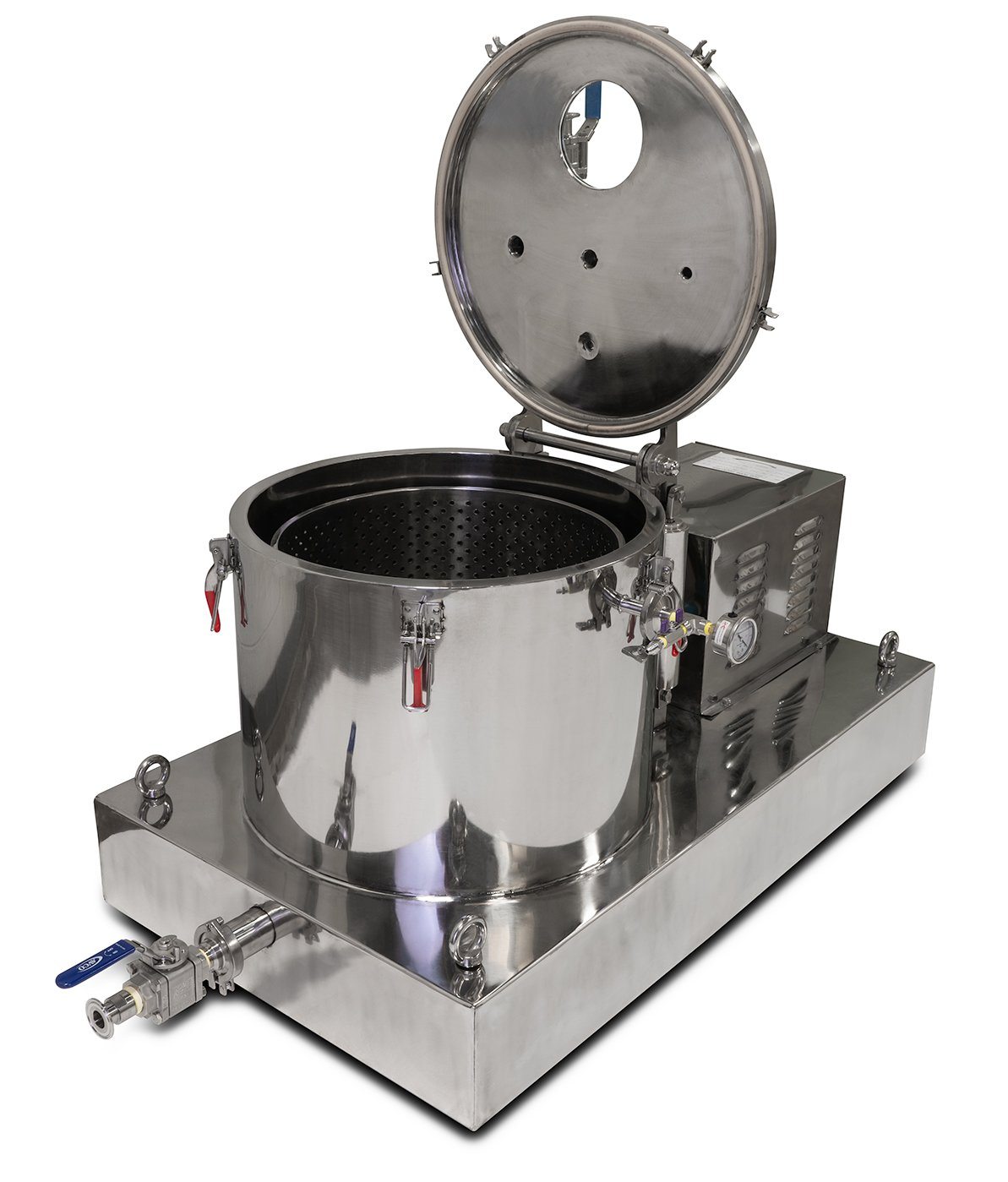

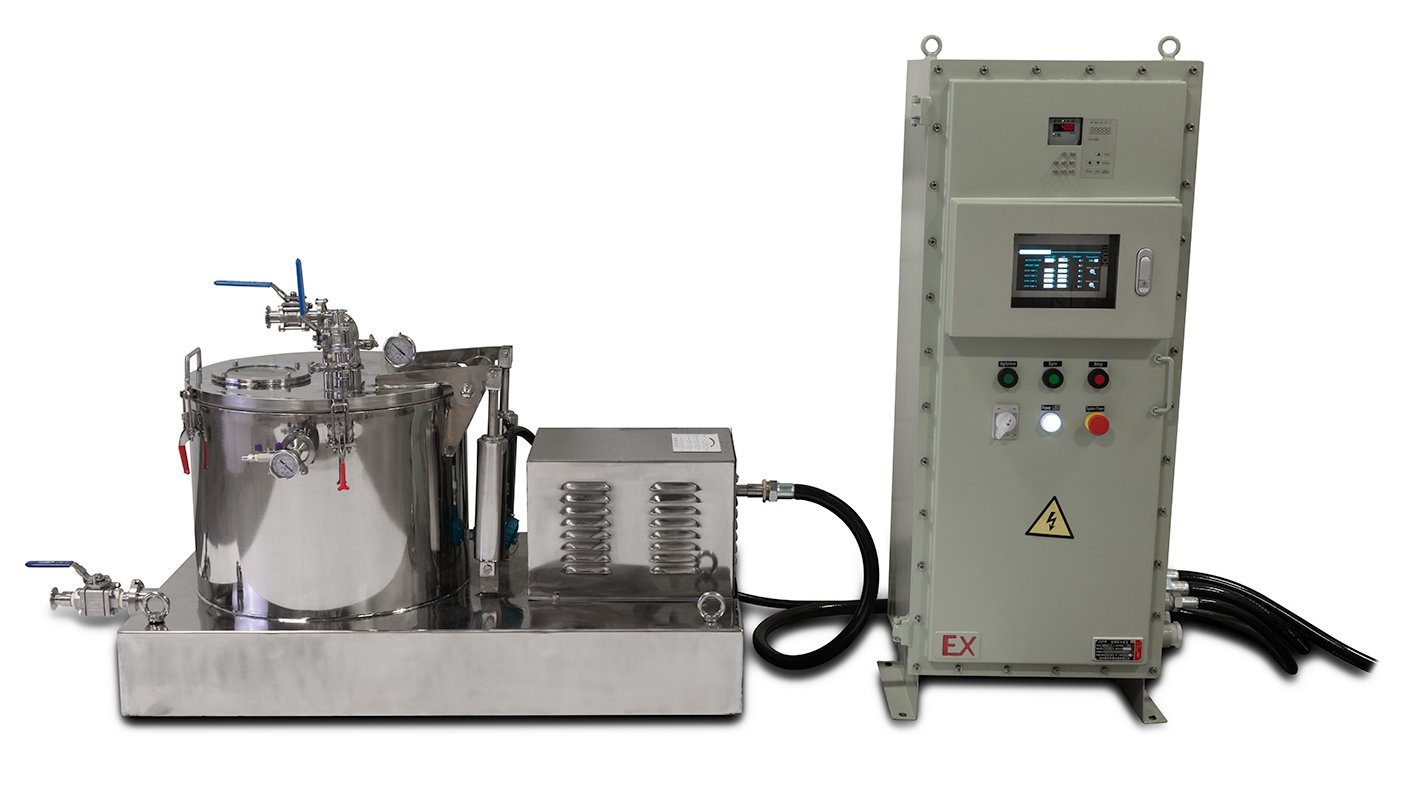

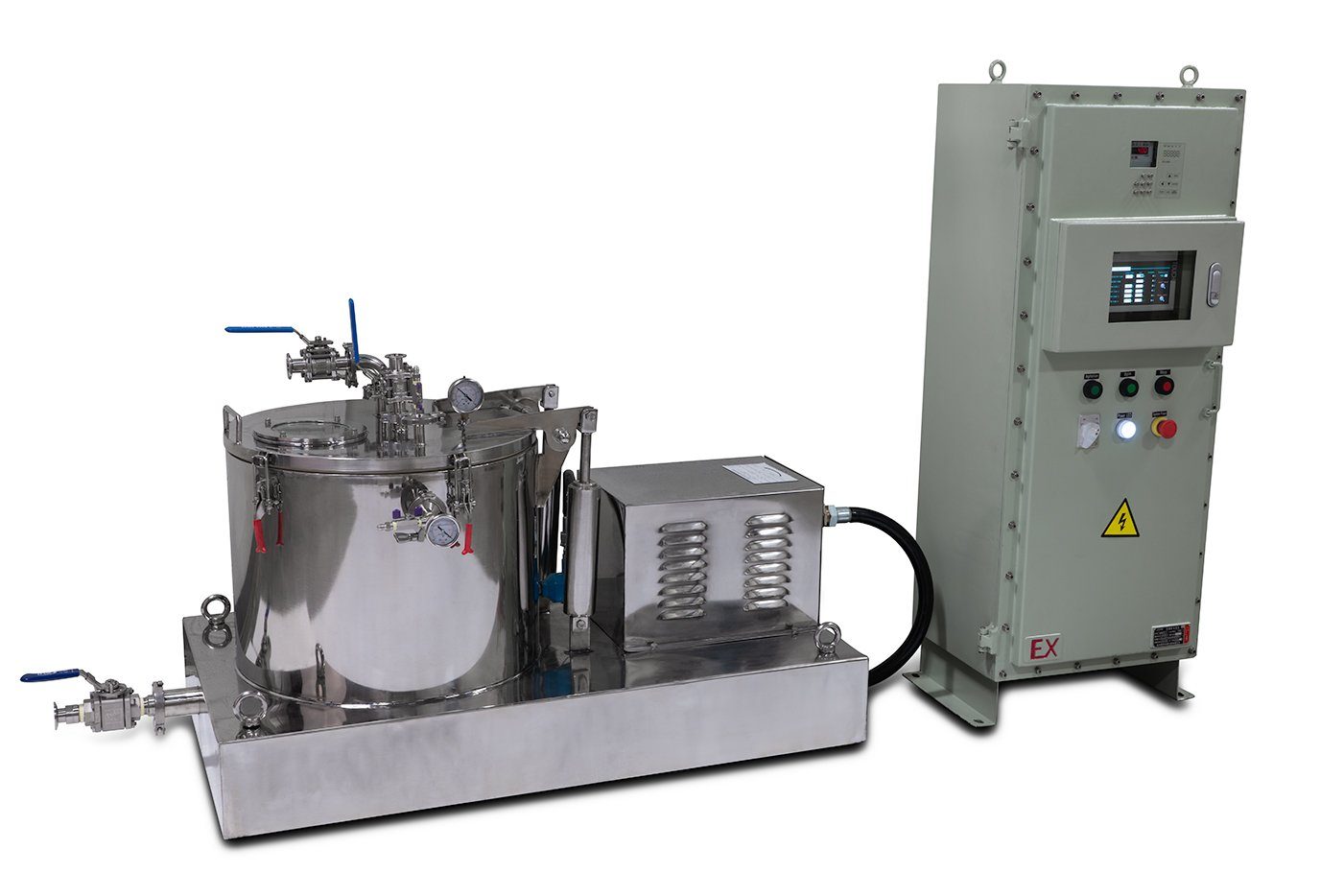

45L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller

Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift to lift it. It will also ship via freight only.

 Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.

Key Features:

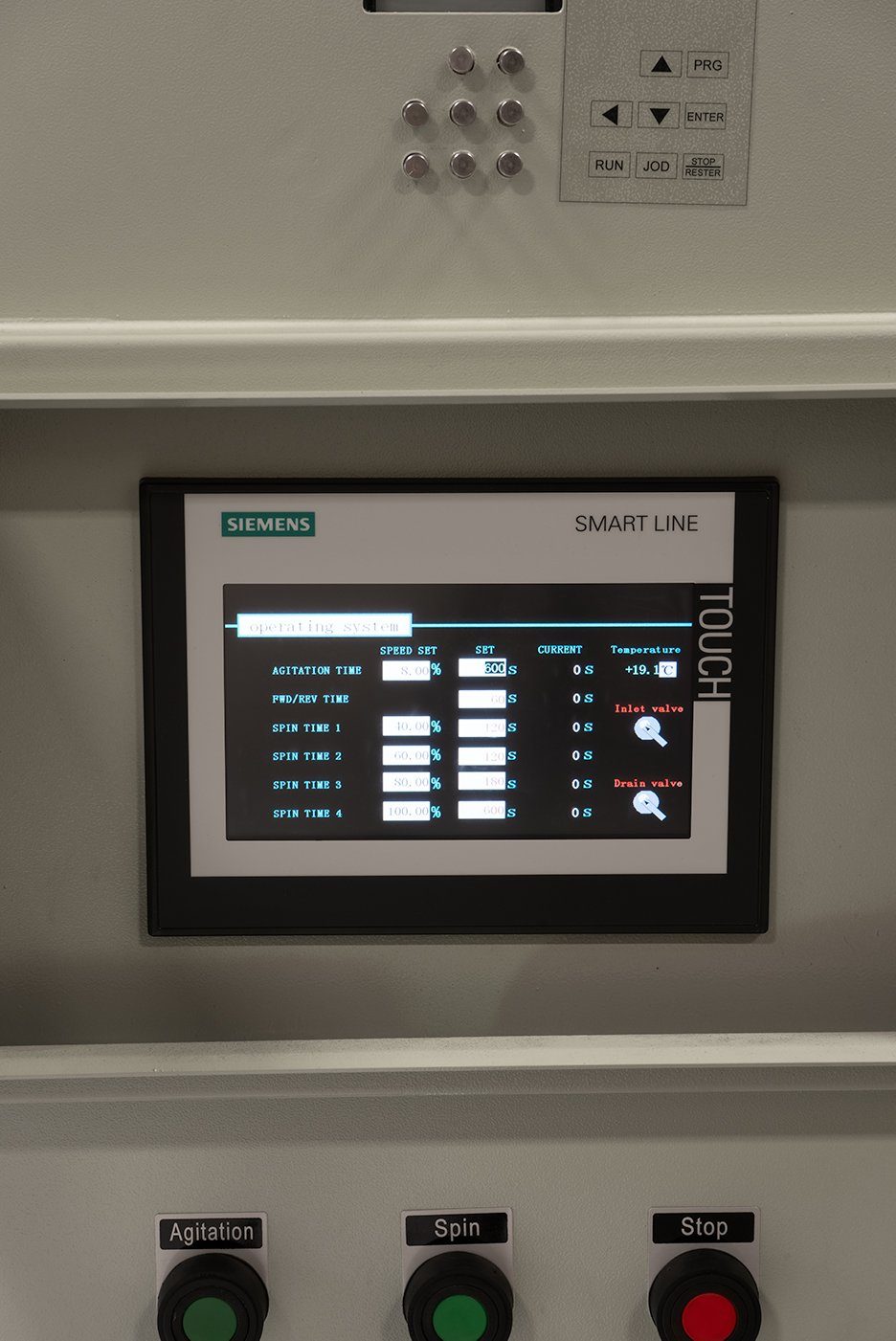

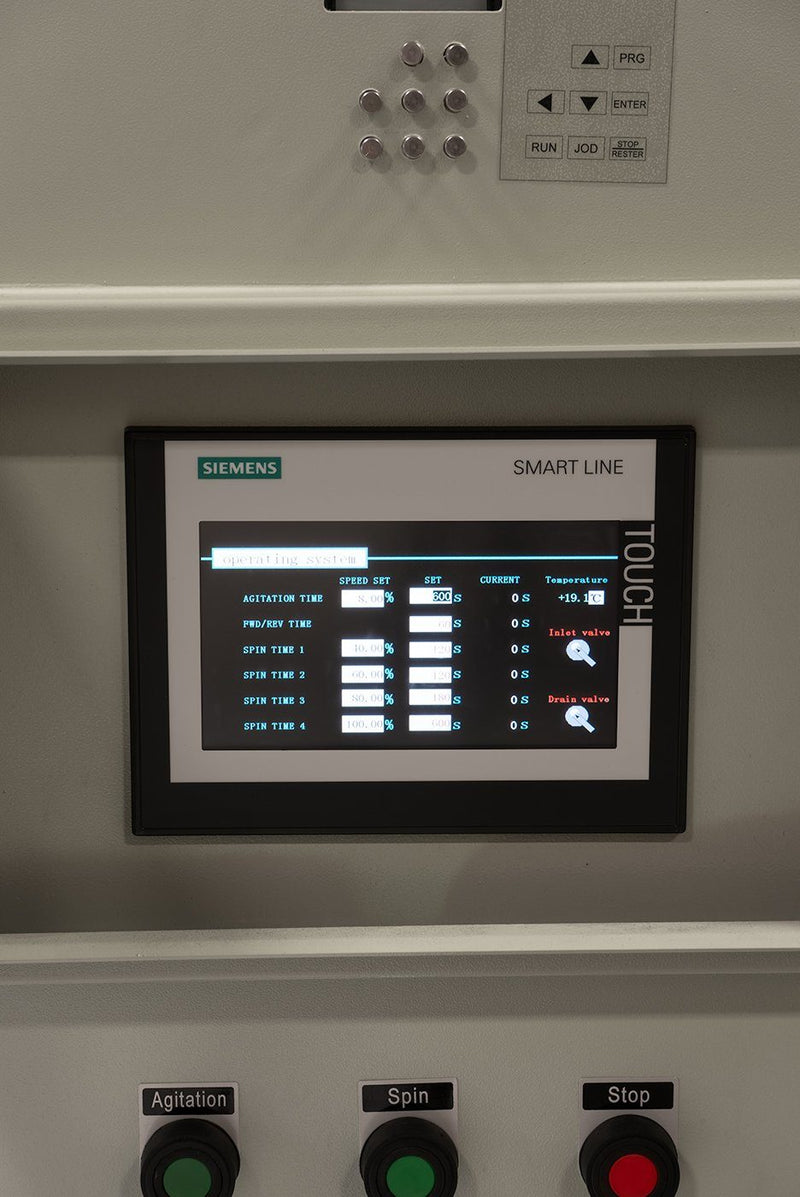

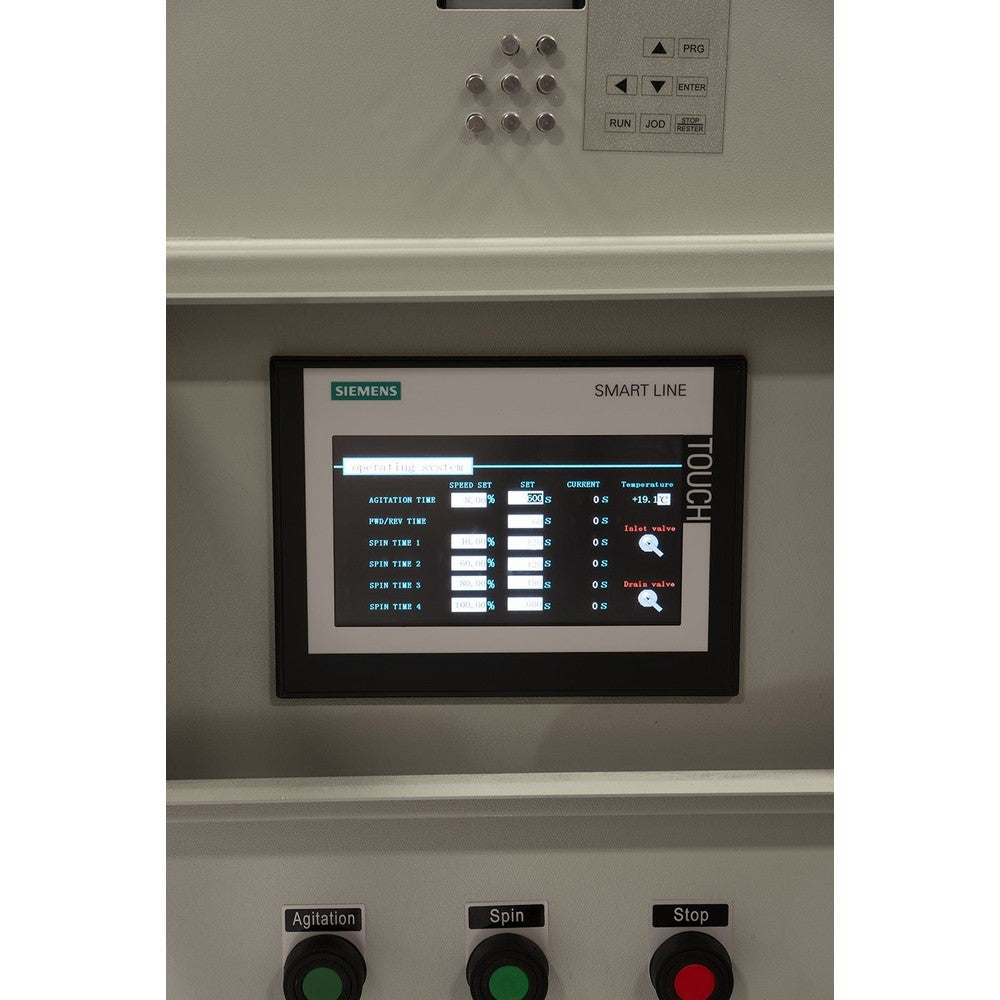

  • Siemens Touch Screen Controller

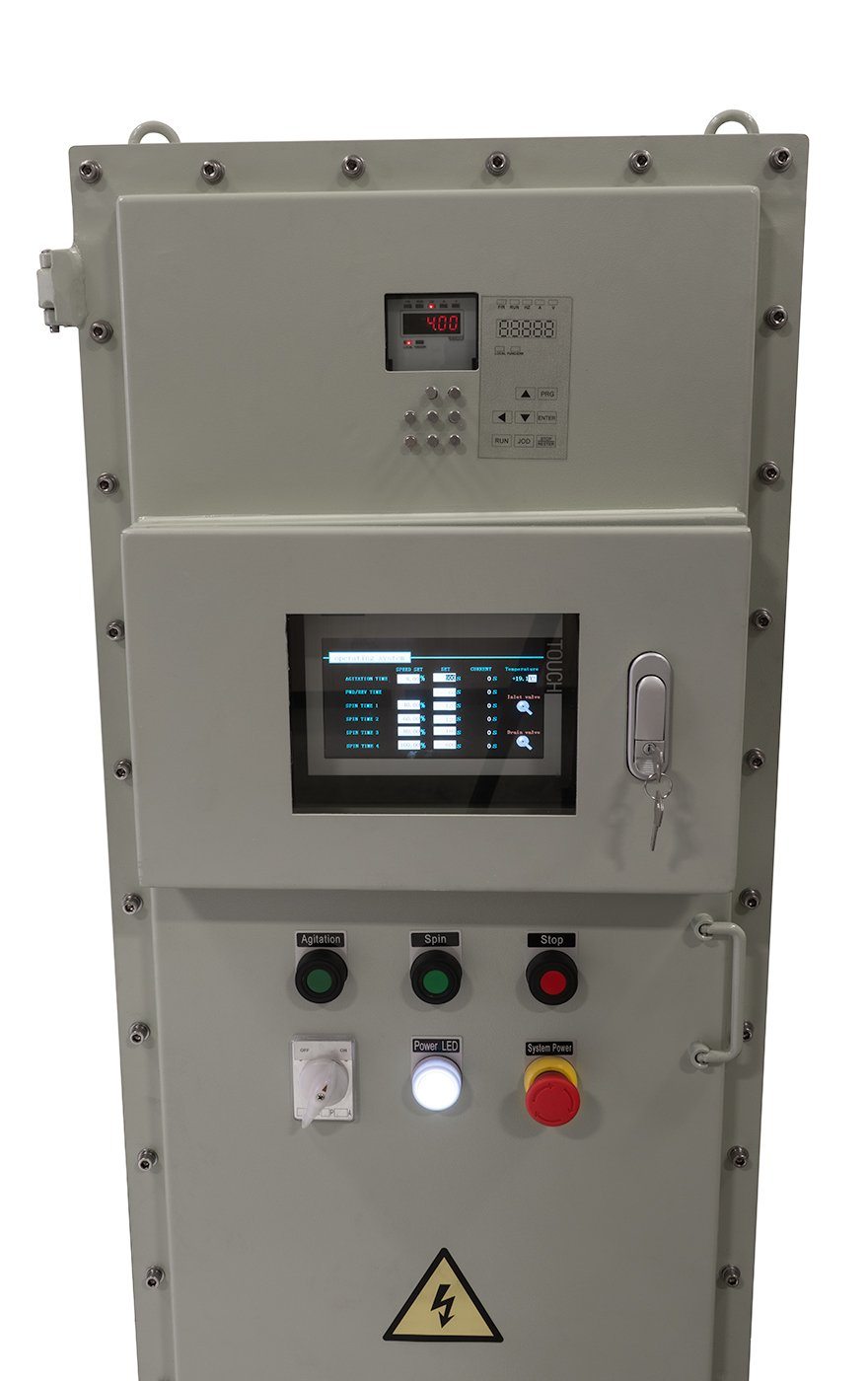

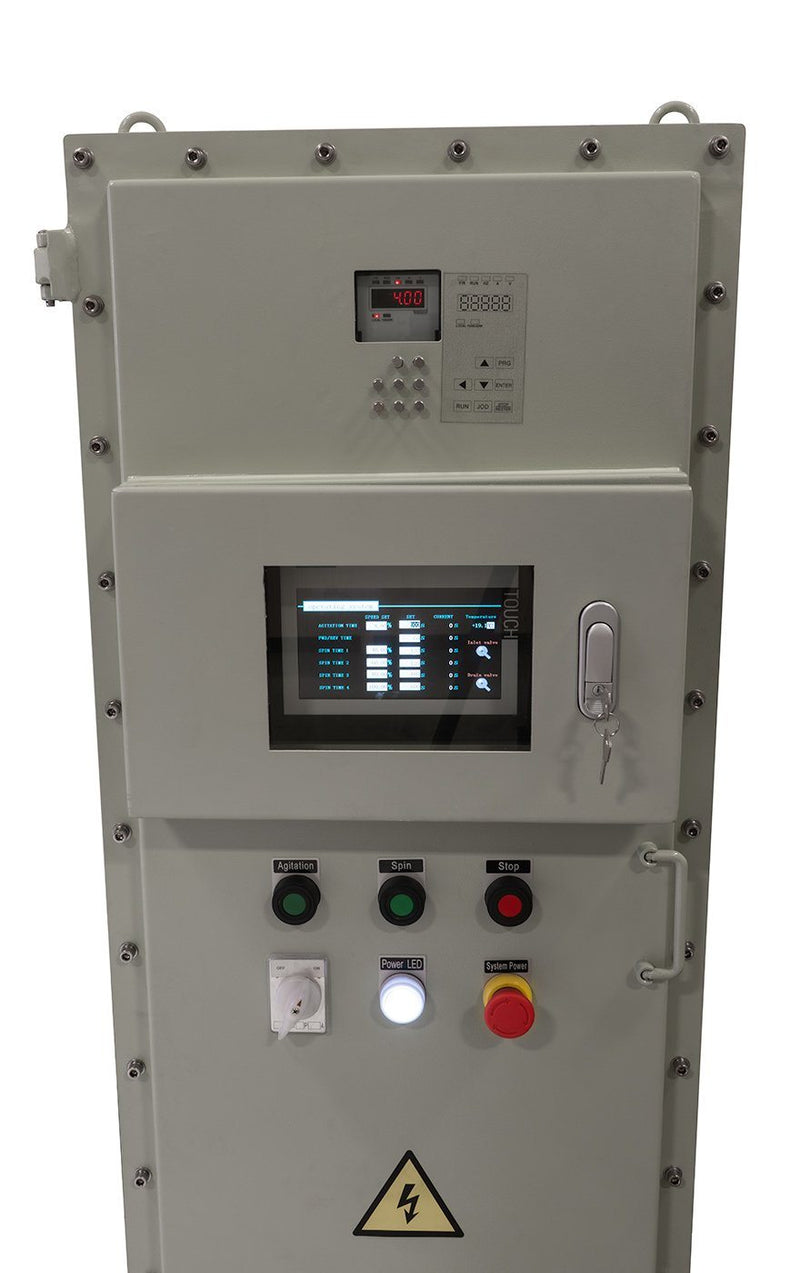

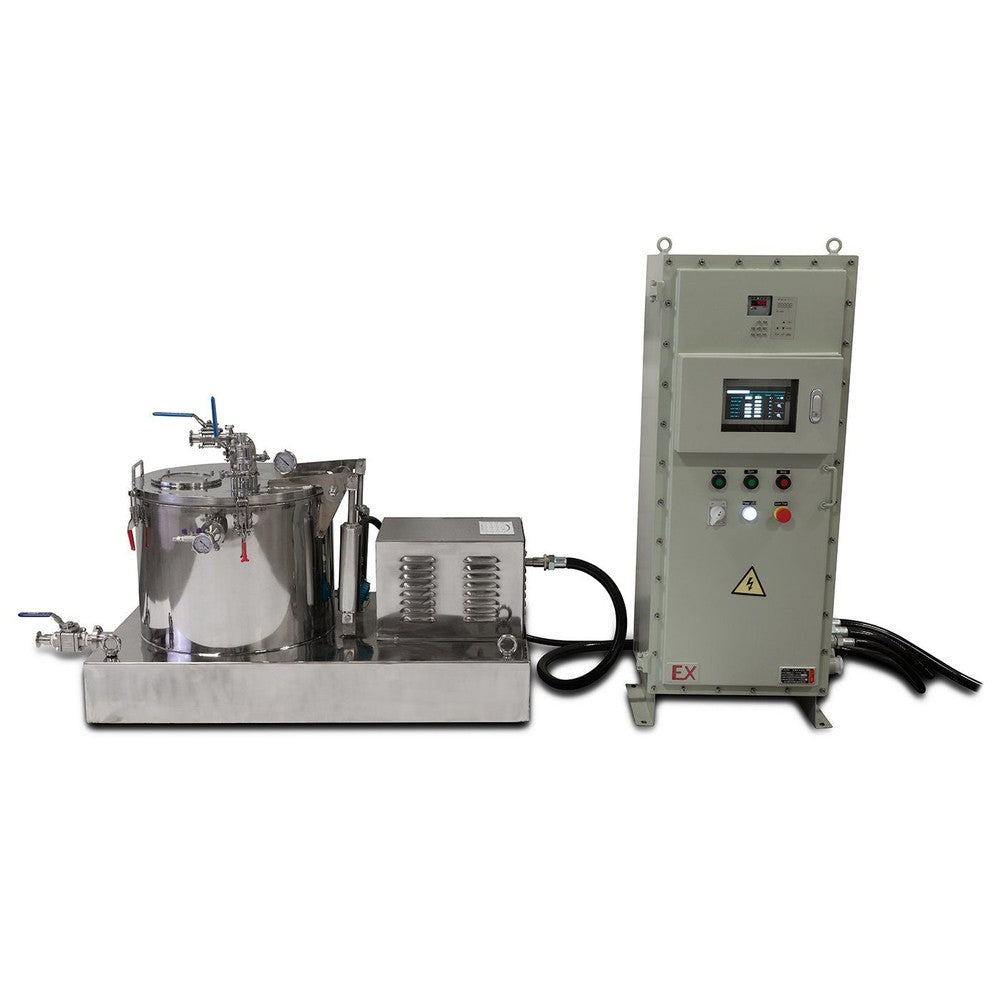

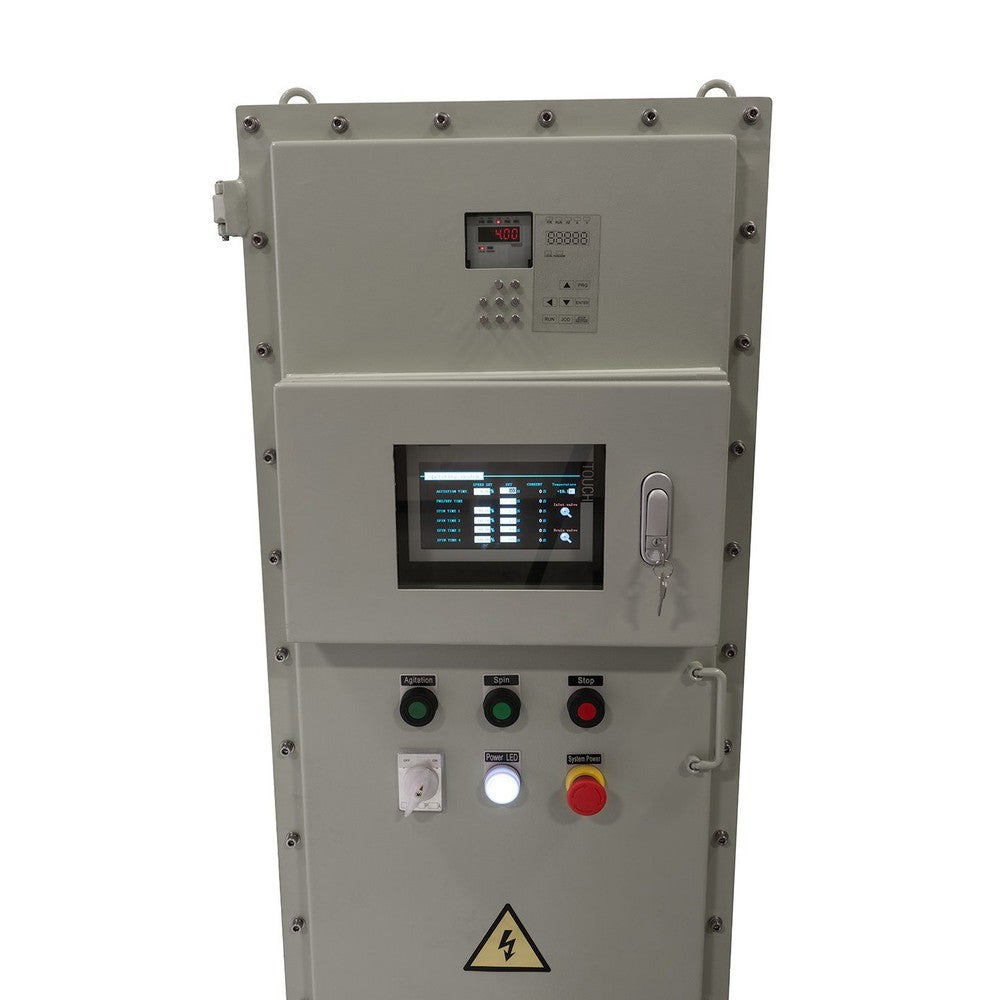

  • Explosion Proof Controller Housing and Motor
  • Agitation and Spin Dry Modes
  • Max 1500 RPM with Gradual Speed Stepping
  • 566 Separation Factor
  • Multiple Connection Ports/Sizes
  • High Polish Stainless Steel Components
  • Shock absorbing legs
  • Vacuum Jacket with Two 1" Tri-Clamp Fittings
  • Pre-wired and Tested for Easy Installation
Specifications
Capacity 45L

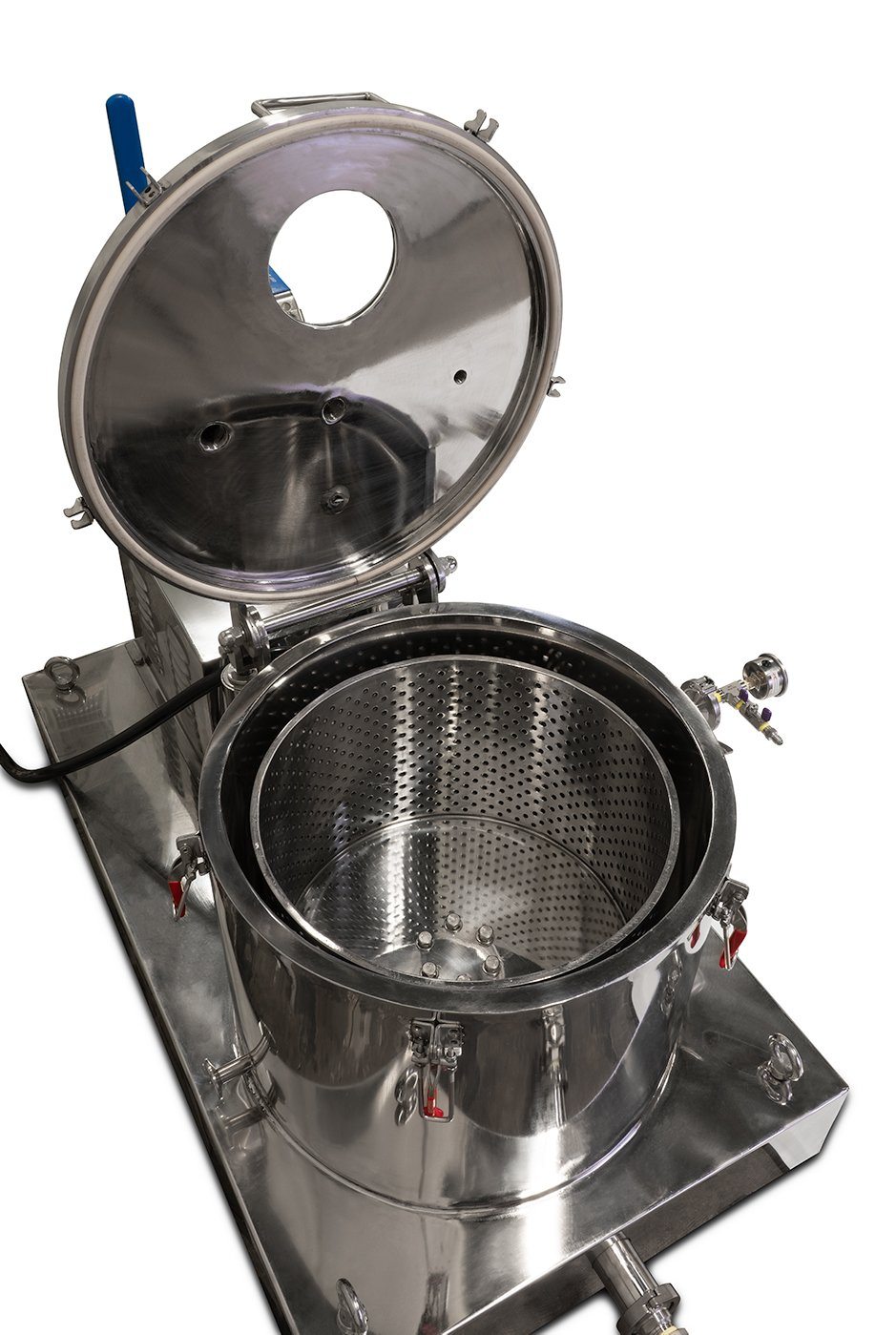

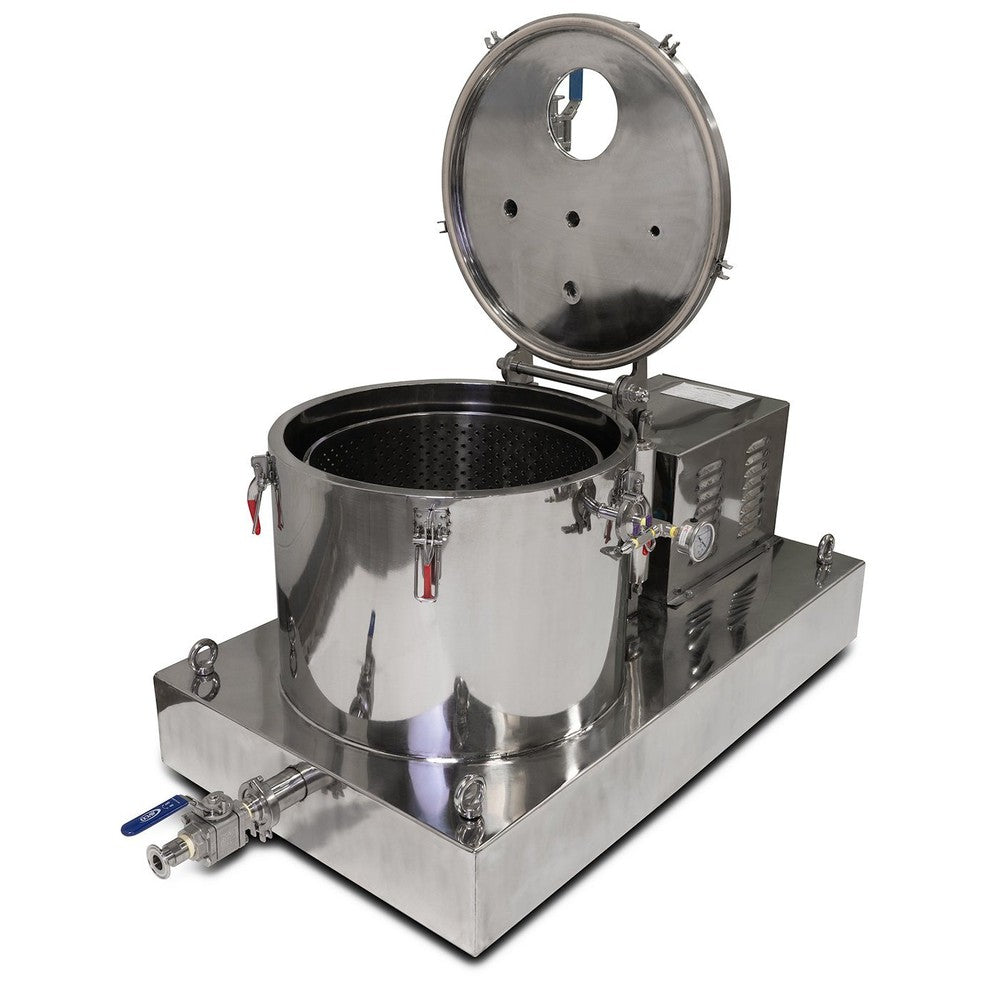

Drum Dimensions 17.7" (450mm) Diameter x 11-7/8" (300mm) Deep
Max Capacity 15lbs (6.8Kg)
Speed 1500 rpm
Separation Factor 566
Electrical
240V 1Ø
Weight 794lbs (360Kg)
Exterior Dimensions 50" x 27.6" x 28.7" (1280mm x 700mm x 730mm)
Viewport Diameter 5.5"
Connection Size(s): 2" Tri-Clamp Drain Port
 1" Tri-clamp Side Port X 2
1" Tri-Clamp Top Port
1.5" Tri-Clamp Top Port
1/4" FNPT Top Port
KF25 Top Port
