TrolMaster - 240v Program Device Station Timer Program Control Relay Single Pack w/cable set (DSP-2)

Brand: TrolMaster

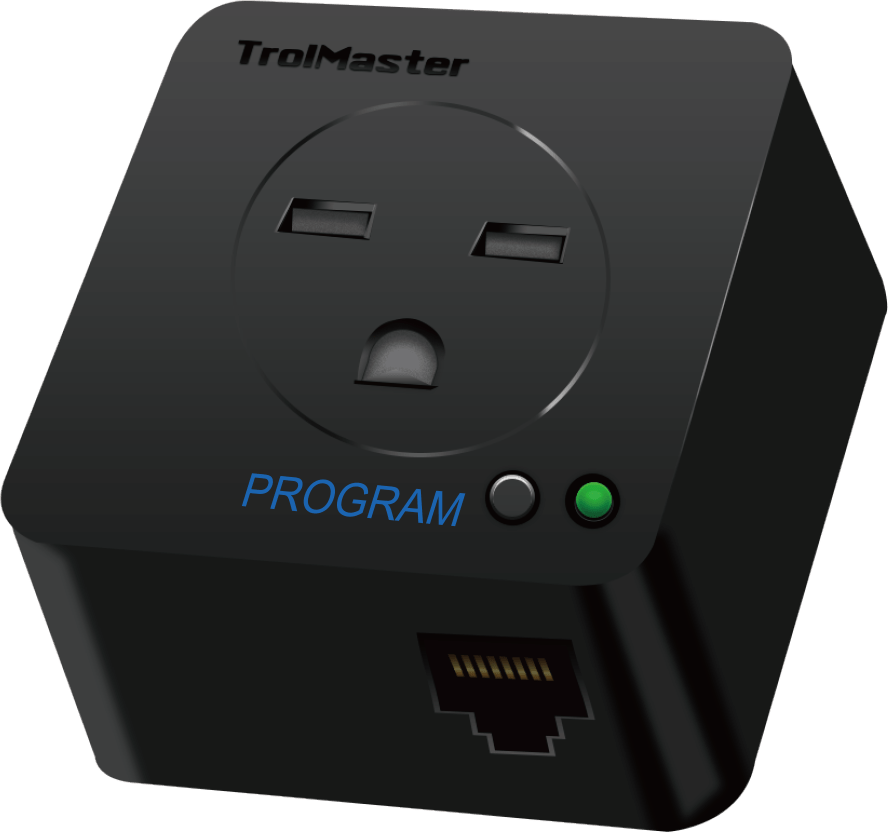

TrolMaster 240V Program Device Station (DSP-2)

The TrolMaster DSP-2 Program Device Station is a timer module that works like a multi-function timer, letting operators connect any device that needs time-based control to the Hydro-X. It controls devices under the world voltage standard (100-240 VAC, 50/60 Hz) up to 10 amps.

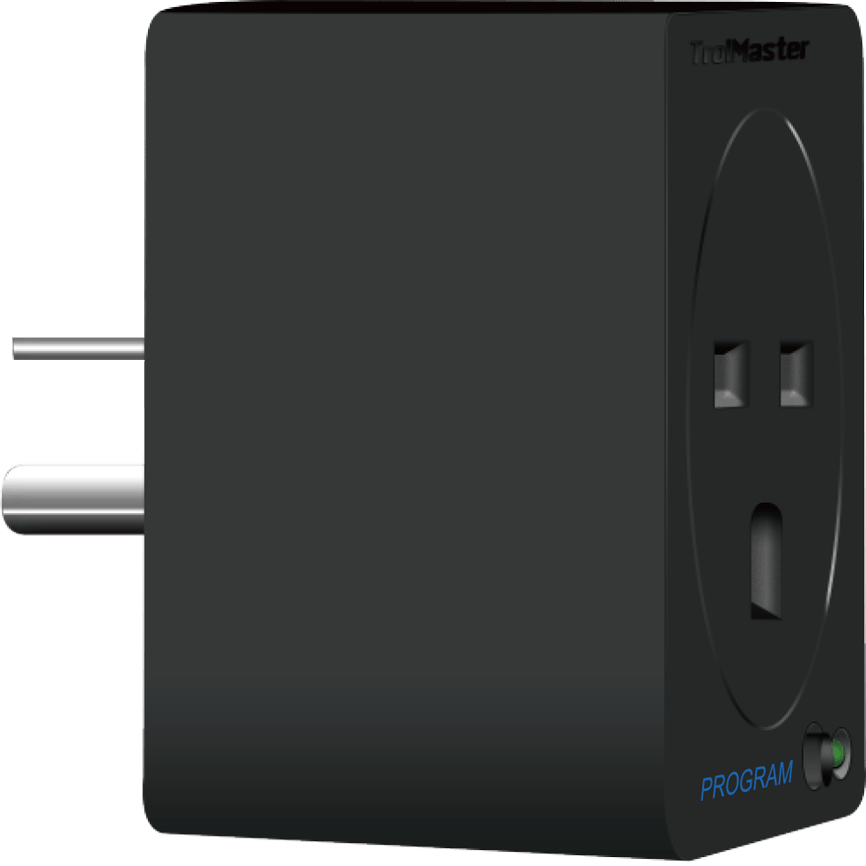

The DSP-2 uses a 3-prong 240V-style plug and connects to the controller by RJ12 cable, with a status LED for addressing, on/off and overload states. Holding the module button provides manual on/off override.

Available Options

• Model: DSP-2
• Includes: 240V program device station, 16 ft RJ12 cable, 4 ft RJ12 cable and RJ12 T-splitter
• Compatible controllers include: HCS-1, HCS-2, HCS-3, NFS-1

Key Features

• Multi-function timer control for devices up to 10A at 240V or less
• Input/output voltage: 100 to 240 VAC, 50/60Hz
• 3-prong attaching plug
• LED power/status indicator with overload indication
• RJ12 cable socket, addressing and plug-and-play setup; manual override button
• Working environment: 32 to 122 deg F, 90% humidity or less

Ideal Applications

• Time-based control of 240V equipment from Hydro-X or Aqua-X controllers
• Scheduling pumps, fans and other facility equipment in indoor cultivation
