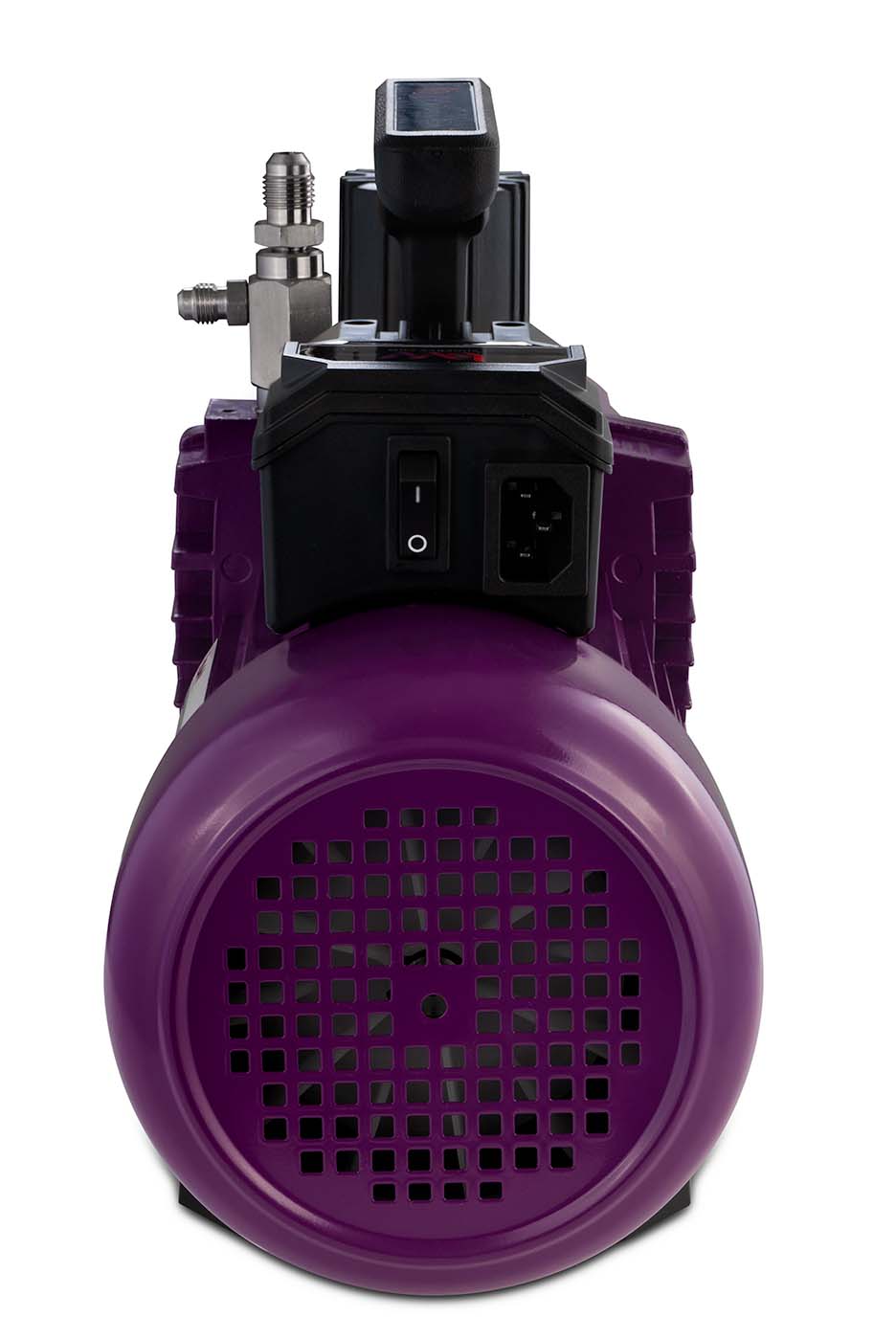

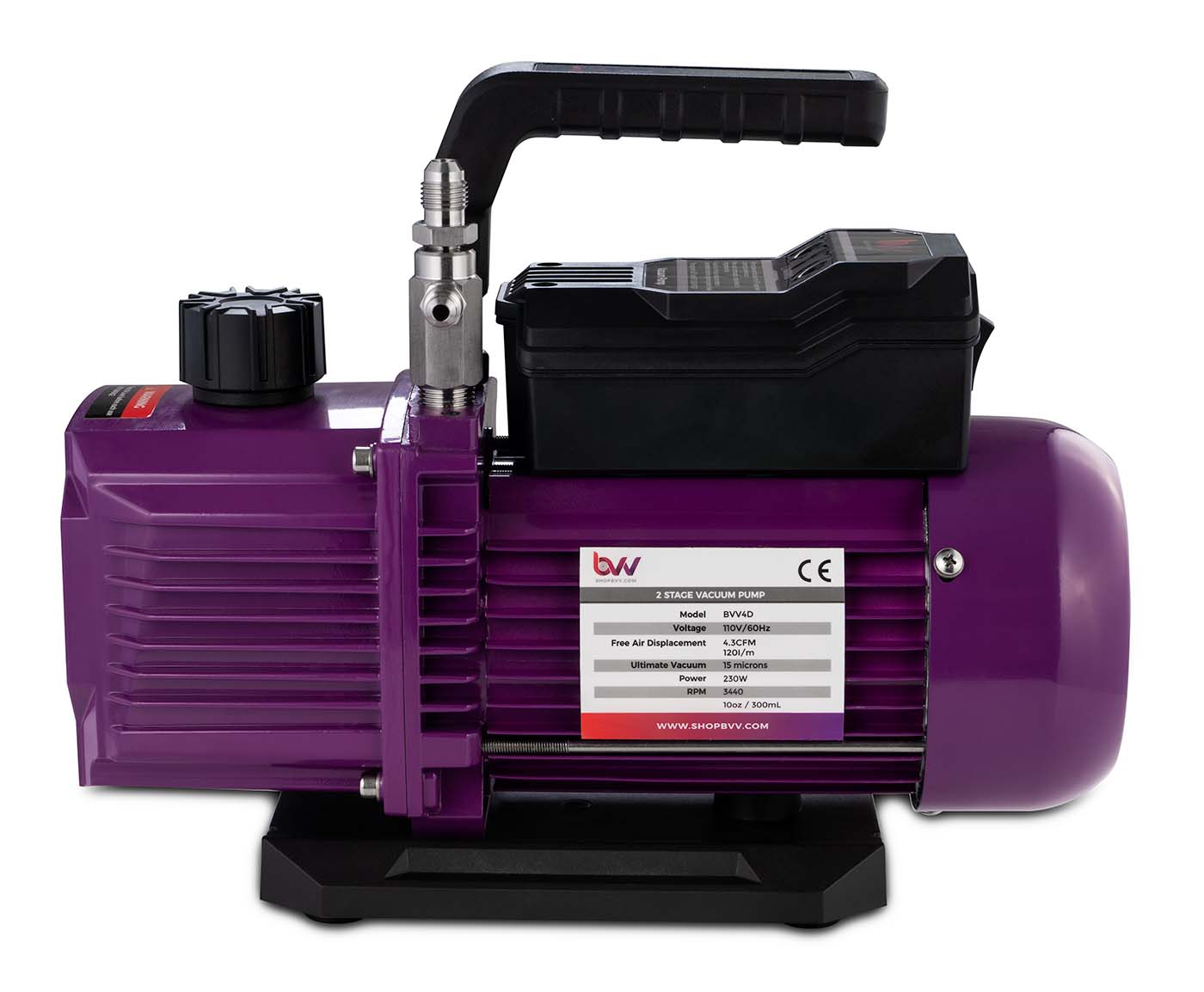

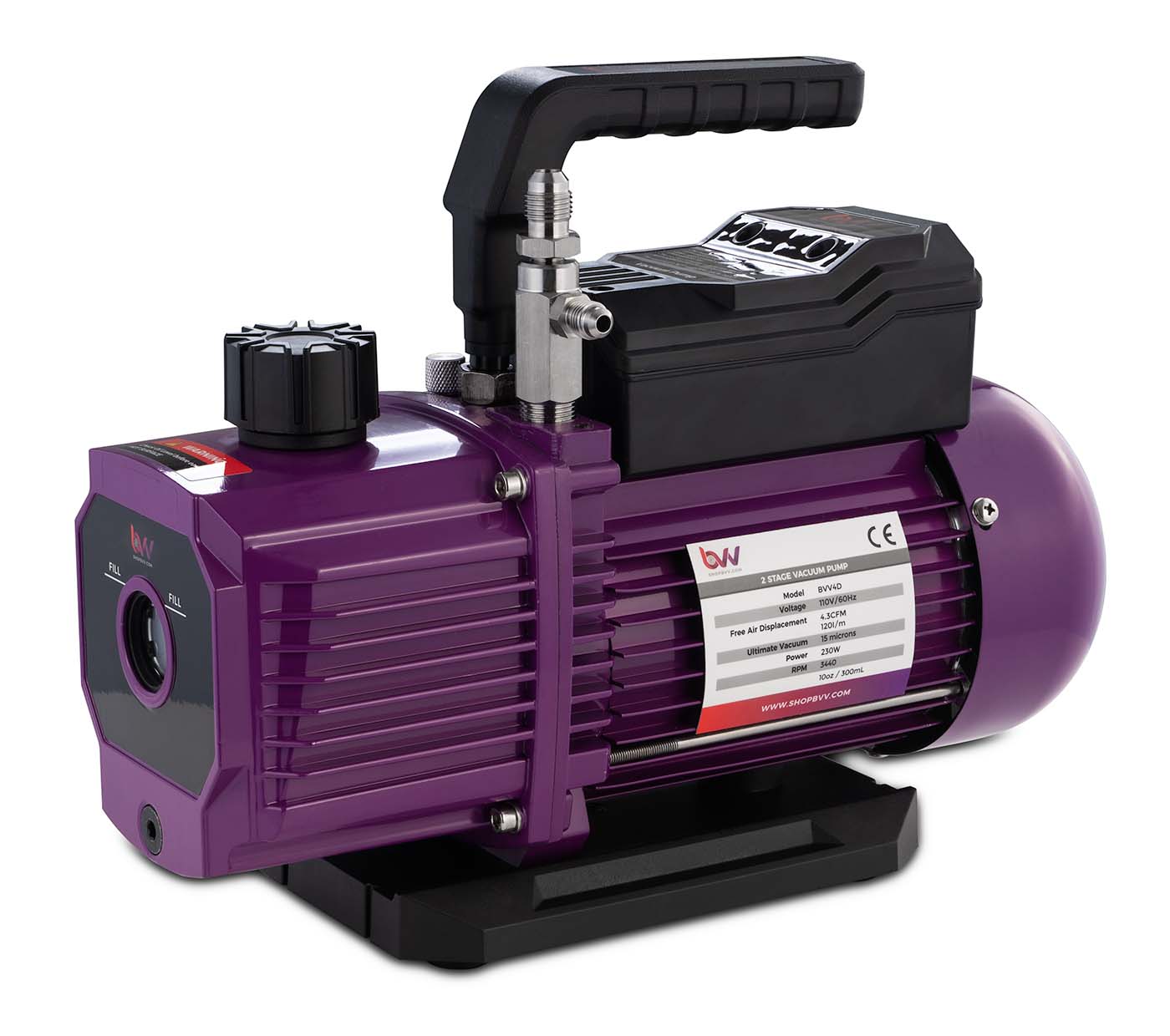

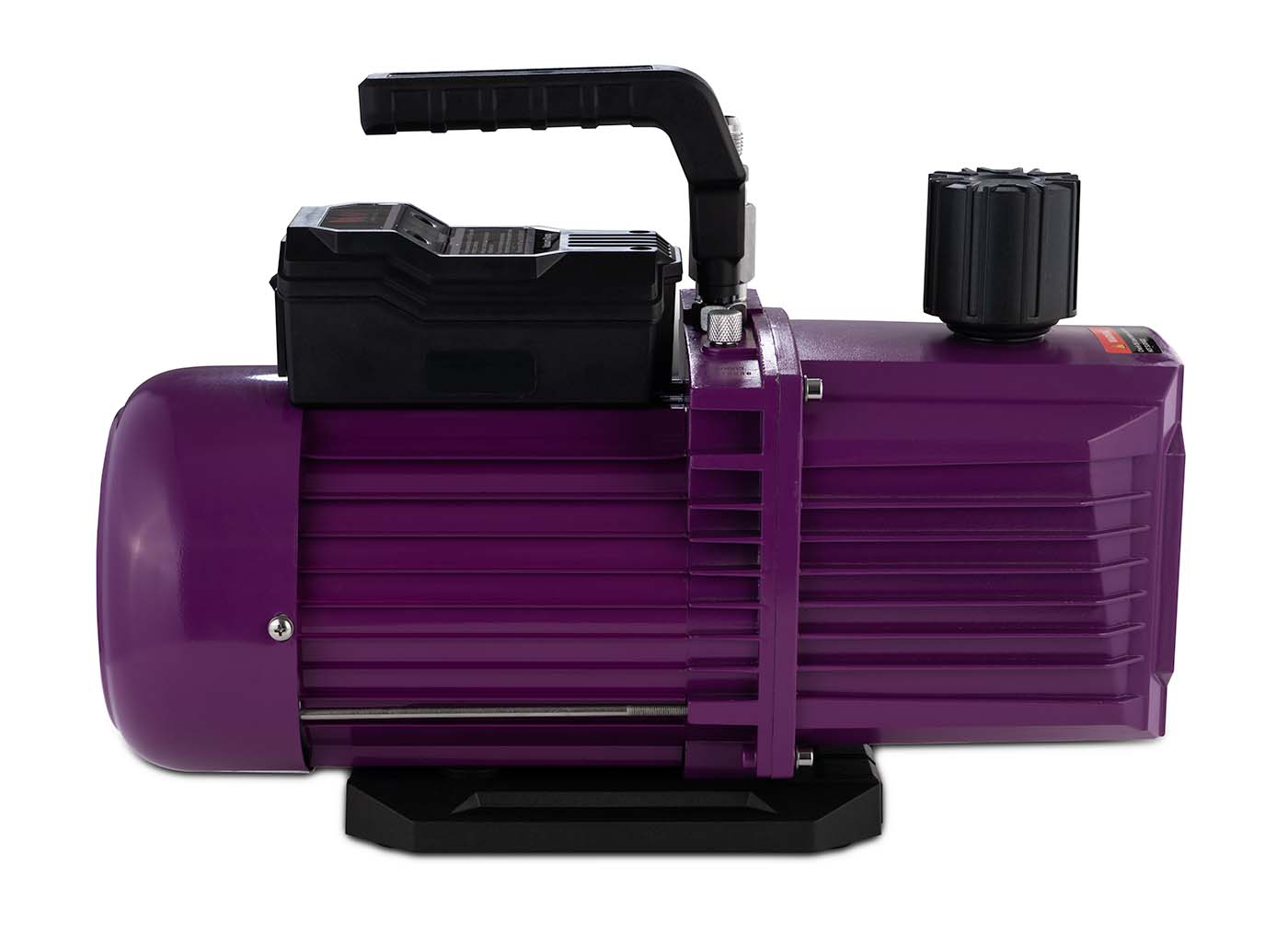

0.9CF ECO Vacuum Oven and V4D Vacuum Pump Kit

SKU: 09ECOV4D

$1,515.00
Quantity:

0.9CF ECO Vacuum Oven and V4D Vacuum Pump Kit


DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in WELL-VENTILATED AREAS!

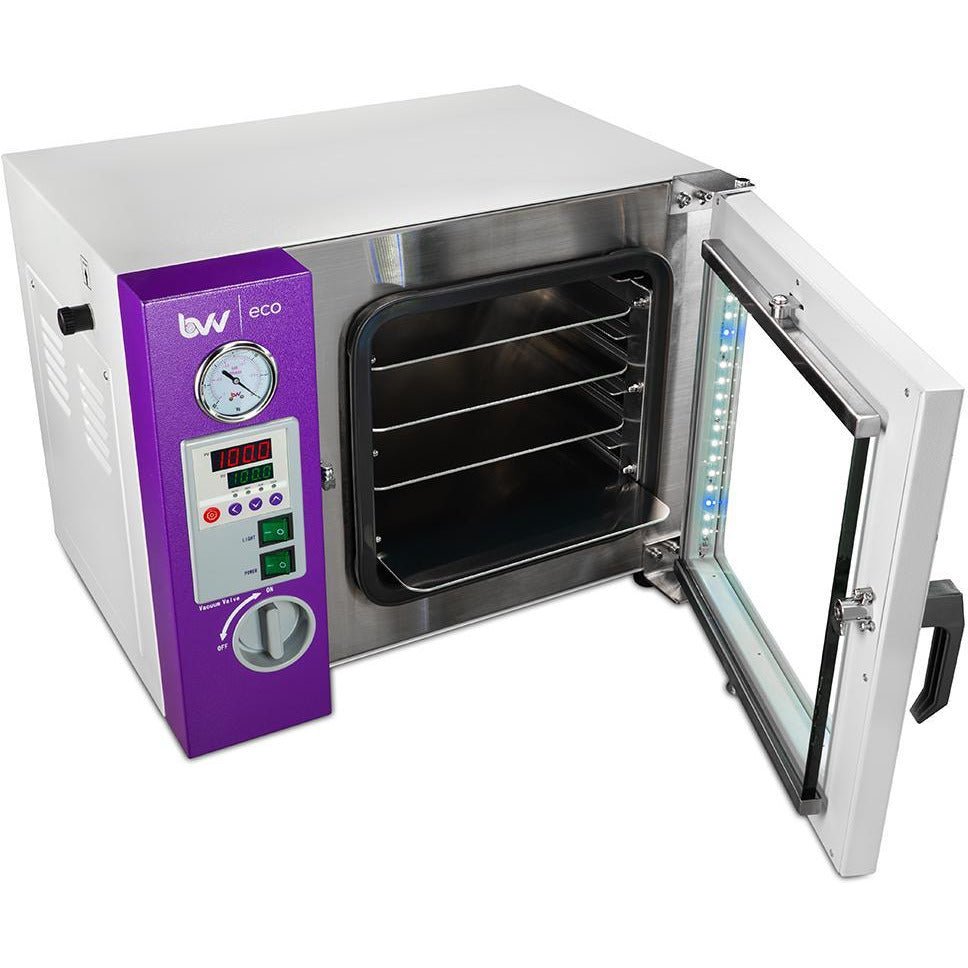

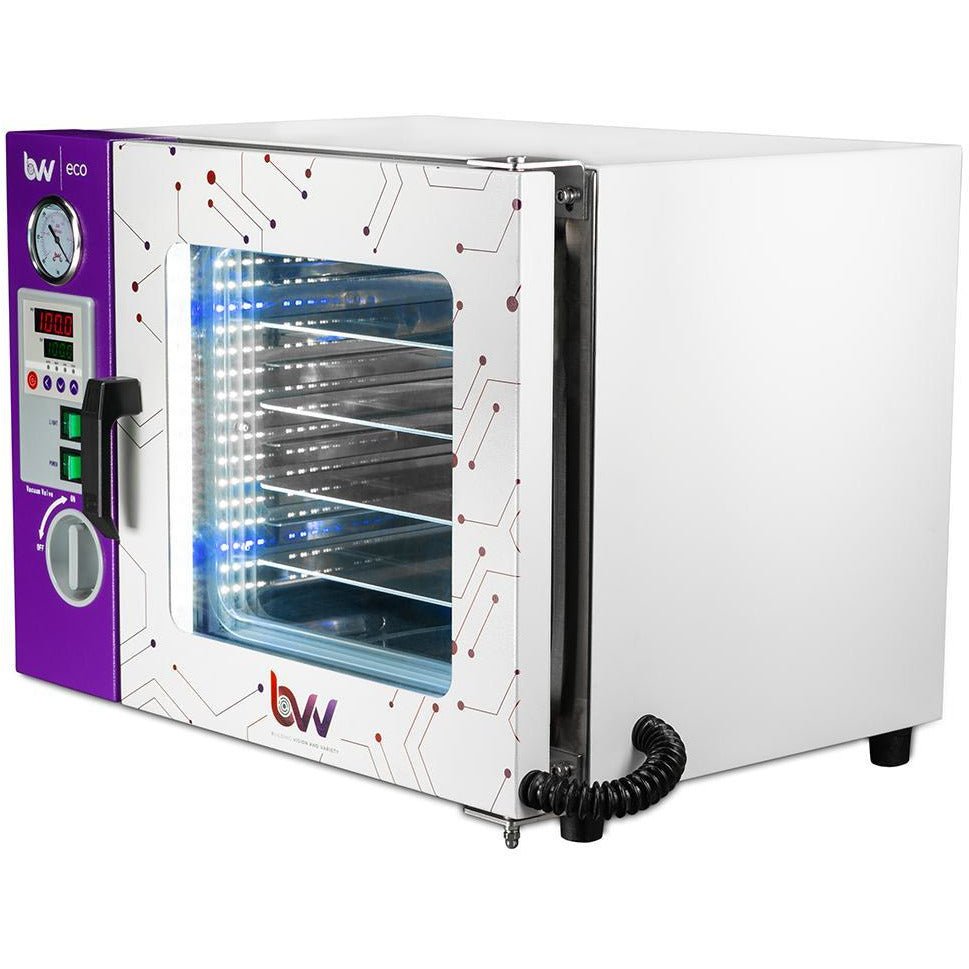

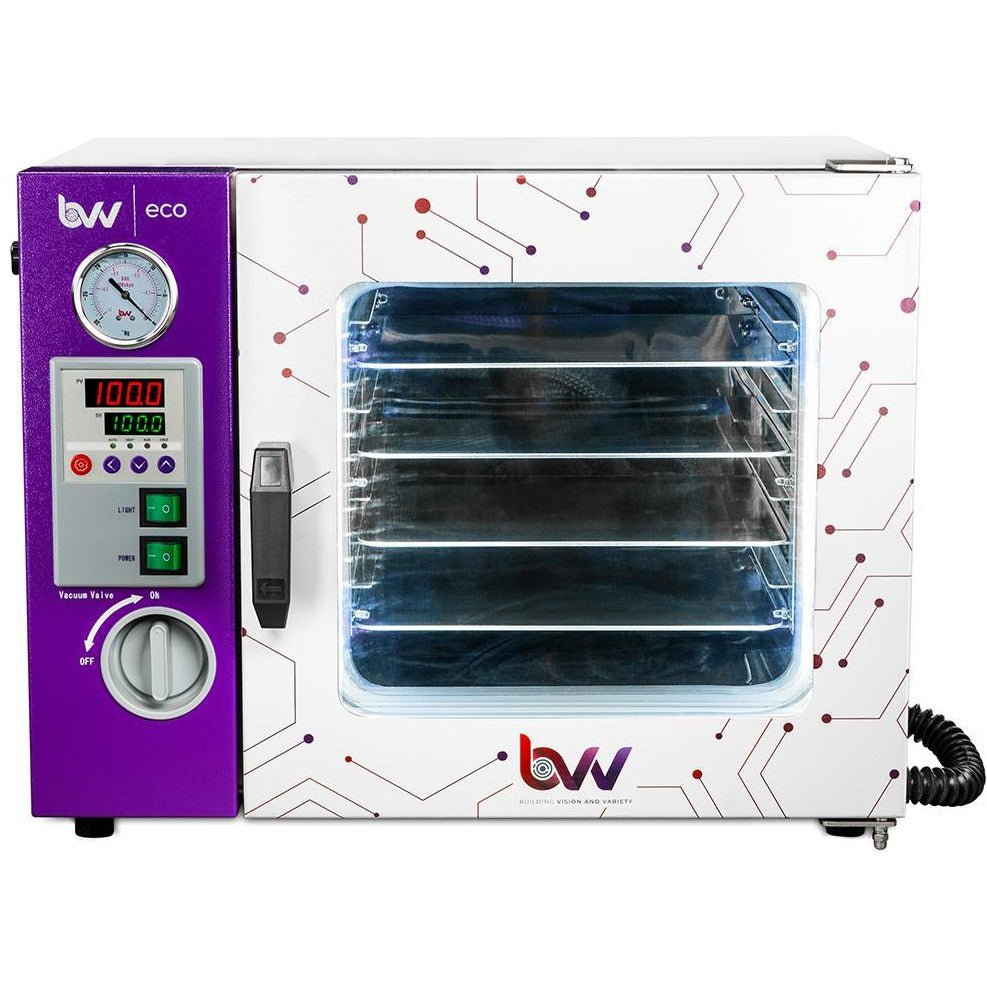

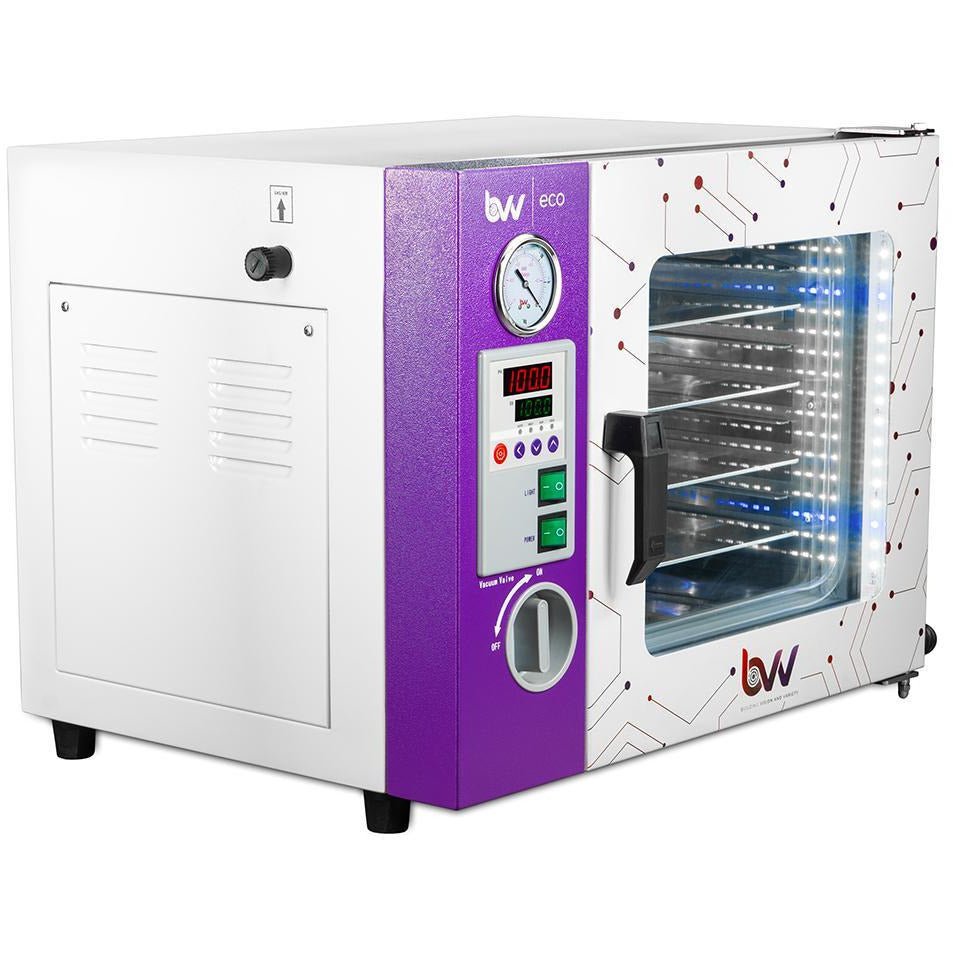

0.9CF ECO Vacuum Oven - LED - 4 Shelves Standard






Our ovens offer:

  • The guaranteed industry standards ability to lose less than 1” Hg over a 24-hour period.
  • Reliable deep vacuum that reaches below 0.1 torr. with stainless steel compression-fit tubing and stainless steel instrumentation valves.
  • Uniform heat which is key to an effective oven. Our ovens offer 7% temperature uniformity across all shelves with offering ±1⁰ stability in temperature.
  • Comes standard with the maximum number of shelves and a well-lit LED interior.
  • Items Included: 5' 37⁰ female flared HVAC hose; USA power cord; and oven operation manual. You’ll get the complete package only with BVV.
  • 2 year limited warranty

    Key Oven Features:

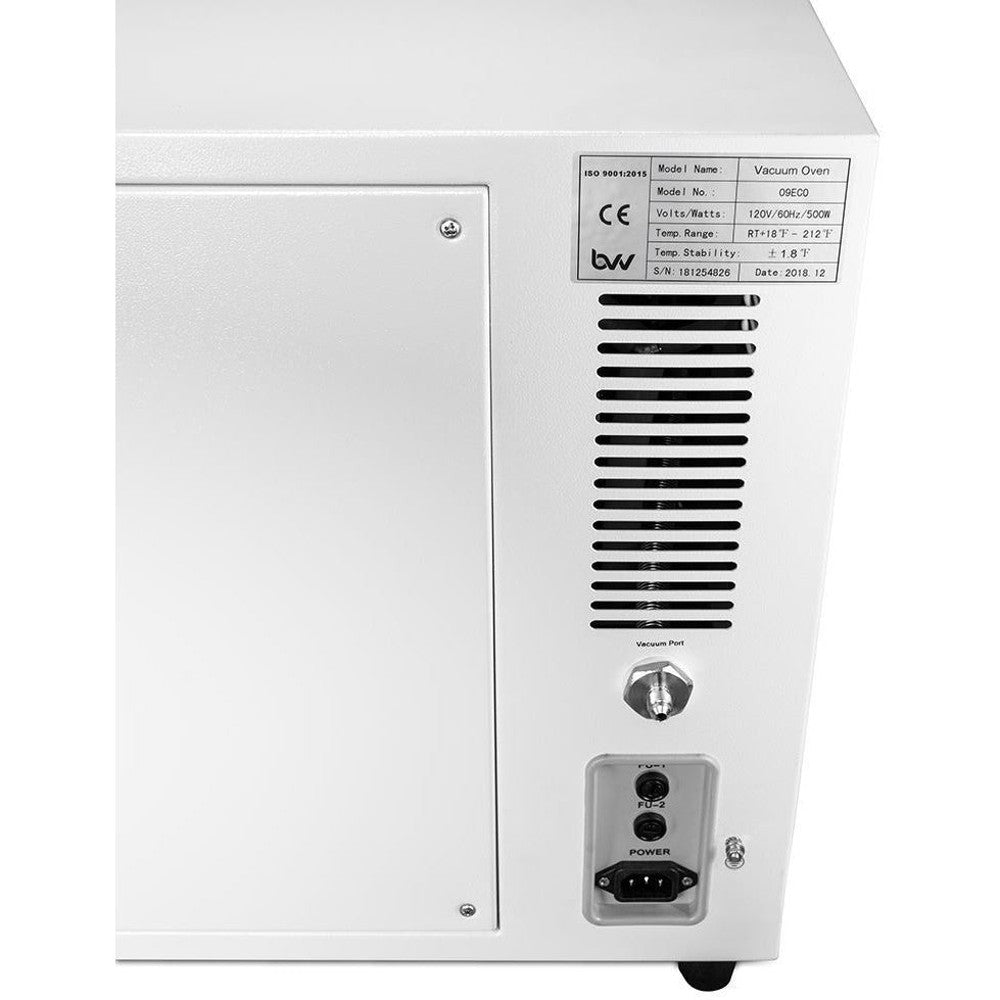

    • 1/4" JIC Vacuum Port with included 5' HVAC Hose
    • Easy Vac-Release Dial allows release of vacuum without disconnecting pump or purge
    • Stainless steel interior for a sanitary, easy-to-clean look
    • Overload circuit breaker for electrical protection
    • Comes standard with 4 (0.9CF Eco models) or 5 shelves (1.9CF Eco models)



      Specifications
      Electrical 120 VAC / 60Hz / 700W / USA Plug
      Internal Chamber
      • Four Wall Heating
      • Material: Polished Stainless Steel
      • Dimensions (LxWxH): 11-1/2" x 11-3/4" x 10-3/4"
      Temperature Control
      • LED PID Controller
      • Temperature Range: Room Temperature - 212⁰F
      • Temperature Stability: ± 1.8⁰F or ± 1⁰C
      • Automatic Over Shoot Shut Down
      • Over Temp Alarm
      Vacuum Gauge Ranging from -1inHG to -30inHG
      Maximum Vacuum Level -29.9” Hg / -75.4 cmHg / -1 MPa /
      Shelves
      • Up to 8 sliding shelves at one time
      • Reinforced steel with sides to secure product
      • Shelf Capacity (area): 129 in2
      • Total Shelf Capacity: 1035 in2 or 7.2 ft2
      • Dimensions (LxW): 11-3/8" x 11-3/16"
      Door
      • ½” Tempered Glass window with LEDs
      • Window Dimensions (LxH): 11-3/4" x 11"
      • Replaceable Gasket material: Silicone
      Weight & Dimensions
      • Outside Dimensions (LxWxH): 24.5”w x 22”d x 21”h
      • Weight: 115lbs
      Compliant
      • CE Listing Recognized
      • ISO 9001: 2008
      • ISO 13485: 2003
      • Manufactured in Acc. w/ Q/TIWY7-2004
      • IEC68-2-3



      Note: This oven does NOT contain a vacuum pump. External pump is required to achieve vacuum pressure.


      Note: This item is a freight ship item and will ship Via UPS Ground Freight. Expedited freight can only be calculated by calling customer service 331-281-0154. All orders with expedited freight through the website will not be honored and will need to be re-quoted. A valid Phone Number IS REQUIRED to ship, Otherwise UPS freight Cannot Contact you for a delivery setup window. Freight Time is 2-5 Days. West Coast 5 Days, Midwest 2 days, East Coast 3-4 days.
