Faven - Controllers

Brand: Faven

Faven Lighting Controllers

Faven lighting controllers give operators direct control over Faven R-Series and Chroma fixtures without a third-party control system. Choose the Mini Controller for simple 0-10V intensity adjustment, or the CX3 standalone controller for two-channel dimming, spectrum adjustment and far-red scheduling.

The Mini Controller plugs into the RJ communication line on the fixture power cord to set intensity for zones or genetics that are sensitive to high light levels. The CX3 runs two independent channels with manual operation or time-based scheduling, so operators can dial in lighting strategies room by room in commercial indoor cultivation and controlled-environment agriculture facilities.

Available Options

• Mini Controller - 0-10V dimming for Faven R-Series (R6, R8) fixtures; controls up to 100 fixtures; not compatible with Chroma

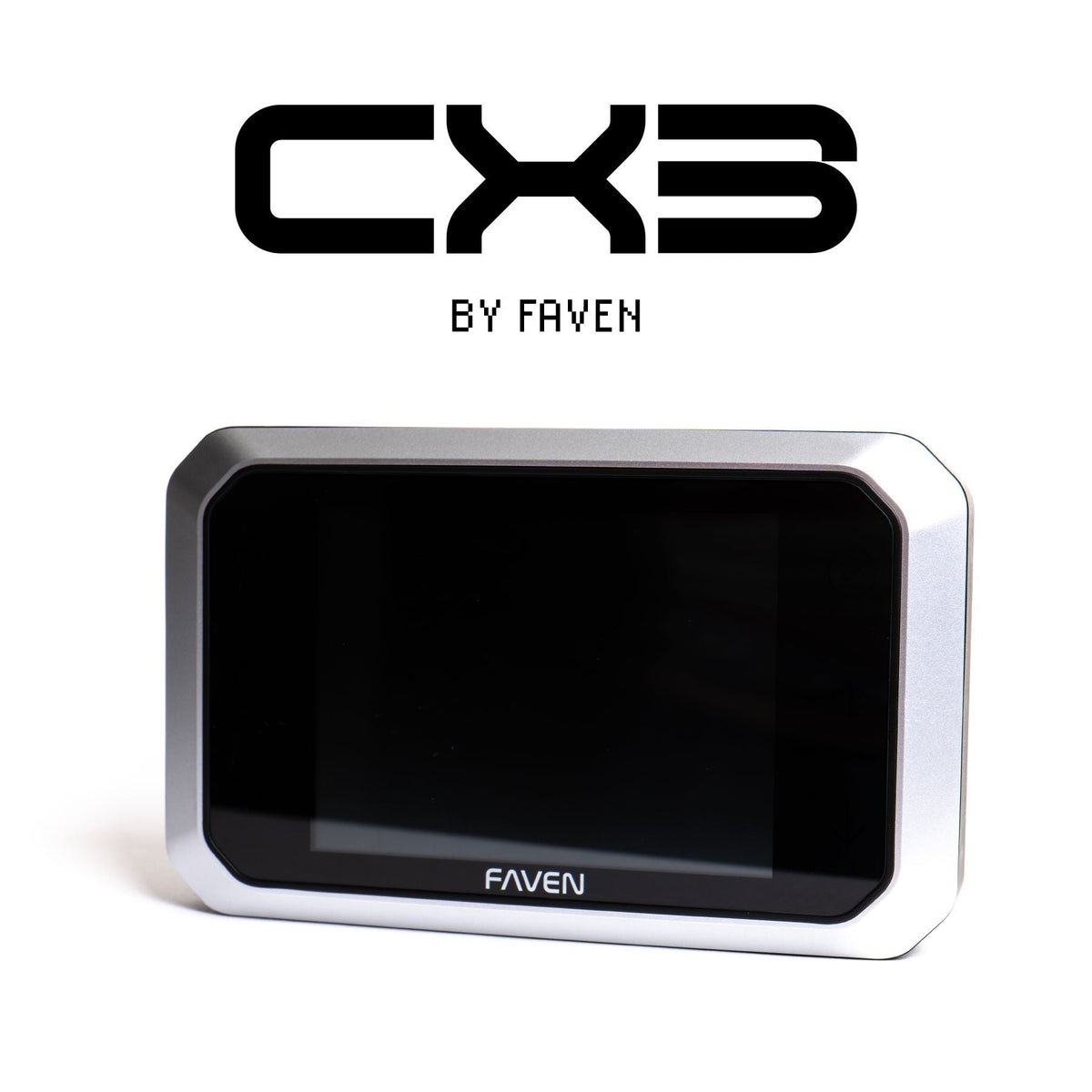

• CX3 Controller - for Faven R6, R8 and Chroma fixtures; up to 100 fixtures per channel, 200 fixtures total; 3 year warranty

Key Features

• Standalone control with no third-party lighting system required (CX3)

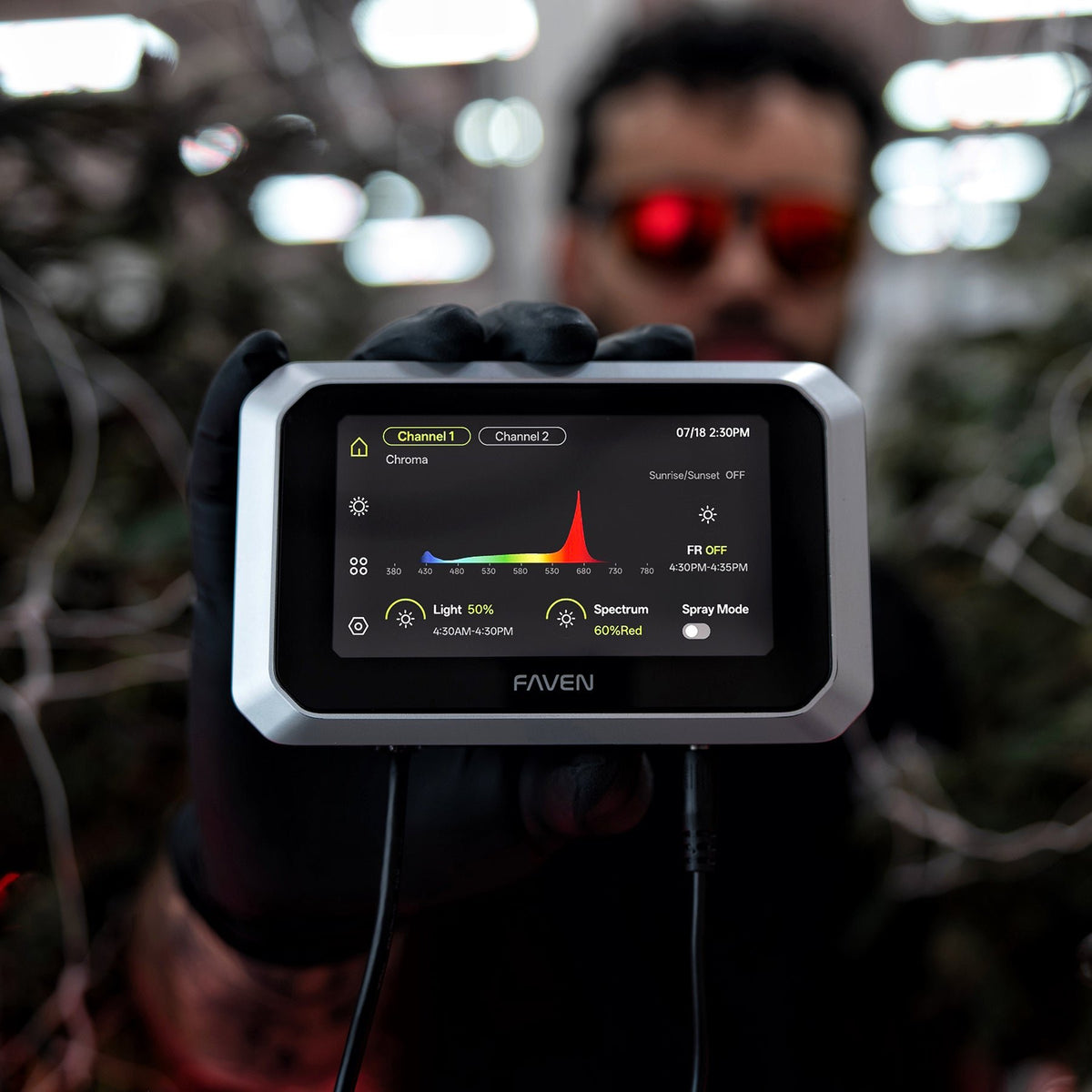

• Two independent channels with direct dimming, spectrum adjustment and far-red scheduling (CX3)
• Manual operation or time-based scheduling (CX3)
• Mini Controller: + and - buttons step intensity through levels 1-9, with F for full power
• Mini Controller connects through an RJ jack to the communication line on the fixture power cord
• Mini Controller adjusts intensity only - it does not switch fixtures on or off and cannot replace a timer

Ideal Applications

• Rooms running Faven Chroma under-canopy fixtures
• Faven R6 and R8 fixture installations
• Dimming zones or genetics that are sensitive to high light levels
• Smaller operators and first-time Chroma users who want simple control without a third-party system
• Commercial indoor cultivation and controlled-environment agriculture facilities
