TrolMaster - Aqua-X Plus Irrigation Control System (NFS-3)

Brand: TrolMaster
Sign in to see your pricing
Sale price$1,322.00
SKU: BL207871

TrolMaster Aqua-X Plus Irrigation Controller (NFS-3)

The TrolMaster Aqua-X Plus (NFS-3) is a professional-grade, multi-zone irrigation control system and an upgraded version of the Aqua-X. It features a 7 in. 800x480 LCD touchscreen, advanced pump and solenoid control functions and greatly expanded device capacity, and it works with the free TrolMaster app over a standard CAT5 network connection.

The NFS-3 can control up to 240 devices and monitor up to 25 sensors, including pH, EC, temperature, water content and grow medium temperature and EC, with historical data and alarm notifications on the controller or smartphone. With optional WCS-1 or WCS-2 water content sensors it can automate irrigation for crop steering based on substrate water content, and Multiple Pump Link functions let operators pair different pumps with different valves for varied irrigation tasks.

Available Options

  • Model: NFS-3
  • Includes: NFS-3 controller, AMP-3 sensor board, 12V power adapter, RJ12 cable set and mounting plate
  • Works with optional WCS-1 / WCS-2 water content sensors for crop steering

Key Features

  • 7 in. touchscreen (800x480) with free smartphone app control
  • Crop steering irrigation function based on grow medium water content
  • Controls up to 240 devices and monitors up to 25 sensors (pH, EC, temperature, WC%, medium temperature, medium EC)
  • Multiple Pump Link functions for linking pumps with different valves
  • Historical data logging with alarm notifications when setpoints are exceeded
  • Max distance to connected devices and sensors: 1000 ft / 300 meters
  • Input voltage: 100-240VAC, 50/60Hz; ETL/FCC certified; IP20
  • Working environment: 31 to 104 deg F, 90% humidity or less

Ideal Applications

  • Automated multi-zone irrigation in commercial indoor cultivation and controlled-environment agriculture
  • Crop steering programs driven by substrate water content and EC readings
  • Facilities monitoring reservoir pH, EC and temperature alongside irrigation control
  • Operations running multiple pumps and solenoid valves from one controller

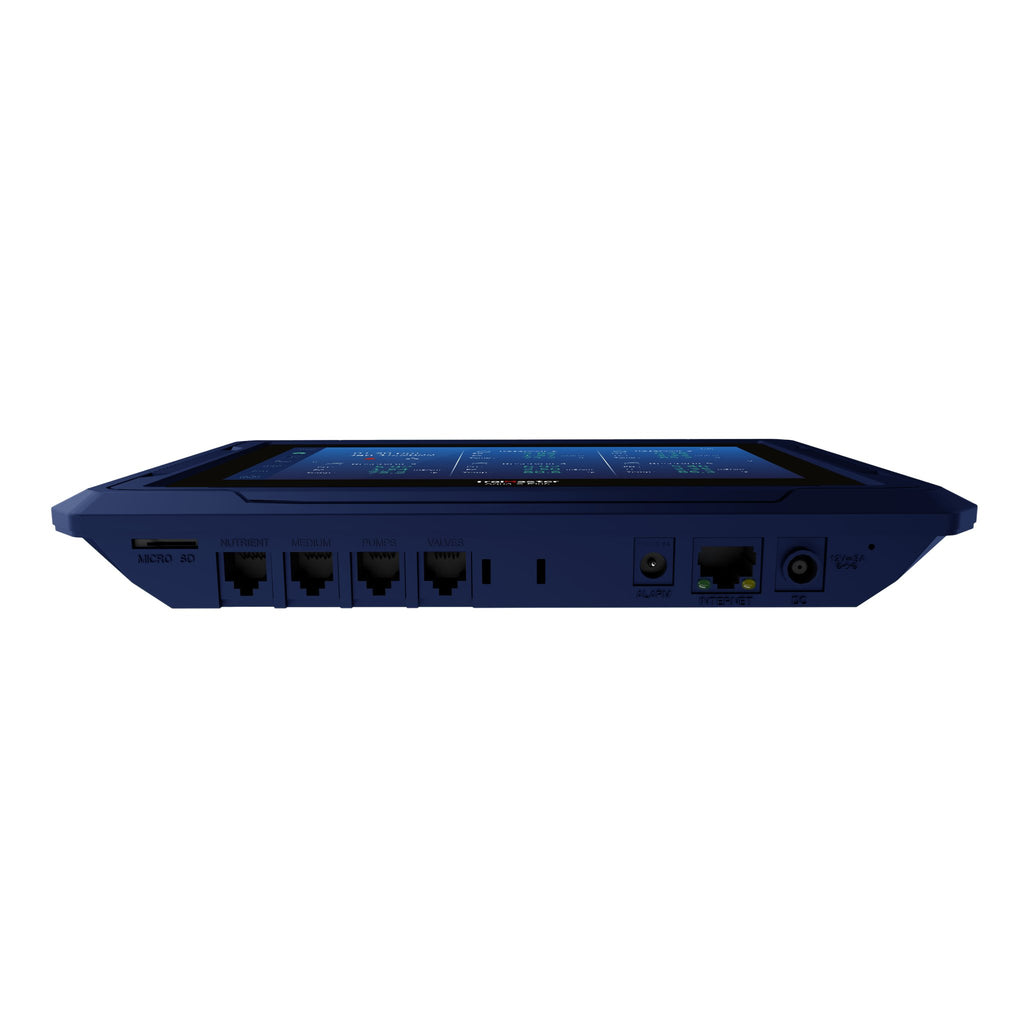

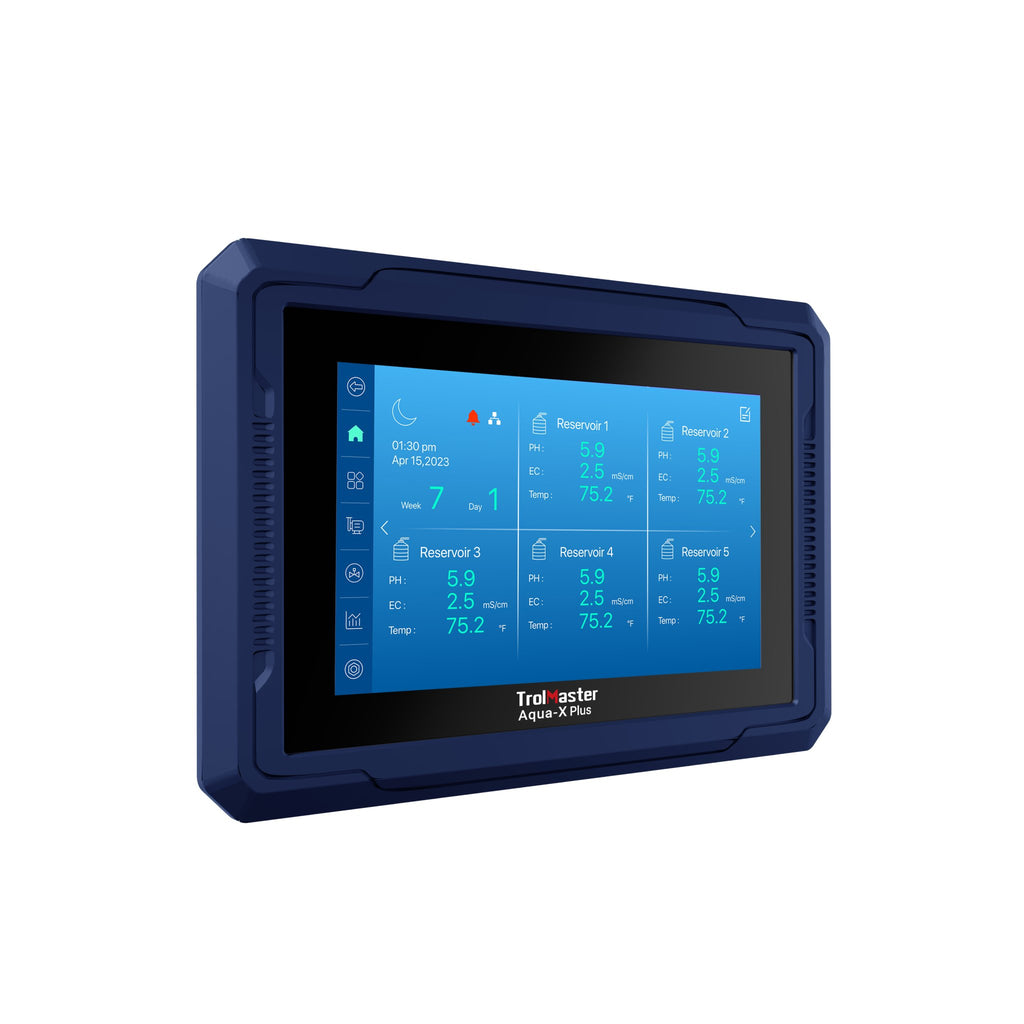

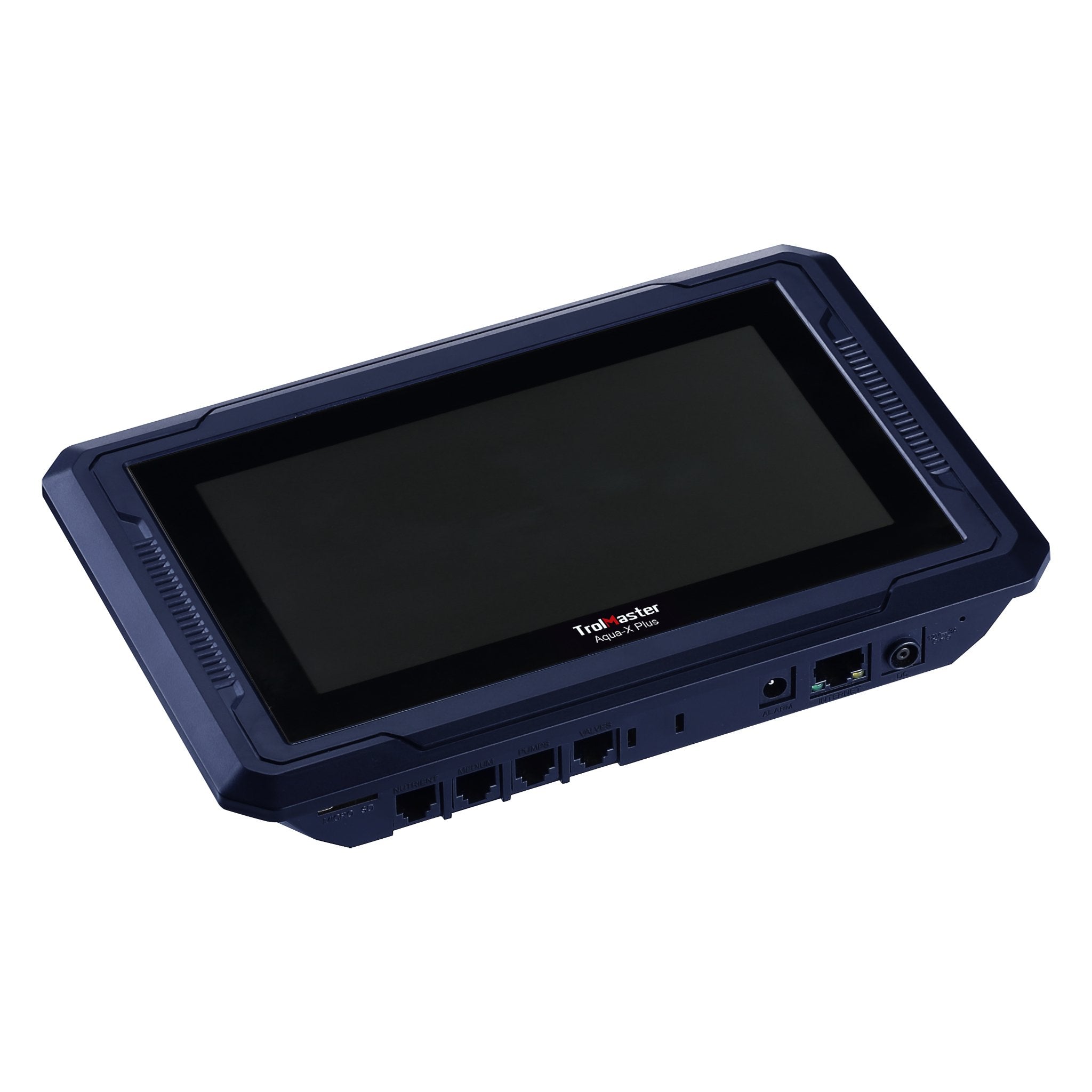

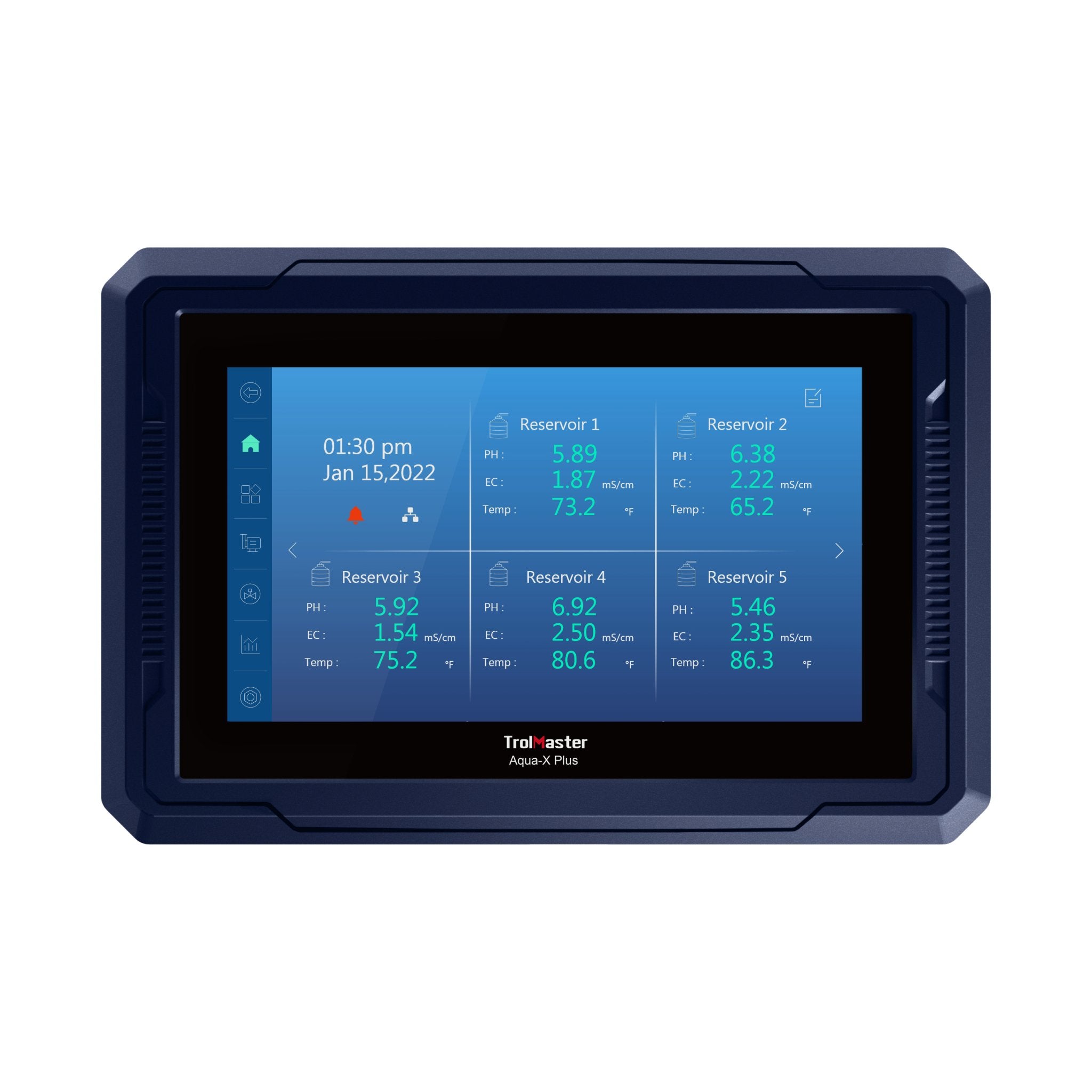

TrolMaster Aqua-X Plus Irrigation Control System (NFS-3) - Main Controller
